Atlas TC229DAA Rim-Clamp Tire Changer w/ Dual Assist Arms - ATETC229DAA-FPD

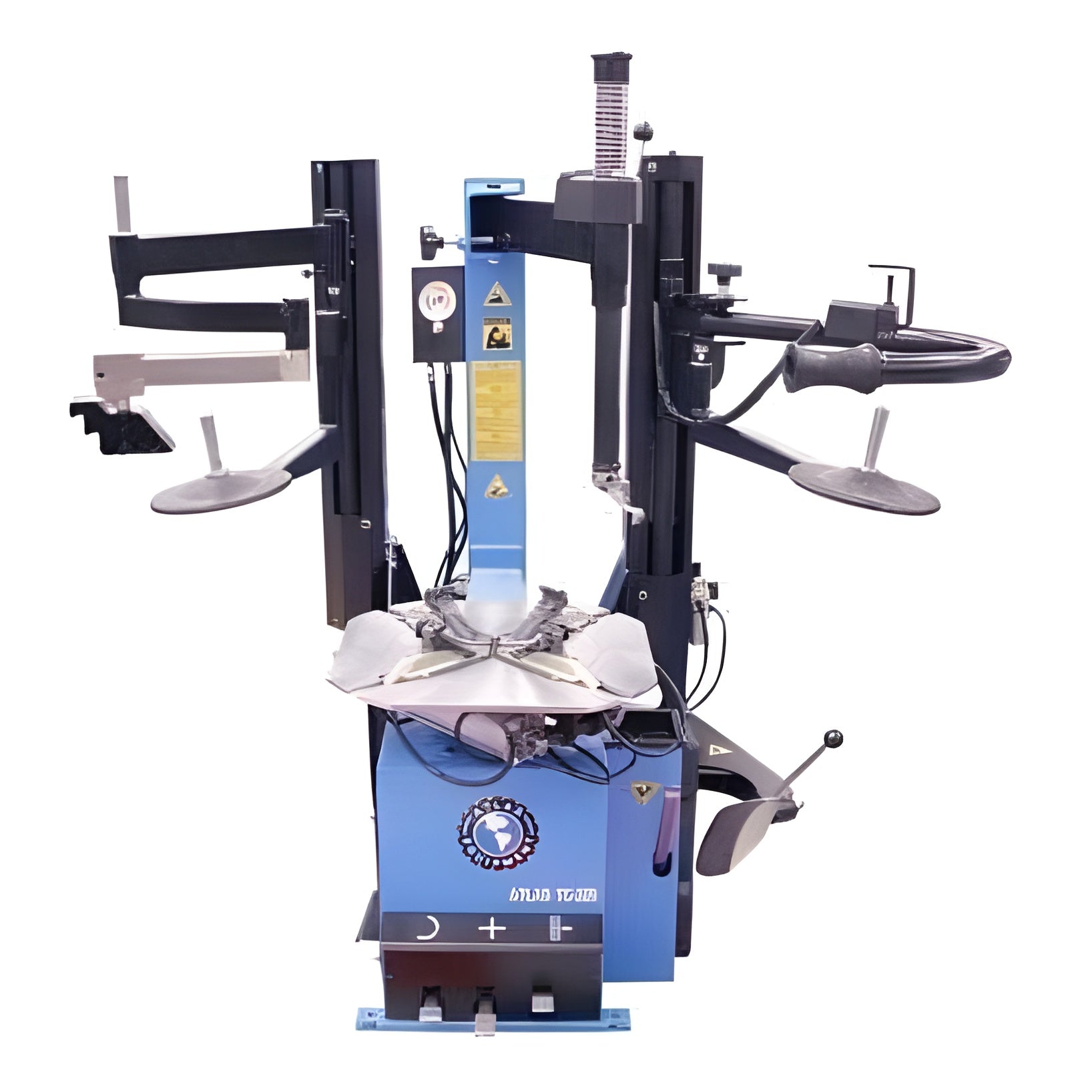

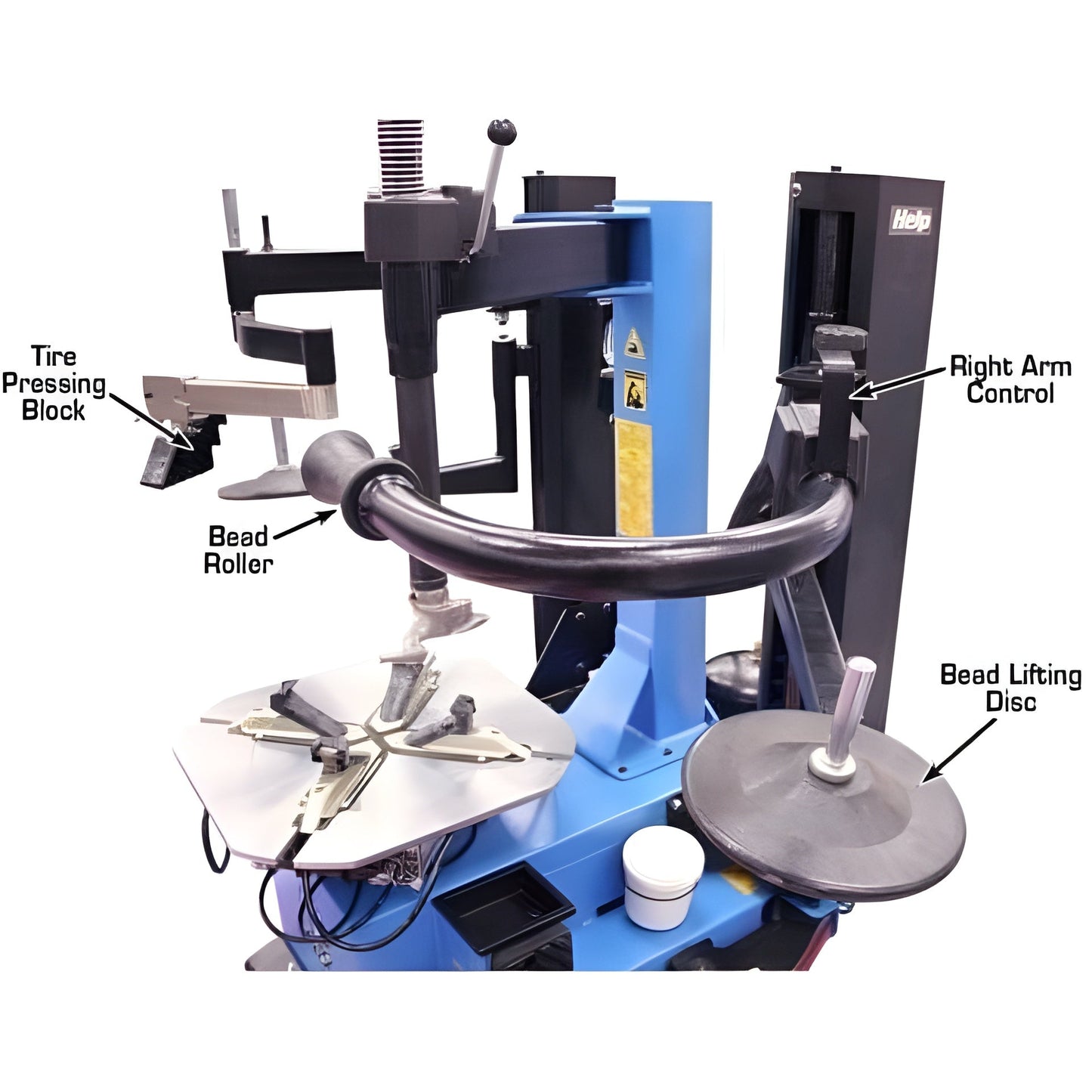

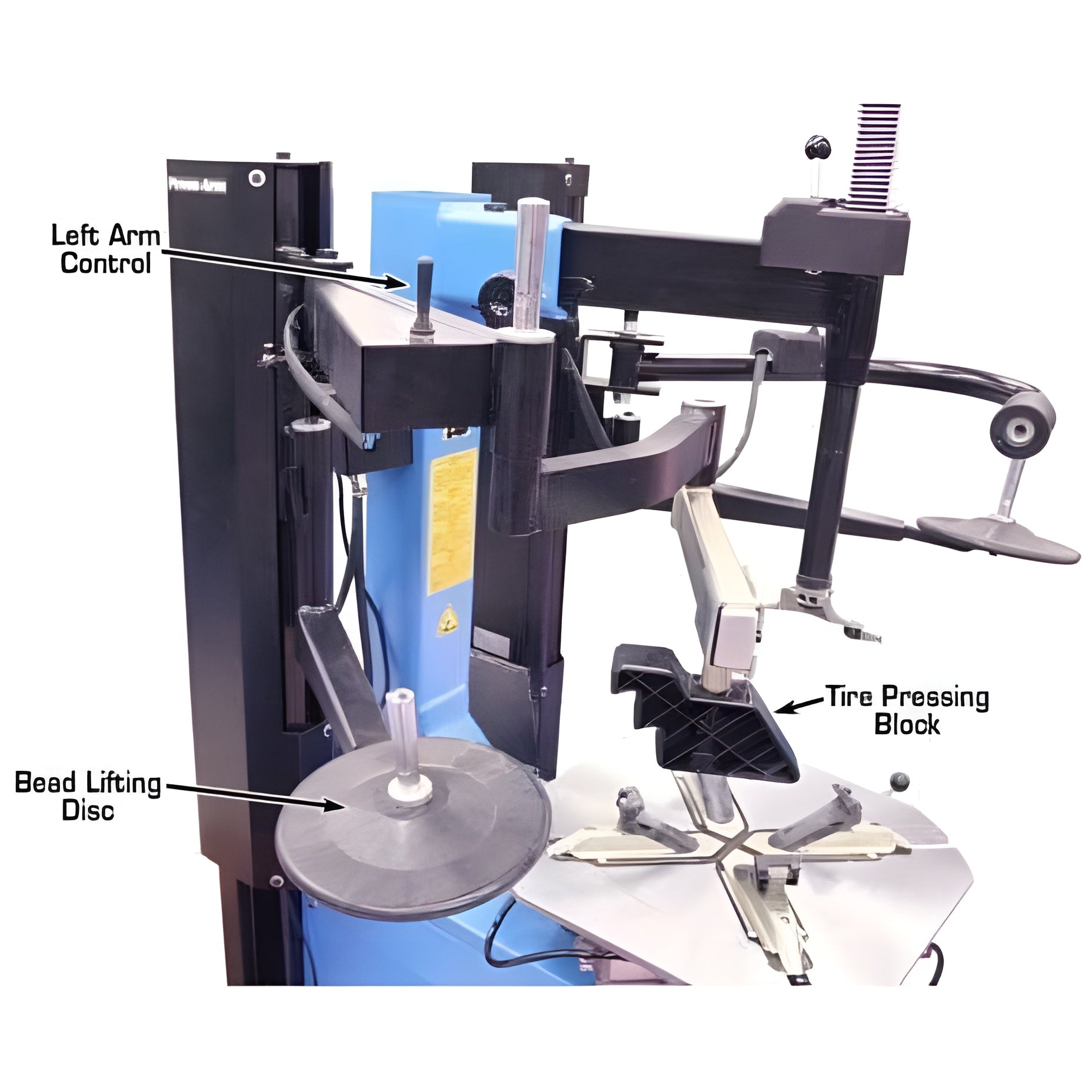

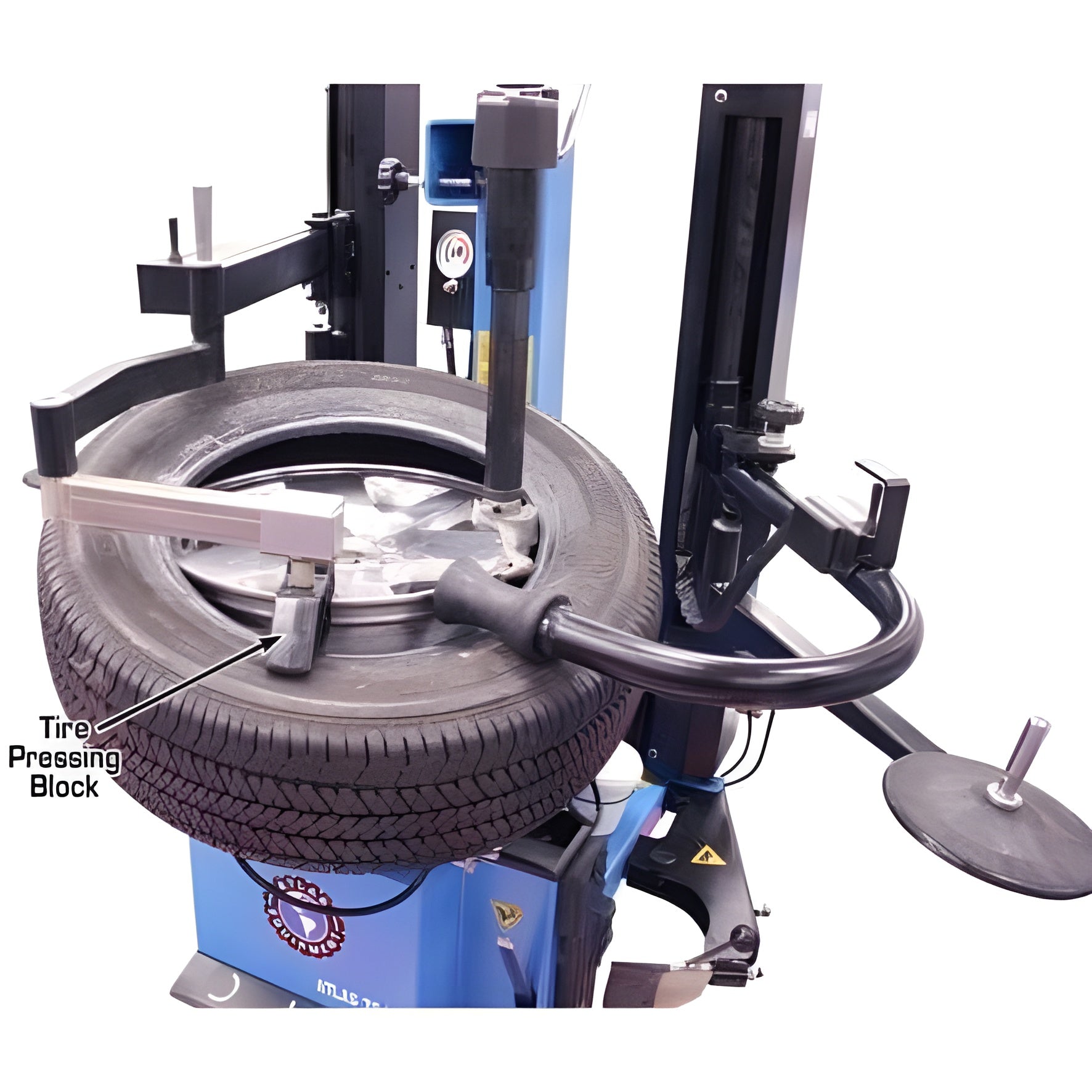

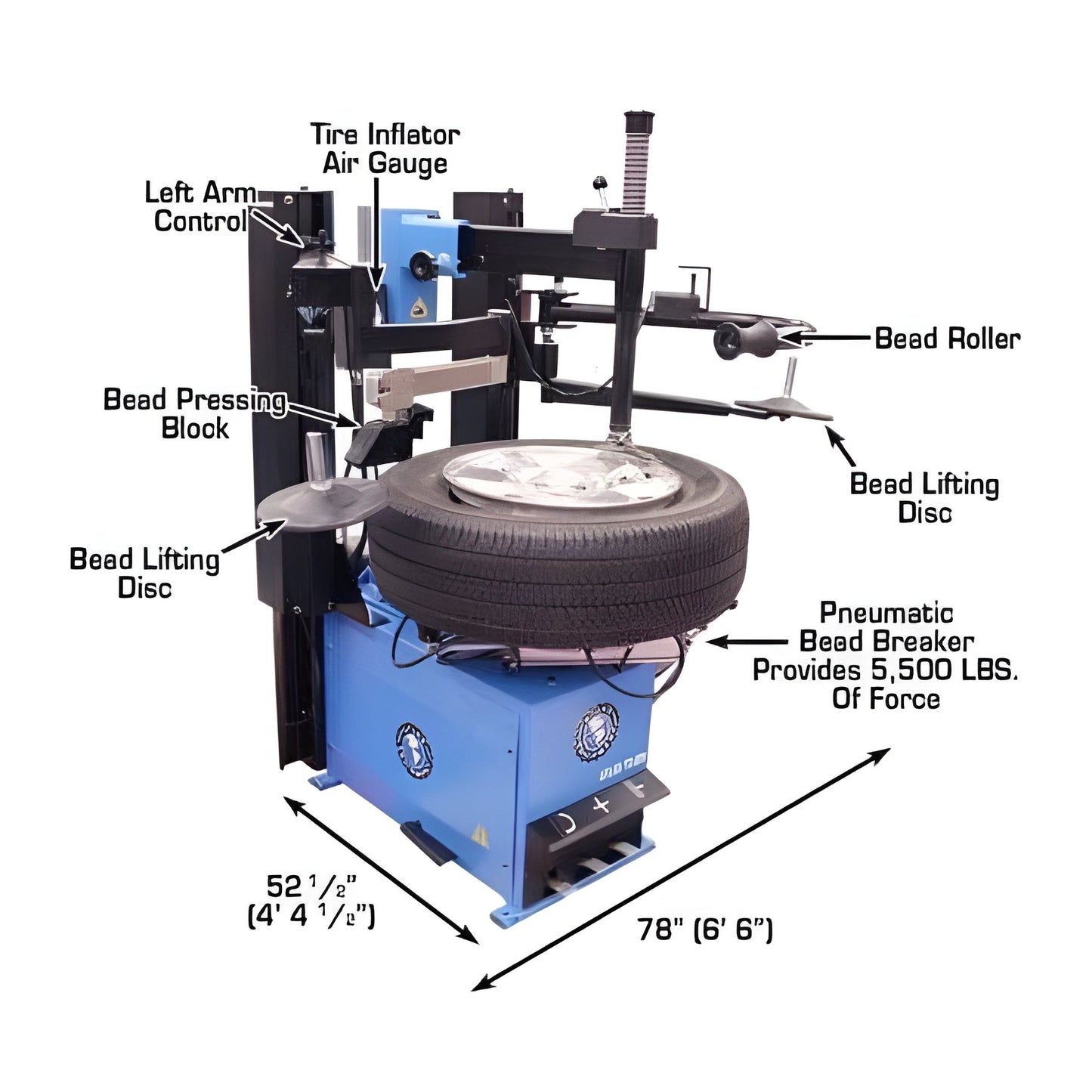

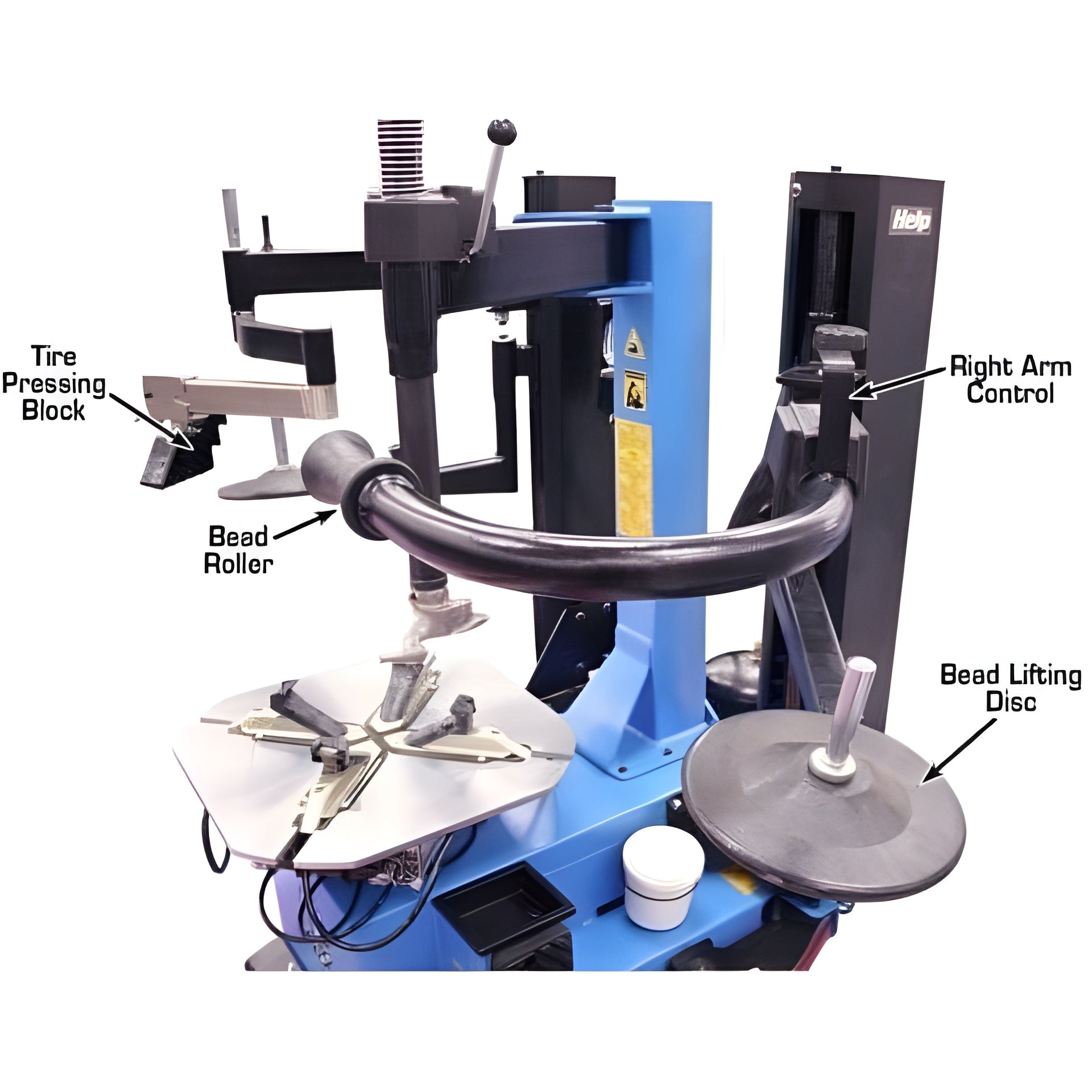

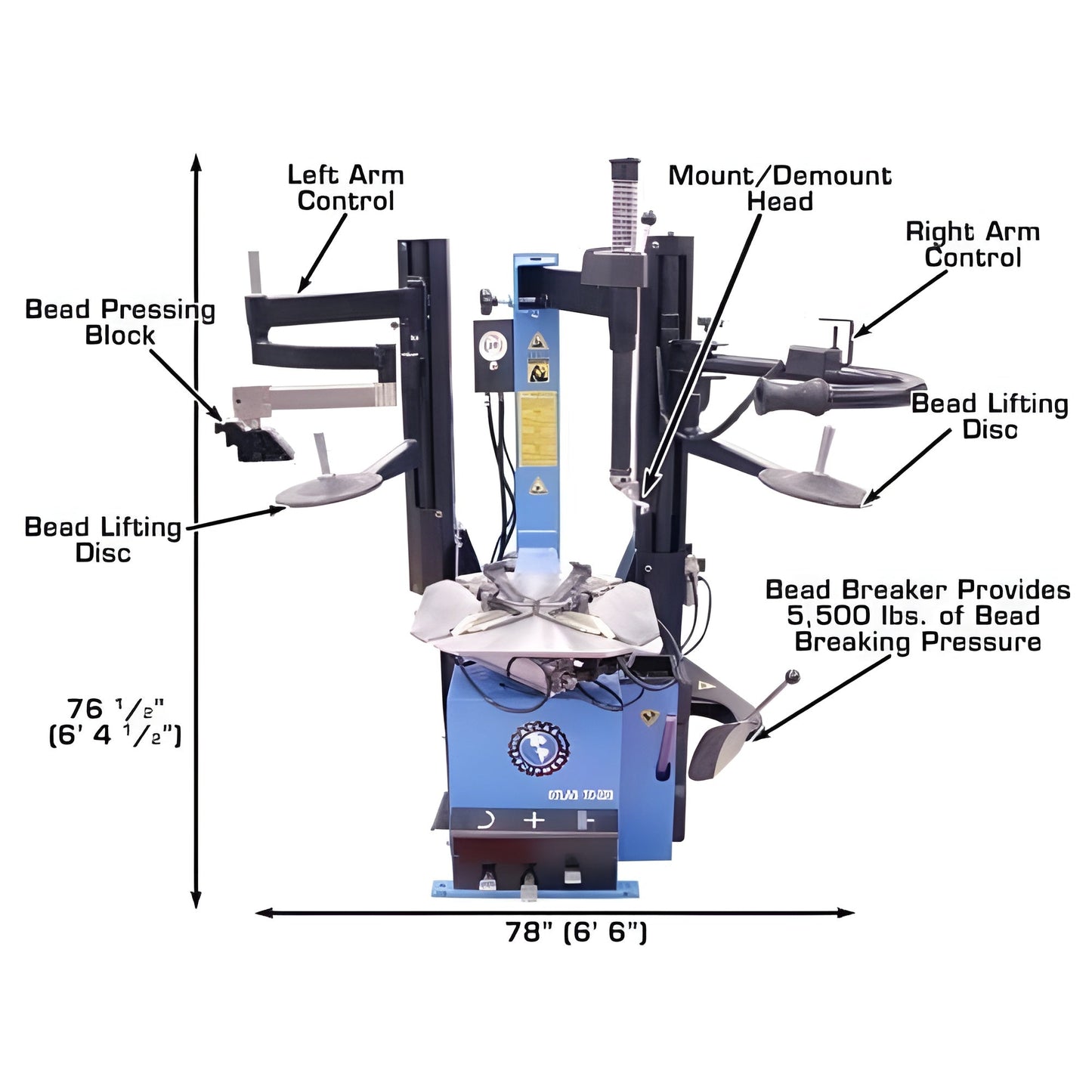

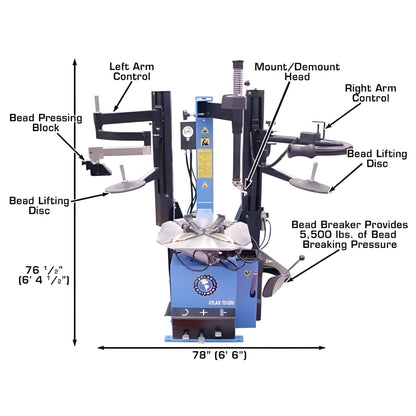

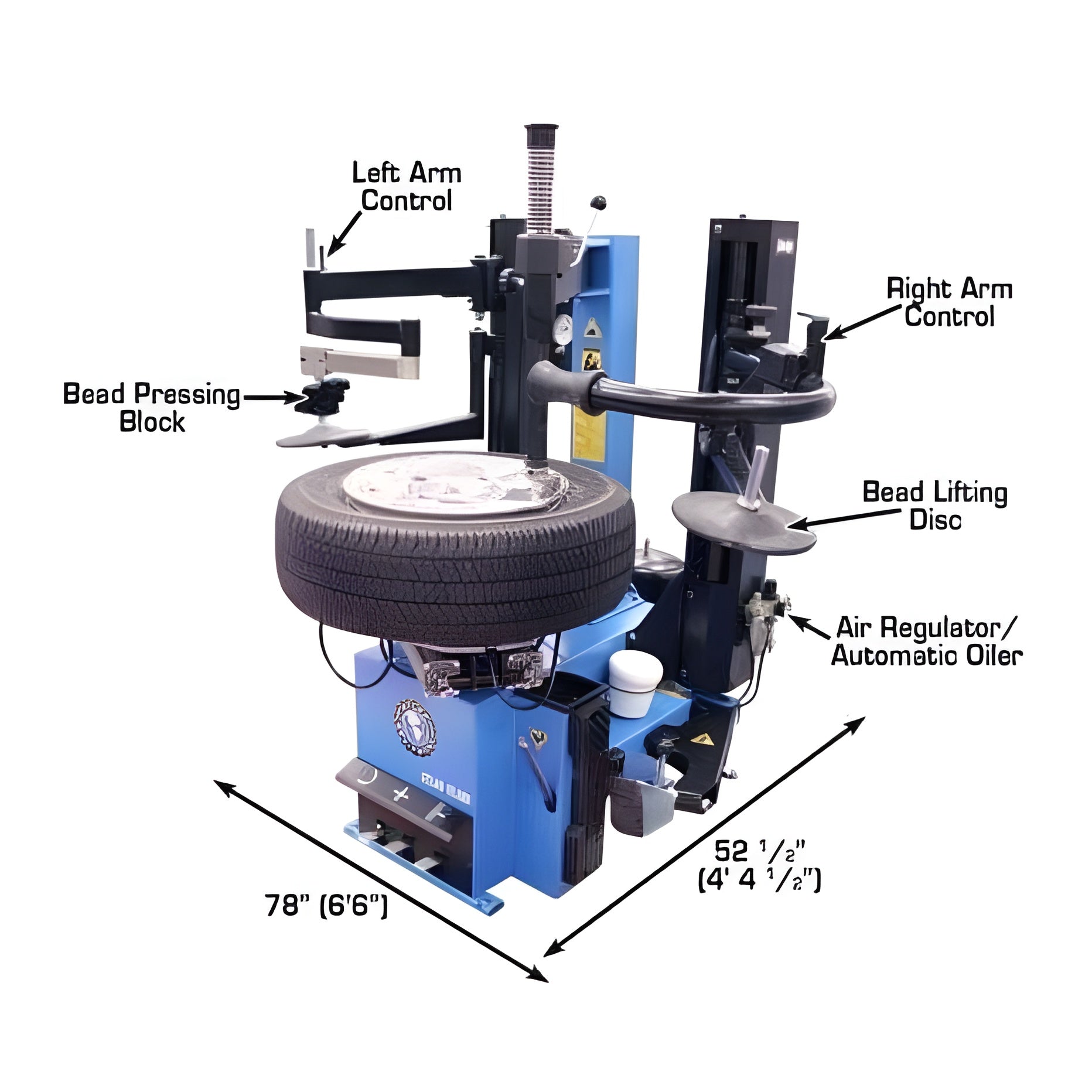

The Atlas TC229DAA rim clamp, swing arm tire changer is the perfect machine for homeowners, a small commercial garage or an ATV/Motorcycle dealer. This version of the TC229 comes with the Atlas DAA-SA dual assist arm package, made up of a left hand mounted arm with a pressing block and pressing/lifting disk and a right hand mounted arm with a pressing/lifting disk and bead roller. The dual assist arms are a necessary tool if you will be changing a high number of stiff sidewall, low profile, runflat style tires. The DAA acts as an extra set of hands saving a single user time and effort. The TC229 also features the added built in “Beadblaster” system. The “Beadblaster” system helps inflate stiff sidewall or other “hard to inflate” tires. If you are plan on changing larger pickup truck (1 ton), large SUV, or agricultural tires (either now or in the future), you may want to consider the Atlas TC289 tire changer.The Atlas wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The powerful bead breaker located on the side of the machine is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires.The Atlas TC229DAA requires some assembly after purchase.
Features
- Rim Clamp/Swing Arm Tire Changer
- Dual Assist Arms Included
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions

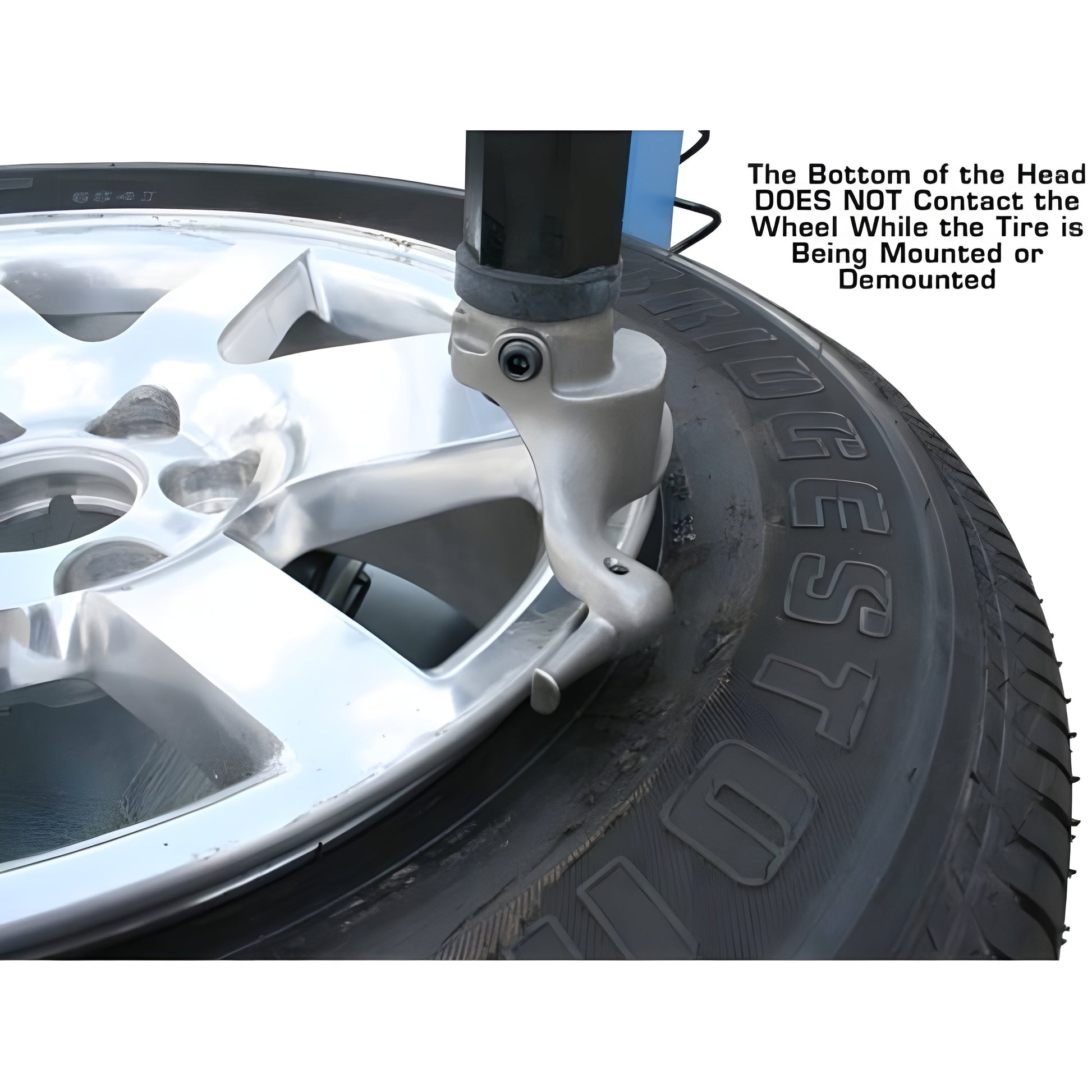

- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included

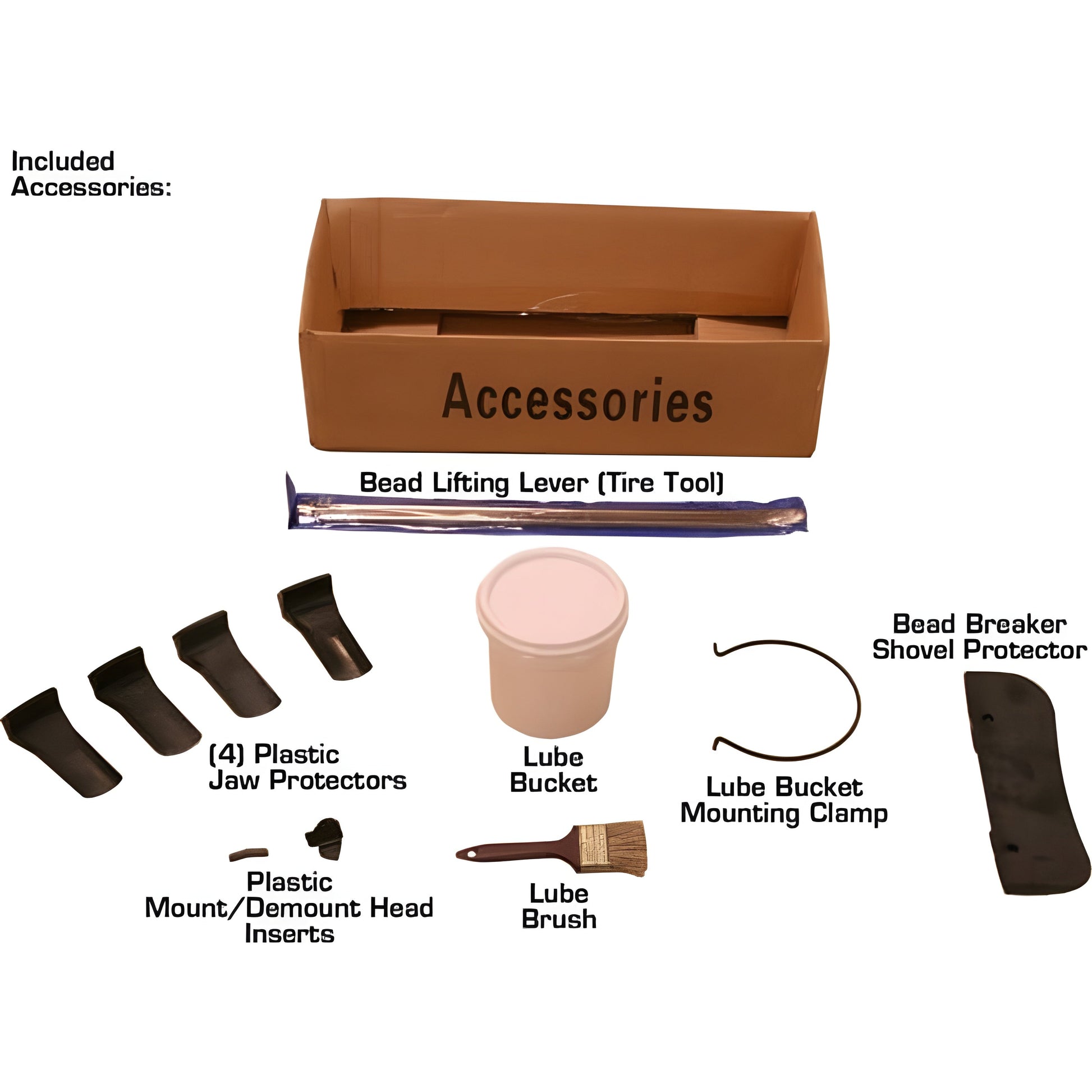

- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Motorcycle and ATV adapters available (sold separately)
- Built in “Beadblaster”
- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
Specifications
| Rims |
Steel, Aluminum, Alloy |

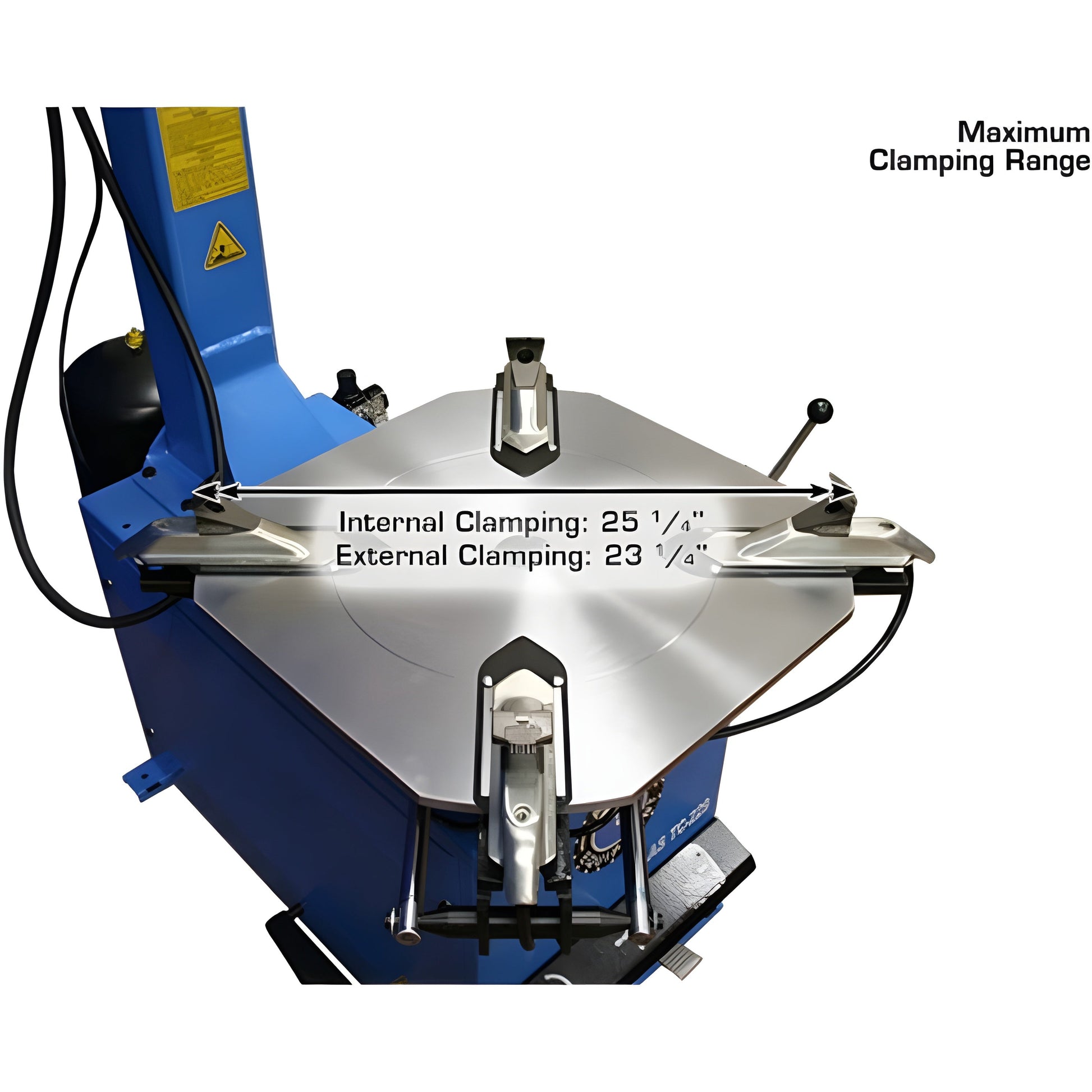

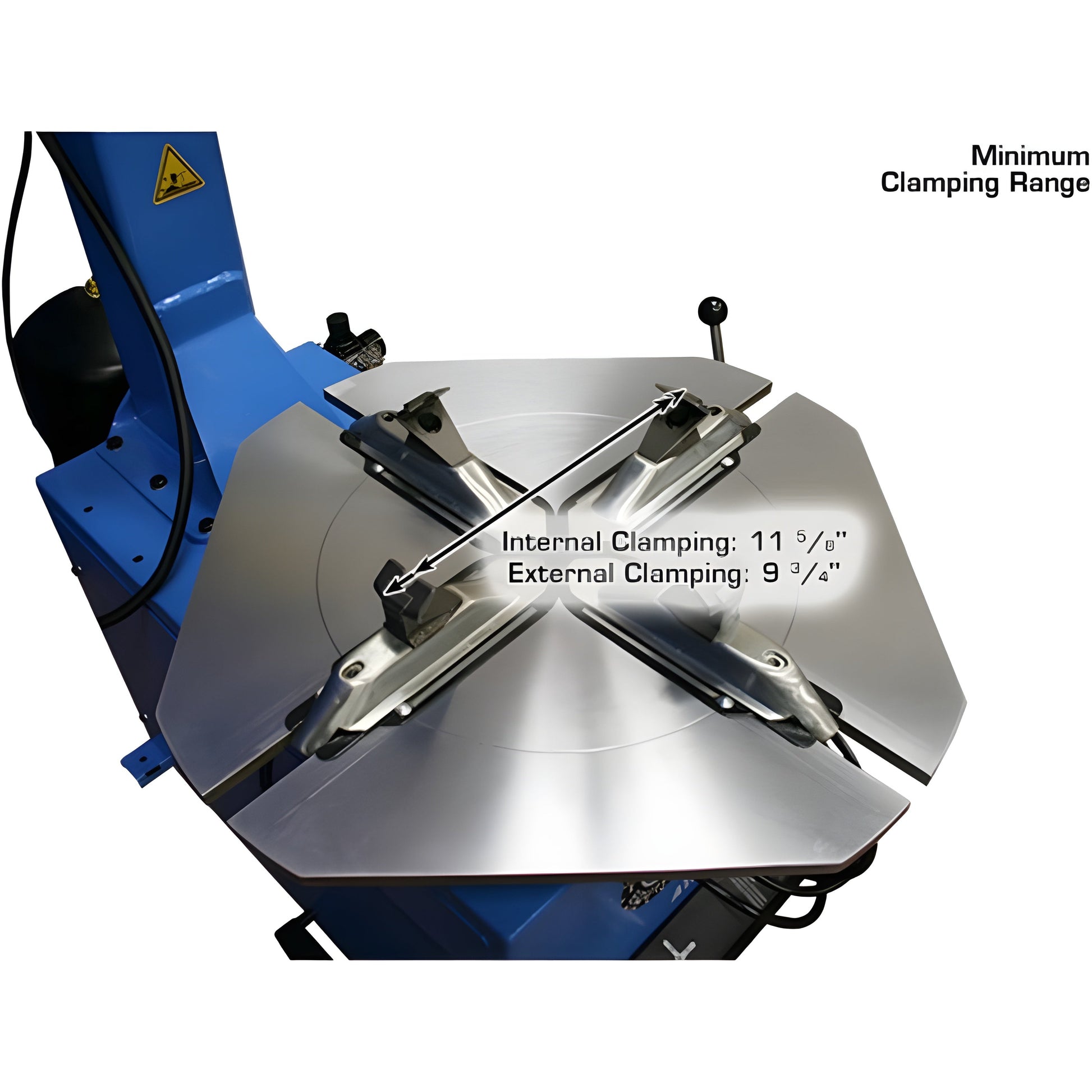

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |

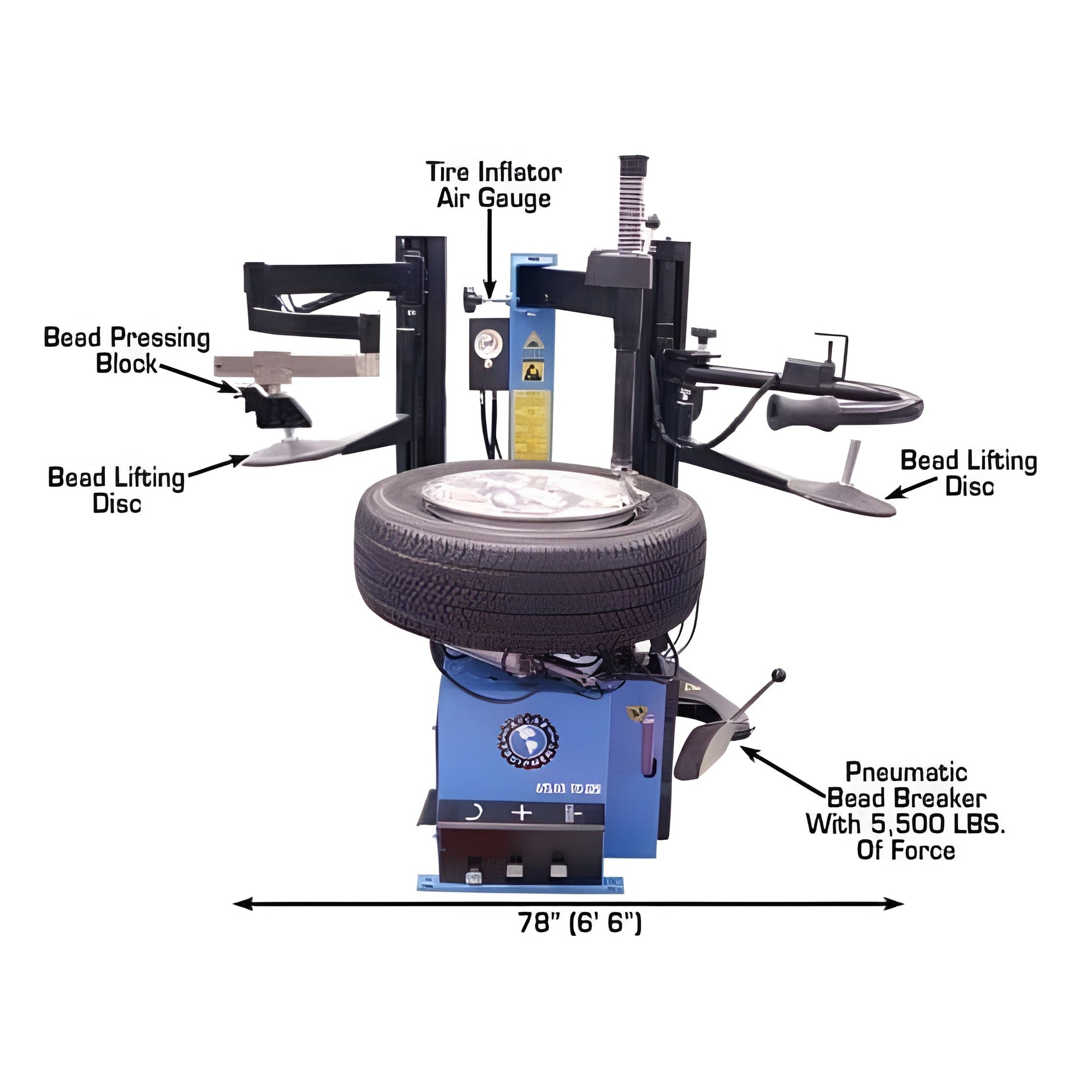

| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
Manual
Atlas TC221 / TC229 Manual
Atlas Left Hand (LH) Assist Arm Manual
What our Expect Think
-
Enhanced Efficiency with Dual Assist Arms – The Atlas TC229DAA Tire Changer features dual assist arms, providing extra support for mounting and demounting tires, especially for large or low-profile tires. This significantly reduces operator effort and time.
-
Rim Protection – The rim-clamp design ensures that the tire changer won’t damage the wheel’s edges, making it perfect for high-end or custom rims. The built-in features protect both the tire and the wheel during the process.
-
Heavy-Duty Construction – Designed for high-volume tire shops, the TC229DAA is built with durability in mind. Its solid structure ensures long-lasting performance, even in the most demanding environments.
-
Versatility – Whether it’s standard passenger tires or large commercial tires, this machine can handle a wide range of tire sizes, offering flexibility and reliability for various types of vehicles.
-
User-Friendly Operation – The intuitive controls and setup make it easy for technicians to operate, reducing training time and increasing productivity.
Q&A
Q: What is the Atlas TC229DAA Rim-Clamp Tire Changer with Dual Assist Arms?
A: The Atlas TC229DAA is a high-performance rim-clamp tire changer featuring dual assist arms designed to simplify tire mounting and dismounting, especially on low-profile tires.
Q: How do the dual assist arms enhance the TC229DAA?
A: The dual assist arms provide additional leverage and support during tire installation, making it easier to mount and demount stiff and low-profile tires without damaging the rims.
Q: Is the Atlas TC229DAA easy to use?
A: Yes, the TC229DAA is designed with user-friendly features such as adjustable clamps, a powerful bead breaker, and intuitive controls to streamline the tire-changing process.
Q: What tire sizes can the TC229DAA handle?
A: The TC229DAA is capable of handling a wide range of tire sizes, from standard car tires to larger, low-profile tires, thanks to its versatile rim-clamp design and dual assist arms.
Q: Is this machine suitable for professional tire shops?
A: Yes, the TC229DAA is built for high-volume, professional use, providing durability and efficiency for automotive shops that require reliable tire service equipment.
Q: How much space does the TC229DAA require?
A: The TC229DAA features a compact design, making it a great option for shops with limited space while offering powerful performance for various tire service needs.
Maintenance Tips
-
Regular Cleaning – Clean the tire changer after every use to remove debris, tire lubricant, and dirt. Use a soft, damp cloth and avoid harsh chemicals that could damage the equipment's finish.
-
Lubricate Moving Parts – Apply lubrication to the bead breaker, mounting head, and assist arms to ensure smooth operation. Be sure to use a suitable grease or oil to avoid damaging seals or moving parts.
-
Inspect Bead Breaker and Arms – Regularly check the bead breaker, rim clamps, and assist arms for wear and tear. Replace damaged or worn components to maintain optimal performance.
-
Check Tire Mounting Head – Ensure the mounting head is securely tightened and free from cracks or damage. Replace any worn or damaged parts to avoid damaging the tire or rim.
-
Tighten Fasteners – Periodically check all screws, bolts, and fasteners to make sure they are secure. Loose fasteners can affect the equipment's functionality and cause unnecessary wear.
-
Monitor Tire Compatibility – Always ensure the tires being worked on are compatible with the machine to avoid damage to the tire changer or the tires themselves.
-
Calibrate the Equipment – Regularly calibrate the machine for accurate and consistent performance. This is essential for maintaining efficiency and avoiding potential errors during tire changing.
