| Sensor |
1/2.8” Exmor CMOS |
| Resolution |
4K |
| Signal-To-Noise Ratio |
≥ 50 dB |
| Gain |
Auto, Manual |
| Shutter Speed Range |
1/1 to 1/10,000 sec |
| Exposure Control |
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR |
| White Balance |
Auto, Manual |
| Output |
HDMI, IP, USB |
| Audio |
HDMI, IP, USB |
| Camera Control |
VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP) |
| Focal Length |
f = 4.3 mm (Wide) to 129 mm (Tele) |
| Minimum Object Distance |
0.01 m (Wide), 1.2 m (Tele) |
| Pan Angle |
±170° |
| Tilt Angle |
+90° / -35° |
| Pan Speed |
0.1° to 100° |
| Tilt Speed |
0.1° to 100° |
| Presets |
10 (IR), 256 (RS-232 / IP) |
| Operating Temperature |
Temperature: 0 °C to +35 °C; Humidity: 20% to 80% |
| Power |
AC 100 - 240V to DC 12V/3.34A |
| Minimum Illumination |
0.7 lux (IRE50, F1.6, 30fps) |
| Optical Zoom |
30x |
What our Expect Think
-
Medical-Grade Certification – Designed and certified for use in healthcare settings, ensuring reliability and compliance with medical standards.
-
Full HD 1080p Resolution – Offers clear, detailed video for medical consultations, surgeries, and remote monitoring.
-
30X Optical Zoom – Allows precise, detailed zooming from a distance for surgical or medical examinations.
-
PTZ Functionality (Pan, Tilt, Zoom) – 170° pan and 120° tilt provide wide coverage and flexible positioning for diverse medical environments.
-
IR Remote Control & Auto Framing – Easy operation with remote control and smart auto-framing that adapts to movement.
-
Low Light and Wide Dynamic Range (WDR) – Ensures high-quality video in various lighting conditions, even in low light.
-
Seamless Integration – Compatible with a wide range of medical software and video conferencing systems for telemedicine.
-
PoE (Power over Ethernet) – Reduces installation complexity by combining data and power in a single cable.
Q&A

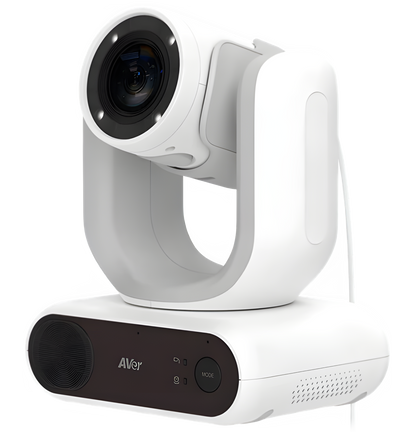

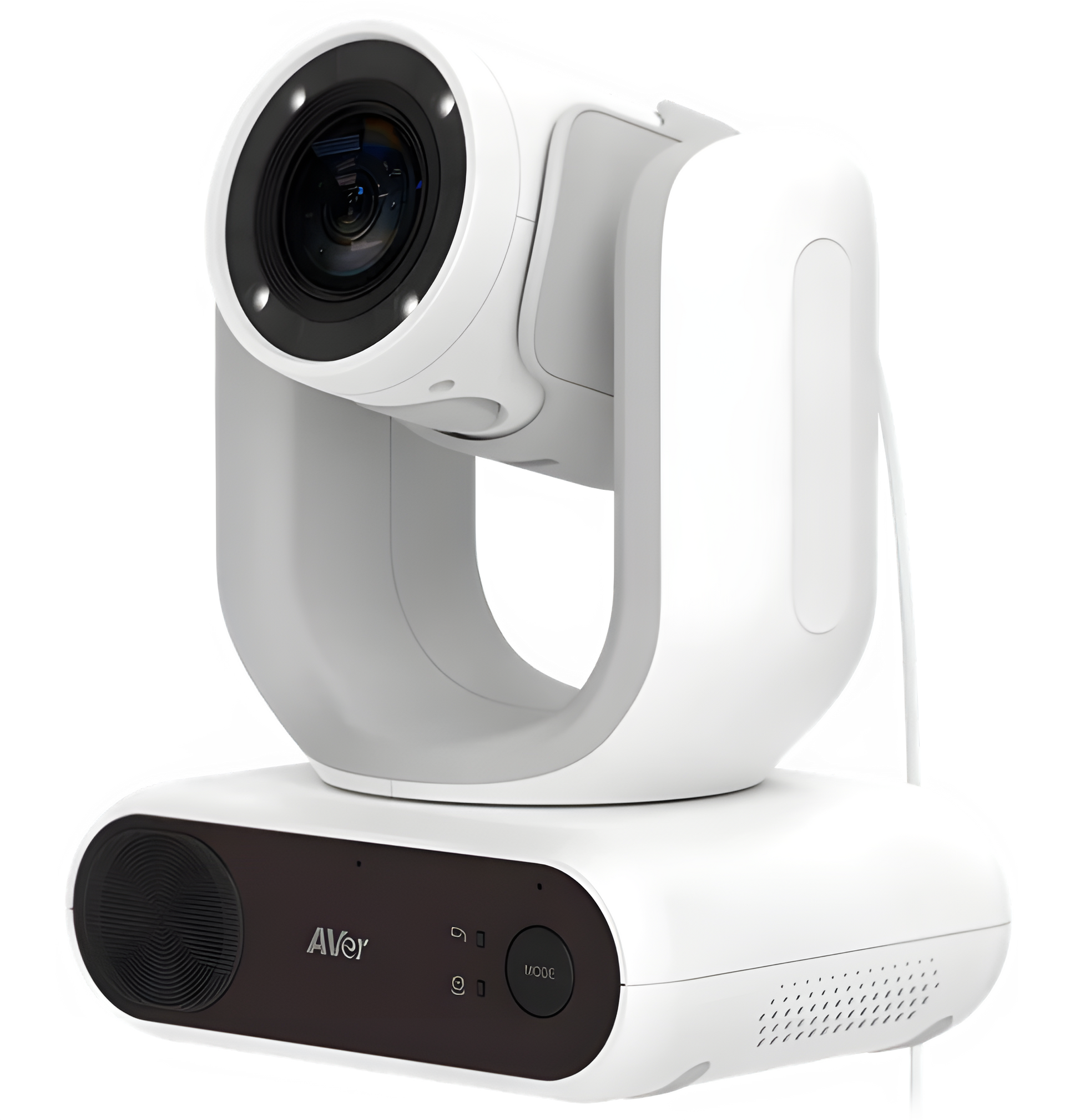

Q: What is the AVer MD330UI?
A: A medical-grade PTZ camera designed for telemedicine and medical applications, offering 30X optical zoom, Full HD 1080p resolution, and advanced connectivity options.
Q: Is it suitable for telemedicine and medical environments?
A: Yes, its high-definition image quality, smooth motion control, and sterilizable design make it perfect for telemedicine, surgery, and medical conferencing.
Q: What control options are available?
A: It supports remote control via RS-232, RS-422, IP, web UI, and VISCA over IP for easy integration into medical systems.
Q: What makes this camera ideal for healthcare use?
A: Its medical-grade construction, high-quality video, and AI-powered features ensure clear and reliable communication in healthcare settings.
Maintenance Tips
-
Clean the Lens Regularly – Use a microfiber cloth to maintain clear and accurate imaging.
-
Update Firmware Periodically – Keep the camera’s software up to date for optimal performance and security.
-
Avoid Exposure to Excessive Heat & Sunlight – Protect the camera from overheating and sensor damage.
-
Check Power & Network Connections – Ensure stable power and network connections to avoid disruptions.
-
Use Smooth PTZ Movements – Avoid sudden manual adjustments to prolong motor life.
-
Store in a Dust-Free Environment – Keep vents and sensors free from debris for optimal functionality.
-
Ensure Secure Mounting – Check the camera’s stability to avoid vibrations or misalignment during operation.
