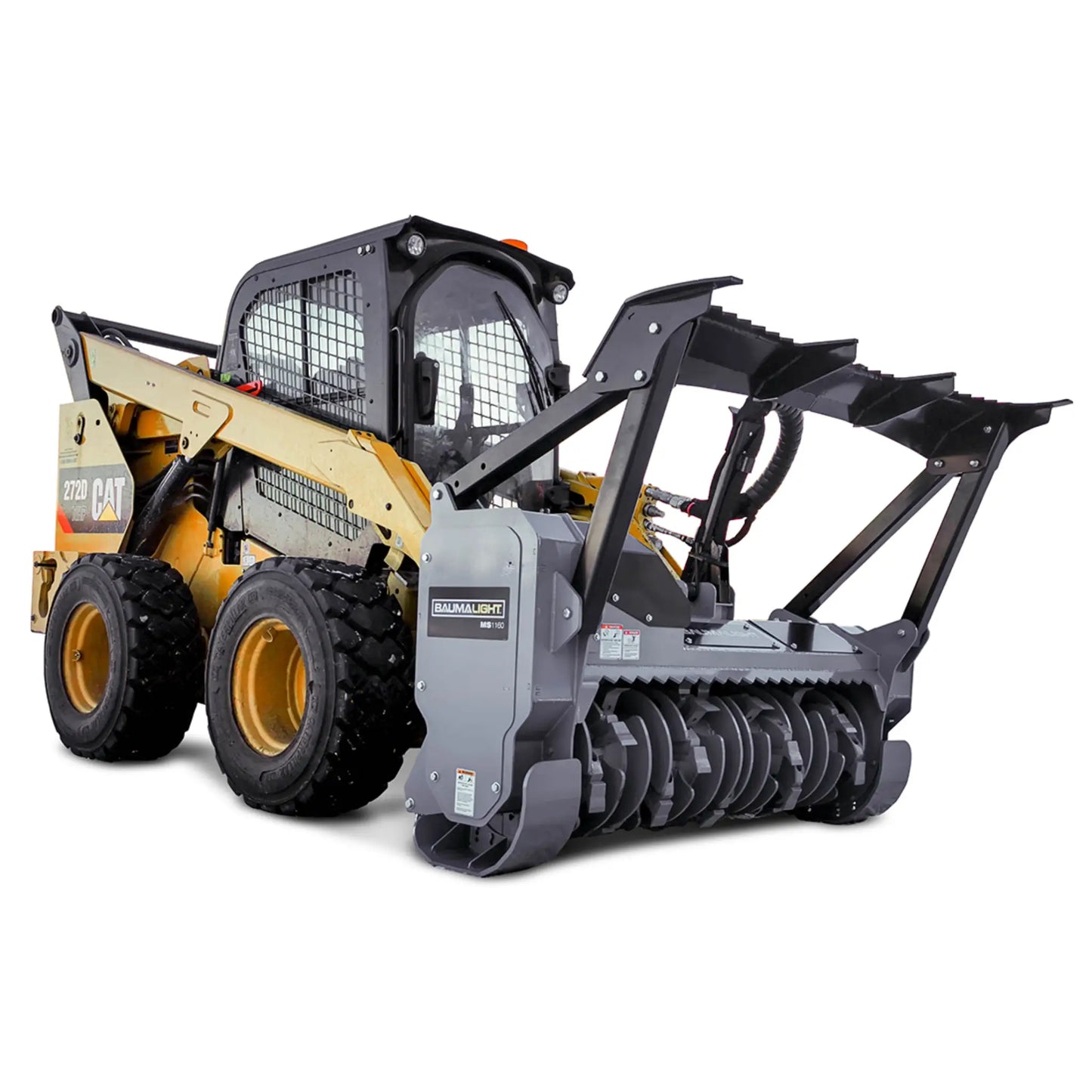

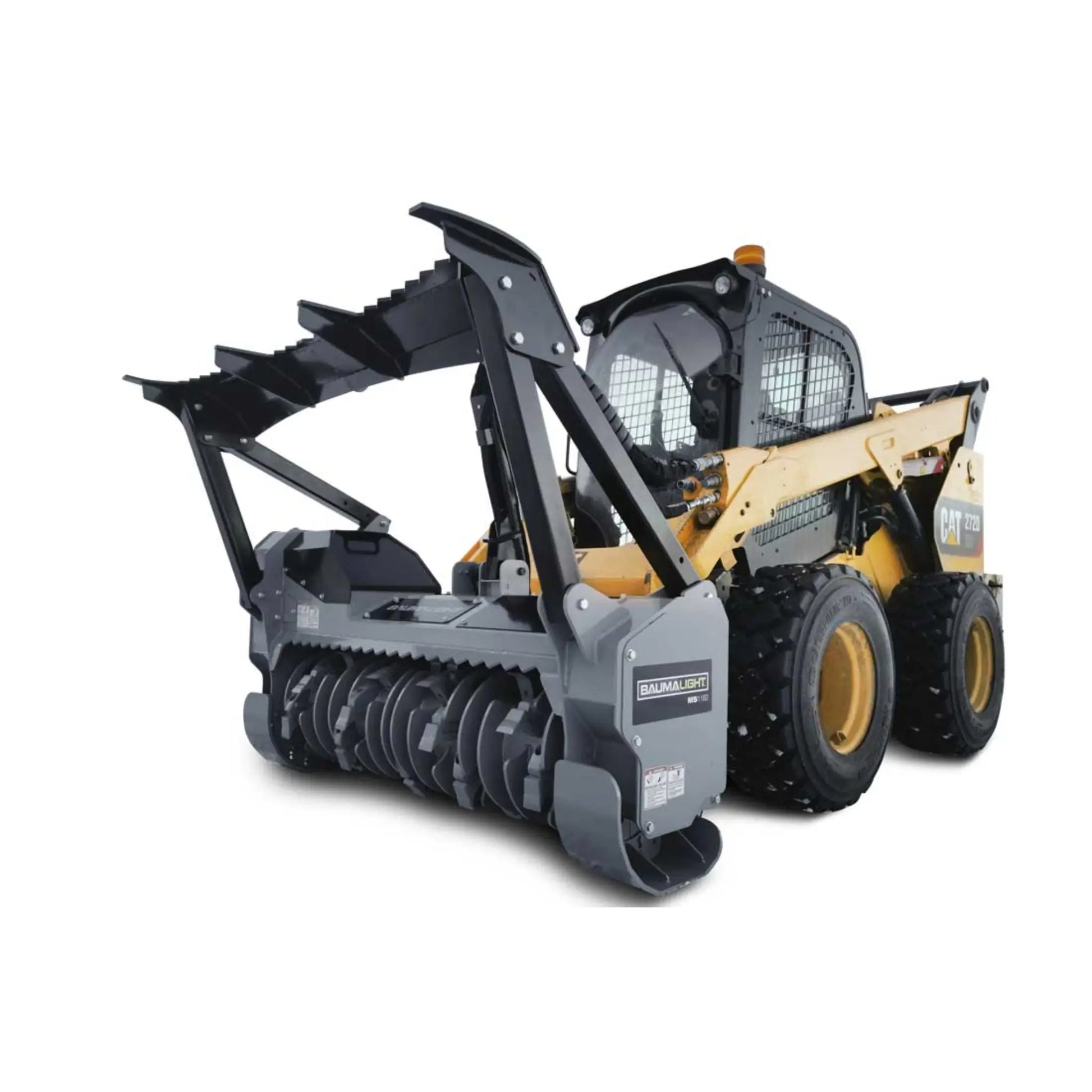

The Baumalight MS1160 Heavy Duty Fixed Tooth Mulcher for Skidsteers masters tough terrains with a 75" path and is perfect for machines over 7,000 lbs. It features 31 sharpenable planer teeth and cutting-edge mulcher rings, efficiently handling large materials. Ideal for extensive land management.
Model No. | MS348 | MS548 | MS560 | MS572 | MS960 | MS972 | MS1160 |
---|---|---|---|---|---|---|---|
Path Width | 60" | 62" | 75" | 87" | 75" | 84" | 75" |
Rotor Width | 48" | 48" | 60" | 72" | 60" | 72" | 60" |
Minimum carrier weight | 3,000 | 4,000 | 5,500 | 6,000 | 7,000 | 7,500 | 7,000 |
Cutting Depth | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 2" Below Grade | 1.5" Above to 2" Below Grade | 1.125" Above to 2.375" Below Grade |
Holder Style | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
Tool Style | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | Double Tipped | Sharpenable Planer |
Tooth Part number | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
Number of cutters | 60 | 72 | 92 | 112 | 38 | 43 | 31 |
Rotor Diameter (tool tips) | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 19.3" |
Rotor Weight (with tools) | 230 lbs | 480 lbs | 575 lbs | 700 lbs | 860 lbs | 1,105 lbs | 860 lbs |
Case Drain | Not important | See motor options | Critical | Critical | Critical | Critical | Critical |
Hydraulic Couplers | Included | Not Included | Not Included | Not Included | Not Included | Not Included | Not Included |
Unit Shipping Weight | 950 lbs | 1491 lbs | 2115 lbs | 2266 lbs | 2975 lbs | 3115 lbs | 2800 lbs |
Â
MAXIMUM BRUSH CUTTING SIZES
(Brush Diameter in Inches)
1100 Series
Â
MOTOR | PSI | CASE DRAIN |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
65 GPM |
70 GPM |
75 GPM |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RPM | 1450 | 1800 | 2100 | |||||||||||
C1130 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | 4.5" 5" 5.5" 6.5" |
5.5" 6" 6.5" 7" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
RPM | 1500 | 1800 | 2100 | |||||||||||
C1140 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
6.25" 6.75" 7.25" 7.75" |
8.25" 8.5" 8.75" 9" |
8.5" 9" 9.5" 10" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
RPM | 1600 | 1875 | 2140 | |||||||||||
C1150 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
8.5" 9" 9.5" 9.75" |
10" 10.5" 11" 11.5" |
10.5" 11" 11.5" 12" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
C1170 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
9.5" 10" 11.5" 12" |
10" 10.5" 11" 11.5" |
11.5" 12" 12.5" 13" |
12" 12.5" 13" 13.5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
RPM | 1400 | 1570 | 1750 | 1900 | ||||||||||
C1190 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
10" 10.5" 11" 11.5" |
12.5" 13" 13.5" 14.5" |
14" 14.5" 15" 15.5" |
14.5" 15" 15.5" 16.5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
RPM | Adjustable | |||||||||||||
D117X2 Two speed |
2500 3000 3500 4000 |
Critical | 5.5" 6.25" 6.75" 8" |
7.75" 8.25" 9" 9.5" |
10.5" 11.25" 11.5" 12" |
12.5" 13" 13.5" 14.25" |
13" 13.75" 14.25" 15" |
14.25" 15" 15.5" 16.25" |
15.5" 16.25" 16.75" 18" |
17.5" 18" 18.75" 19.25" |
18" 18.75" 19.25" 20.5" |
19" 19.75" 20.25" 21.5" |
20" 20.75" 21.25" 22.5" |
21" 21.75" 22.25" 23.5" |
