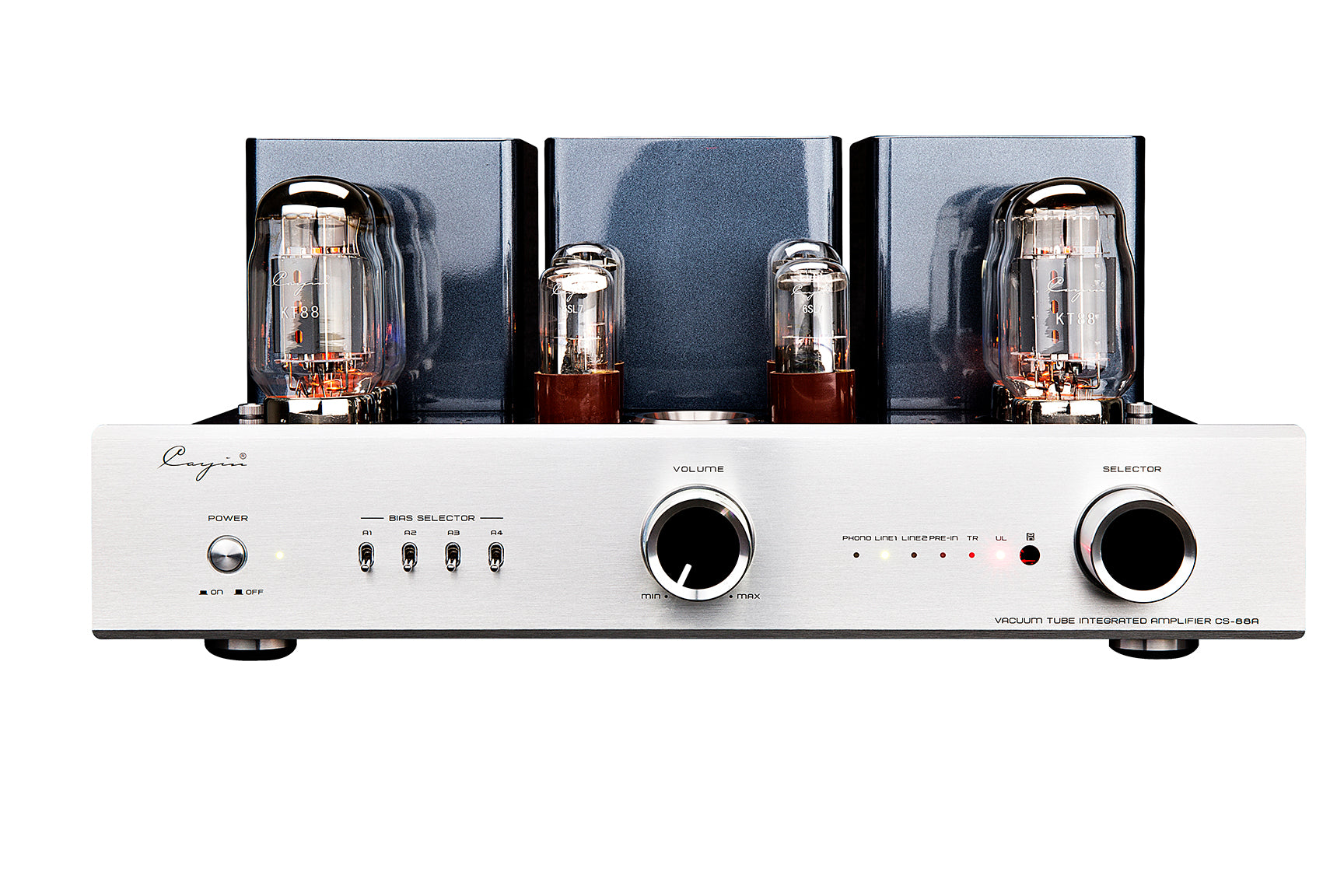

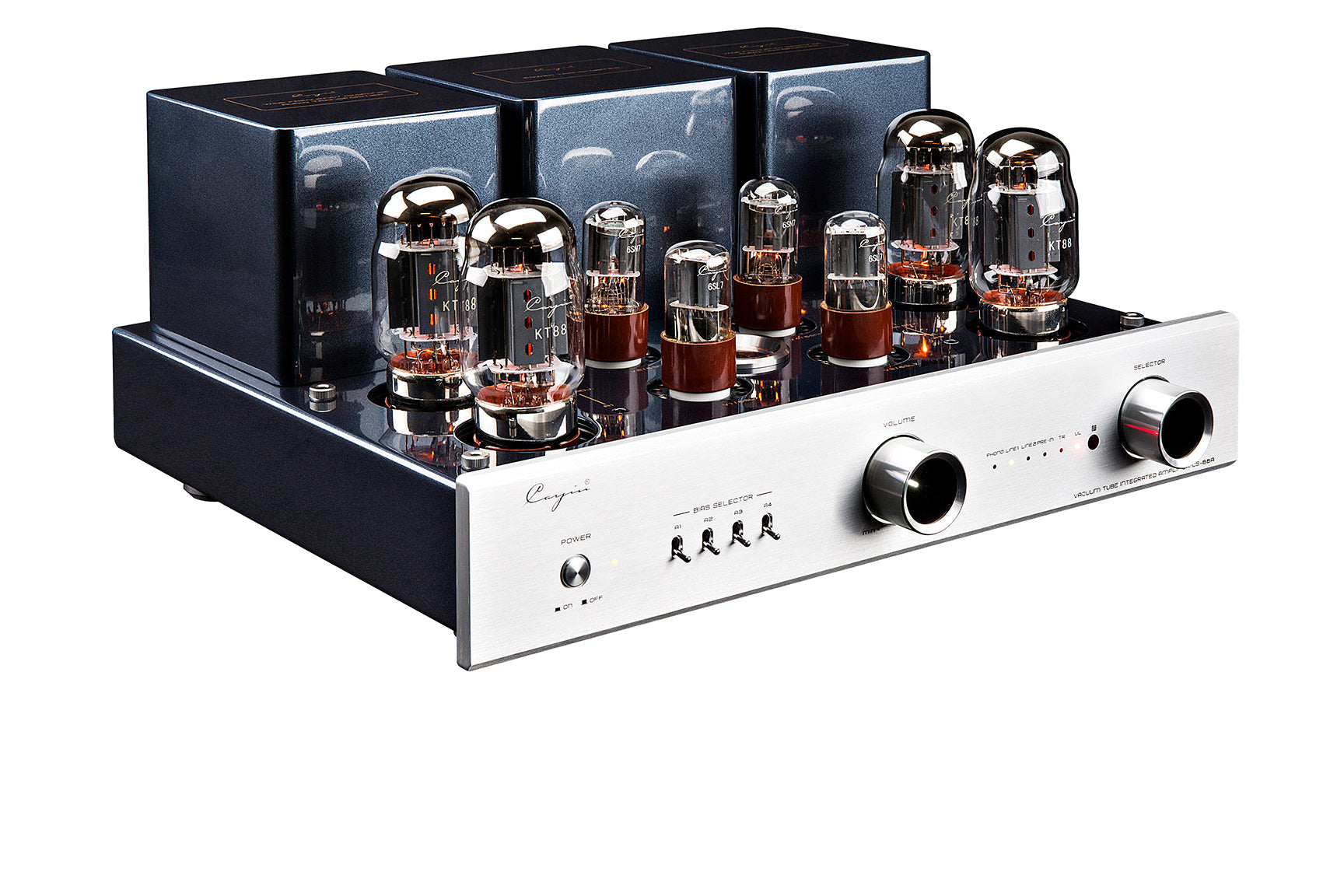

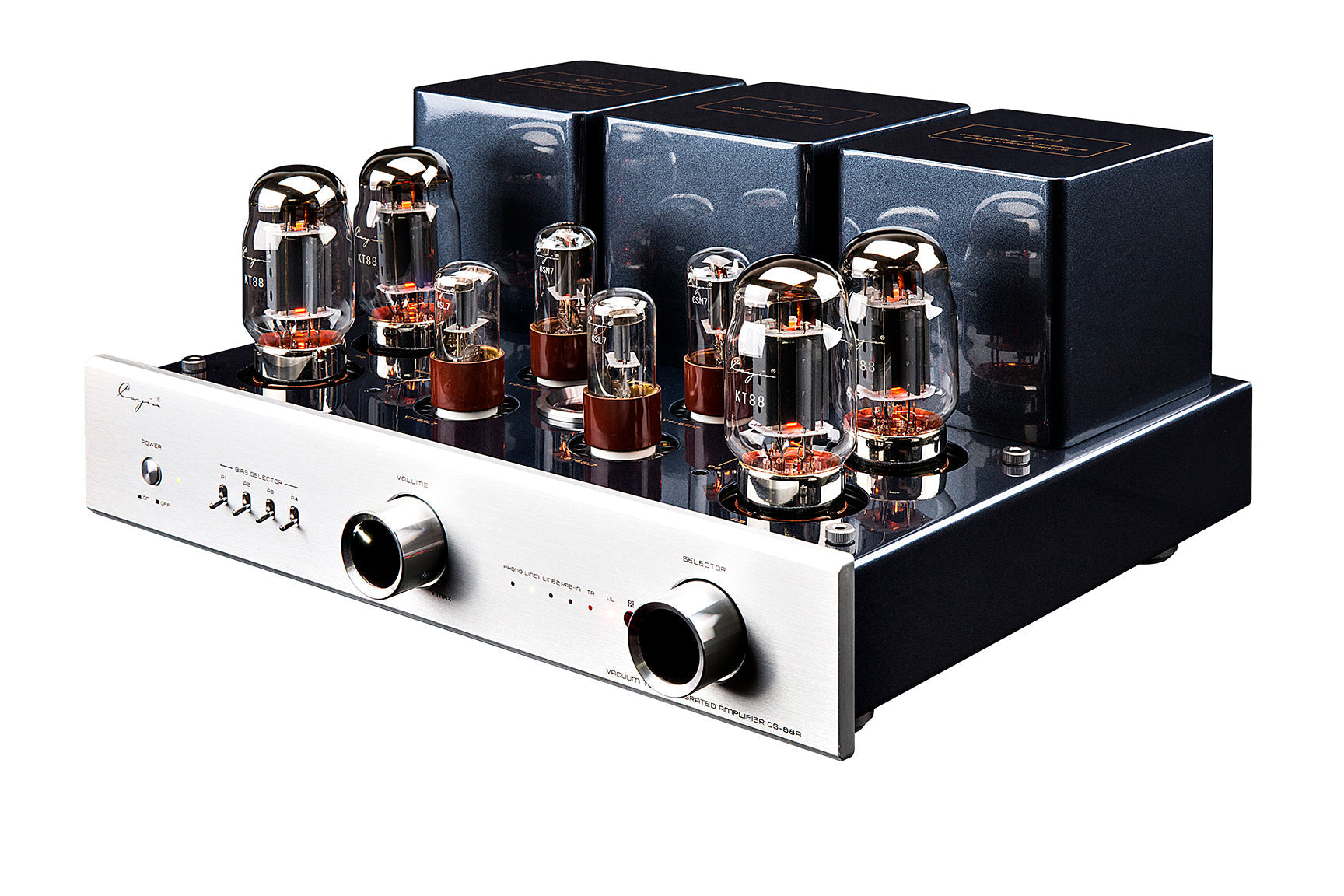

Cayin CS-88A KT88 Tube Amplifier

  • Hand-made construction with the finest point-to-point wiring.
  • Two EI output transformers with wide bandwidth are applied.
  • Specially designed toroid transformer for power supply.
  • Two 6SL7 and two 6SN7 tubes are used in the preamp stage.
  • Four KT88/6550EH tubes are used for AB1 push-pull amplification.
  • Triode and Ultralinear selection.

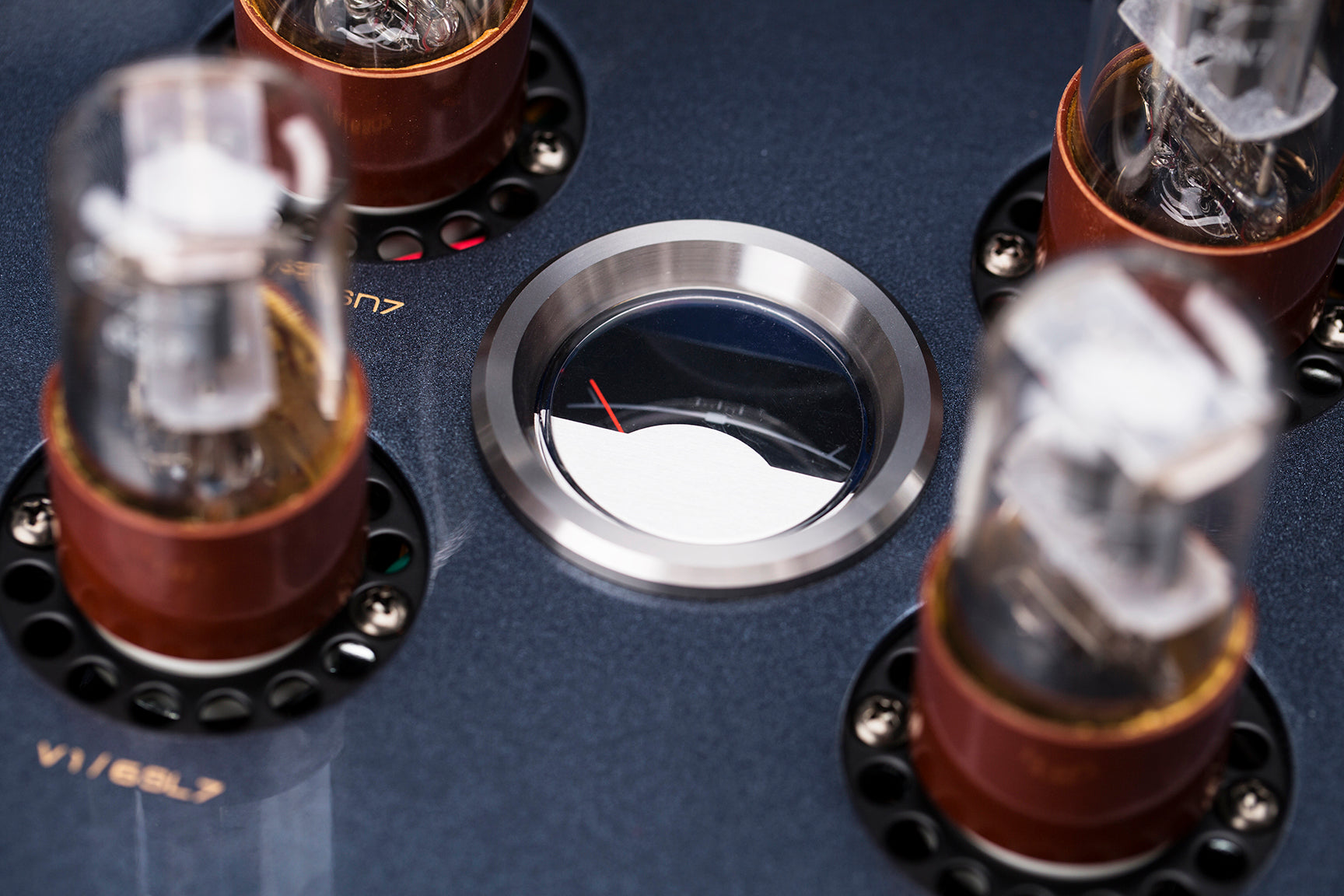

  • External user Bias Adjustment is accessible with the BIAS meter for monitoring on
  • the top of the amplifier.
  • External Tube Selection Switch between EL34 and KT88 on the rear panel for easy
  • tube replacement.
  • Equipped with remote control.
  • Can be used as a Power amplifier.
  • Soft start function (about 30 seconds).
  • CS-88A can memorize last operation of the unit once turned off.
  • High-quality Japanese ALPS motor potentiometer.
  • Thickly silver-plated signal cable has been used.
  • Equipped with easily-installed tube cover for protection.

SPECIFICATION

Model

CS-88A

Power Output

27W+27W (Triode)

48W+48W (Ultra-linear)

Frequency Response

10Hz～42kHz (-3dB)

THD

1%(1kHz)

Power Supply

Custom made Torroidal

Power Consumption

<280w

S/N Ratio

93dB

Input Sensitivity

300mV (Integrated)
                       1000mV (Pre-In)

Dimension

420 × 382 × 195 mm(W×D×H)

Net Weight

28kg

Output Impedance

4Ω，8Ω

Input Impedance

100KΩ

Tube

6SL7×2, 6SN7×2, KT88×4

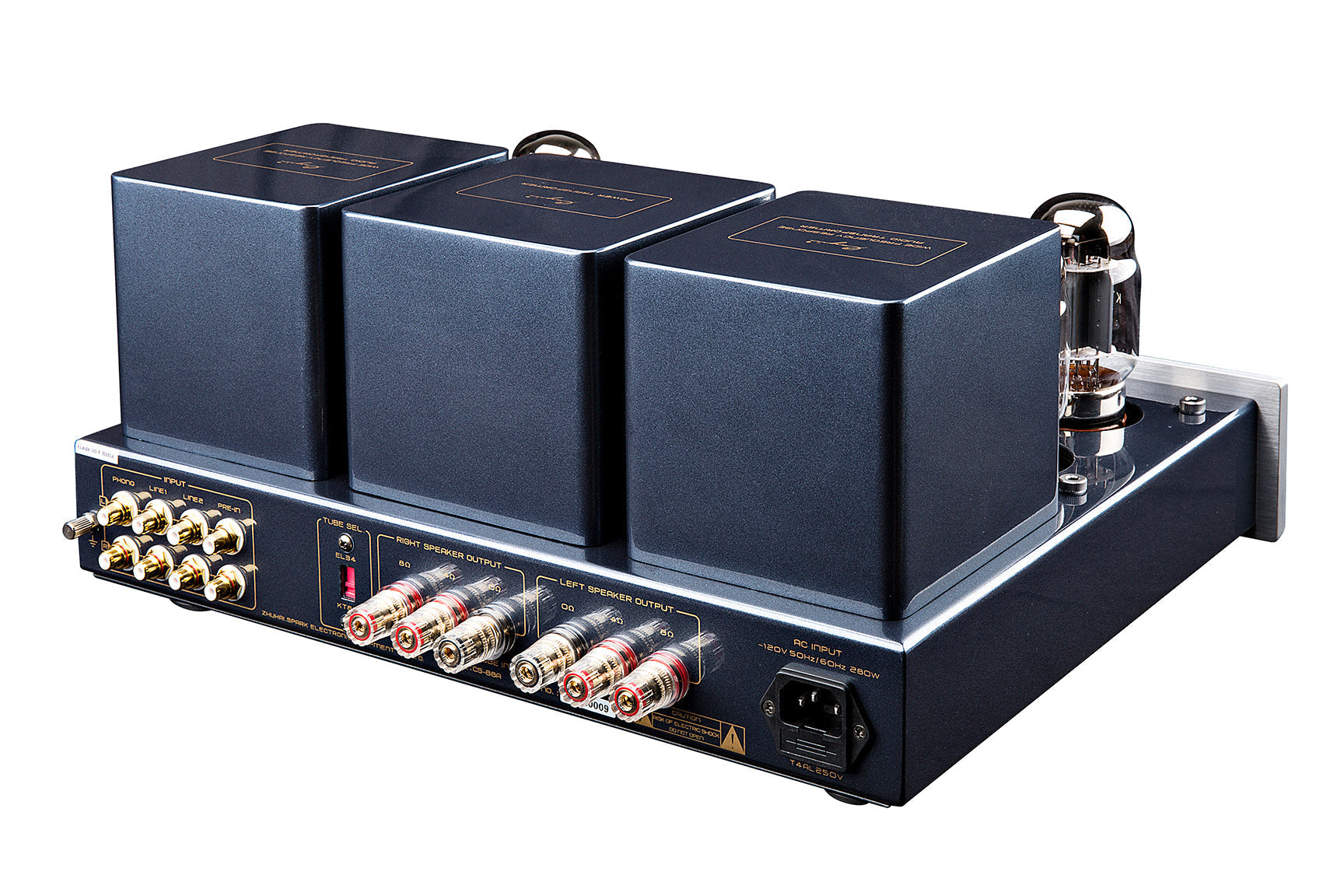

Input Terminals

Line 1, Line 2, Line 3, Pre-In
