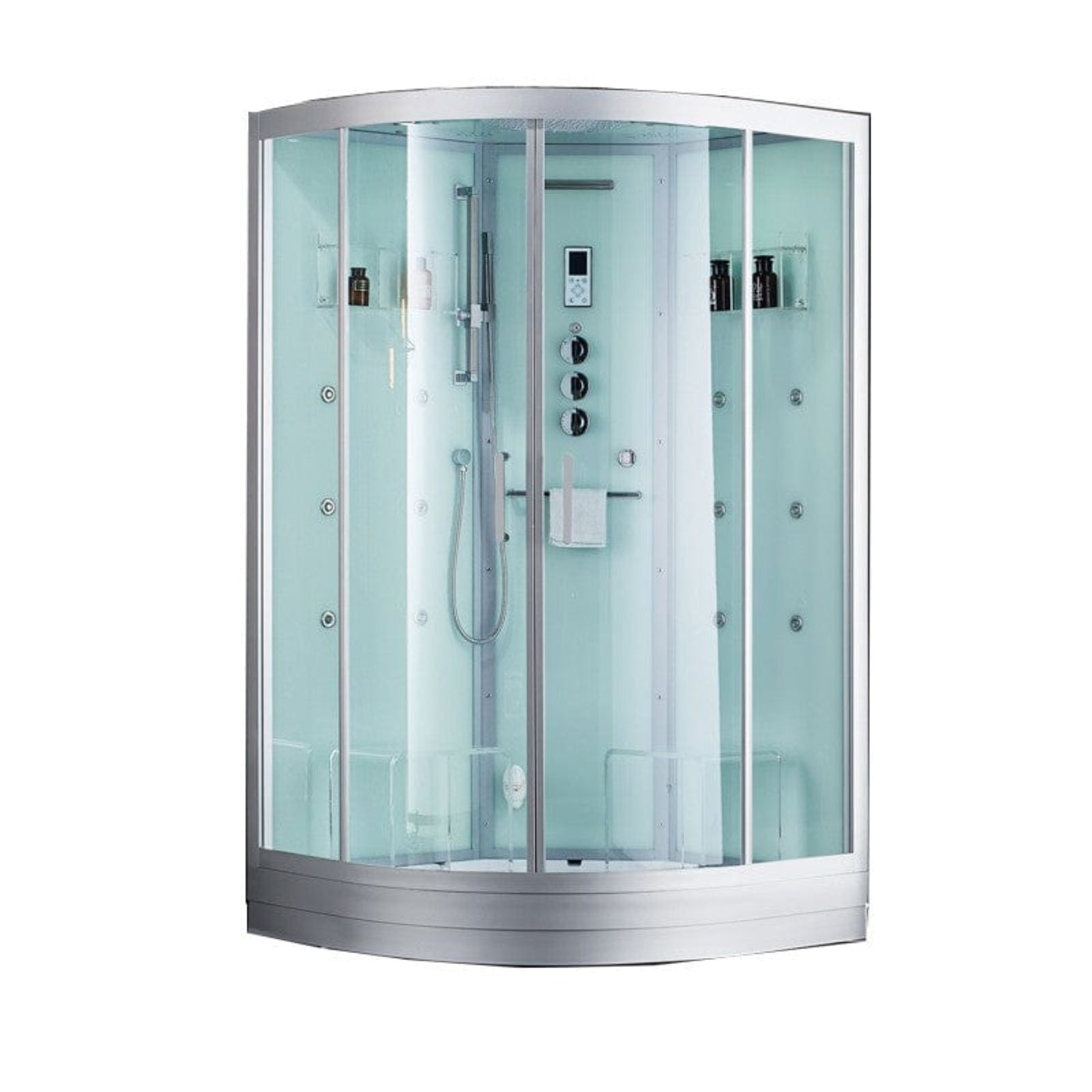

Sauna Hammam SHOWER CABIN HAMMAM DUO ARCHIPEL QDR 115C WHITE - MK53016877

Sauna Hammam SHOWER CABIN HAMMAM DUO ARCHIPEL QDR 115C WHITE - MK53016877

If you haven’t yet heard of hammam, you are bound to soon. This treatment makes itself known around the world for being a relaxing and cleansing Moroccan ritual that is centuries old.

Hammam differs slightly from the traditional thermal spa. While both are profoundly relaxing and good for the skin, rather than using thermal waters, hammam treatments use hot steam to encourage a deep and invigorating cleanse.

Hammam treatments also use vitamin-E rich, olive-based soap known for its skin-nourishing and exfoliating properties. Additionally, some treatments may include rhassoul clay, an antibacterial mineral that effectively and safely removes toxins and impurities from the body, reduces sebum and tightens pores.

Features

• Overall dimensions in millimetres: 1150*1150*2235.

• Suitable for anyone under 200cm tall.

• Can accommodate up to 2 people seated during hammam sessions (take a second seat as an option)

• Cabin to be placed in the corner of your choice: "quarter-round" type: suitable for both left and right corners

• Removable rear panel from inside the cabin (simplified maintenance)

• Acrylic tray reinforced with layers of fiberglass

• Steel frame with adjustable feet,

• Fixed pane and glazed door in 5mm ESG safety glass  tempered safety  glass resistant to shocks, knocks, bending stresses as well as thermal loads.

• Bottom panels in real tempered glass, opaque white

• Quality side profiles, in sandblasted aluminium.

• Real tempered glass roof, opaque white.

• Cabin specifically designed for steam use.

• Precision thermostatic mixing valve

• Digital control panel with FM radio + bluetooth

• Double sliding door with roller and magnetic closure

• Large designer tropical rain shower with anti-limescale studs

• Height adjustable chrome hand shower. with brass shower bar

• 6 high pressure jets with manual or sequential massage ("spray" function).

• triple shelf + towel rail

• Hand shower with height-adjustable bracket + overhead rain shower

• Cascade function

• Mechanical ventilation integrated into the cabin

Additional Information

TECHNOLOGY AND PERFORMANCE

• Professional 3000W steam generator allowing you to quickly exceed 40°C with the same feeling of well-being and warmth as in a traditional hammam (requires a 16A line and a 3 x 2.5mm² cable section)

• Latest generation multimedia touch screen

• Steam generated in less than 2 minutes with time and temperature management

• Simplified aromatherapy system at the steam nozzle, suitable for the addition of essential oils for hammam

• Dual generator protection against overheating and dry running

• Automatic emptying at the end of the session

• Simplified maintenance: removable rear panel from the inside (allows access to the steam generator, mixer tap, water supply, control panel)

• Chromotherapy: LED light on the ceiling with choice of colours.

• FM radio with memory

• Integrated Bluetooth function for listening to digital music and receiving calls

• Automatic ozone disinfection to kill 99% of bacteria, germs and viruses in the cabin (no maintenance, no noise, no smell, no recharging (this is made naturally possible thanks to the formation  of an electric arc, which causes the dissociation of dioxygen molecules -O2- into oxygen atoms -O- which themselves regroup with dioxygen to form ozone -03-).

SUMMARY BENEFITS OF ARCHIPEL QDR CABINS

• Simplified maintenance: removable rear panel from the inside (allows access to the steam generator, mixer tap, water supply, control panel)

• Warranty for professional or home use

• Sandblasted aluminum structure and 5 mm tempered safety glass

• 3000 watt generator

• FM radio with storable stations + bluetooth

• Electronic cabin ventilation

• Aromatherapy from the nozzle

• Peripheral chromotherapy

• Evacuation diameter 40 mm

• Triple shelf

Product Manual

Schematic QDR 115C

Commercial sheet

Notice Archipel QDR 115

What Our Experts Think

• 2-person hammam steam and shower cabin

• Compact 115cm design, space-saving yet comfortable

• Sleek white finish for a bright, modern look

• Strong and durable build for long-term use

• Easy operation with intuitive controls

Q&A

Q: How many people can this cabin accommodate?
A: It is designed for 2 users.

Q: What are the dimensions?
A: 115cm, making it ideal for compact installations.

Q: Can it be installed at home and in professional spas?
A: Yes, it suits both private and commercial environments.

Maintenance Tips

• Wipe glass and panels after use to keep the white finish pristine

• Clean and descale the steam generator regularly

• Check seals to maintain water tightness

• Ensure proper ventilation after each session
