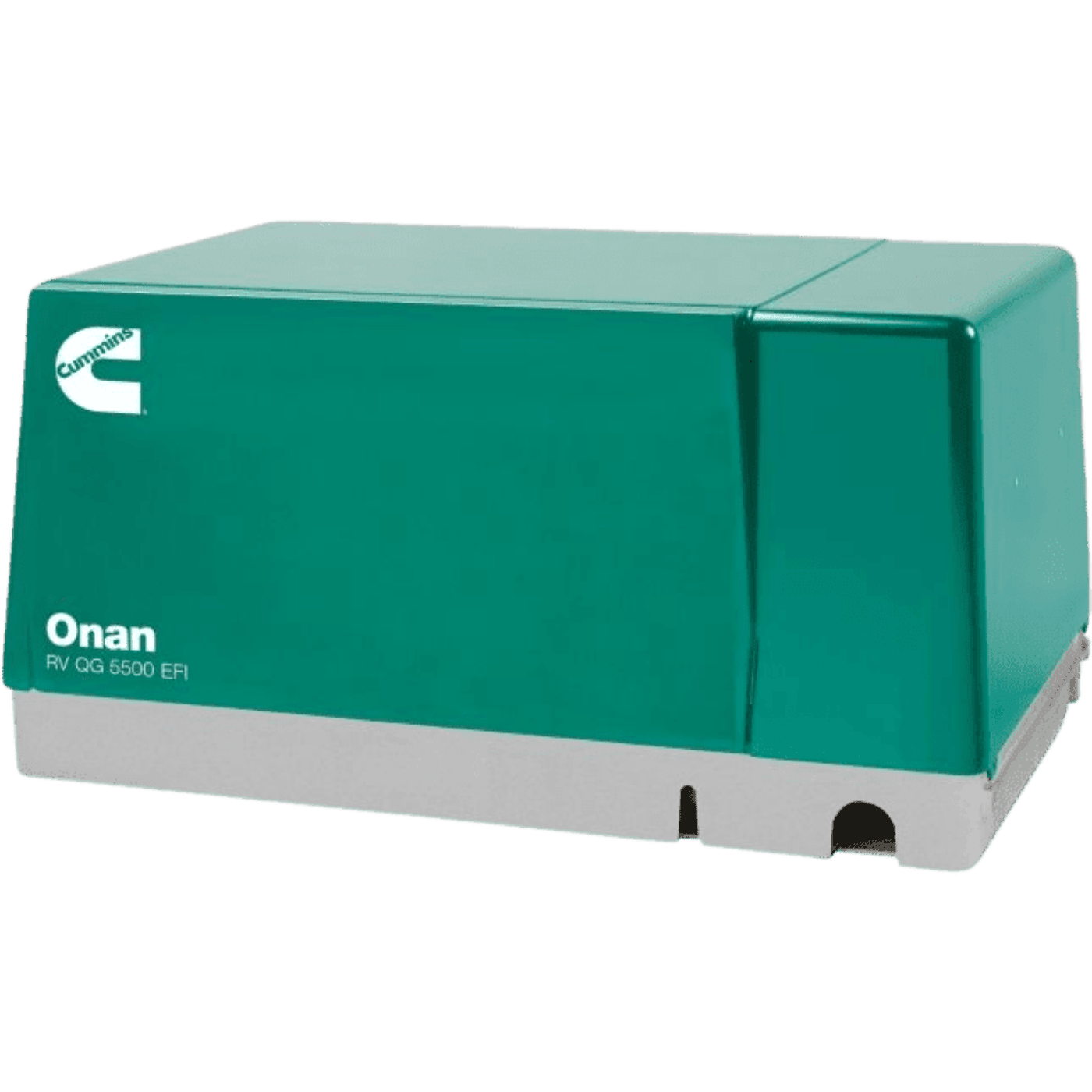

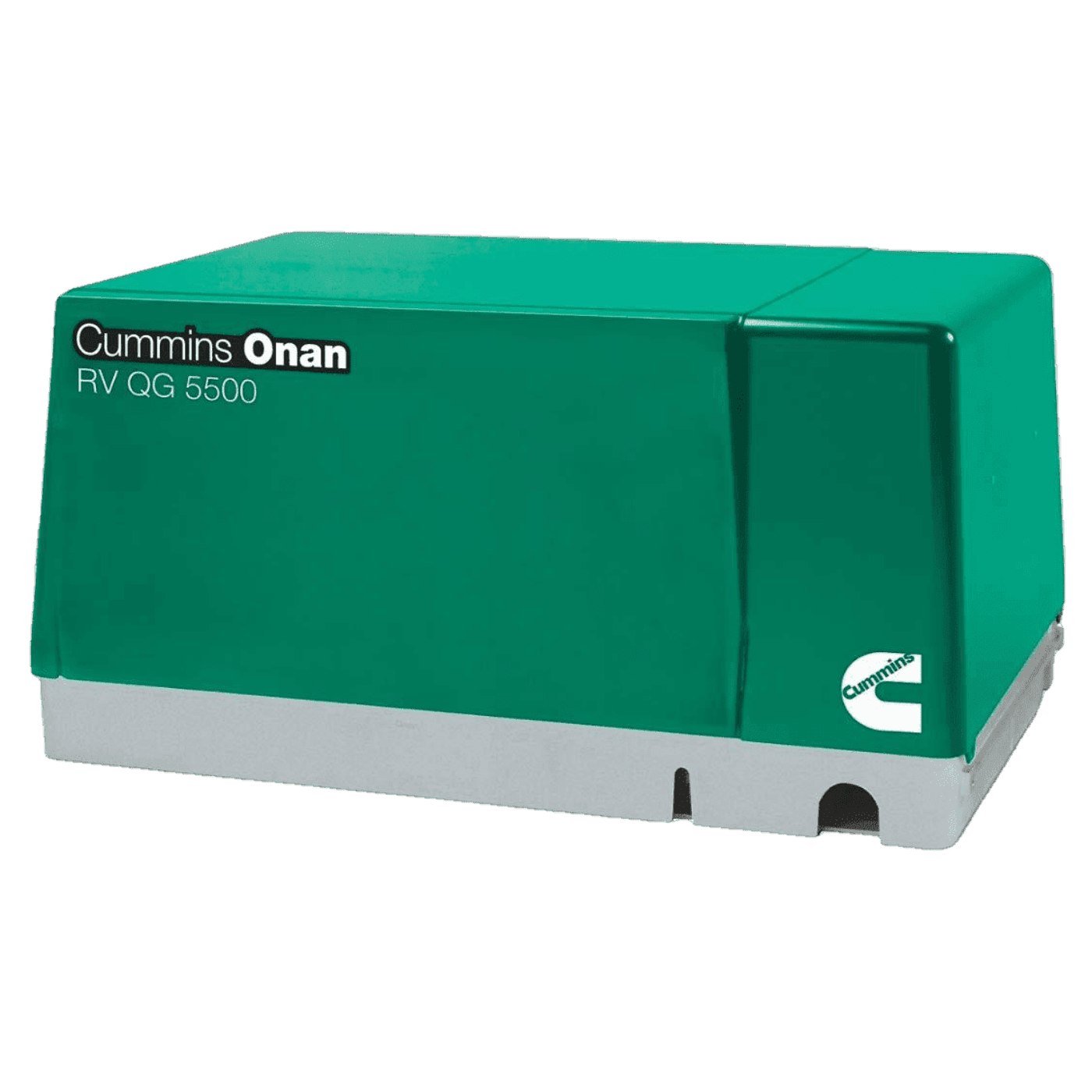

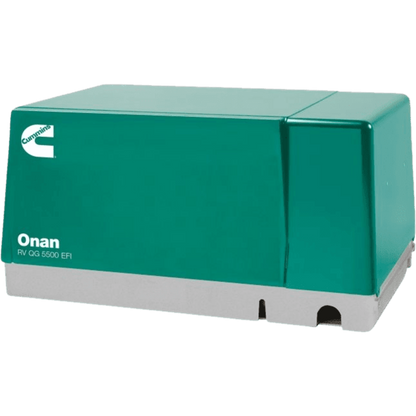

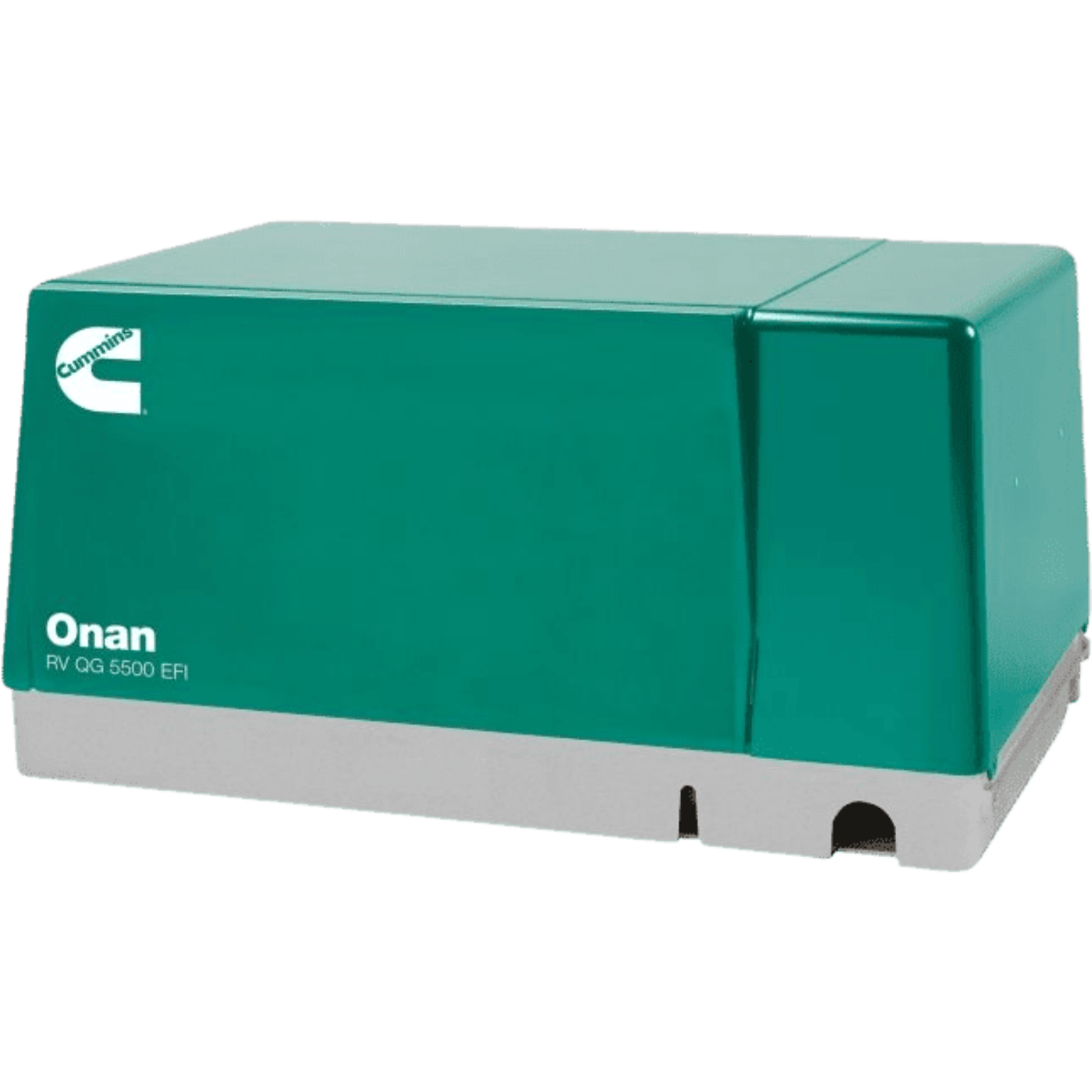

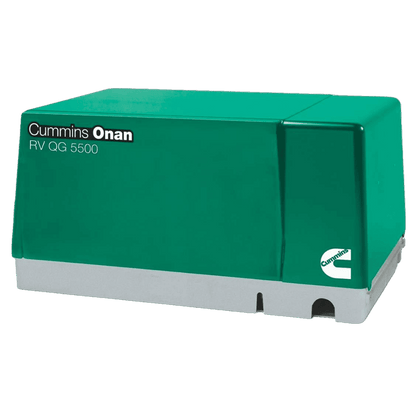

Cummins Onan QG 5500 5.5kW EFI RV Generator 5.5HGJAA-1273 RV Gas Single Phase 120 Volt Air Cooled 30A/30A Breaker New
Cummins Onan QG EFI Gasoline powered 5500 watt RV Generator. Includes electronic fuel ignition for maximum performance. Runs two air conditioners with power to spare.
**0541-1002 ā must order fuel pump kit for electronic fuel injection. The Electronic Fuel Injection genset may only be installed on motorized chassis equipped to handle the fuel return and evaporative emissions. Current emissions regulations prevent adding a return port to any fuel tank not specifically manufactured to accommodate our fuel injected genset.
Features
- Electronic fuel injection, industry first for maximum performance
- Quietest generator set in its class
- Exceptionally low vibration levels
- Integrated design with enclosed muffler for easy installation
- Self-diagnostic capability to simplify troubleshooting
- Runs two air conditioners with power to spare (up to two 13500 Btu A/C with 2500 watt baseload)
- Digital voltage regulation for stability as appliance loads change
- Circuit breakers: (2) 30A
- 3-year limited warranty, lifetime drive warranty
Specification
| Vibration Isolators |
Yes |
| Battery For Electric Start |
Not Included |
| Warranty |
3 Year (Limited) |
| Weight (Lbs.) |
288 |
| Ship Weight (Lbs.) |
338 |
| Operating Weight (Lbs.) |
288 |
| Dimension No Wheel Kit |
22.2"W x 33.6"L x 16.7"H |
| Agency Compliance |
CARB (California), EPA, National Park Approved |
| Surge Start Watts |
5,500.0 |
| Continuous Rated Watts |
5,500.0 |
| Prime Rating Watts |
5,500 |
| Phase |
Single-Phase |
| Voltage |
120 |
| Rated Amps @ Min Volt (Commonly 120v) |
45.8 |
| Frequency |
60 Hz |
| Power Factor |
1.0 |
| Alternator |
Brush |
| Voltage Regulation |
0.6% |
| Voltage Regulation Type |
Digital |
| Frequency Regulation |
Less Than 2 Percent |
| Insulation |
Class H |
| Manufacturer |
Cummins |
| SKU |
5.5HGJAA-1273 |
| Model Number |
QG 5500 |
| Generator Grade |
Recreational |
| Generator Style |
RV Generator |
