DJI Matrice 3D - CP.EN.00000513.SB

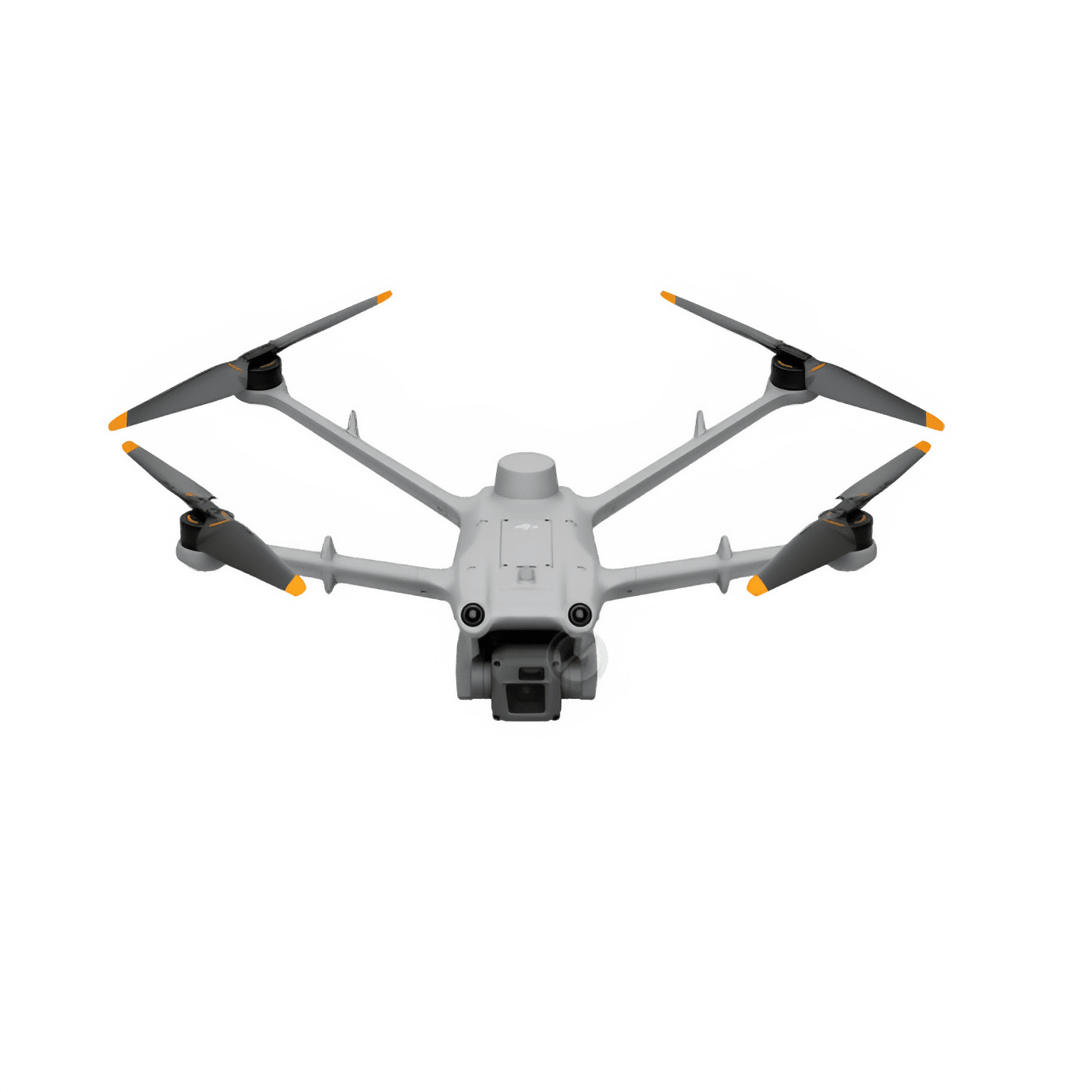

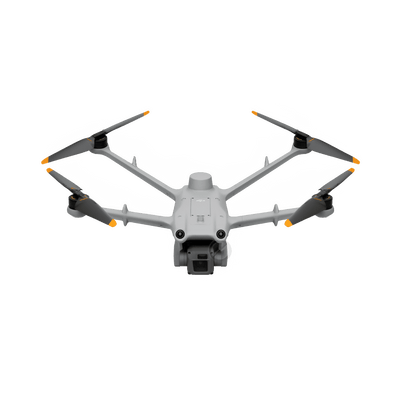

Introducing the DJI Matrice 3D Series

High-Performance Aircraft Models

The all-new DJI Matrice 3Dpe/3TD is specifically designed for DJI Dock 2. The DJI Matrice 3D high-performance drone is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.

DJI Matrice 3D

Wide Angle Camera

4/3 CMOS
20 MP
Equivalent Focal Length 24mm
Mechanical Shutter

Telephoto Camera

1/2 CMOS
12 MP
Equivalent Focal Length 161mm

Superior, Comprehensive Performance

Thanks to its powerful operation capabilities, DJI Matrice 3D/3TD high-performance drone meets the requirements of high-standard operations.

Features

Rated IP54: Dustproof and Waterproof
50 Minute Max Flight Time
6-Directional Obstacle Sensing System
10 km Max Effective Operating Radius
Integrated RTK Module: ±3cm Positioning Accuracy

Specifications

Weight	1410 g (including battery, propellers, and microSD card, excluding third-party payloads)
Max Takeoff Weight	1610 g
Dimensions	335×398×153 mm (L×W×H, without propellers)
Wheelbase	Diagonal: 463.2 mm
Left-Right:	359.9 mm
Front-Rear	: 291.4 mm
Max Ascent Speed	Normal Mode: 6 m/s
Sport Mode:	8 m/s
Max Descent Speed	Normal Mode: 6 m/s
Sport Mode:	6 m/s
Max Horizontal Speed	Normal Mode: 15 m/s forward, 12 m/s backward, 10 m/s sideways
Sport Mode:	21 m/s forward, 18 m/s backward, 16 m/s sideways
Max Wind Speed Resistance	During Operation: 12 m/s
During Takeoff/Landing:	8 m/s
Max Takeoff Altitude	4000 m
Max Flight Time	50 minutes (in controlled test conditions)
Max Hovering Time	40 minutes (in windless environment)
Max Operating Radius	10 km
Max Flight Distance	43 km
Max Pitch Angle	25° (Normal Mode and Sport Mode)
Max Angular Velocity	250°/s

Global Navigation Satellite System	GPS + Galileo + BeiDou + GLONASS (GLONASS supported only with RTK module enabled)
Hovering Accuracy Range	Vertical: ±0.1 m (vision positioning), ±0.5 m (GNSS positioning), ±0.1 m (RTK positioning)
Horizontal:	±0.3 m (vision positioning), ±0.5 m (GNSS positioning), ±0.1 m (RTK positioning)	±0.3 m (vision positioning), ±0.5 m (GNSS positioning), ±0.1 m (RTK positioning)
Operating Temperature	-20° to 45° C (-4° to 113° F)
Ingress Protection Rating	IP54
Motor Model	2607
Propeller Model	1149, foldable, non-quick release
RTK Module	Integrated on the aircraft
Beacon	Integrated on the aircraft
Wide-Angle Camera Specifications
Specification	DJI Matrice 3D	DJI Matrice 3TD
Image Sensor	4/3 CMOS, 20 MP	1/1.32-inch CMOS, 48 MP
Lens	FOV: 84°, Format Equivalent: 24 mm, Aperture: f/2.8-f/11, Focus: 1 m to ∞	FOV: 82°, Format Equivalent: 24 mm, Aperture: f/1.7, Focus: 1 m to ∞
Lens Defogging	Supported	Supported
ISO Range	100-6400	100-25600
Shutter Speed	Electronic: 8-1/8000 s, Mechanical: 8-1/2000 s	Electronic: 8-1/8000 s
Max Image Size	5280×3956	8064×6048
Still Photography Modes	Single: 20 MP, Timed: 20 MP, Panorama: 20 MP (raw), 100 MP (stitched)	Single: 12 MP, 48 MP, Timed: 12 MP, 48 MP, Panorama: 12 MP (raw), 100 MP (stitched)
Video Resolution	4K: 3840×2160@30fps, FHD: 1920×1080@30fps	4K: 3840×2160@30fps, FHD: 1920×1080@30fps
Video Bitrate	4K: 130 Mbps, FHD: 70 Mbps	4K: 85 Mbps, FHD: 30 Mbps
Supported File System	exFAT	exFAT
Photo Format	JPEG	JPEG
Video Format	MP4 (MPEG-4 AVC/H.264)	MP4 (MPEG-4 AVC/H.264)
Tele Camera Specifications
Specification	DJI Matrice 3D	DJI Matrice 3TD
Image Sensor	1/2-inch CMOS, 12 MP	1/2-inch CMOS, 12 MP
Lens	FOV: 15°, Format Equivalent: 162 mm, Aperture: f/4.4, Focus: 3 m to ∞	FOV: 15°, Format Equivalent: 162 mm, Aperture: f/4.4, Focus: 3 m to ∞
Lens Defogging	Supported	Supported
ISO Range	100-6400	100-25600
Shutter Speed	Electronic: 8-1/8000 s	Electronic: 8-1/8000 s
Max Image Size	4000×3000	4000×3000
Photo Format	JPEG	JPEG
Video Format	MP4 (MPEG-4 AVC/H.264)	MP4 (MPEG-4 AVC/H.264)
Still Photography Modes	Single: 12 MP, Timed: 12 MP, Smart Low-light: 12 MP	Single: 12 MP, Timed: 12 MP, Smart Low-light: 12 MP
Video Resolution	4K: 3840×2160@30fps, FHD: 1920×1080@30fps	4K: 3840×2160@30fps, FHD: 1920×1080@30fps
Video Bitrate	4K: 130 Mbps, FHD: 70 Mbps	4K: 85 Mbps, FHD: 30 Mbps
Digital Zoom	8x (56x hybrid zoom)	8x (56x hybrid zoom)
Infrared Camera Specifications (DJI Matrice 3TD)
Thermal Imager	Uncooled VOx Microbolometer
Pixel Pitch	12 μm
Frame Rate	30 Hz
Lens	FOV: 61°, Format Equivalent: 40 mm, Aperture: f/1.0, Focus: 5 m to ∞
Sensitivity	≤ 50 mk@F1.0
Temperature Measurement Method	Spot Measurement, Area Measurement
Temperature Measurement Range	-20° to 150° C (High Gain Mode), 0° to 500° C (Low Gain Mode)
Palette	White Hot, Black Hot, Tint, Iron Red, Hot Iron, Arctic, Medical, Fulgurite, Rainbow 1, Rainbow 2
Photo Format	JPEG (8-bit), R-JPEG (16-bit)
Video Resolution	Normal Mode: 640×512@30fps, UHR Infrared Image Mode: 1280×1024@30fps
Video Bitrate	6 Mbps
Video Format	MP4 (MPEG-4 AVC/H.264)
Still Photography Modes	Single: Normal Mode: 640×512, UHR Infrared Image Mode: 1280×1024
Timed Photography Modes	Normal Mode: 640×512, UHR Infrared Image Mode: 1280×1024, intervals up to 60 s
Digital Zoom	28x
Infrared Wavelength	8-14 μm
Infrared Temperature Measurement Accuracy	±2° C or ±2% (using the larger value)
Gimbal Specifications
Specification	Detail
Stabilization	3-axis mechanical gimbal (tilt, roll, pan)

Product Include

DJI Matrice 3D Aircraft
SD Card Installed
DJI Matrice 3D Series Propeller (Pair) x6
Screws and Washers (Pair) x1

Not Included
DJI Dock 2
DJI RC Pro for Matrice 3D Series
DJI Matrice 3D Series Intelligent Flight Battery
DJI Matrice 3D Series Charging Kit
