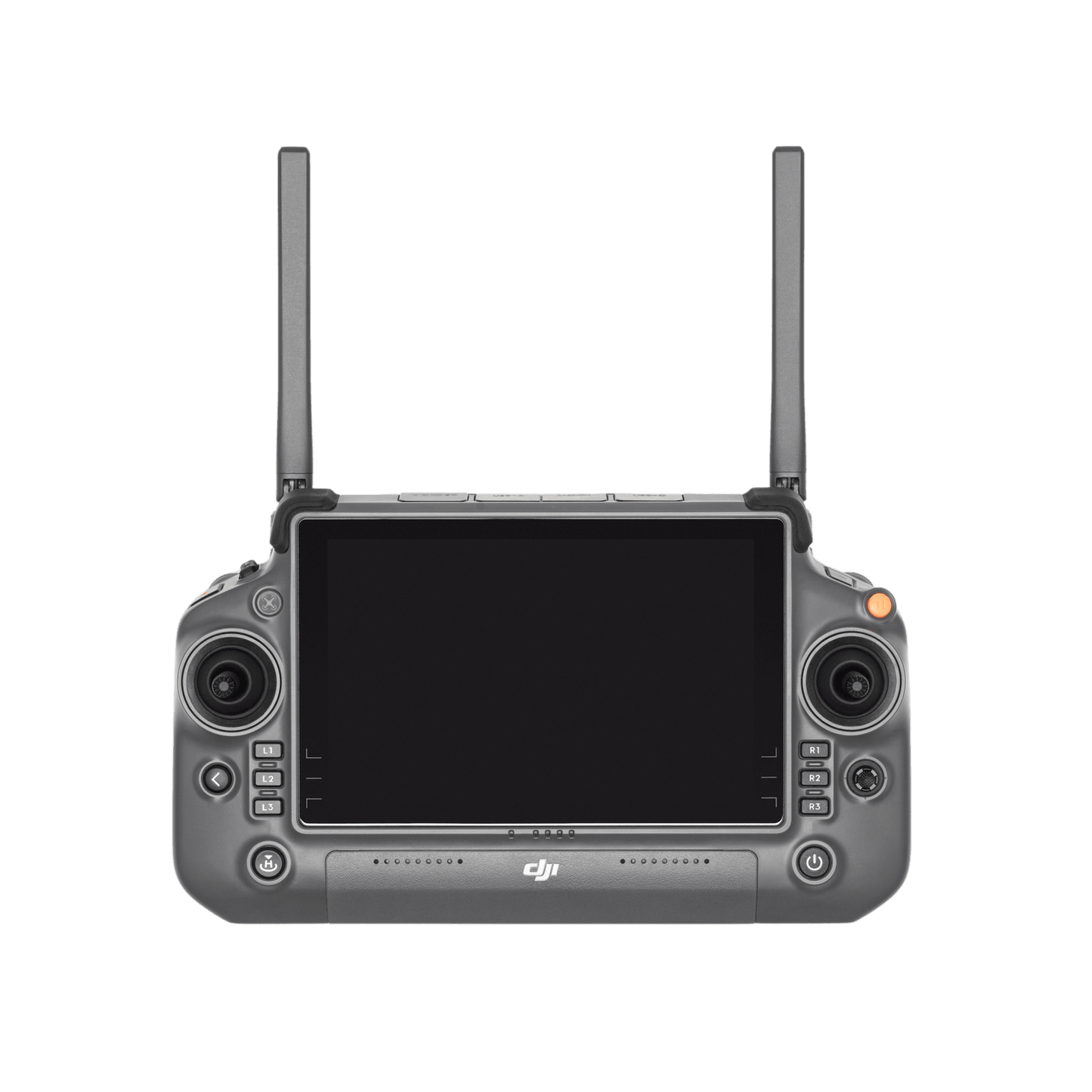

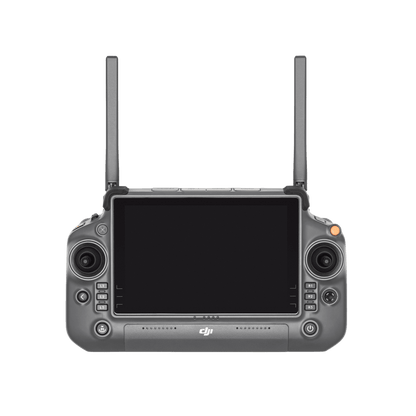

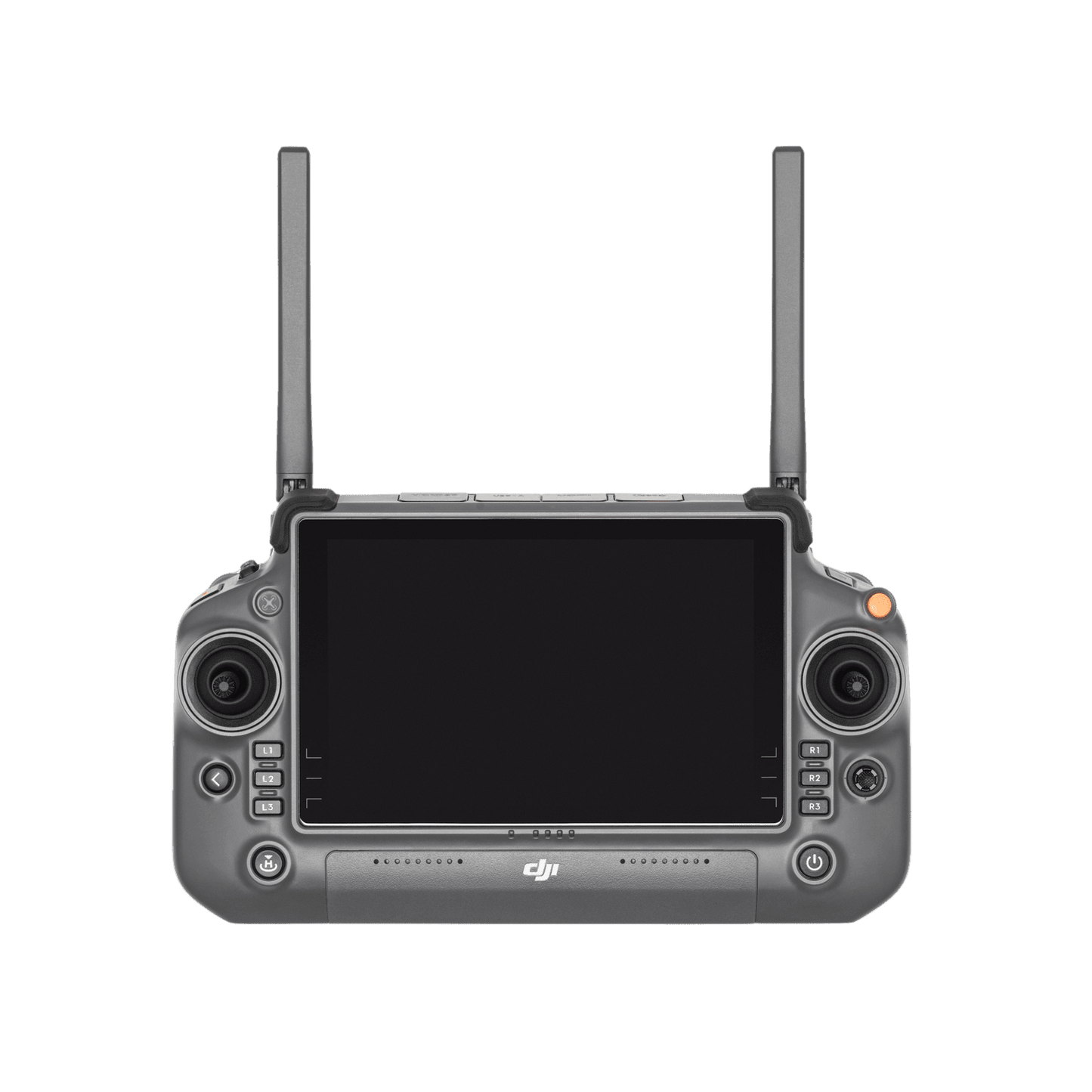

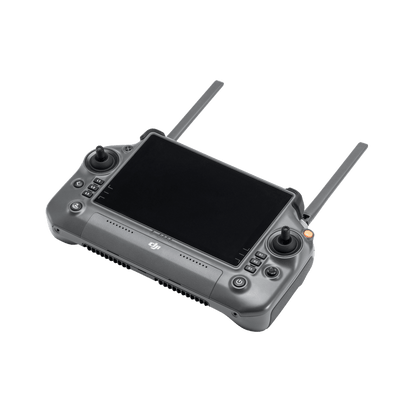

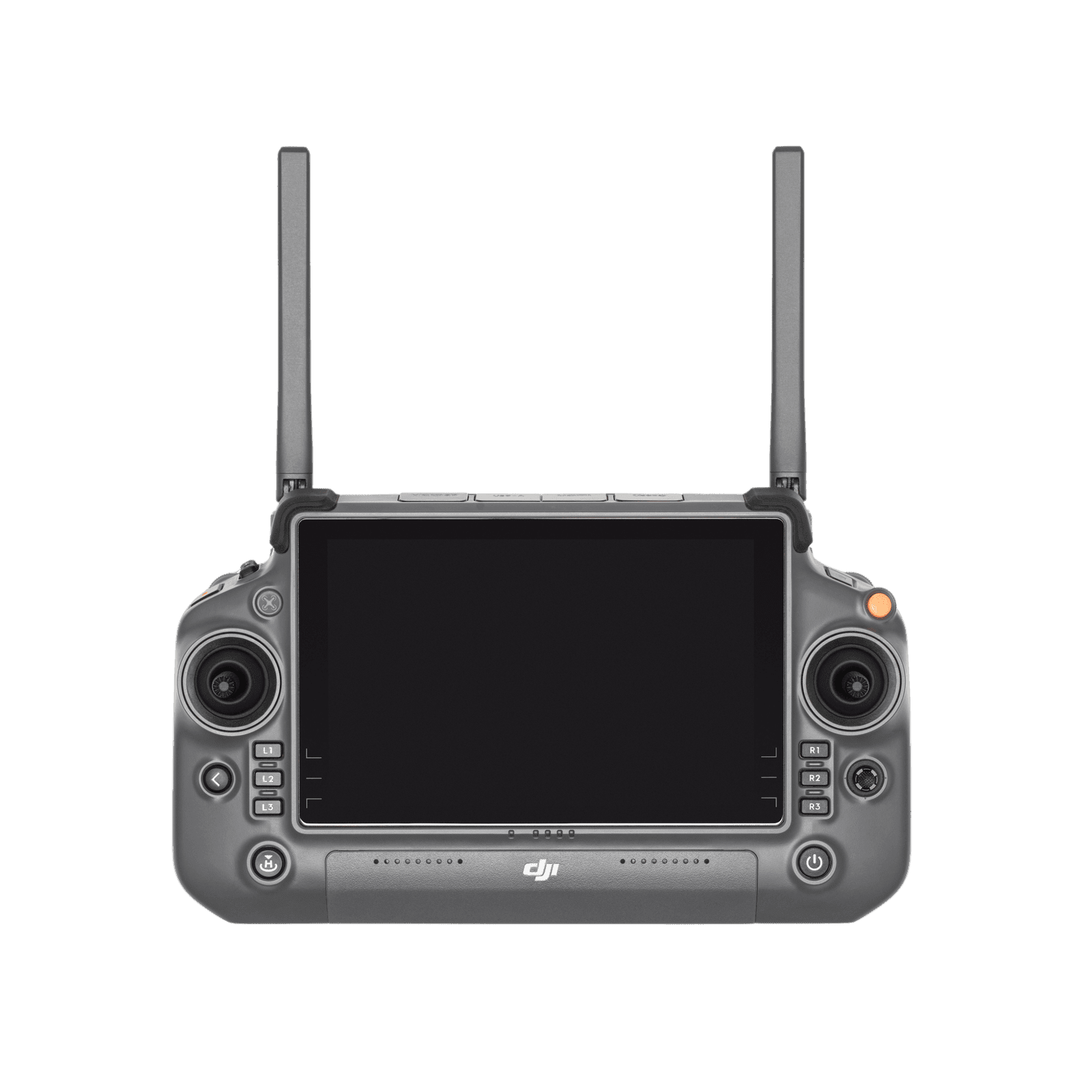

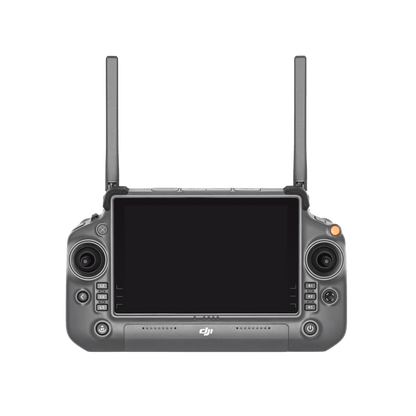

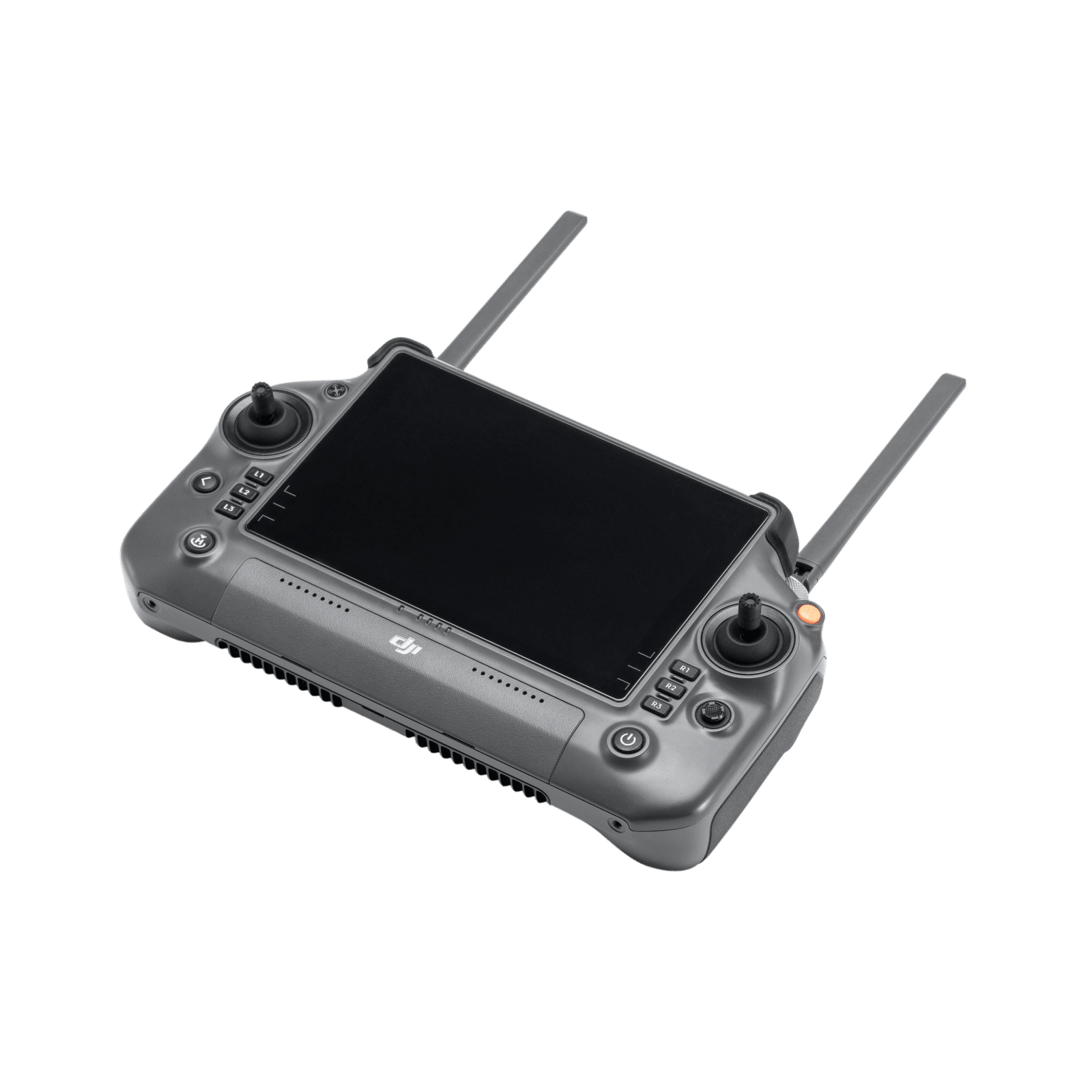

DJI RC Plus Remote Controller - CP.RC.00000000.01
Built For Commercial Drone Pilots
The 7-inch widescreen DJI RC Plus Remote Controller with dual control mode is tailor-made for Enterprise users.
Features
-
IP54 Protection - Water and dustproof
-
-20°C to 50°C Capable in climates both hot and cold
-
Dual external antennas provide stable image transmission with a maximum flight time of six hours
-
8-core high-performance processor
Specifications
| Resolution: |
1,920×1,200 |
| Maximum Brightness: |
1,200 cd/m² |
| Operating Temperature: |
-20 to 50 °C (-4° to 122° F) |
| Screen |
7.02 inch LCD touchscreen, 1920×1200 pixels resolution, 1200 cd/m² brightness |
| Internal Battery |
| - Type |
Li-ion (6500 mAh @ 7.2 V) |
| - Charge Type |
Battery station or USB-C charger (max 65W, 20V) |
| - Charge Time |
2 hours |
| - Chemical System |
LiNiCoAIO2 |
| External Battery (WB37 Intelligent Battery) |
| - Capacity |
4920 mAh |
| - Voltage |
7.6 V |
| - Battery Type |
Li-ion |
| - Energy |
37.39 Wh |
| - Chemical System |
LiCoO2 |
| Operating Time |
| - Internal Battery |
Approx. 3 hours 18 minutes |
| - Internal + External Battery |
Approx. 6 hours |
| Ingress Protection Rating |
IP54 |
| GNSS |
GPS+Galileo+BeiDou |
| Operating Temperature |
-20° to 50° C (-4° to 122° F) |
| O3 Enterprise |
| - Operating Frequency |
2.4000-2.4835 GHz, 5.725-5.850 GHz |
| - Max Transmission Distance (unobstructed) |
15 km (FCC); 8 km (CE/SRRC/MIC) |
| Max Transmission Distance (with interference) |
| - Strong Interference |
1.5-3 km (FCC/CE/SRRC/MIC) |
| - Medium Interference |
3-9 km (FCC); 3-6 km (CE/SRRC/MIC) |
| - Weak Interference |
9-15 km (FCC); 6-8 km (CE/SRRC/MIC) |
| - Transmitter Power (EIRP) |
2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) |
| Wi-Fi |
| - Protocol |
Wi-Fi 6 |
| - Operating Frequency |
2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz |
| - Transmitter Power (EIRP) |
2.4 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC) |
| 5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC) |
|
| 5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE) |
|
| Bluetooth |
| - Protocol |
Bluetooth 5.1 |
| - Operating Frequency |
2.4000-2.4835 GHz |
| - Transmitter Power (EIRP) |
<10 dBm |
Compatibility
Product Include
- DJI RC Plus Remote Controller
