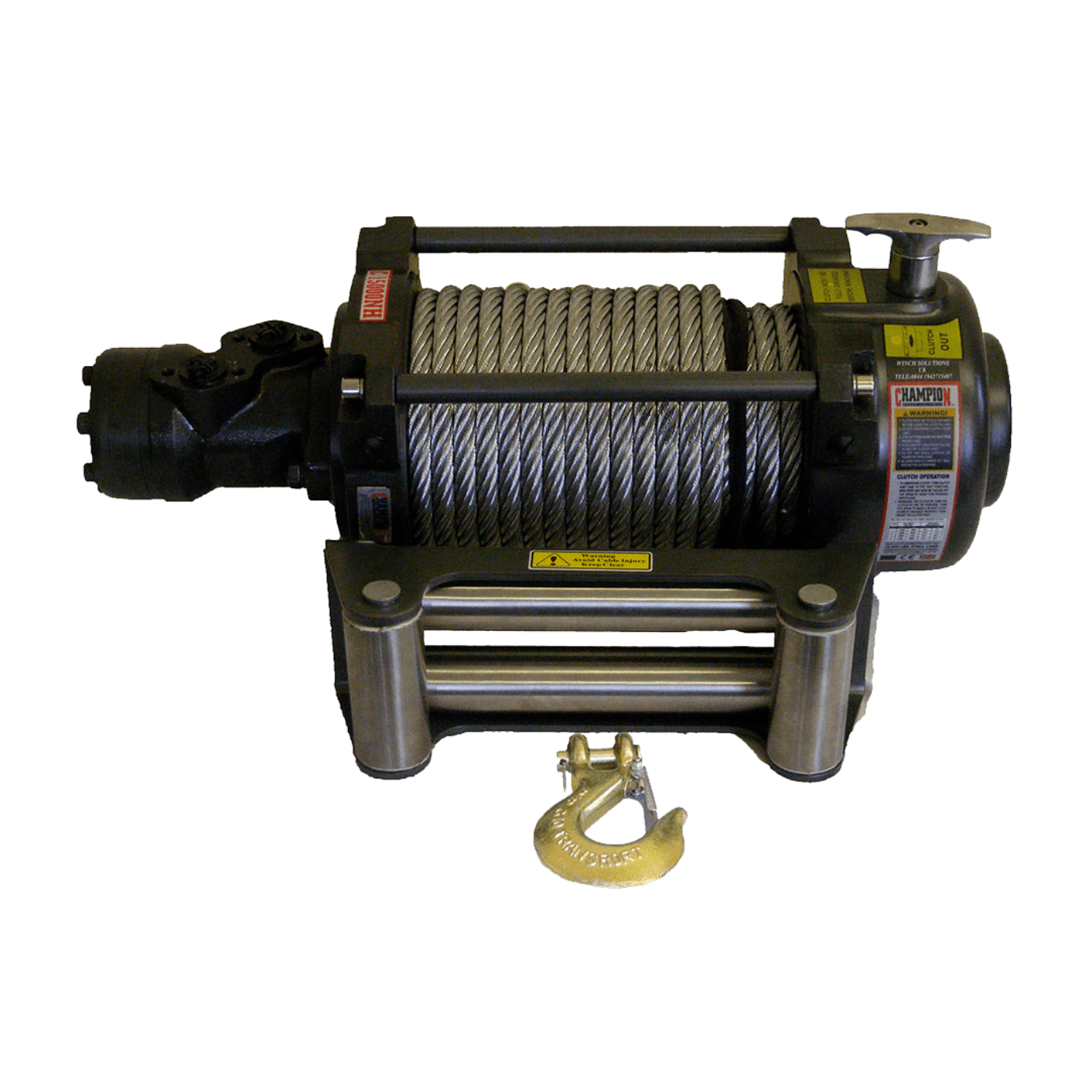

DK2 15,000 NH HYDRAULIC WINCH
COMPACT & TOUGH. WARRIOR HYDRAULIC WINCHES FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS. VALUE WITHOUT COMPROMISE.
Compact, tough. A hydraulic winch for industrial and commercial applications. The unique
patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures
maximum performance over the full load range. Complete with internal brake to ensure maximum control
and load holding and backed by Warrior’s un-rivalled Limited Lifetime Warranty. Stainless steel roller fairleads and fittings are standard.
Features
-
Patented heavy duty gearing
-
Integral, automatic failsafe brake
-
Spring engaged manual freespool
-
Stainless steel fairlead and fittings
-
Rugged and compact for long life
Specification
| ITEM NUMBER |
15000NH |
| RATED LINE PULL |
15000 LBS (6804 KG) |
| MOTOR |
HYDRAULIC DIS 80 ML/R |
| GEARING |
33.4:1 |
| DRUM SIZE - DIAMETER x LENGTH |
89 x 217mm (3.5 x 8.54') |
| CABLE - DIAMETER x LENGTH |
12mm x 26.5m (0.47' x 87') |
| DIMENSIONS |
554 x 226 x 262mm (21.81 x 8.9 x 10.3') |
| MOUNTING PATTERN |
254 x 114.3mm (10 x 4.5') |
| WEIGHT |
68.8 KG (152 LBS) |
| MAX FLOW L/MIN |
45 |
| MAX PRESSURE MPA |
12.5 |
| CLUTCH |
PULL & TURN |
| CERTIFICATION |
CE CERTIFIED |
| LAYER OF ROPE / CABLE |
LINE PULL: LBS (KGS) |
ROPE ON DRUM FT (M) |
| 1 |
15000 (6804) |
18.0 (5.5) |
| 2 |
12120 (5498) |
41.7 (12.4) |
| 3 |
10168 (4612) |
65.9 (20.1) |
| 4 |
8757 (3972) |
86.9 (26.5) |
| LINE PULL: LBS (KGS) |
LINE SPEED FT/MIN (M/MIN) |
FLOW L/MIN • PRESSURE MPA |
| 0 |
1.6 (0.5) |
5 • 2.0 |
| 5000 (2268) |
3.3 (1.0) |
10 • 4.3 |
| 10000 (4536) |
6.6 (2.0) |
20 • 8.7 |
| 12000 (5443) |
9.8 (3.0) |
30 • 10.0 |
| 15000 (6804) |
19.7 (6.0) |
60 • 13.0 |
Manual
Manual Instruction
Technical Diagram
Brochure
What Our Experts Think
The DK2 15,000lb NH Hydraulic Winch is a top-tier tool for heavy-duty recovery and lifting. Here’s why it’s a powerful choice for professionals:
-
Impressive Capacity: With a 15,000lb weight capacity, this winch is designed to handle the toughest recovery tasks, including large vehicles and equipment.
-
Hydraulic Power: Operates with hydraulic force, offering efficient, uninterrupted performance, ideal for continuous use without battery concerns.
-
Built to Last: Constructed with high-strength steel and corrosion-resistant components to ensure longevity and reliability in harsh environments.
-
Efficient and Smooth: Features a strong, durable drum and robust cable for smooth operation during both recovery and lifting tasks.
-
Versatile Applications: Ideal for off-road recovery, industrial use, construction, and farm work where heavy-duty lifting is needed.
-
Easy Mounting: Designed for straightforward installation on various vehicles, including trucks and trailers, ensuring versatility and convenience.
Q&A
Q: What are the key features of the DK2 15,000lb NH Hydraulic Winch?
A: The DK2 15,000lb NH hydraulic winch offers a 15,000 lb pulling capacity, powered by a hydraulic system for continuous and reliable performance. It is designed for heavy-duty applications such as off-road recovery, towing, and lifting.
Q: What type of power source does the winch use?
A: The winch operates using hydraulic power, providing strong and consistent performance when connected to a vehicle’s hydraulic system.
Q: What kind of rope is included?
A: The winch is equipped with a durable steel cable, providing strength and reliability for demanding tasks.
Q: Is the winch suitable for off-road use?
A: Yes, the DK2 15,000lb hydraulic winch is ideal for off-road recovery, construction, and other heavy-duty tasks in rugged environments.
Q: How is the winch controlled?
A: The winch comes with a remote control for easy operation from a safe distance.
Q: Does it come with a warranty?
A: Yes, the DK2 15,000lb NH hydraulic winch includes a 1-year limited warranty for added peace of mind.
Maintenance Tips
-
Inspect Cable: Regularly check for signs of wear, fraying, or kinks. Replace if necessary.
-
Lubricate Components: Apply grease to the winch drum, gears, and other moving parts to maintain smooth operation.
-
Hydraulic Fluid Check: Monitor and maintain the correct hydraulic fluid level. Replace fluid as recommended.
-
Test Functionality: Periodically test the winch to ensure both the in and out functions work properly.
-
Clean After Use: Remove dirt, debris, and moisture to prevent corrosion and maintain performance.
-
Tighten Fasteners: Check bolts, nuts, and other fasteners to ensure they are secure.
-
Store Properly: Keep the winch in a dry, covered area to protect it from environmental damage.
