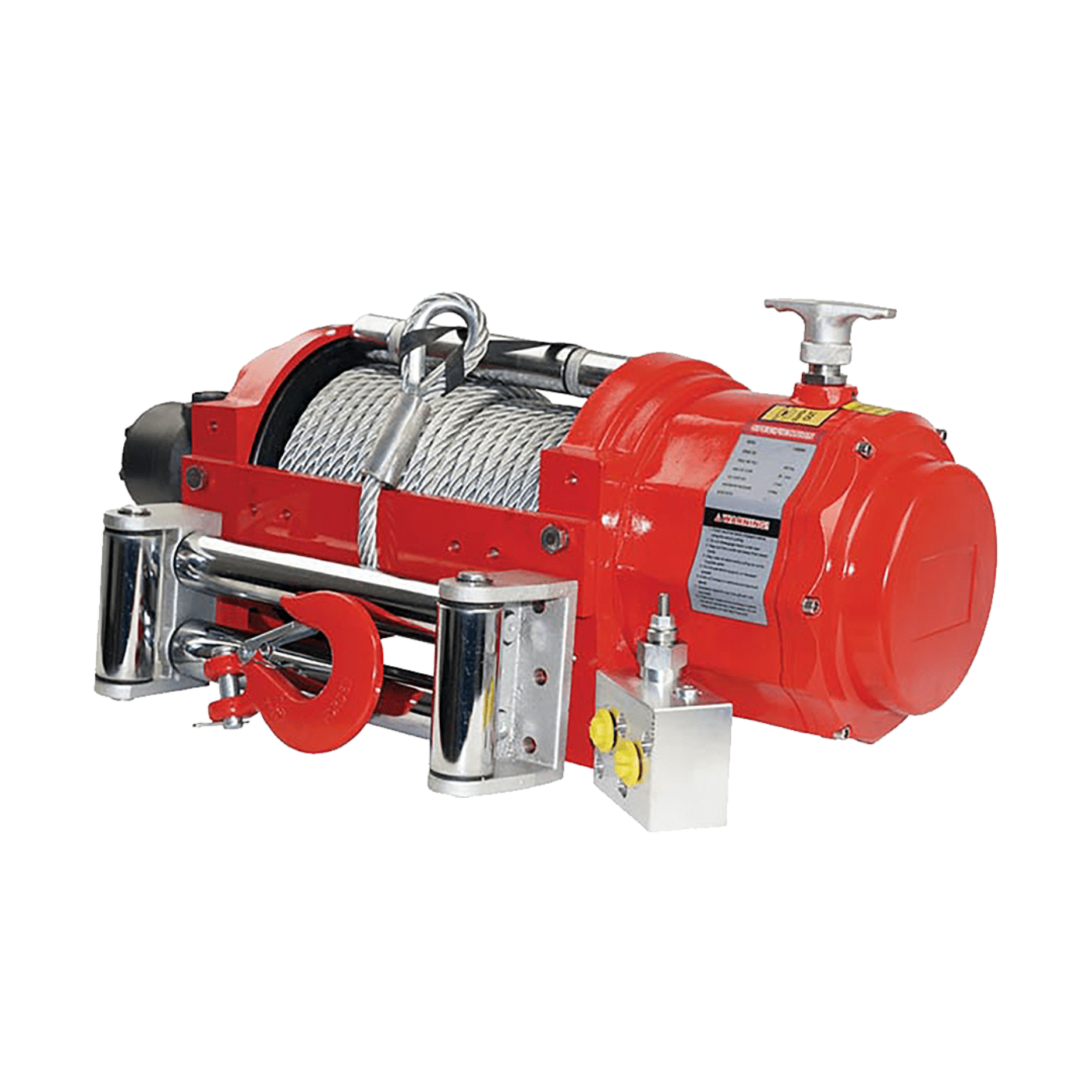

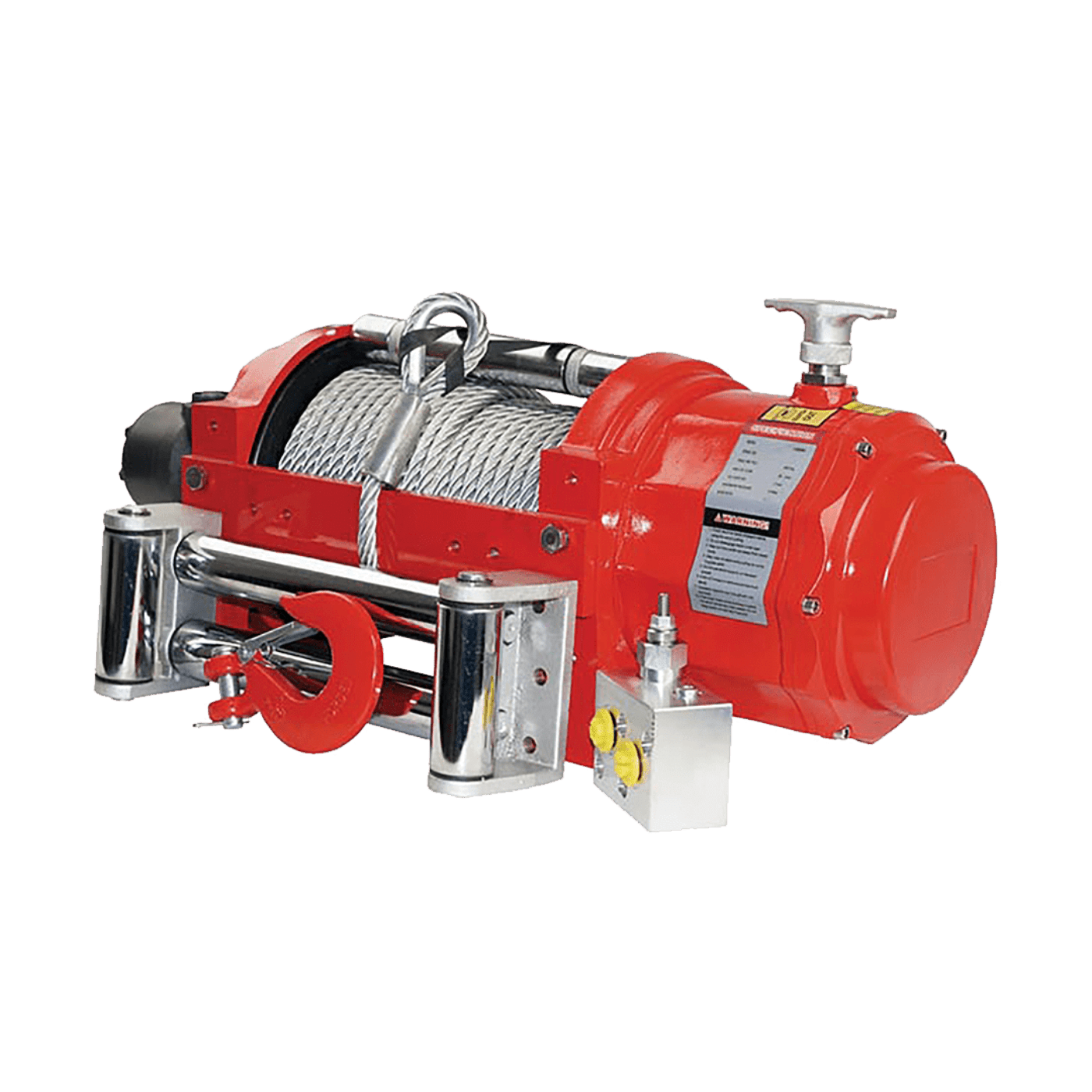

DK2 15,000LB NW HYDRAULIC WINCH
COMPACT & TOUGH. WARRIOR HYDRAULIC WINCHES FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS. VALUE WITHOUT COMPROMISE.
Hydraulic winches for industrial and commercial applications. The special heat treated planetary gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding.
Features
-
Patented heavy duty gearing
-
Integral, automatic failsafe brake
-
Spring engaged manual freespool
-
Stainless steel fairlead and fittings
-
Rugged and compact for long life
-
Meets the requirements of EN 14492:1
Specification
| ITEM NUMBER |
15000NW |
| RATED LINE PULL |
15000 LBS (6810 KG) |
| MOTOR |
HYDRAULIC DIS 160 ML/R |
| GEARING |
17.2:1 |
| DRUM SIZE - DIAMETER x LENGTH |
127 x 270mm (5 x 10.62') |
| CABLE - DIAMETER x LENGTH |
12mm x 25m (0.47' x 82') |
| DIMENSIONS |
716 x 282 x 304mm (28.18 x 11.1 x 11.96') |
| MOUNTING PATTERN |
303.5 x 144.3mm (11.94 x 4.5') / 368 x 117.2mm (14.48 x 4.61') |
| WEIGHT |
80 KG (176 LBS) |
| MAX FLOW L/MIN |
60 |
| MAX PRESSURE MPA |
15 |
| CERTIFICATION |
CE CERTIFIED |
| LAYER OF ROPE / CABLE |
LINE PULL: LBS (KGS) |
| 1 |
15000 (6810) |
| 2 |
12513 (5681) |
| 3 |
10735 (4874) |
| LINE PULL: LBS (KGS) |
LINE SPEED FT/MIN (M/MIN) |
FLOW L/MIN • PRESSURE MPA |
| 0 |
4.29 (1.3) |
10 • 2 |
| 3995 (1816) |
8.58 (2.6) |
20 • 4.6 |
| 5992 (2724) |
12.54 (3.8) |
30 • 6.8 |
| 7990 (3632) |
16.83 (5.1) |
40 • 9 |
| 11980 (5448) |
21.12 (6.4) |
50 • 12 |
| 15000 (6810) |
|
Manual
Manual Instruction
Technical Diagram
Brochure
What Our Experts Think
The DK2 15,000lb NW Hydraulic Winch is a high-performance, heavy-duty tool for tough recovery and lifting tasks. Here’s why it’s a top choice:
-
Massive Capacity: With a 15,000lb weight capacity, it’s ideal for lifting and recovering large vehicles, machinery, and equipment.
-
Hydraulic Power: Operates efficiently with hydraulic force, offering reliable performance without the need for battery power.
-
Built for Durability: Constructed with high-strength steel and corrosion-resistant components to ensure longevity in rugged conditions.
-
Smooth Operation: Features a strong, durable drum and heavy-duty cable, ensuring smooth and effective pulls even under heavy loads.
-
Versatile Applications: Perfect for off-road recovery, industrial tasks, and large-scale farm or construction projects.
-
Easy Installation: Designed for simple installation on a wide range of vehicles, offering flexibility and convenience.
Q&A
Q: What are the key features of the DK2 15,000LB NW Hydraulic Winch?
A: The DK2 15,000LB NW hydraulic winch is built for heavy-duty tasks, offering a 15,000 lb pulling capacity. It features hydraulic operation for powerful, continuous performance, making it ideal for off-road recovery, towing, and lifting.
Q: What power source does the winch use?
A: The winch is powered hydraulically, providing efficient and consistent operation when connected to a vehicle’s hydraulic system.
Q: What type of rope is used?
A: The winch is equipped with a durable steel cable, designed for strength and reliability in tough conditions.
Q: Is this winch suitable for off-road use?
A: Yes, the DK2 15,000LB NW hydraulic winch is perfect for off-road recovery and other heavy-duty applications in rugged environments.
Q: How is the winch controlled?
A: The winch includes a remote control for safe and convenient operation from a distance.
Q: Does it come with a warranty?
A: Yes, the DK2 15,000LB NW hydraulic winch includes a 1-year limited warranty for added assurance.
Maintenance Tips
-
Inspect Cable: Check for damage, wear, or fraying. Replace if needed to ensure safety.
-
Lubricate Moving Parts: Regularly grease the winch drum, gears, and hydraulic components to prevent wear.
-
Hydraulic Fluid: Maintain the proper hydraulic fluid level and replace as recommended by the manufacturer.
-
Test Winch: Run the winch periodically to ensure both in and out operations are smooth and reliable.
-
Clean After Use: Remove dirt, debris, and moisture to avoid rust and maintain function.
-
Secure Mounting: Tighten all fasteners and bolts to ensure the winch is properly secured during operation.
-
Store Properly: Store the winch in a dry, sheltered area or cover it to protect from the elements.
