Specification
| ITEM NUMBER |
10TJP |
| RATED LINE PULL |
22000 LBS (10000 KG) |
| GEARING |
39:1 |
| BRAKING ACTION |
AUTO HYDRAULIC |
| DRUM SIZE - DIAMETER x LENGTH |
138 x 316mm (5.42 x 12.44') |
| CABLE - DIAMETER x LENGTH |
15mm x 48m (0.59' x 157') |
| DIMENSIONS |
830 x 390 x 320mm (32.6 x 15.3 x 12.6') |
| MOUNTING PATTERN |
431 x 64 / 192mm (16.9 x 2.5 / 7.5') |
| WEIGHT |
165 KG (363 LBS) |
| CERTIFICATION |
CE CERTIFIED |
| LAYER OF ROPE / CABLE |
LINE PULL: LBS (KGS) |
| 1 |
22046 (10000) |
| 2 |
16889 (7661) |
| 3 |
14615 (6630) |
| 4 |
12881 (5843) |
| LINE PULL: LBS (KGS) |
LINE SPEED FT/MIN (M/MIN) |
FLOW L/MIN • PRESSURE MPA |
| 0 |
5.9 (1.8) |
15 • 25 |
| 4000 (1814) |
11.7 (3.6) |
30 • 42 |
| 8000 (3629) |
19.6 (6.0) |
50 • 85 |
| 15000 (6804) |
23.6 (7.2) |
60 • 140 |
| 22046 (10000) |
29.7 (9.0) |
75 • 175 |
Manual
Manual Instruction
Technical Diagram
Brochure
What Our Experts Think

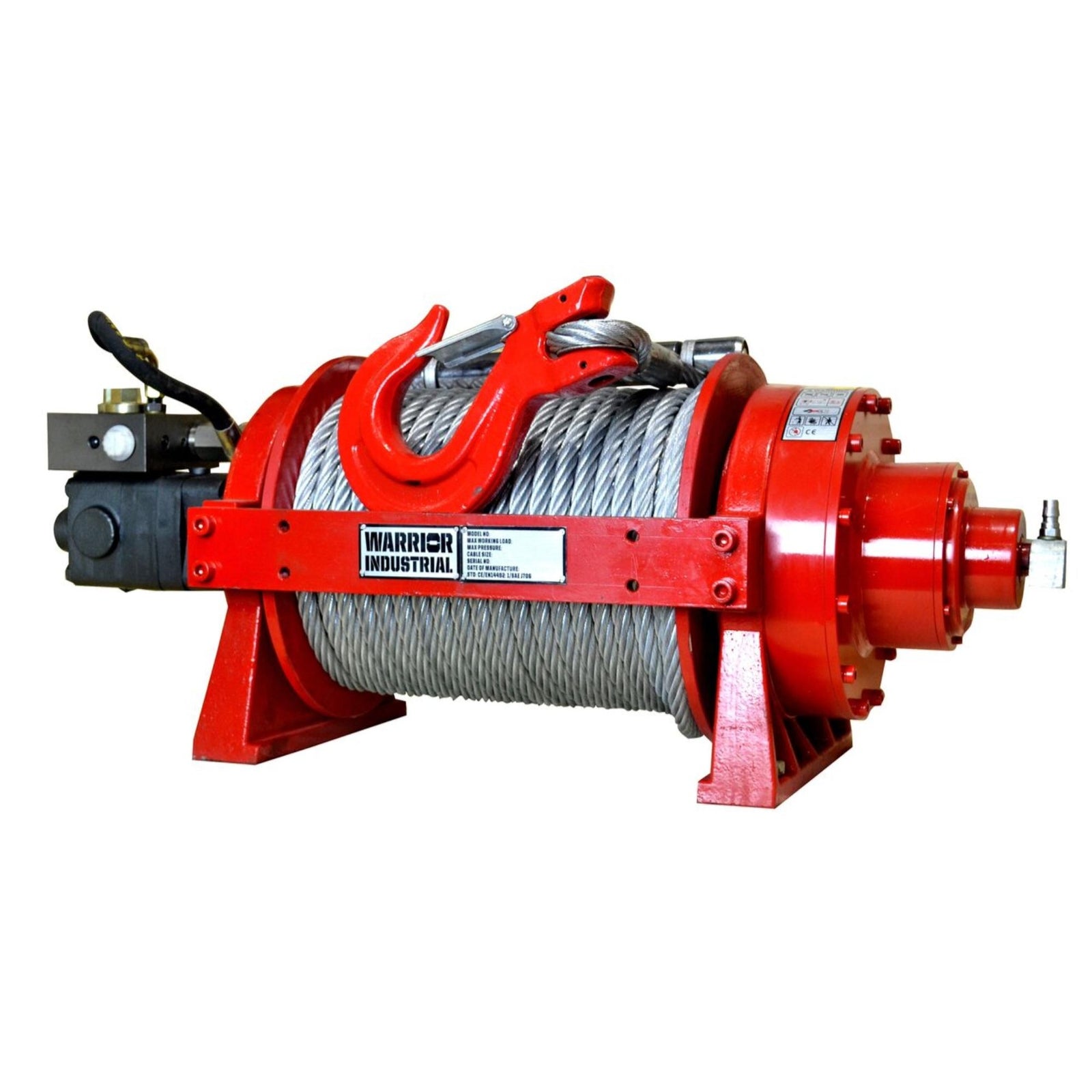

The DK2 22,000LB JP Hydraulic Winch is a heavy-duty winch designed for demanding applications that require high lifting or pulling capacities. This winch is powered by a hydraulic system, making it suitable for vehicles or machinery with a hydraulic power source. With a capacity of 22,000 pounds (10,000 kg), it can be used for tasks such as vehicle recovery, heavy-duty lifting, and construction or industrial applications.
Here are some key features and details of the DK2 22,000LB JP Hydraulic Winch:
-
Hydraulic Power: Operates using hydraulic fluid pressure, offering consistent power and control.
-
Capacity: 22,000-pound (10,000 kg) rated line pull, making it suitable for heavy loads.
-
Durability: Built to withstand rugged conditions, ensuring long-term reliability and performance.
-
Versatility: Can be used in a variety of applications, from off-road recovery to industrial tasks.
-
Design: Typically designed for easy mounting and operation, often with a rugged steel frame and durable components.
Q&A
Q: What are the key features of the DK2 22,000LB JP Hydraulic Winch?
A: The DK2 22,000LB JP hydraulic winch offers a powerful 22,000 lb pulling capacity, making it ideal for extreme-duty applications. It is powered hydraulically for consistent and efficient performance, perfect for off-road recovery, heavy lifting, and towing.
Q: What power source does the winch use?
A: The winch is powered by a hydraulic system, providing reliable and continuous operation when connected to a vehicle's hydraulic power.
Q: What type of rope is included?
A: The winch comes with a strong steel cable, designed for durability and strength to handle heavy loads.
Q: Is this winch suitable for off-road use?
A: Yes, the DK2 22,000LB JP hydraulic winch is specifically designed for off-road recovery and heavy-duty tasks in challenging conditions.
Q: How is the winch controlled?
A: The winch is operated via a remote control, allowing for safe and convenient operation from a distance.
Q: Does it come with a warranty?
A: Yes, the DK2 22,000LB JP hydraulic winch includes a 1-year limited warranty for added peace of mind.
Maintenance Tips
-
Inspect Cable: Regularly check for fraying, kinks, or damage. Replace the cable if necessary for safe operation.
-
Lubricate Components: Grease the winch drum, gears, and moving parts to ensure smooth operation and reduce wear.
-
Hydraulic Fluid: Check fluid levels and replace as per the manufacturer’s recommendation to maintain performance.
-
Test Functionality: Periodically test the winch to ensure both pulling and releasing functions are working correctly.
-
Clean After Use: Wipe down the winch to remove dirt, debris, and moisture, preventing corrosion.
-
Tighten Fasteners: Ensure all bolts, nuts, and other fasteners are tight to prevent loosening during use.
-
Store Properly: Store the winch in a dry, covered space to protect it from the elements and extend its lifespan.
