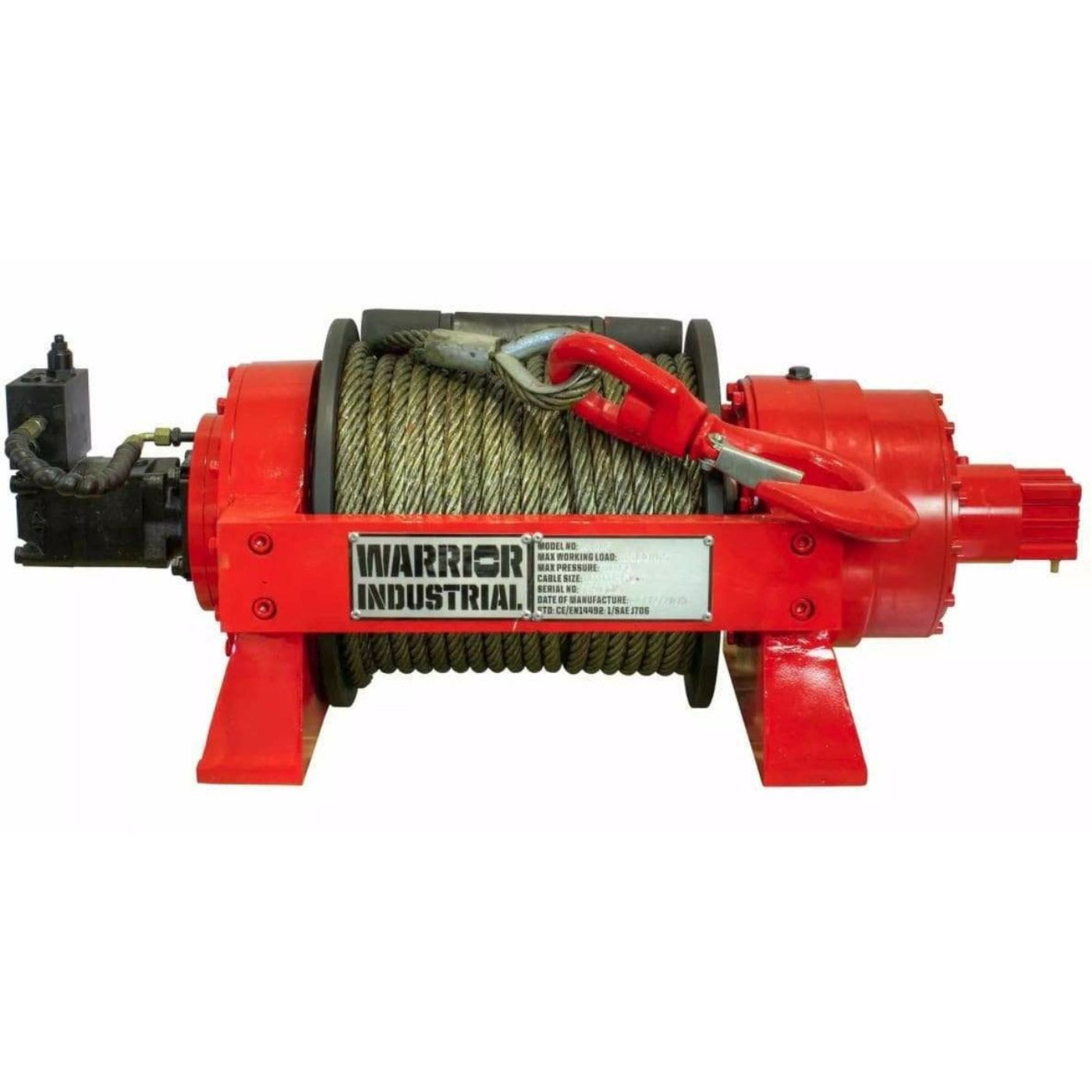

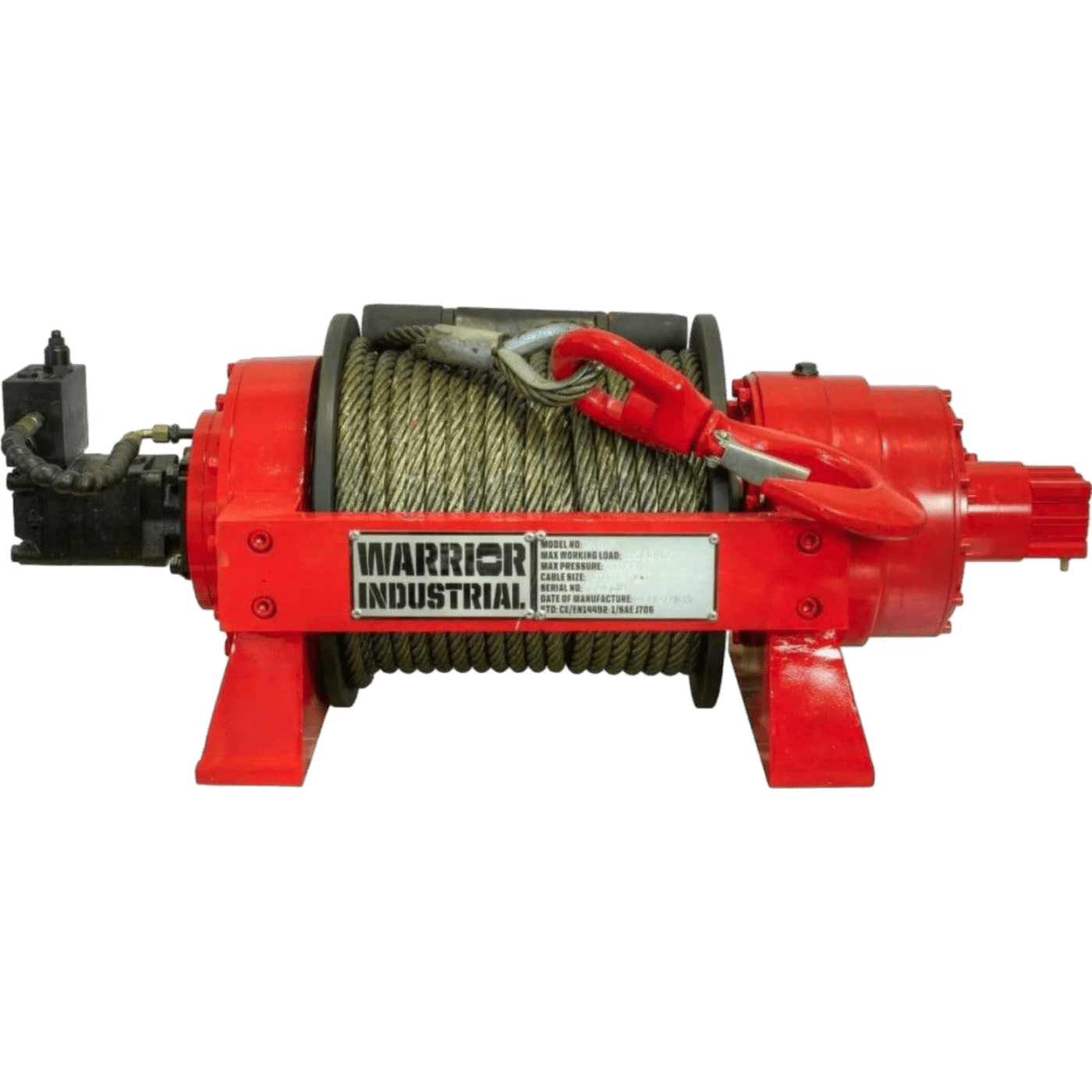

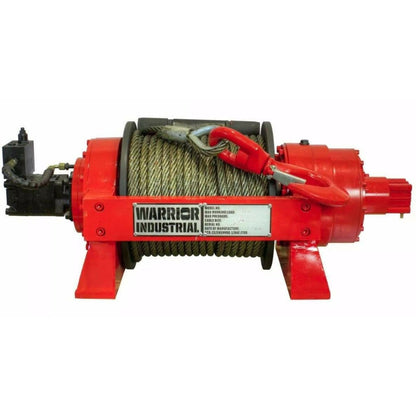

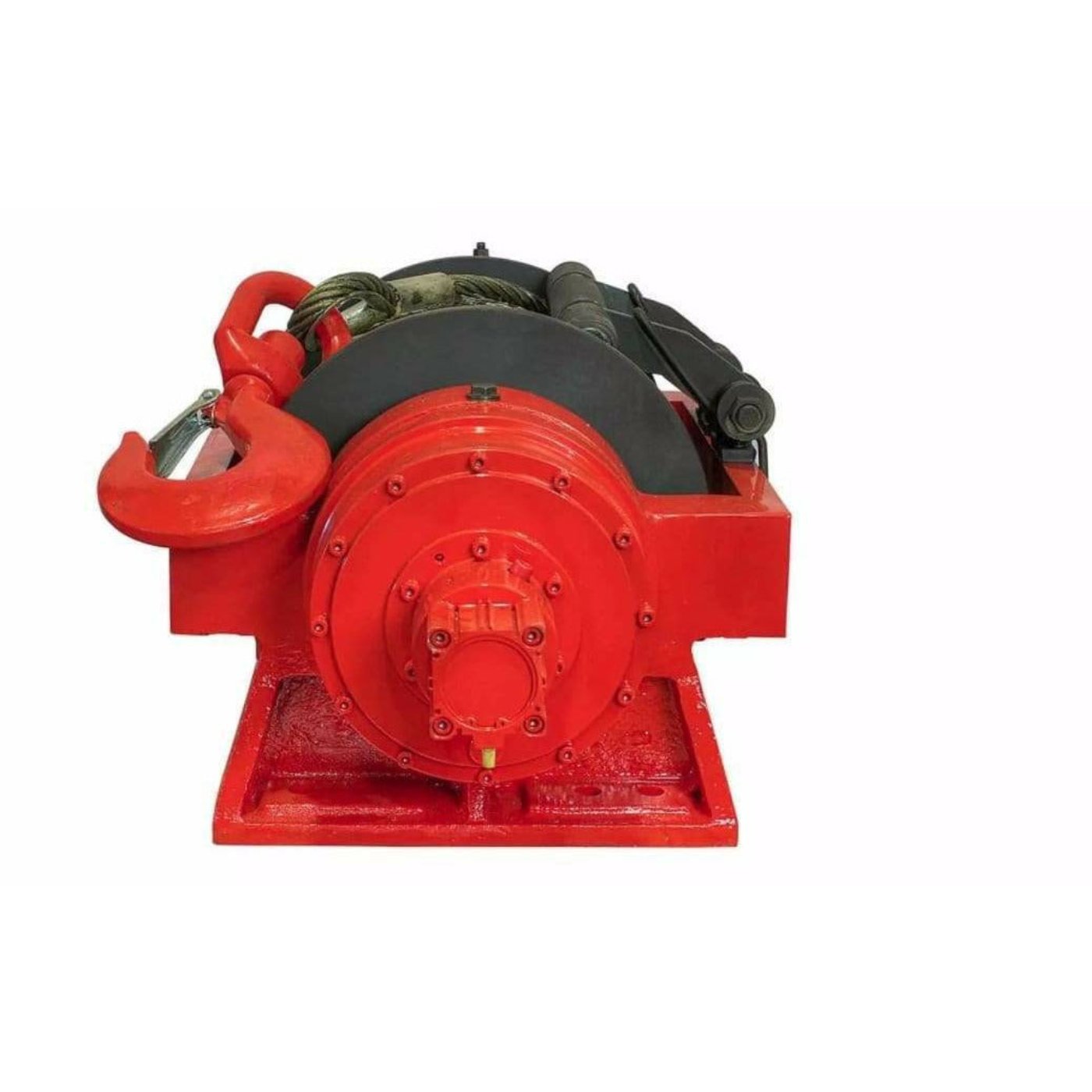

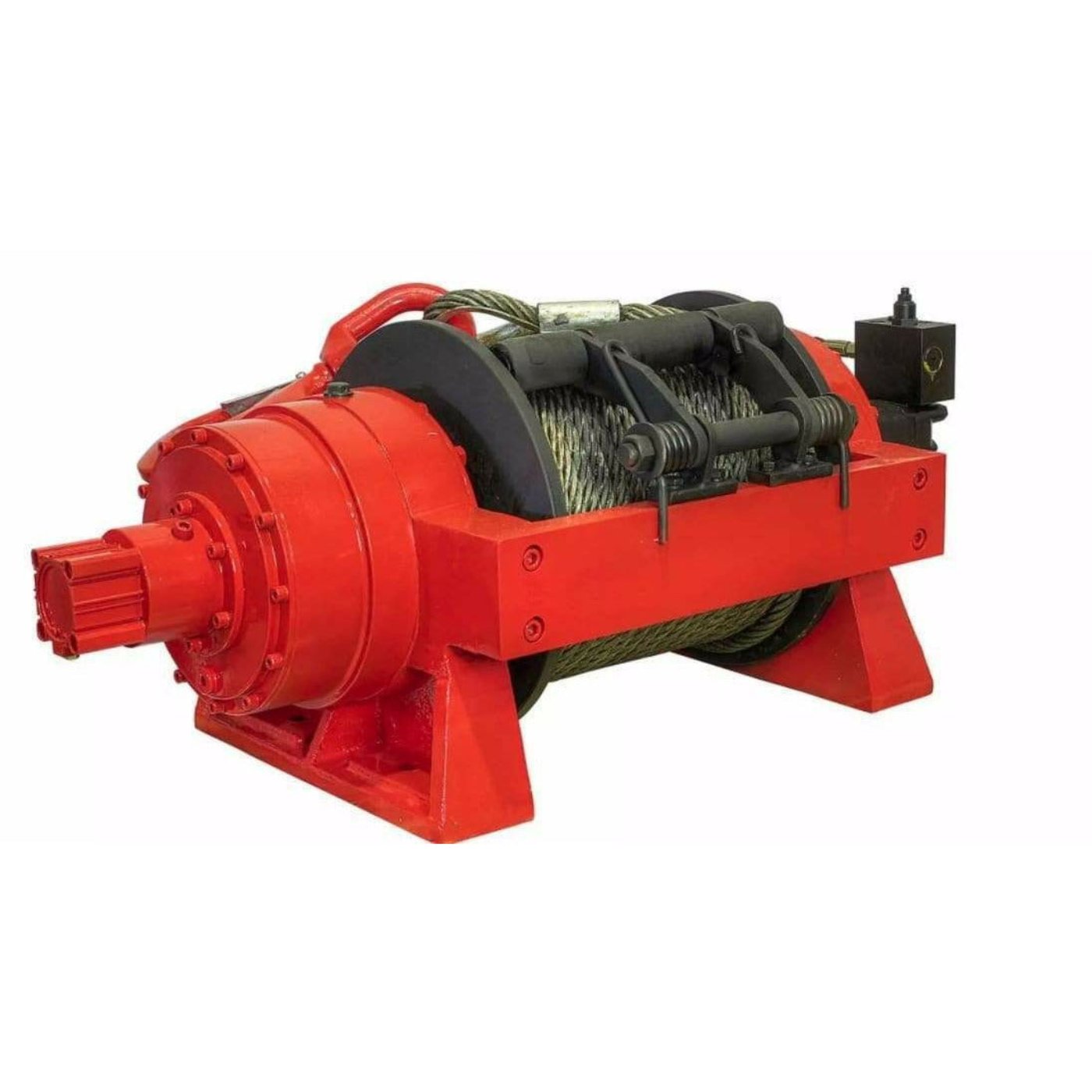

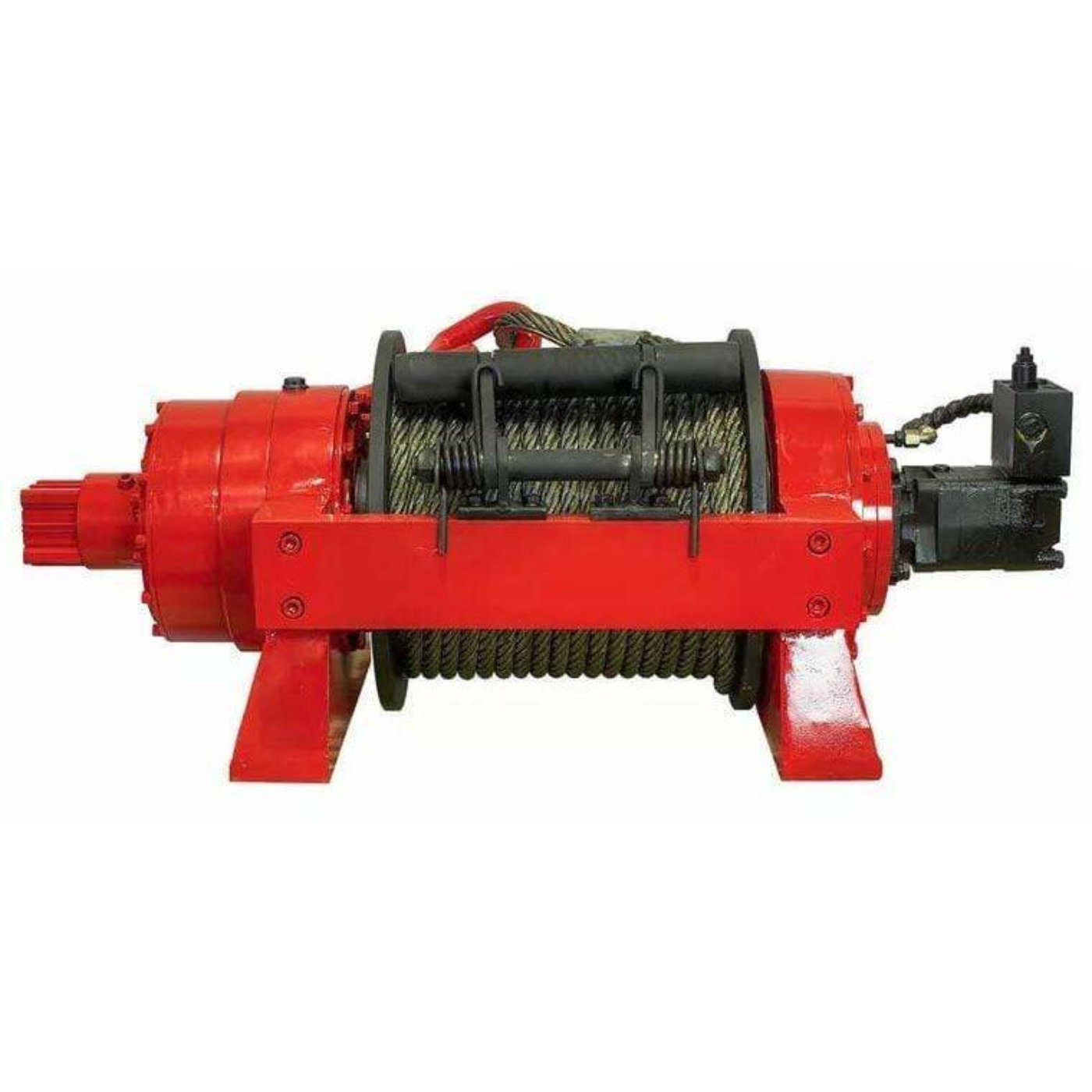

DK2 30,000LB JP HYDRAULIC WINCH
THE JP SERIES WINCHES HAVE BEEN DEVELOPED FOR THE PROFESSIONAL OPERATOR.
BUILT SPECIFICALLY FOR MILITARY USE & ABLE TO WITHSTAND EXTREME CLIMATES AND TEMPERATURES.
These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.
Features
-
Full float heavy duty planetary gearing
-
Multi disc friction brake
-
High torque industrial motor
-
Air and manual clutch operation
-
Heavy duty rope tensioner as standard
-
Minimum 10:1 rope/drum ratio
-
Balance valve as standard
Specification
| ITEM NUMBER |
13.5TJP |
| RATED LINE PULL |
29762 LBS (13500 KG) |
| GEARING |
36:1 |
| BRAKING ACTION |
AUTO HYDRAULIC |
| DRUM SIZE - DIAMETER x LENGTH |
190 x 340mm (7.48 x 13.39') |
| CABLE - DIAMETER x LENGTH |
18mm x 50m (0.71' x 164') |
| DIMENSIONS |
1050 x 640 x 405mm (41.34 x 25.2 x 15.9') |
| MOUNTING PATTERN |
522mm x 180 / 280mm (20.5' x 7 / 11') |
| WEIGHT |
271 KG (597 LBS) |
| CERTIFICATION |
CE CERTIFIED |
| MAX FLOW L/MIN |
60 L/MIN |
| MAX PRESSURE MPA |
170 BAR |
Manual
Manual Instruction
Technical Diagram
Brochure
What Our Experts Think
The DK2 30,000LB JP Hydraulic Winch is a powerful and dependable solution for heavy-duty recovery and towing tasks. Here's why our experts recommend it:
-
Massive Pulling Power: With a 30,000-pound capacity, this winch handles the most demanding recovery scenarios, from heavy vehicles to industrial equipment.
-
Hydraulic Performance: Offers consistent and reliable operation, even during extended use, making it ideal for commercial and off-road applications.
-
Durable Construction: Built with high-quality steel components to withstand harsh environments and rigorous use.
-
Customizable Fit: Designed to integrate seamlessly with a variety of vehicle types, including trucks, trailers, and heavy machinery.
-
Low Maintenance: Hydraulic systems require less upkeep than electric winches, ensuring long-term reliability and efficiency.
-
Enhanced Safety Features: Includes a robust brake system and strong cable to handle heavy loads securely.
Q&A
Q: What is the DK2 30,000LB JP Hydraulic Winch?
A: The DK2 30,000LB JP Hydraulic Winch is a heavy-duty winch designed for industrial and off-road applications, offering reliable power to handle the toughest pulling jobs.
Q: What is its weight capacity?
A: It has a maximum pulling capacity of 30,000 lbs, making it suitable for heavy equipment, recovery vehicles, and demanding tasks.
Q: What are the key features?
A: Features include a hydraulic-powered system for consistent performance, durable steel construction, a robust cable, and a secure locking mechanism.
Q: Is it compatible with most vehicles?
A: Yes, the winch is designed for universal compatibility with trucks, recovery vehicles, and heavy-duty equipment that support hydraulic systems.
Q: Why choose the DK2 JP Hydraulic Winch?
A: Its high capacity, durable design, and hydraulic operation provide dependable and powerful performance for industrial and off-road needs.
Q: What’s included in the package?
A: The package includes the hydraulic winch, steel cable, control system, mounting hardware, and an installation guide.
Maintenance Tips
-
Clean Regularly: Remove dirt, mud, and debris after use to prevent buildup on the winch and cable.
-
Inspect the Cable: Check the cable or synthetic rope for fraying, kinks, or damage. Replace if necessary.
-
Lubricate Moving Parts: Apply grease to gears, bearings, and other moving components to ensure smooth operation.
-
Check Hydraulic Connections: Inspect hoses, fittings, and seals for leaks or wear. Tighten or replace as needed.
-
Test the Motor: Periodically run the winch to ensure proper hydraulic pressure and smooth function.
-
Secure Mounting: Verify that all bolts and mounts are tight and free of corrosion.
-
Store Safely: Protect the winch from extreme weather by covering it when not in use.
