Dual Split 18000 BTU 1.5-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (2) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT020GLSI24M2-9W-9W

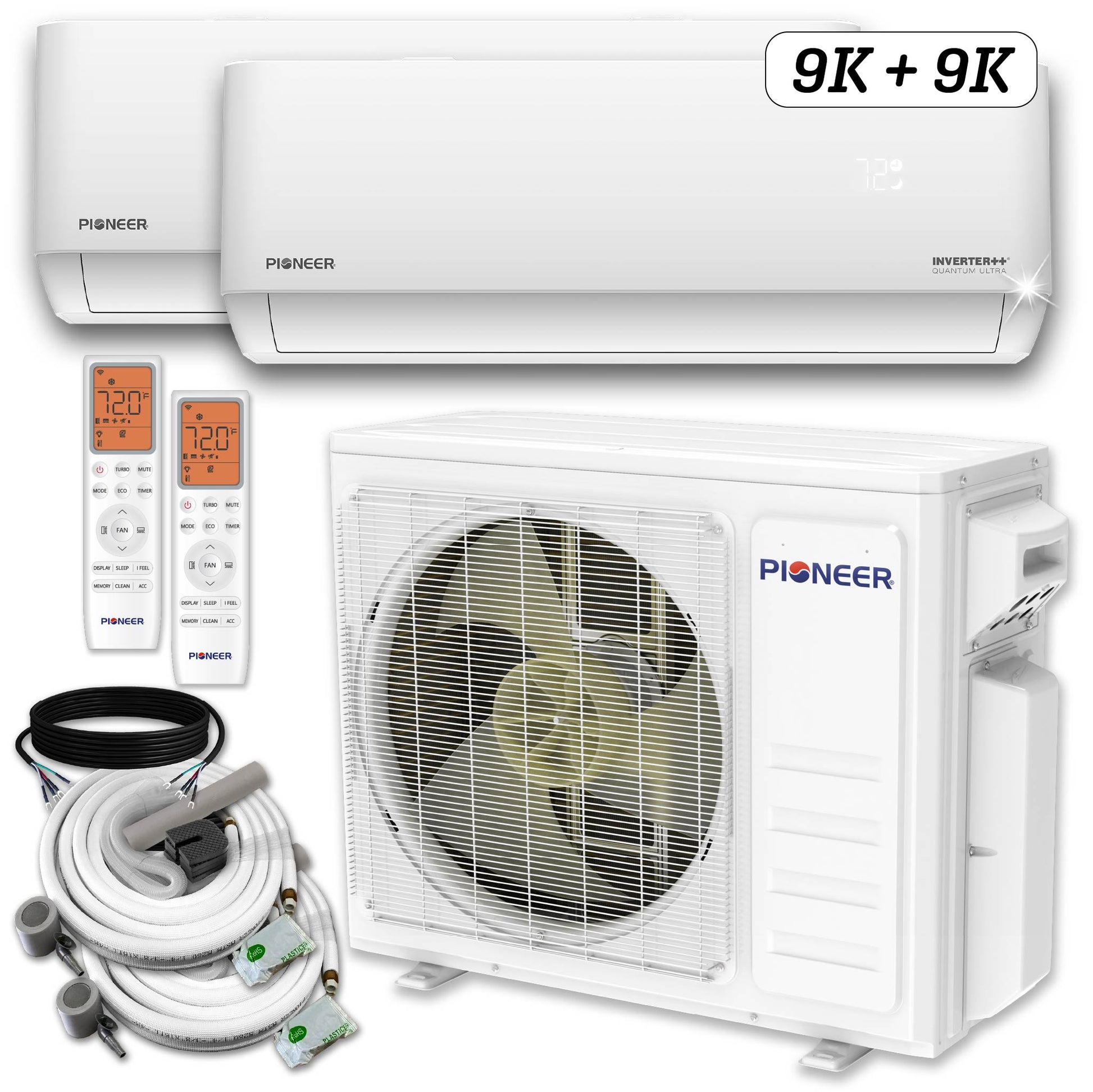

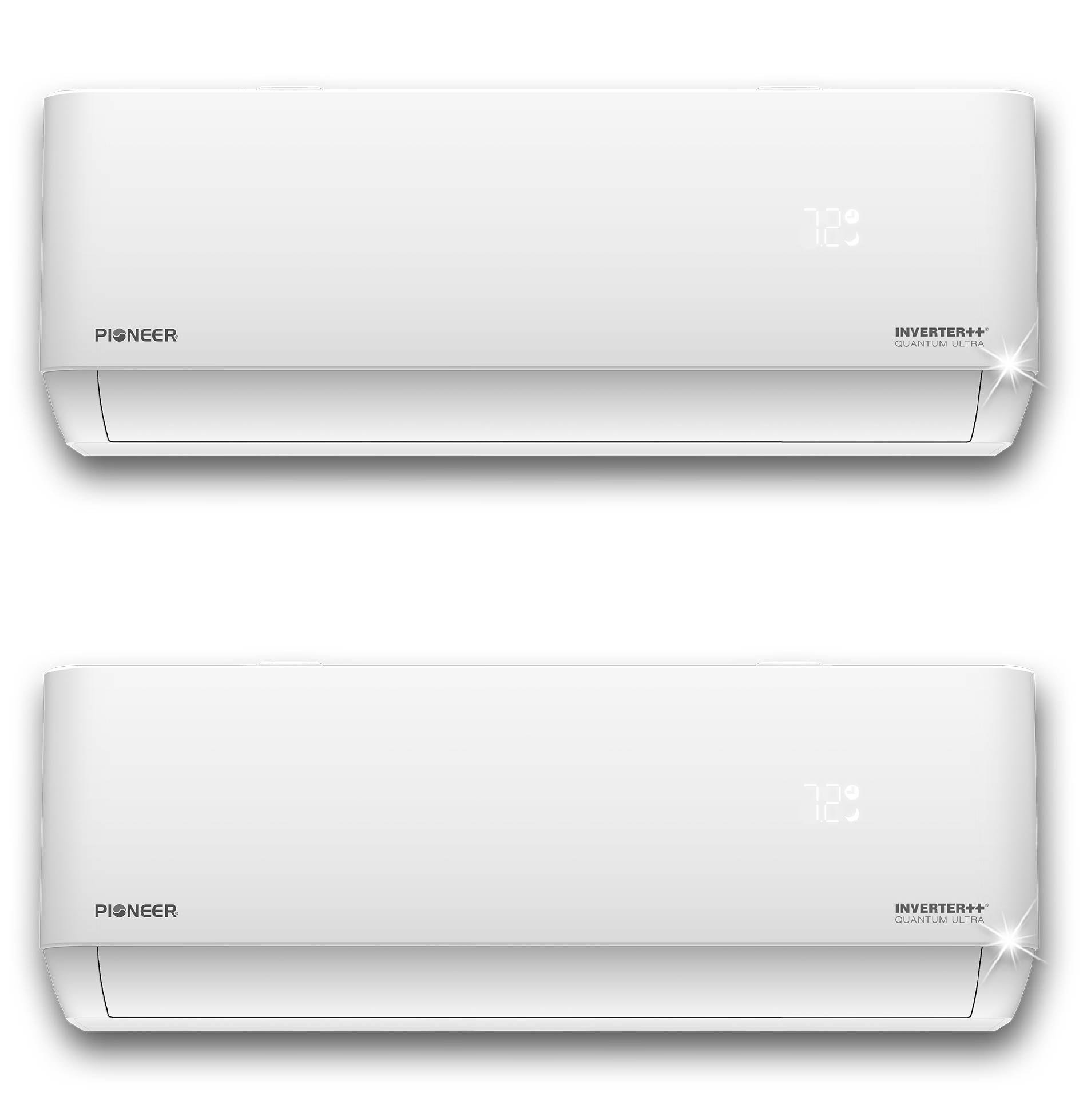

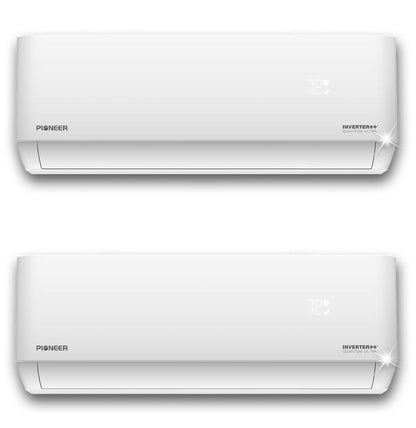

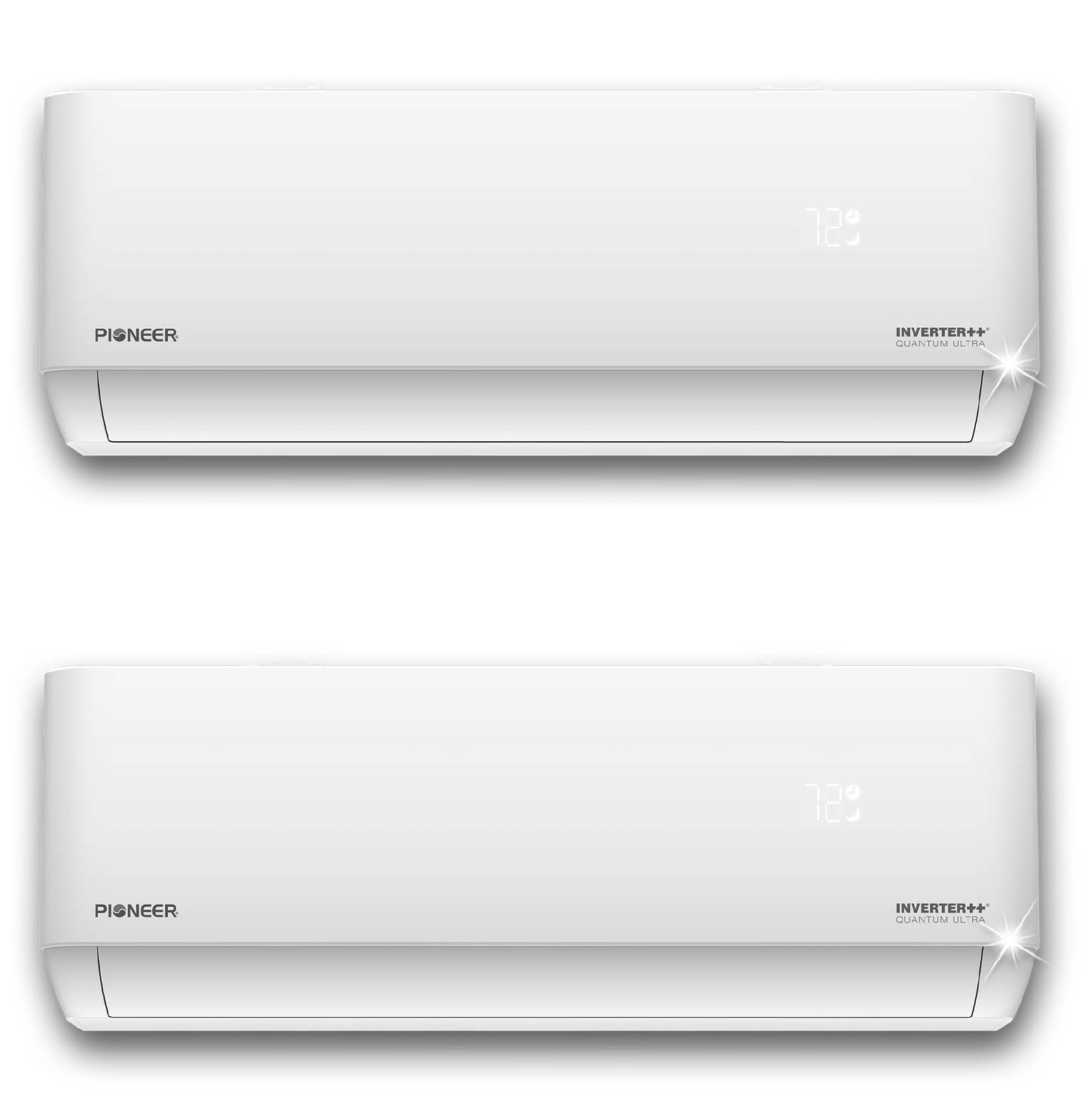

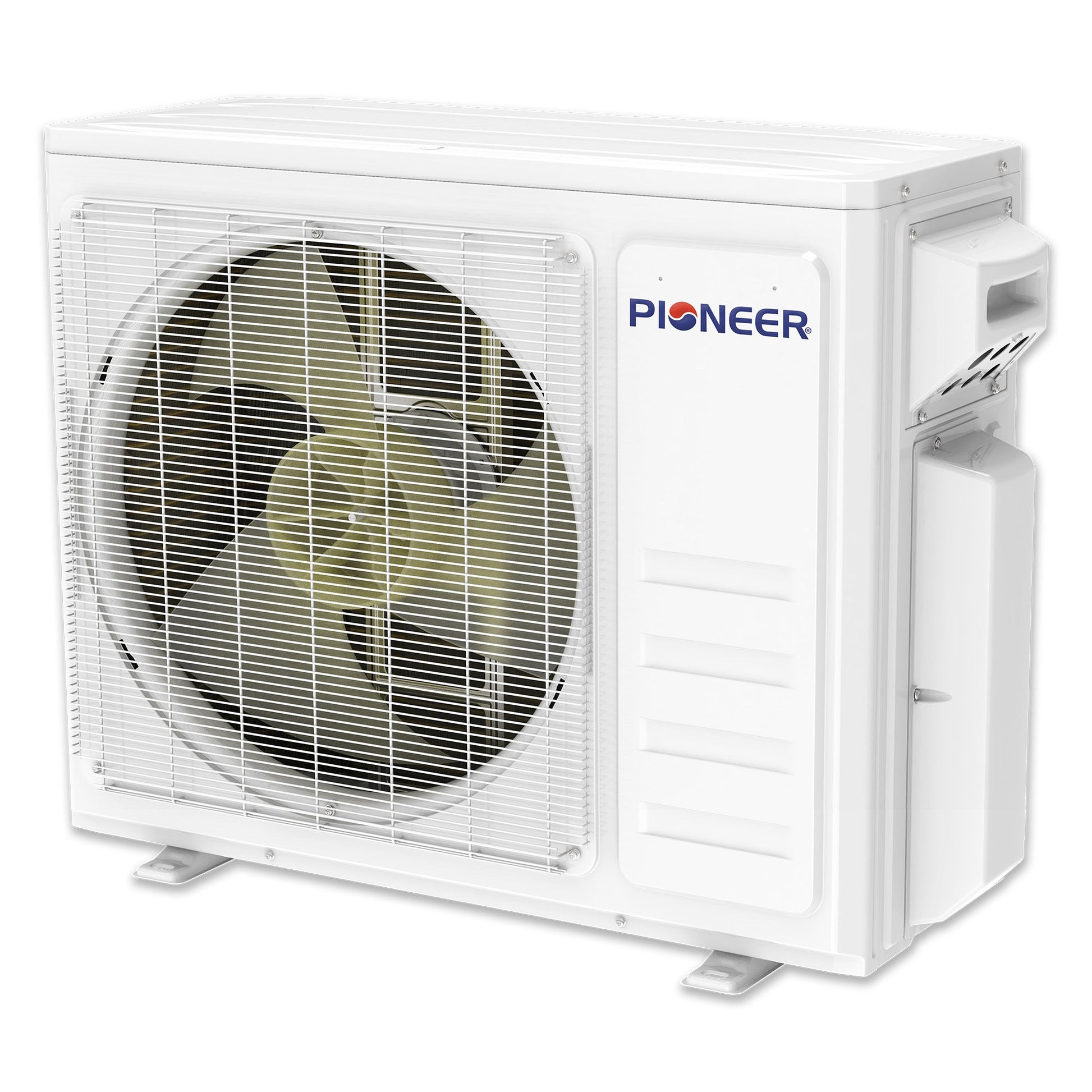

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
Features
- Ultra-high efficiency inverter++ ductless multi split dual (2) zone heat pump system
- (x2) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 18,000 BTU/H (Range: 5,100 minimum - 18,700 maximum) with 24 SEER/13.0 EER efficiency
- Heating capacity: 20,000 BTU/H nominal (range 4,900 minimum - 23,000 maximum) with 10 HSPF/3.5 COP efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled

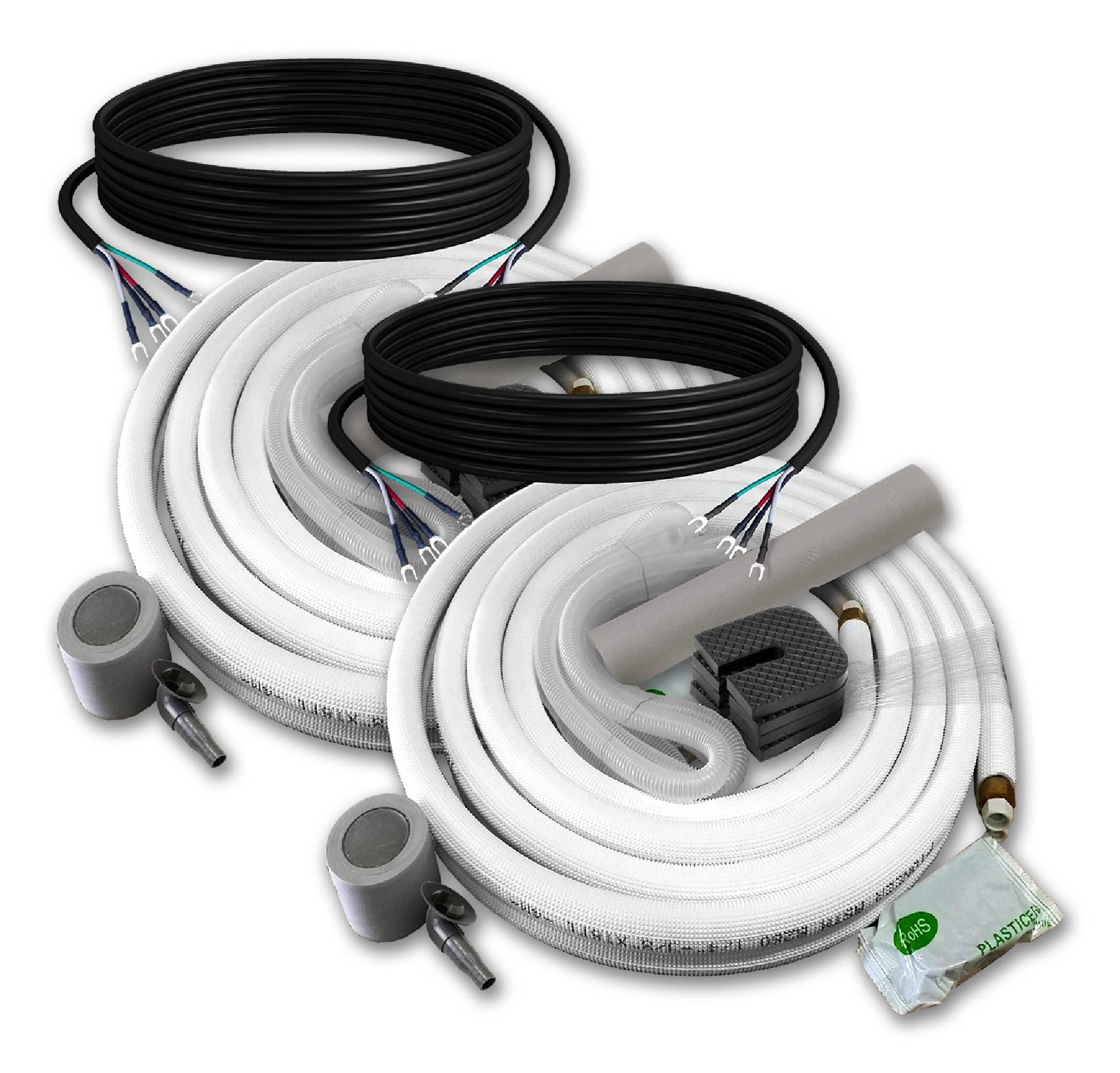

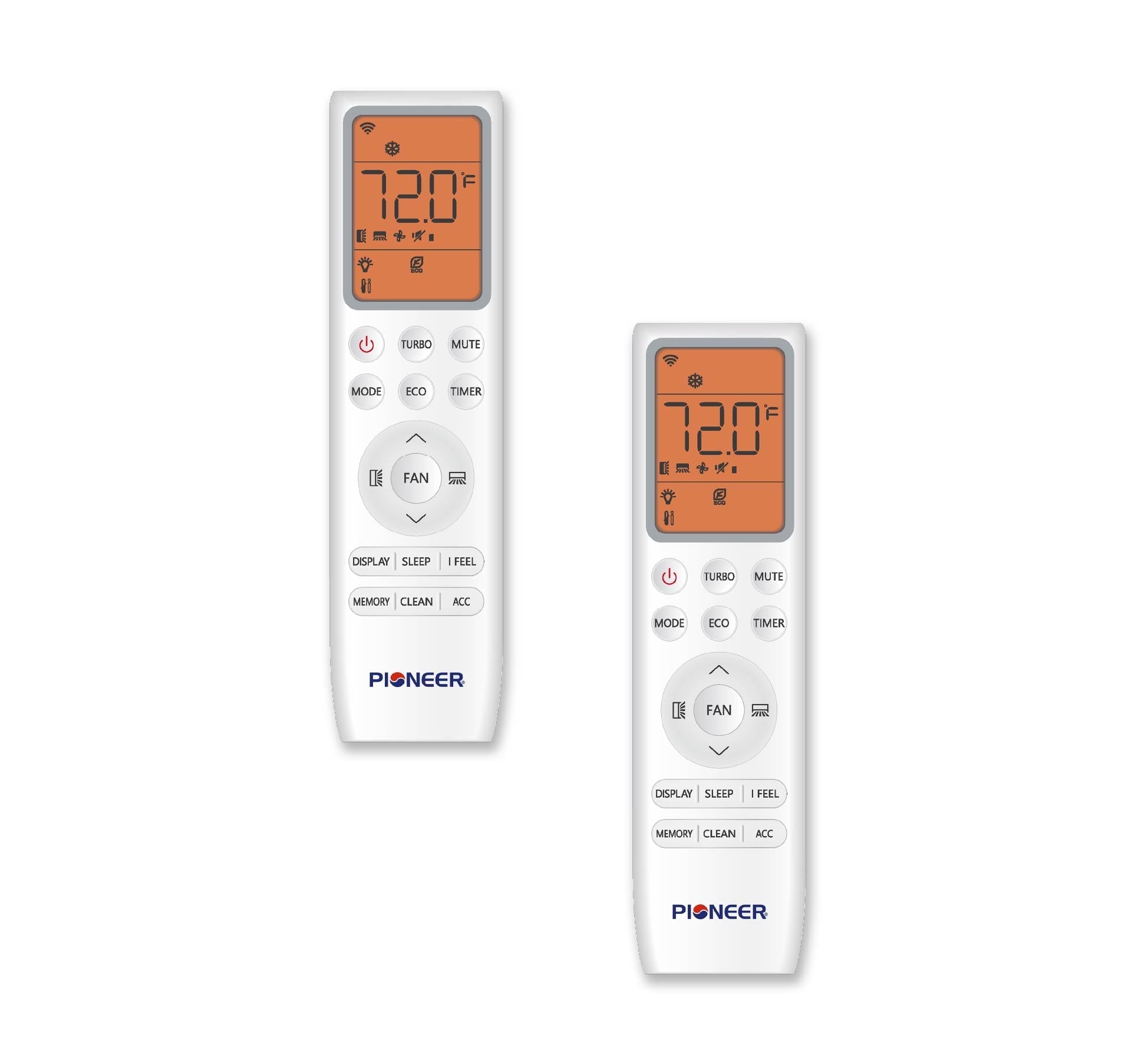

- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 50 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
Manuals
What Our Experts Think
-
Dual-split 1.5-ton system efficiently cools and heats two zones independently.
-
18000 BTU capacity with 24 SEER2 rating ensures energy-efficient performance.
-
Wi-Fi enabled for remote control and smart scheduling.
-
Energy-Star certified, reducing electricity costs without sacrificing comfort.
-
Quiet wall-mount design ideal for residential or small commercial spaces.
Q&A
Q: Can it control two rooms independently?
A: Yes, it’s a dual-zone system for separate cooling/heating in each room.
Q: Is it energy-efficient?
A: Yes, with a 24 SEER2 rating and Energy-Star certification.
Q: Can I control it remotely?
A: Yes, it supports Wi-Fi connectivity for smartphone or smart home integration.
Maintenance Tips
-
Clean or replace filters every 1–2 months for optimal airflow.
-
Wipe exterior units regularly to prevent dust buildup.
-
Schedule professional servicing annually for refrigerant checks and efficiency.
-
Ensure outdoor unit is clear of debris for proper airflow.
