Dual Split 27000 BTU 2.25-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (2) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT030GLSI24M3-18W-19W
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
Features
- Ultra-high efficiency inverter++ ductless multi split triple (3) zone heat pump system (paired with 2x indoor units to function effectively as a stronger 2-zone system)

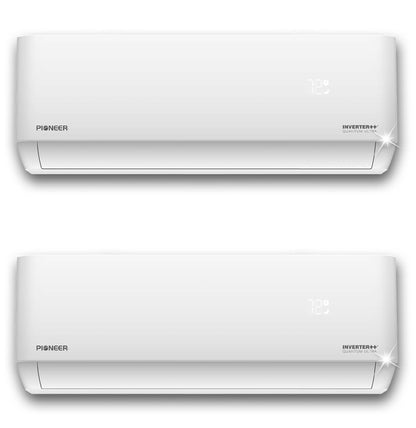

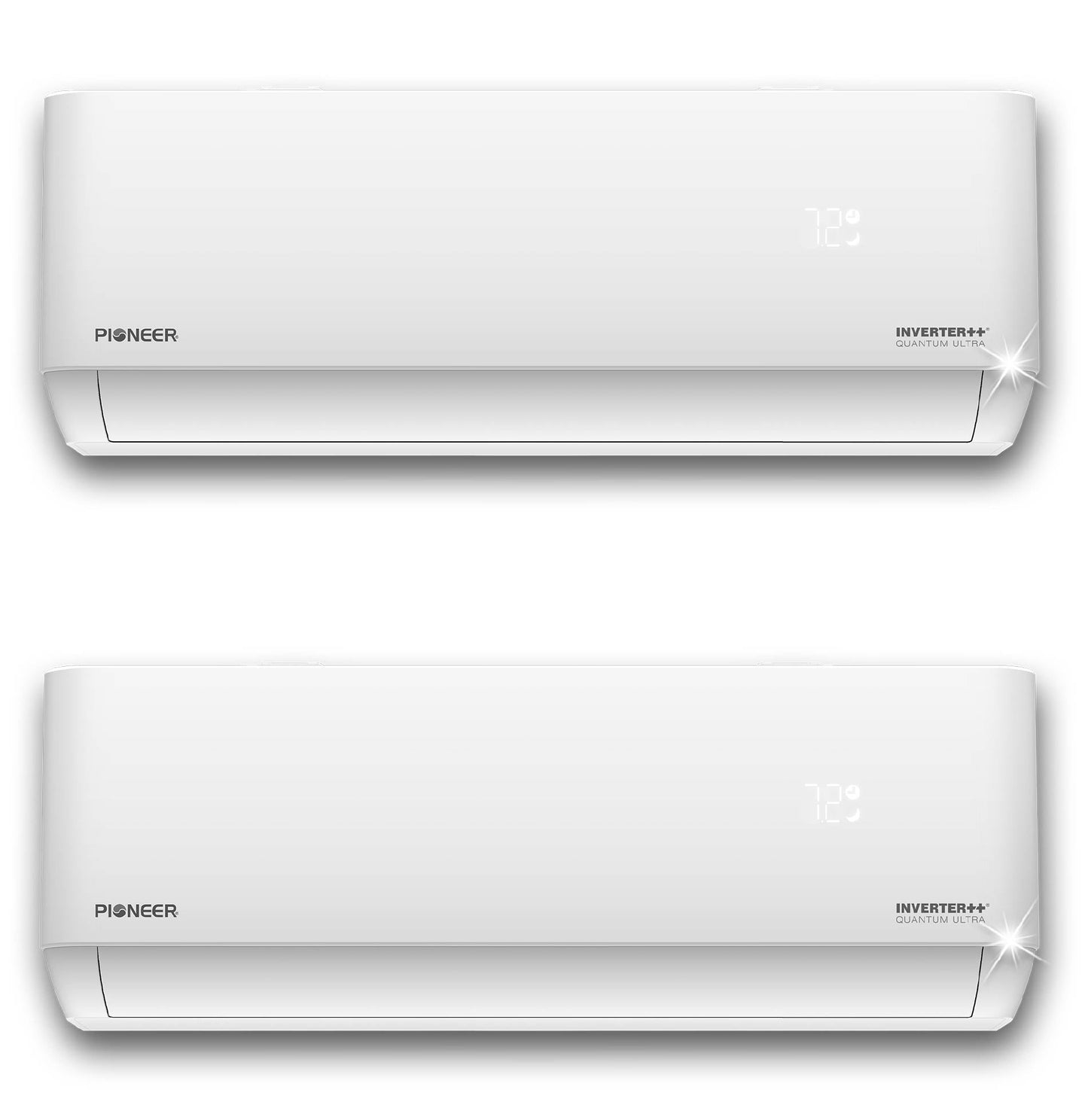

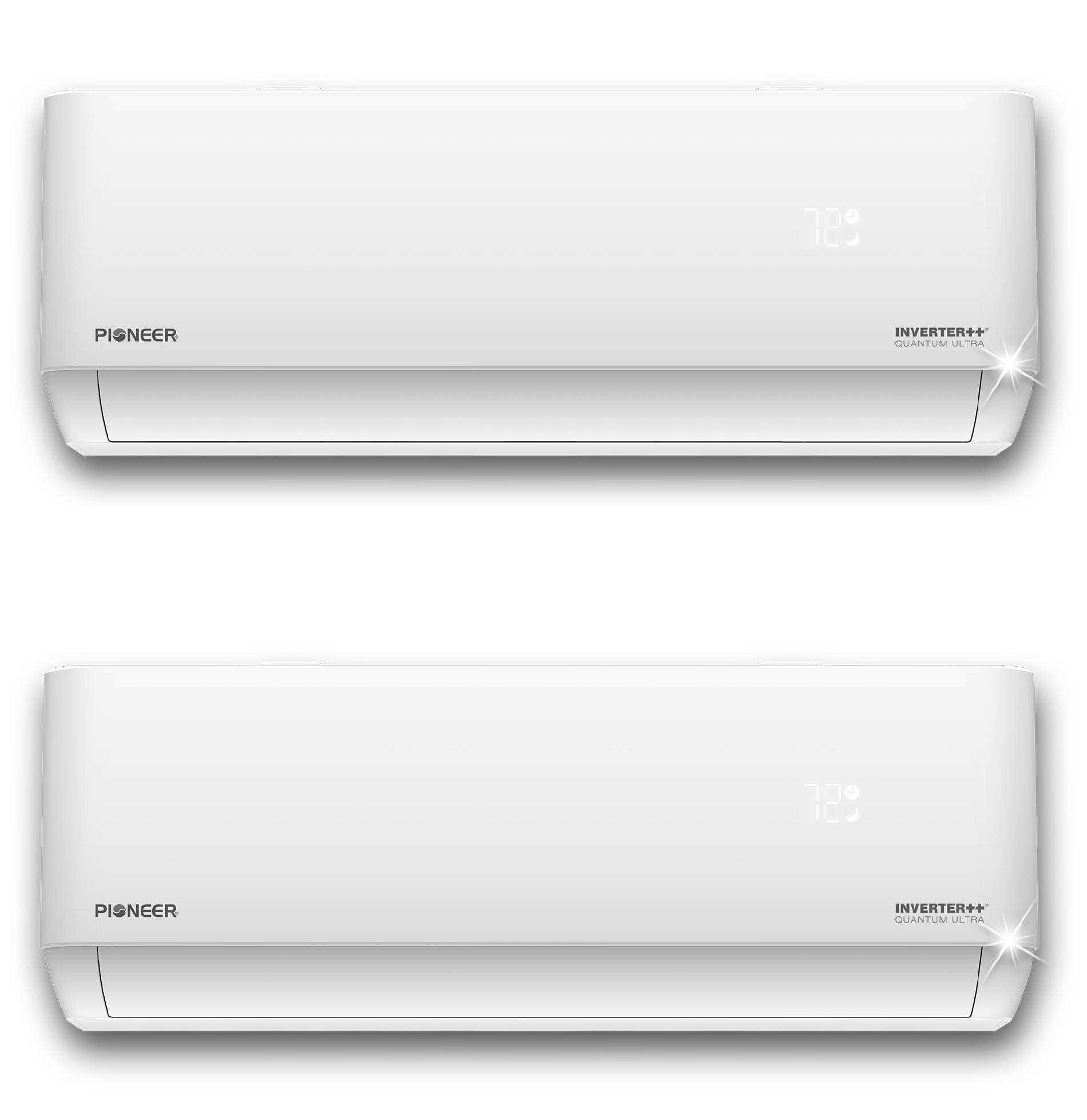

- (x1) inside unit cooling capacity: 18,000 BTU/H nominal capacity + (x1) inside unit cooling capacity: 12,000 BTU/H nominal capacity, condensing system 27,000 BTU/H (Range: 4,500 minimum - 31,000 maximum) with 24 SEER/12.0 EER efficiency
- Heating capacity: 28,000 BTU/H nominal (range 4,500 minimum - 33,000 maximum) with 10 HSPF/3.5 COP efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled

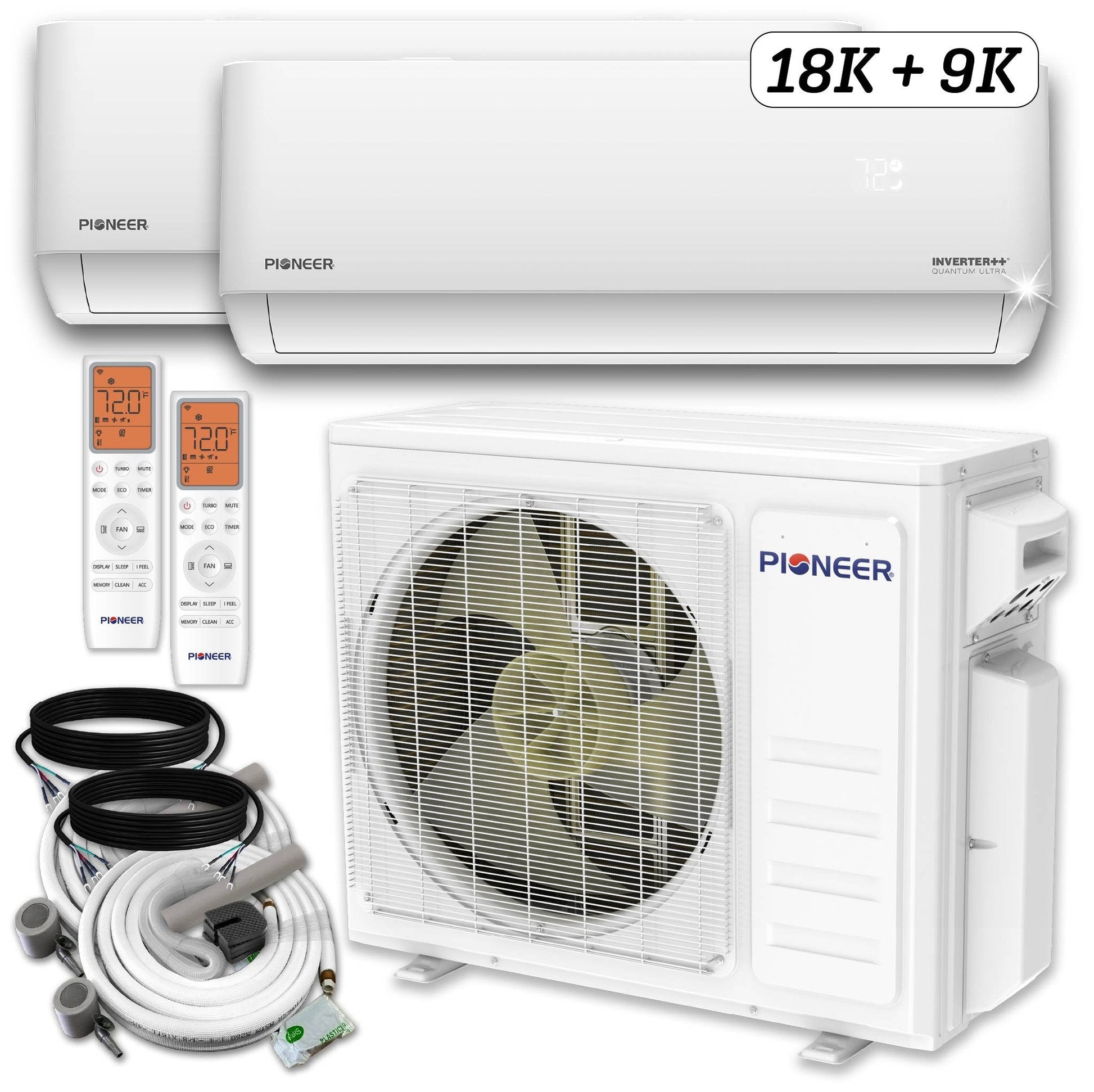

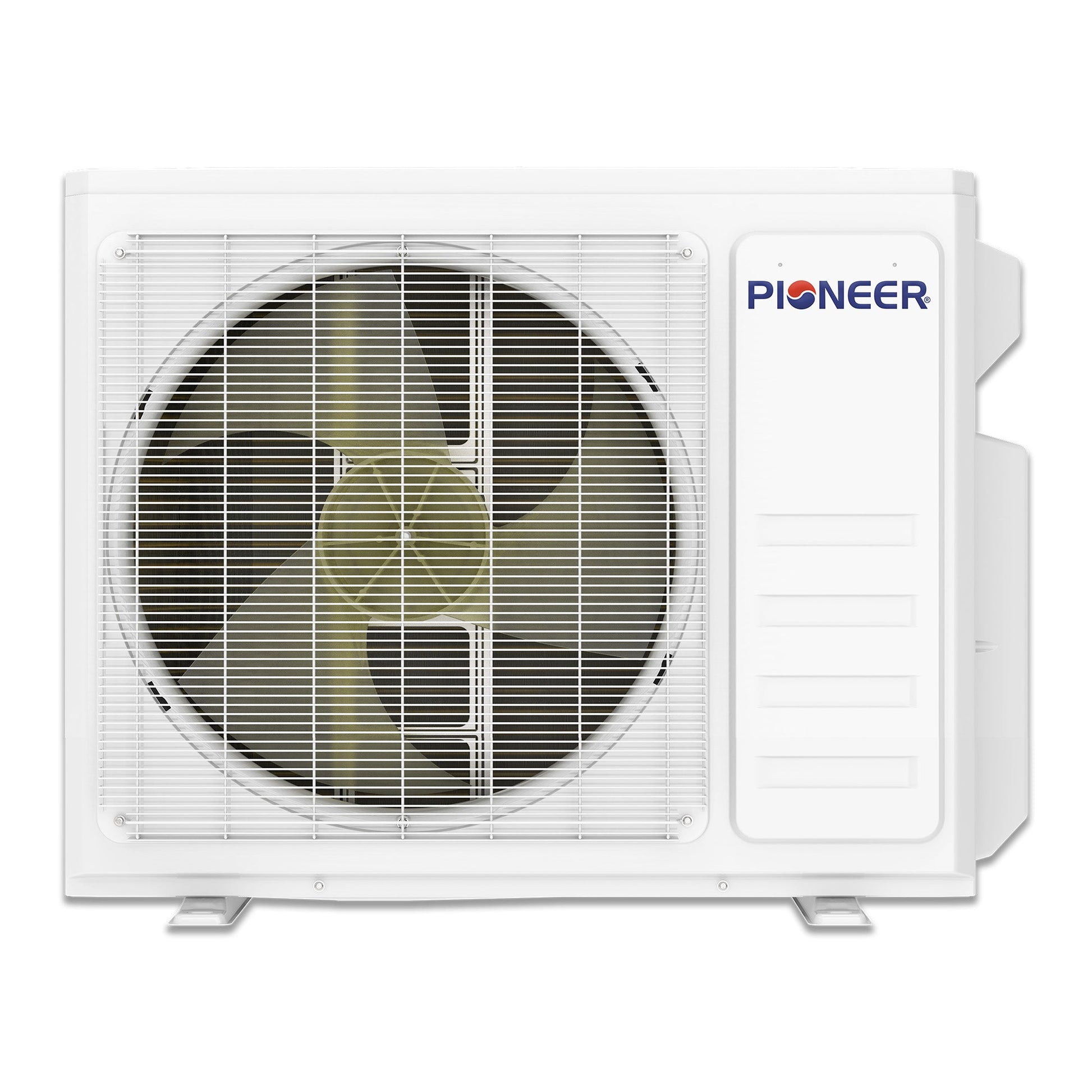

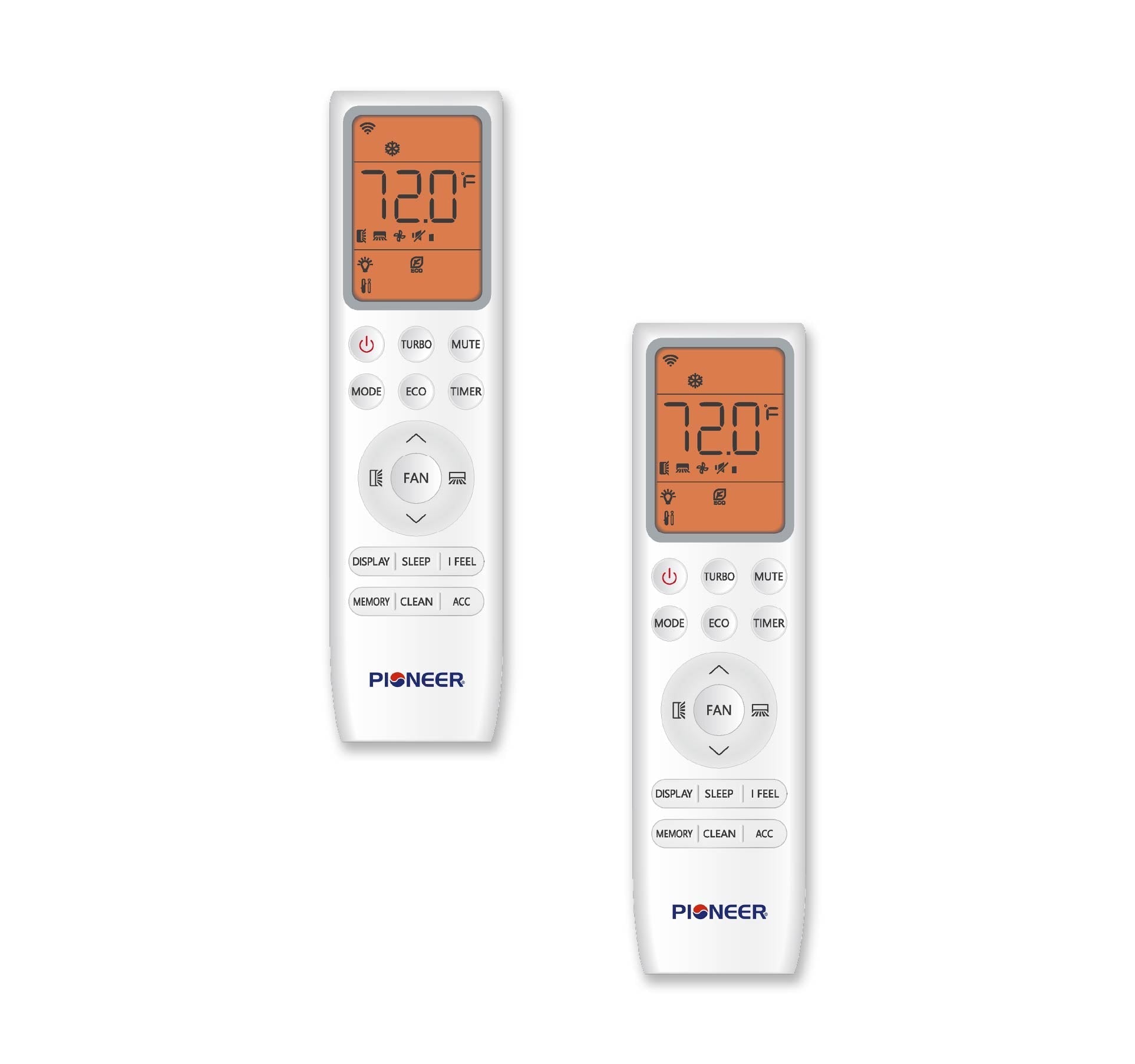

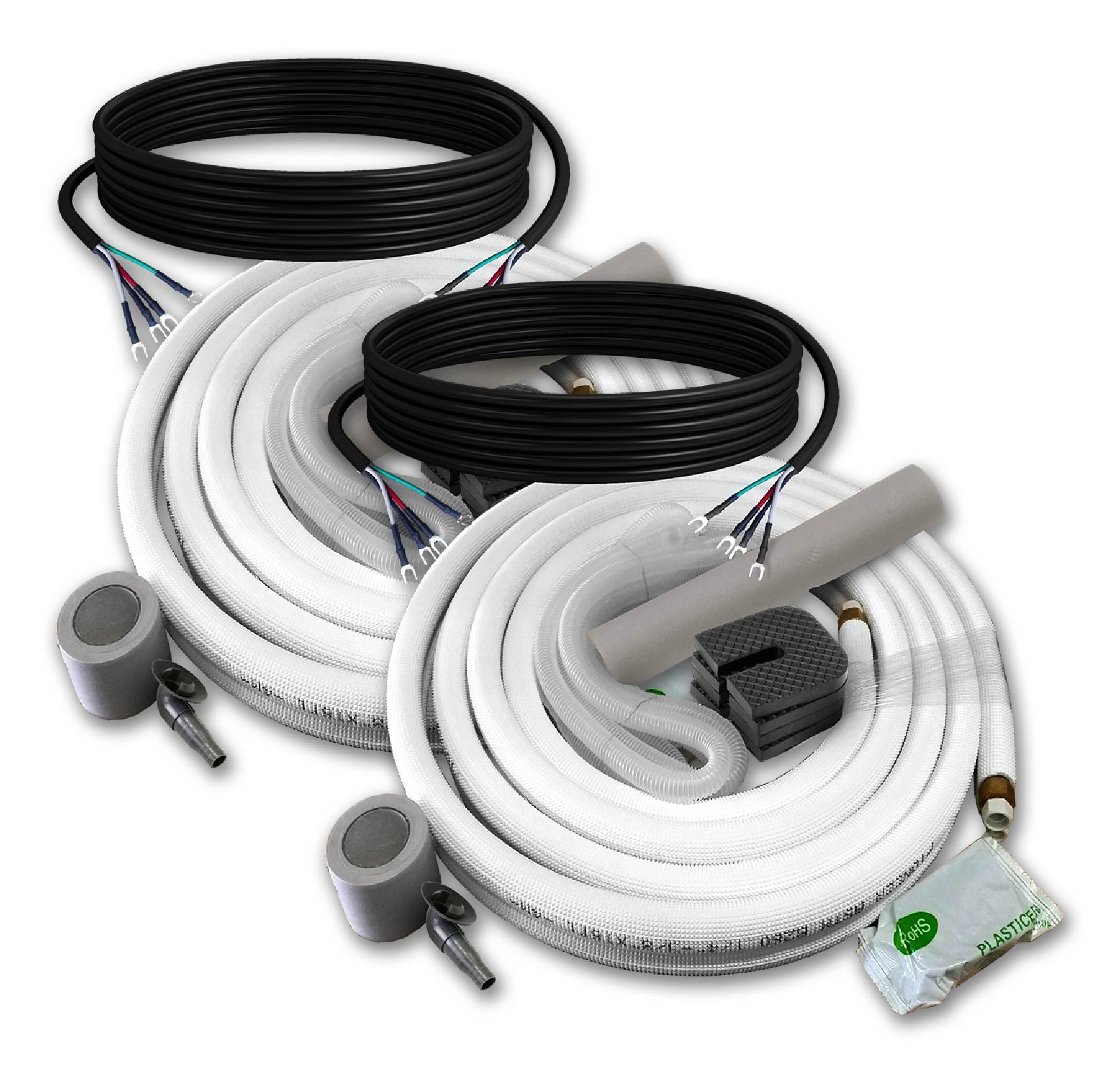

- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 75 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
System Manuals
What Our Experts Think
-
Dual split 2.25-ton system efficiently cools and heats two zones simultaneously.
-
27,000 BTU output with 24 SEER2 rating ensures energy-efficient performance.
-
Wi-Fi enabled for remote control via mobile app.
-
Wall-mount design saves space while delivering powerful airflow.
-
Energy Star certified for lower energy costs and eco-friendly operation.
Q&A
Q: Can this unit handle two separate zones at once?
A: Yes, it is designed for multi-zone cooling and heating.
Q: Is it energy-efficient?
A: Yes, 24 SEER2 rating and Energy Star certification ensure maximum efficiency.
Q: Can it be controlled remotely?
A: Yes, Wi-Fi connectivity allows full control via mobile devices.
Maintenance Tips
-
Clean filters monthly to maintain airflow and efficiency.
-
Wipe exterior surfaces with a soft, damp cloth.
-
Inspect refrigerant lines and connections annually.
-
Schedule professional servicing at least once a year for optimal performance.
