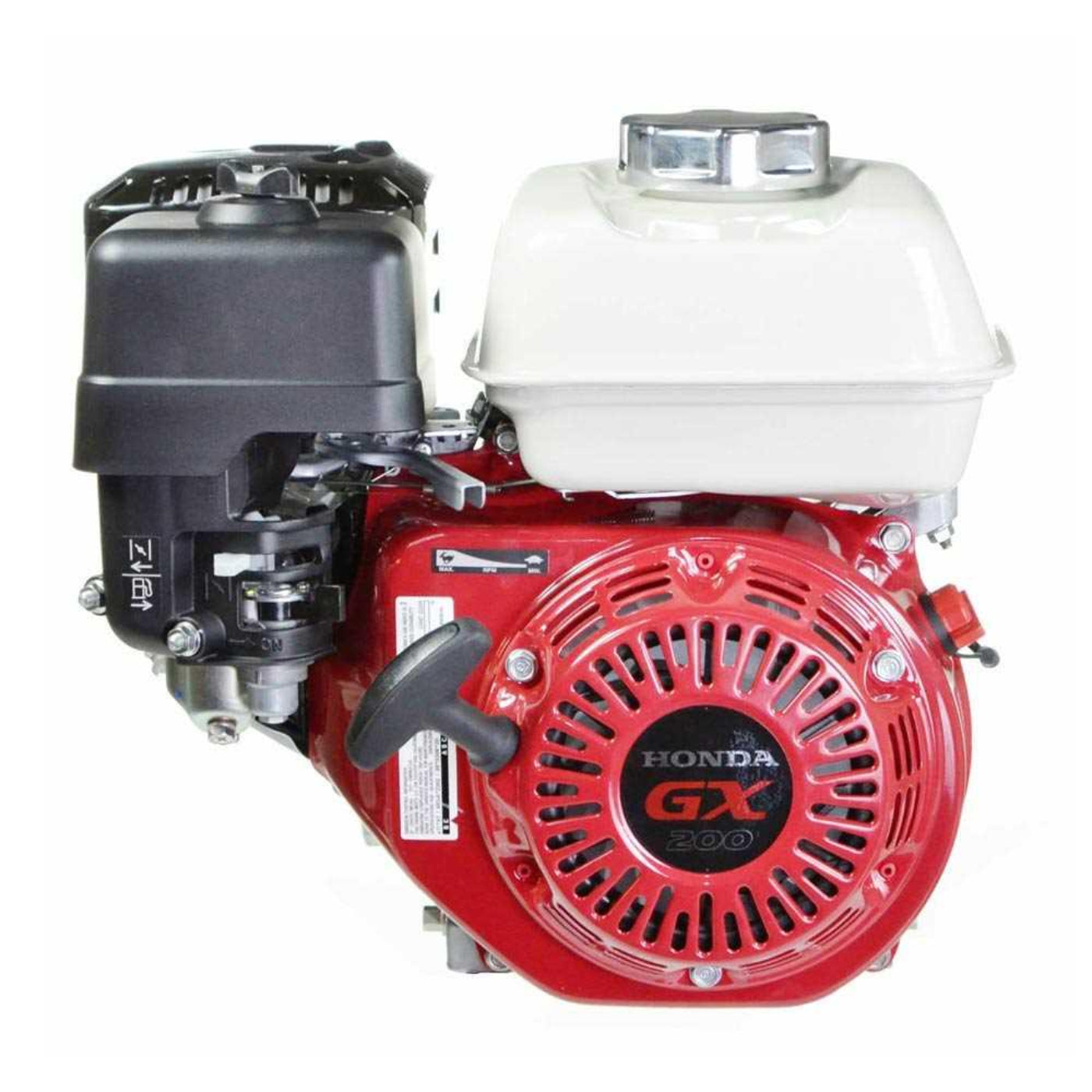

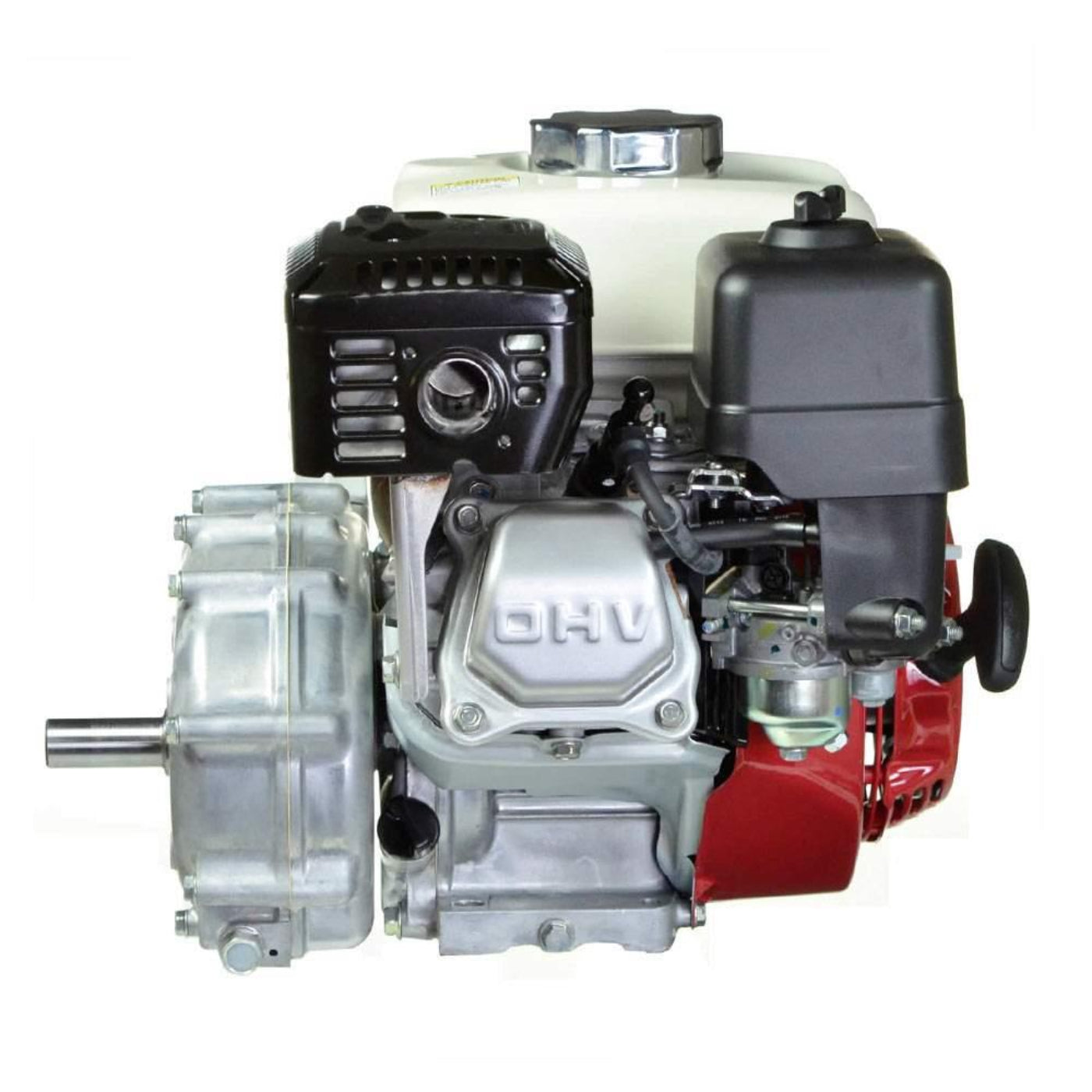

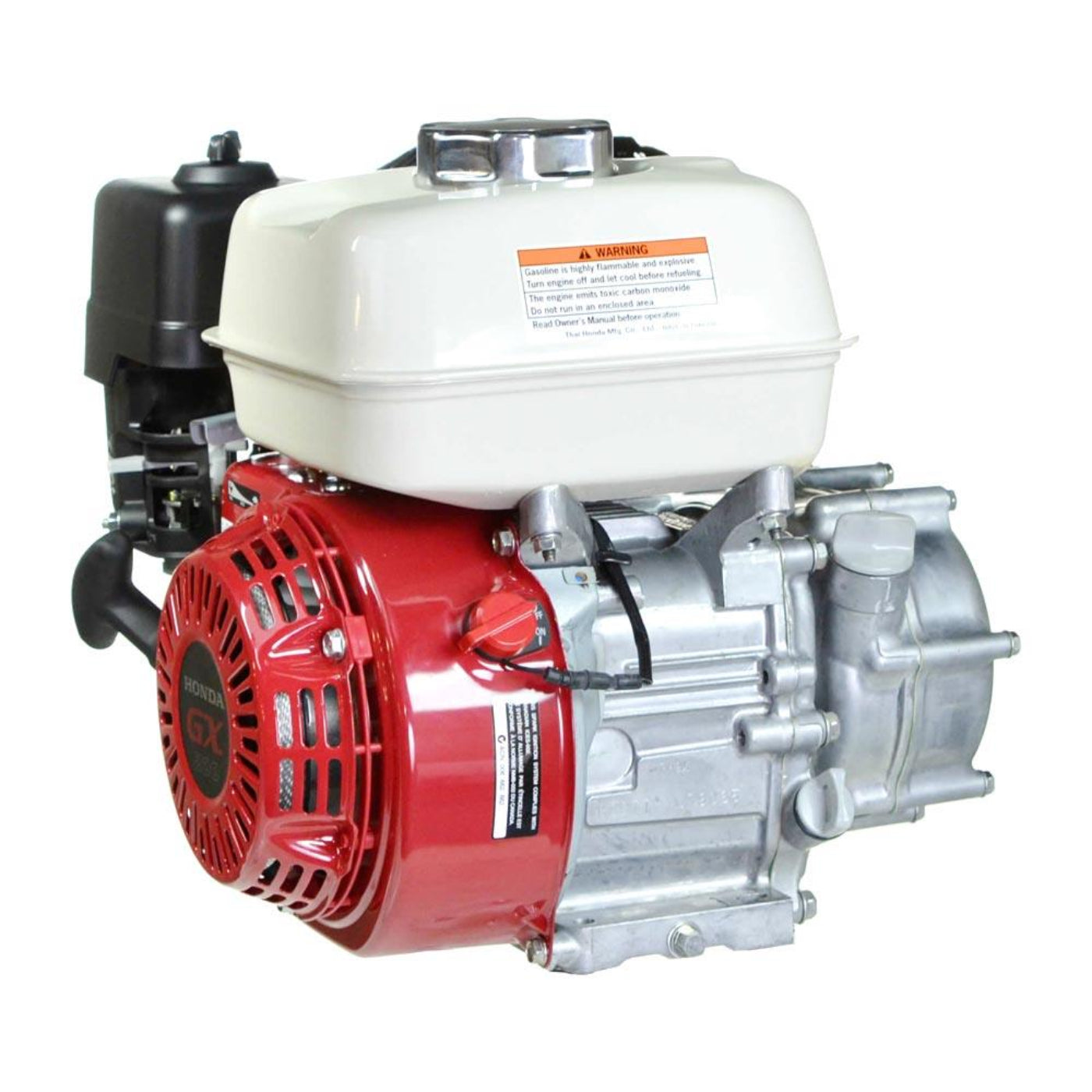

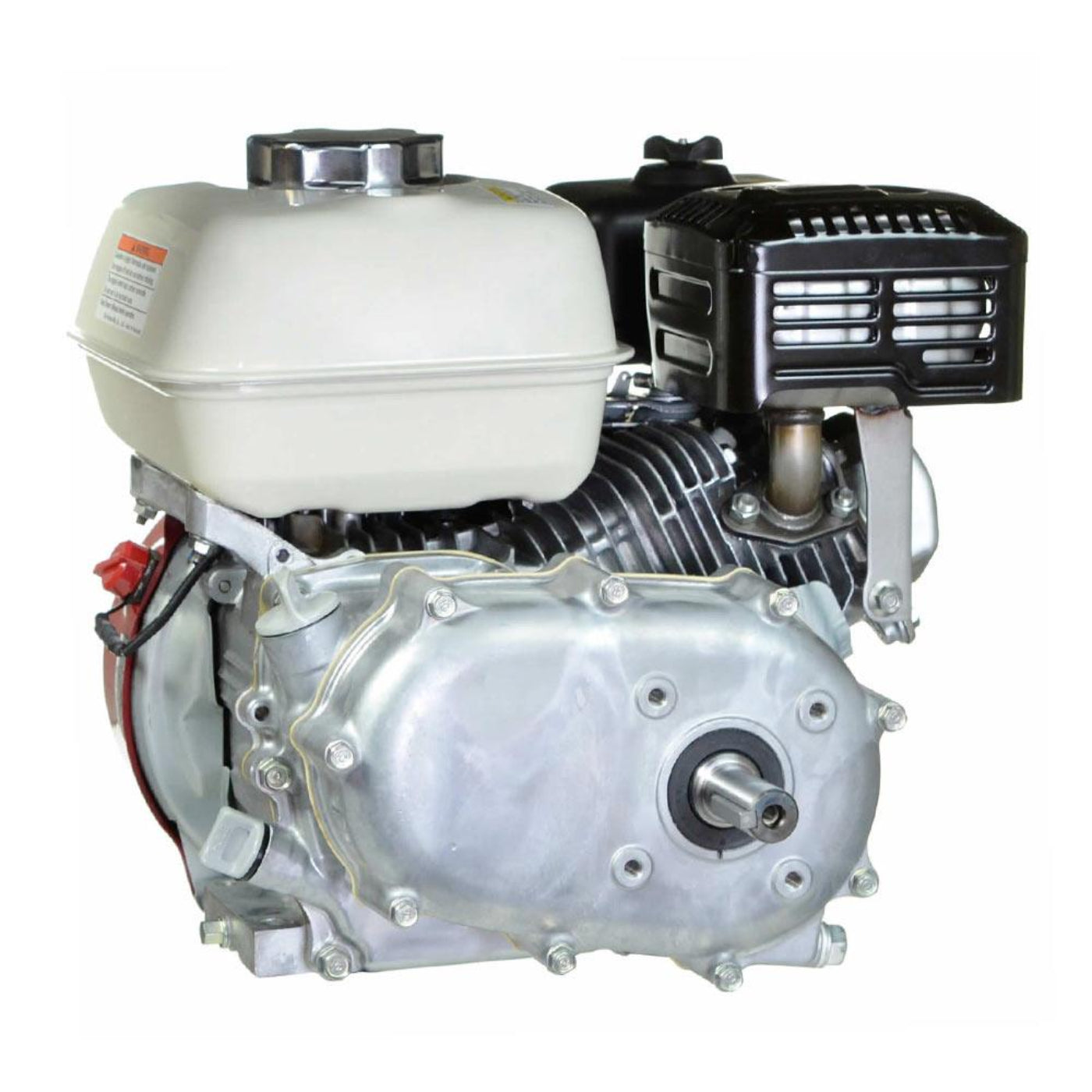

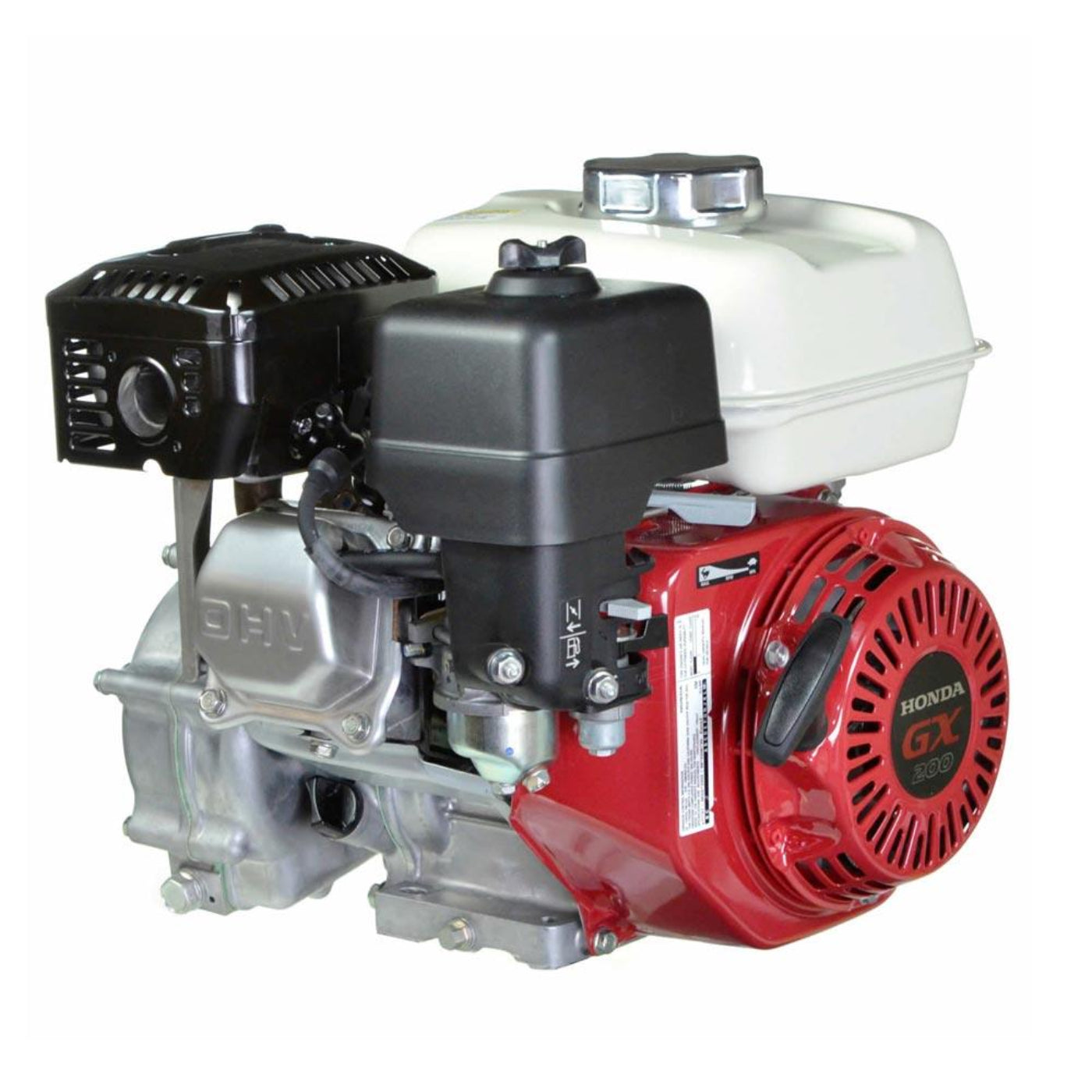

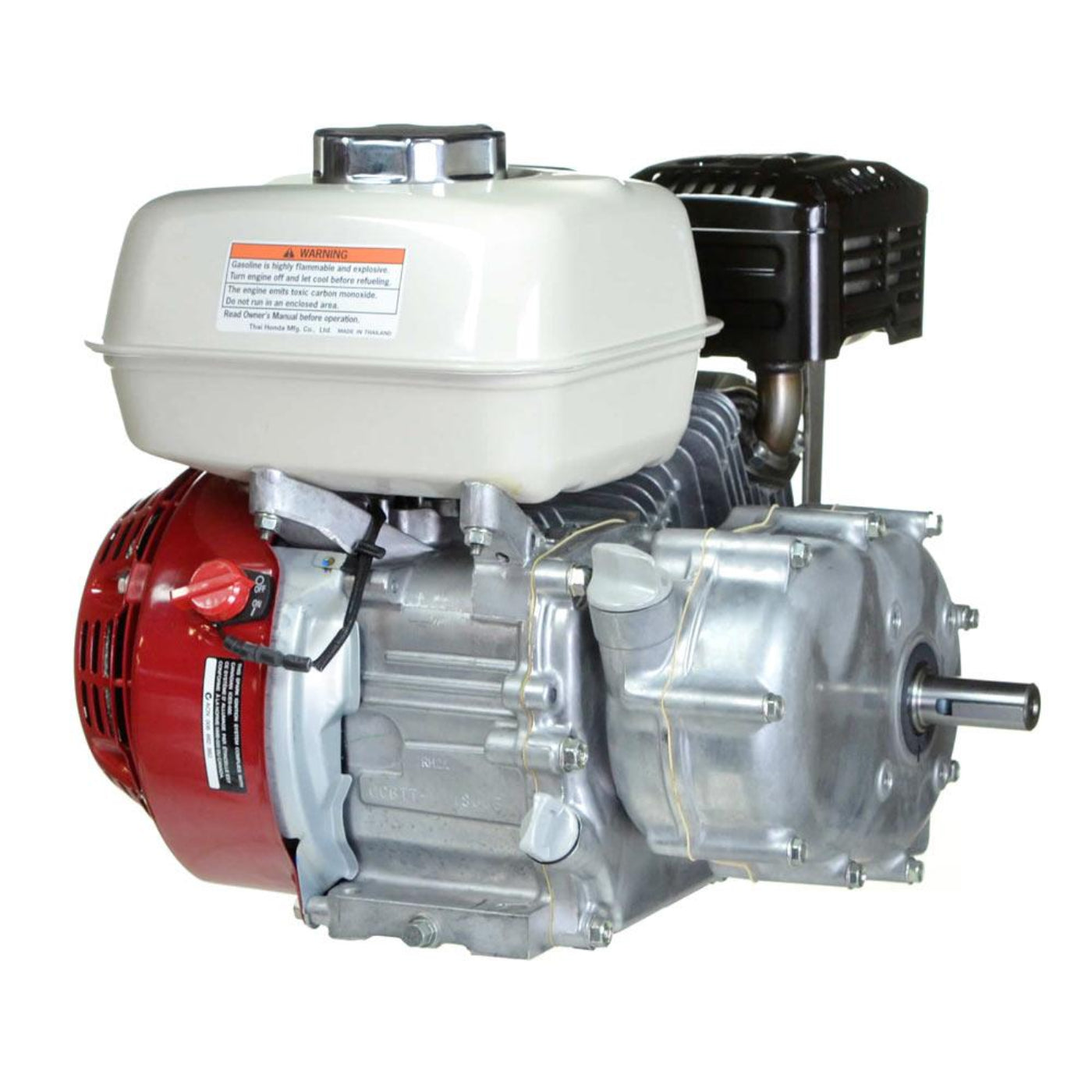

Honda Horizontal Engine with 2:1 Gear Reduction - HDA,GX200-RH2
Honda GX200 RH2 Horizontal OHV Engine with 2:1 Reduction and Wet Clutch, 196cc, 5.8 Net HP, 22mm x 2-3/32" Crankshaft, Model GX200UT2RH2
Specifications
| Brand |
Honda |
| Model Number |
GX200UT2RH2 |
| Internal ID |
HDA-GX200-RH2 |
| Warranty |
3 Year Residential |
| Available to California |
Not Available to Ship to California |
| Weight |
51.0 lb |
| PTO Height |
4-11/64" |
| Power Output |
5.8 HP @ 3600 RPM |
| Torque |
9.1 lb-ft (12.4 Nm) @ 2500 rpm |
| Crankshaft Orientation |
Horizontal |
| Crankshaft Type |
Reduction Type |
| Crankshaft Diameter |
22mm |
| Crankshaft Length |
2-3/32" |
| Crankshaft Dimensions |
22mm x 2-3/32" |
| End Tapped Size |
M8 x 1.25 |
| Keyway |
7mm |
| Rotation Direction |
Counter-Clockwise |
| Starter Type |
Recoil |
| Ignition System |
Transistorized Magneto |
| Carburetor |
Butterfly |
| Number of Cylinders |
One |
| Cylinder Bore |
Cast Iron Sleeve |
| Air Cleaner |
Dual Element |
| Oil Capacity |
0.63 qt |
| Fuel Type |
Unleaded 86 Octane or Higher |
| Fuel Tank Capacity |
3.3 qt |
| Fuel Pump |
N/A |
| Governor System |
Mechanical |
| Lubrication System |
Splash |
| Controls |
Manual Choke, Manual/Remote (Rod) Throttle |
| Bore x Stroke |
68mm x 54mm |
| Compression Ratio |
8.5 : 1 |
| Charging System |
N/A |
| Muffler |
Standard |
What Our Experts Think
-
Reliable & Efficient Power: The Honda GX200-RH2 Horizontal Engine delivers consistent and dependable performance, ideal for medium-duty applications.
-
2:1 Gear Reduction: Equipped with a 2:1 gear reduction system, this engine provides enhanced torque and controlled power output, making it perfect for applications requiring lower RPM.
-
Fuel Efficient: Designed for optimal fuel economy, it ensures extended operation with fewer refuels, reducing running costs and maximizing productivity.
-
Smooth & Quiet Operation: Engineered to minimize vibration and noise, offering a more comfortable user experience and protecting equipment from excessive wear.
-
Durable & Low Maintenance: Built with high-quality materials, this engine is designed to withstand tough working conditions while requiring minimal maintenance.
-
Versatile Applications: Ideal for equipment such as compactors, mixers, and other machinery requiring increased torque and controlled power transmission.
Q&A
Q: What is the Honda Horizontal Engine with 2:1 Gear Reduction - HDA, GX200-RH2?
A: The Honda Horizontal Engine - HDA, GX200-RH2 is a high-performance engine featuring a 2:1 gear reduction system for increased torque and controlled output speed. It is ideal for applications such as augers, mixers, conveyors, and other machinery requiring lower RPM with powerful performance.
Q: What are the key features of the GX200-RH2 engine?
A: The GX200-RH2 engine is equipped with Honda’s OHV (Overhead Valve) technology for improved fuel efficiency, smooth operation, and reduced emissions. The 2:1 gear reduction system enhances torque while maintaining controlled speed, making it suitable for various industrial and commercial applications.
Q: What are the benefits of using the GX200-RH2 engine?
A: The GX200-RH2 offers excellent fuel efficiency, increased torque, and reliable power. Its 2:1 gear reduction provides optimal speed control for applications requiring steady and powerful operation, reducing strain on the equipment.
Q: Is the GX200-RH2 engine easy to maintain?
A: Yes, the GX200-RH2 is designed for easy maintenance, featuring accessible components for oil changes, air filter replacements, and general servicing. The durable build reduces downtime and ensures long-lasting performance.
Q: What equipment is the GX200-RH2 engine best suited for?
A: The GX200-RH2 engine is ideal for slow-speed, high-torque applications such as cement mixers, augers, conveyors, power trowels, and other industrial or agricultural machinery that requires controlled power delivery.
Maintenance Tips
-
Oil Change: Change the engine oil every 50 hours or annually, whichever comes first. Check oil levels before each use.
-
Gear Reduction Maintenance: Inspect and lubricate the 2:1 gear reduction system regularly to ensure smooth operation and prevent excessive wear.
-
Air Filter: Clean or replace the air filter regularly to maintain proper airflow and engine efficiency.
-
Spark Plug: Check and replace the spark plug annually or if engine performance declines.
-
Fuel System: Use fresh, clean fuel and drain the tank if the engine will be stored for an extended period.
-
General Inspection: Check for leaks, loose bolts, and any unusual noises. Keep the engine and surrounding area clean.
-
Cooling System: Ensure proper airflow around the engine by keeping cooling fins and ventilation areas free from debris.
