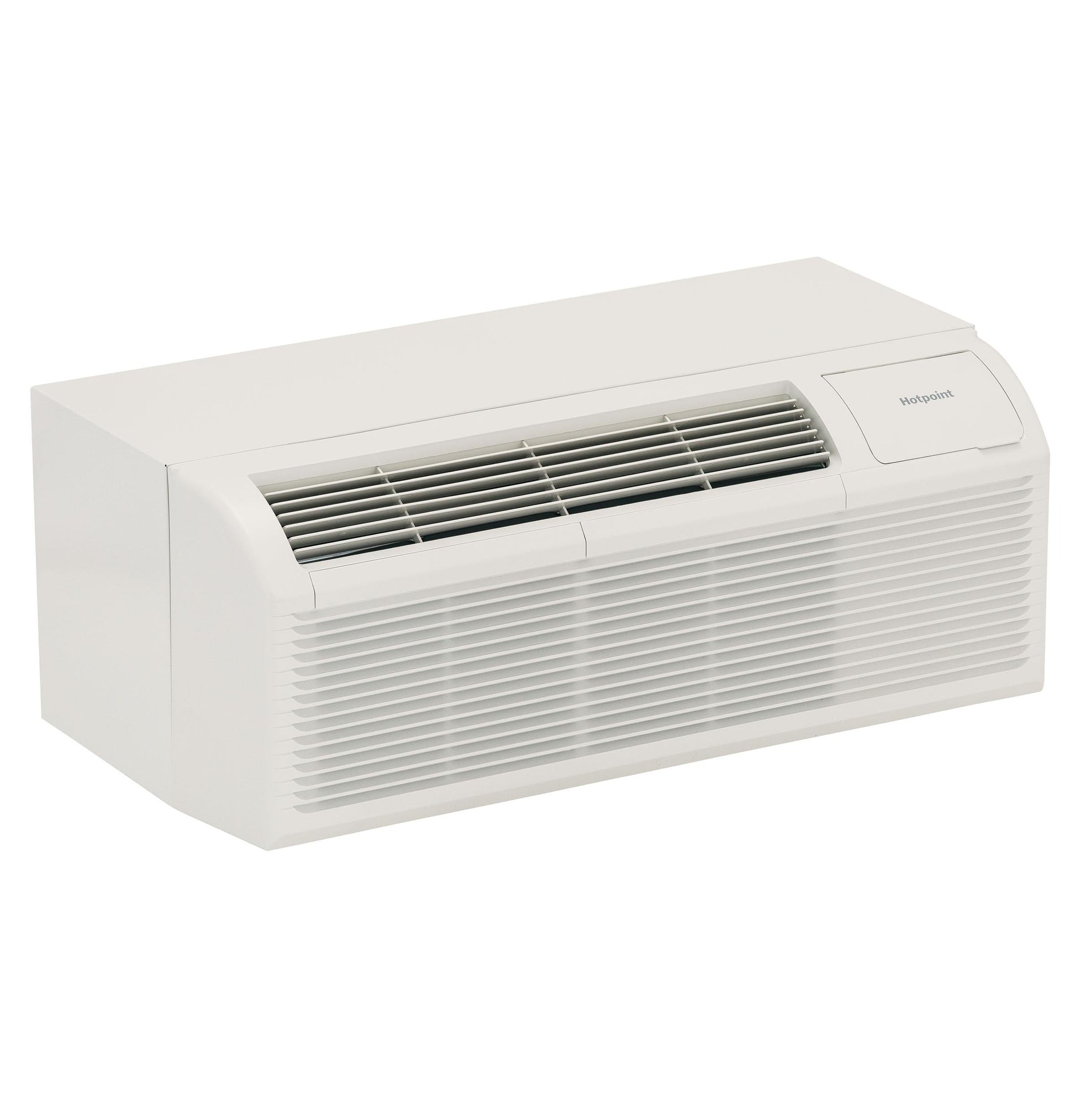

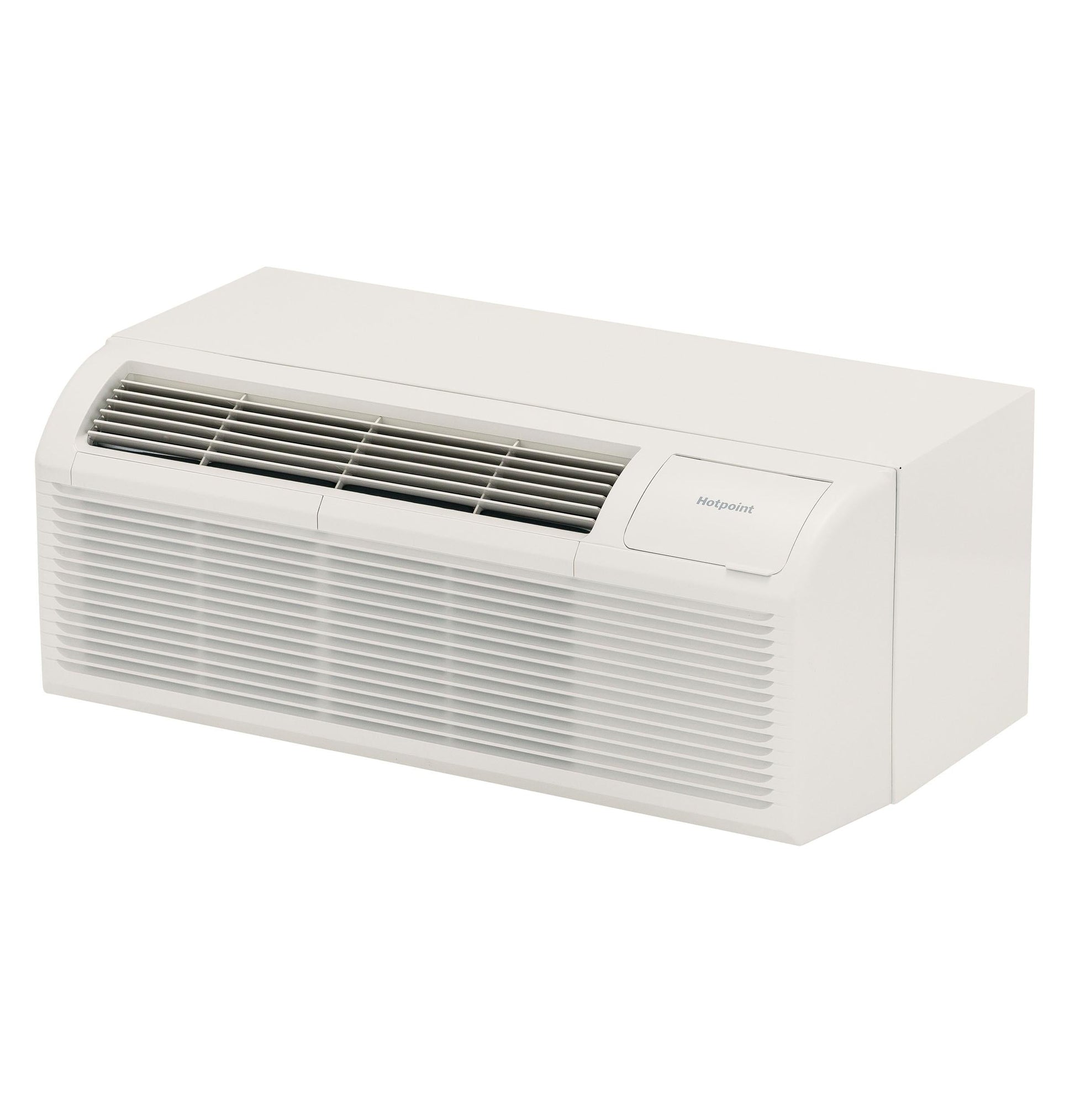

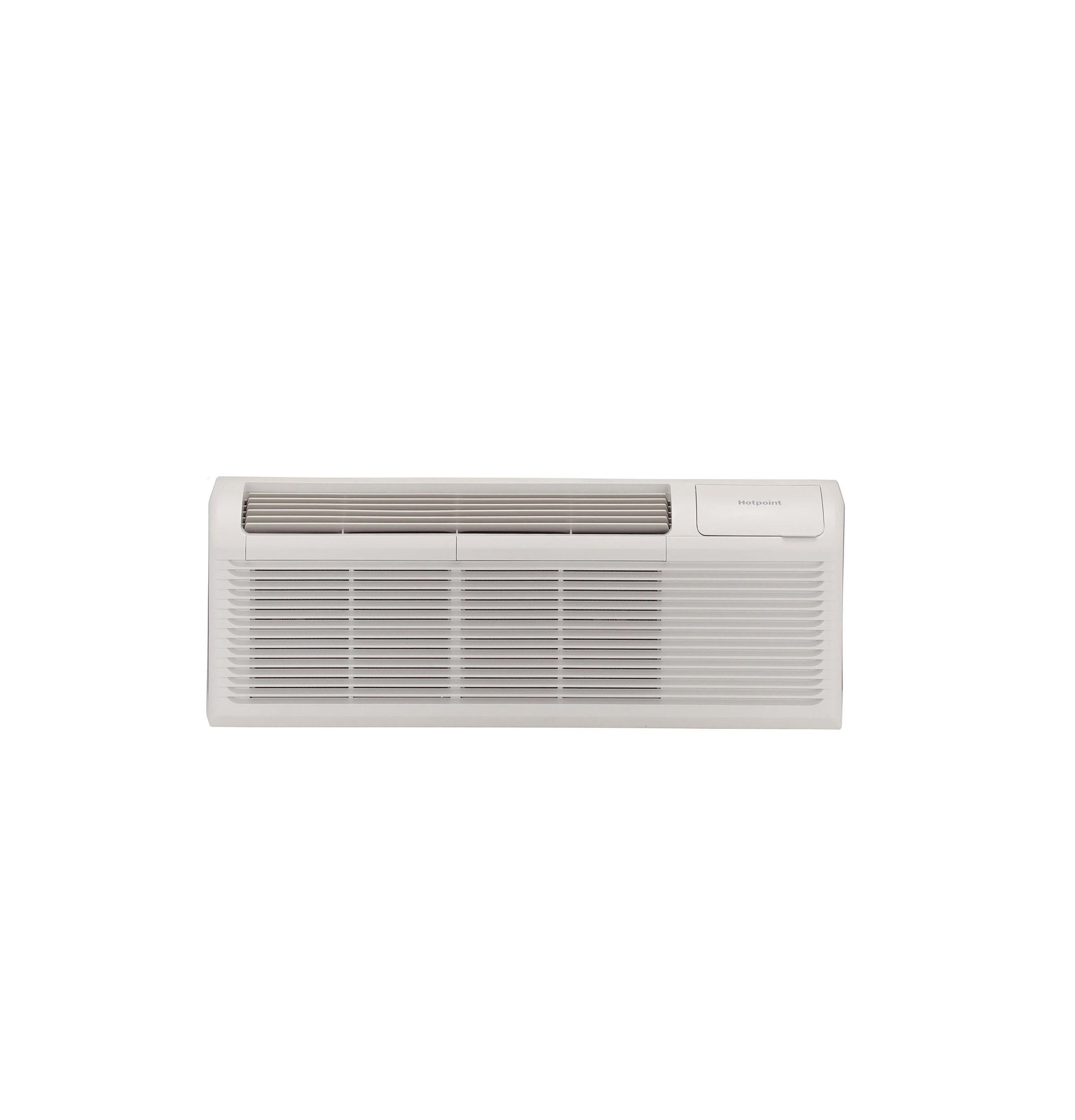

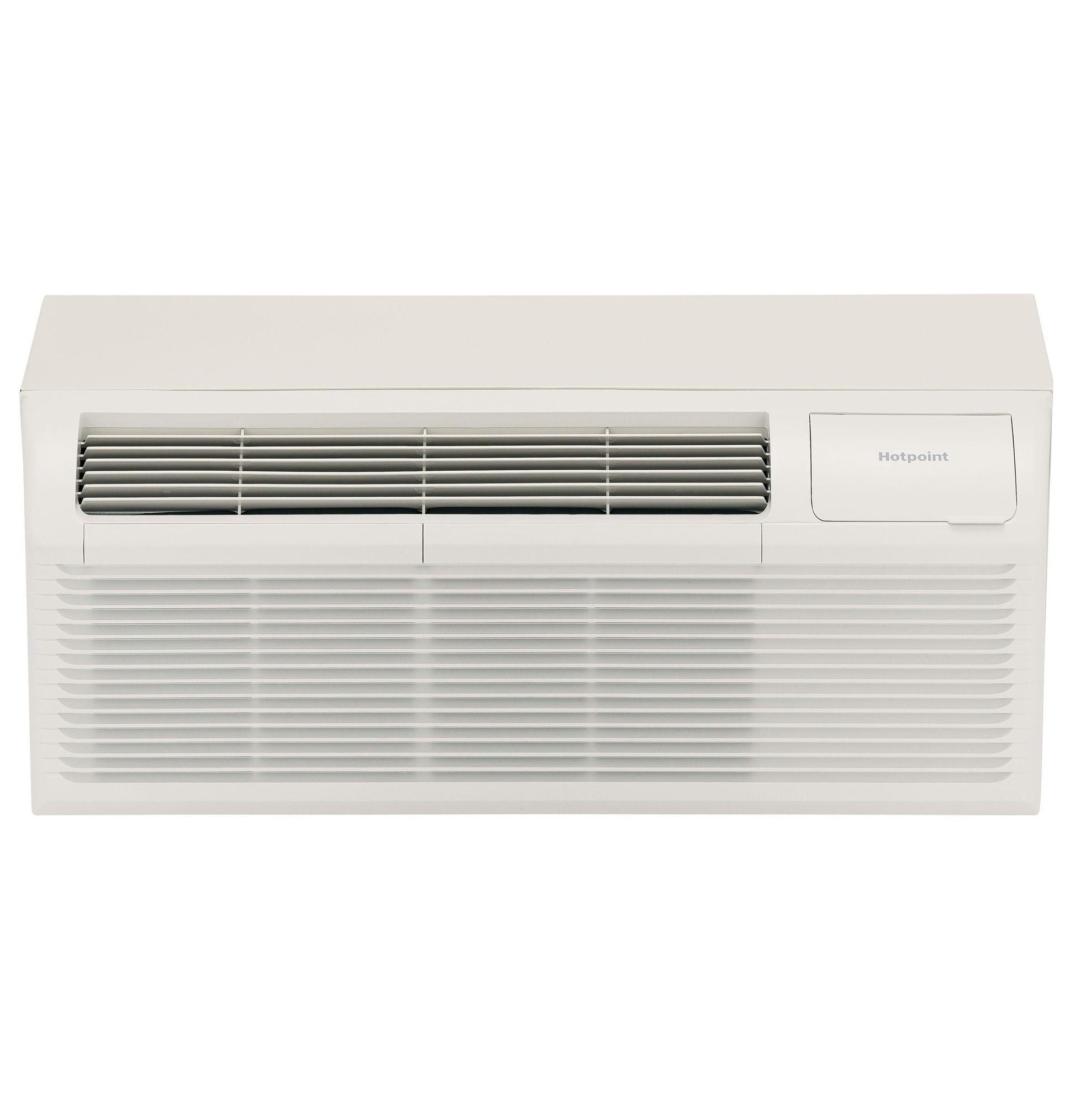

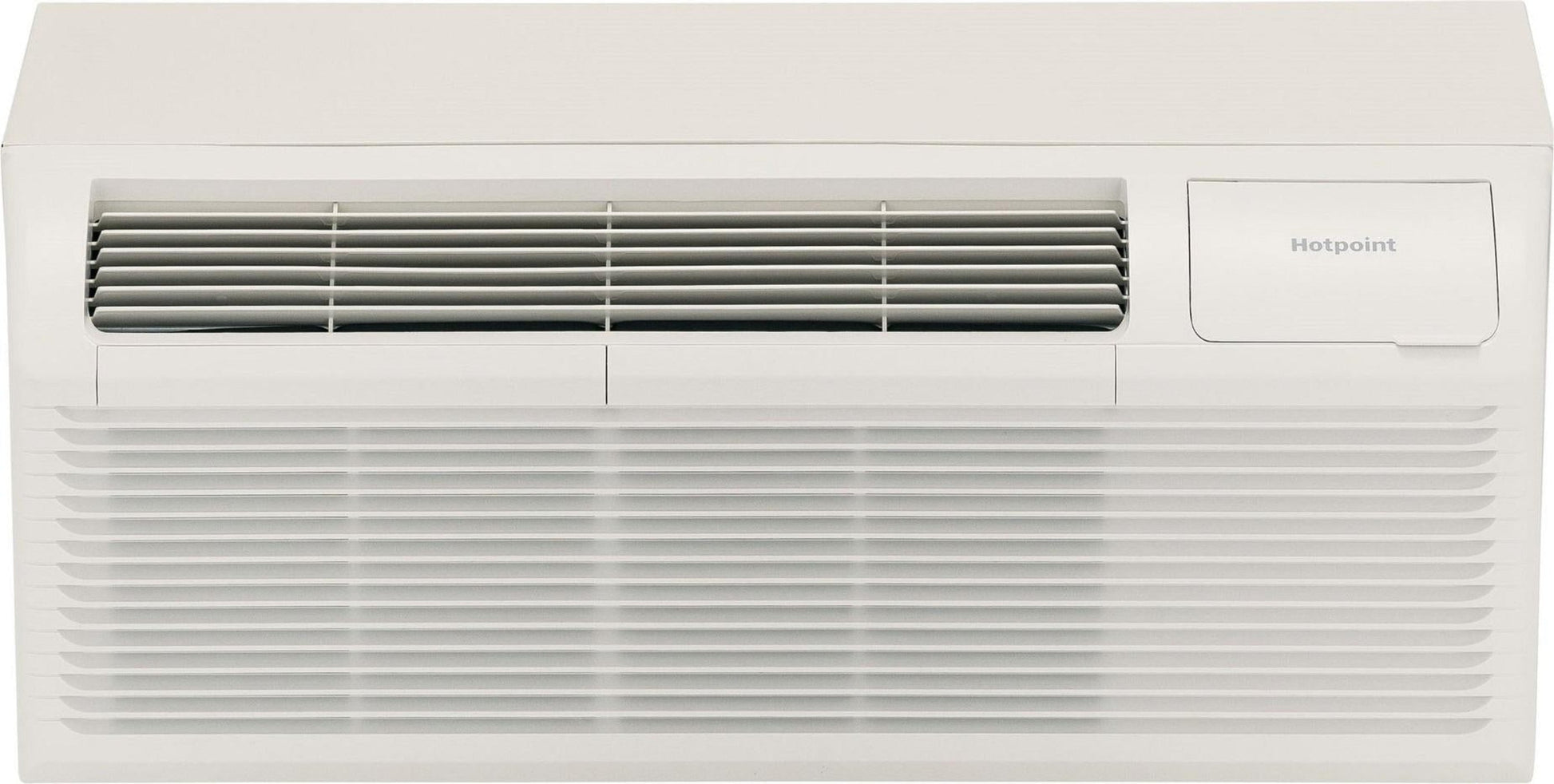

HOTPOINT AH11 HEATPUMP W ELECTRIC RESISTANCE HEAT 265V 9K BTU 265V 2 0AMP -AH11H09E3B-KT

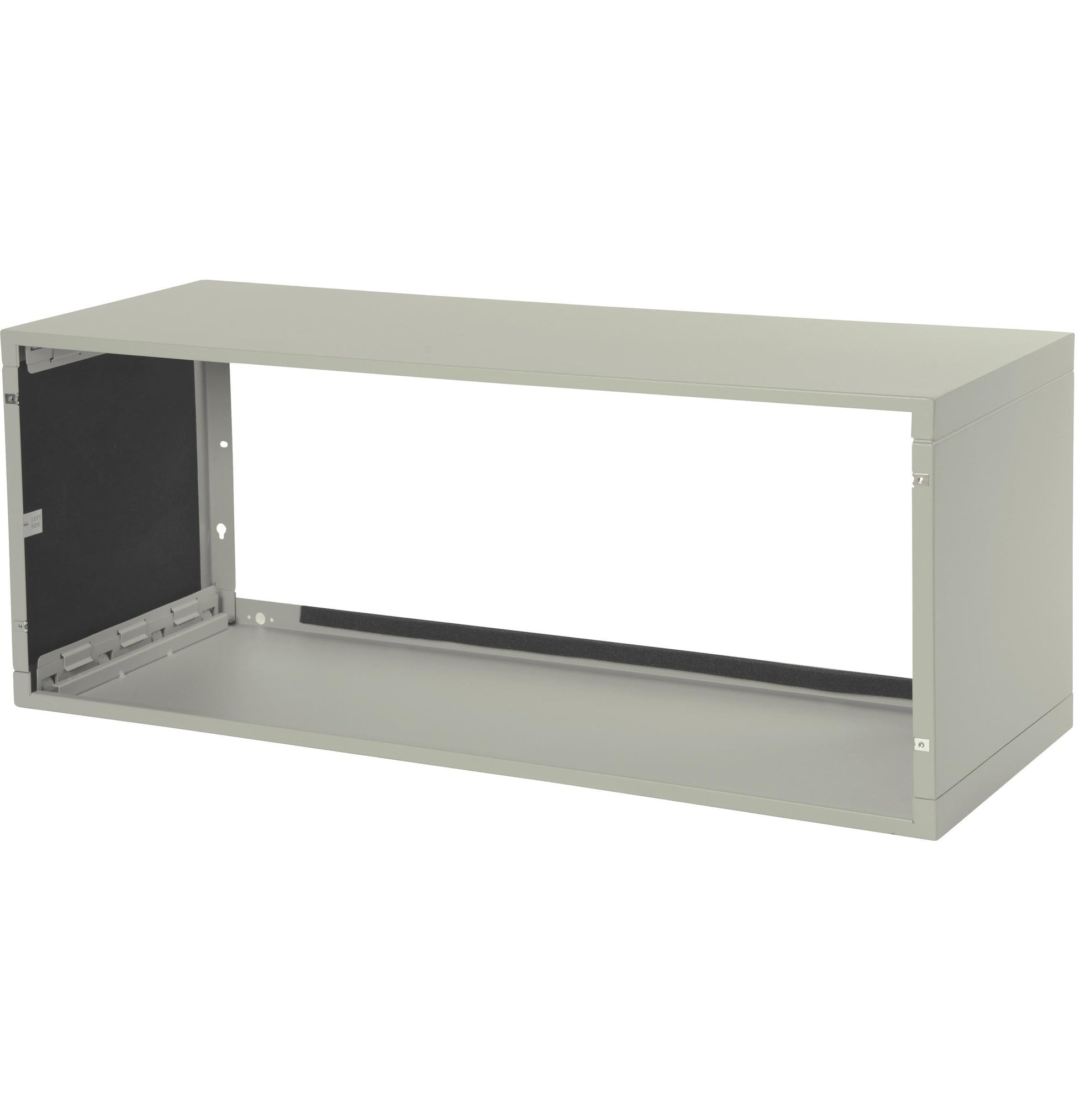

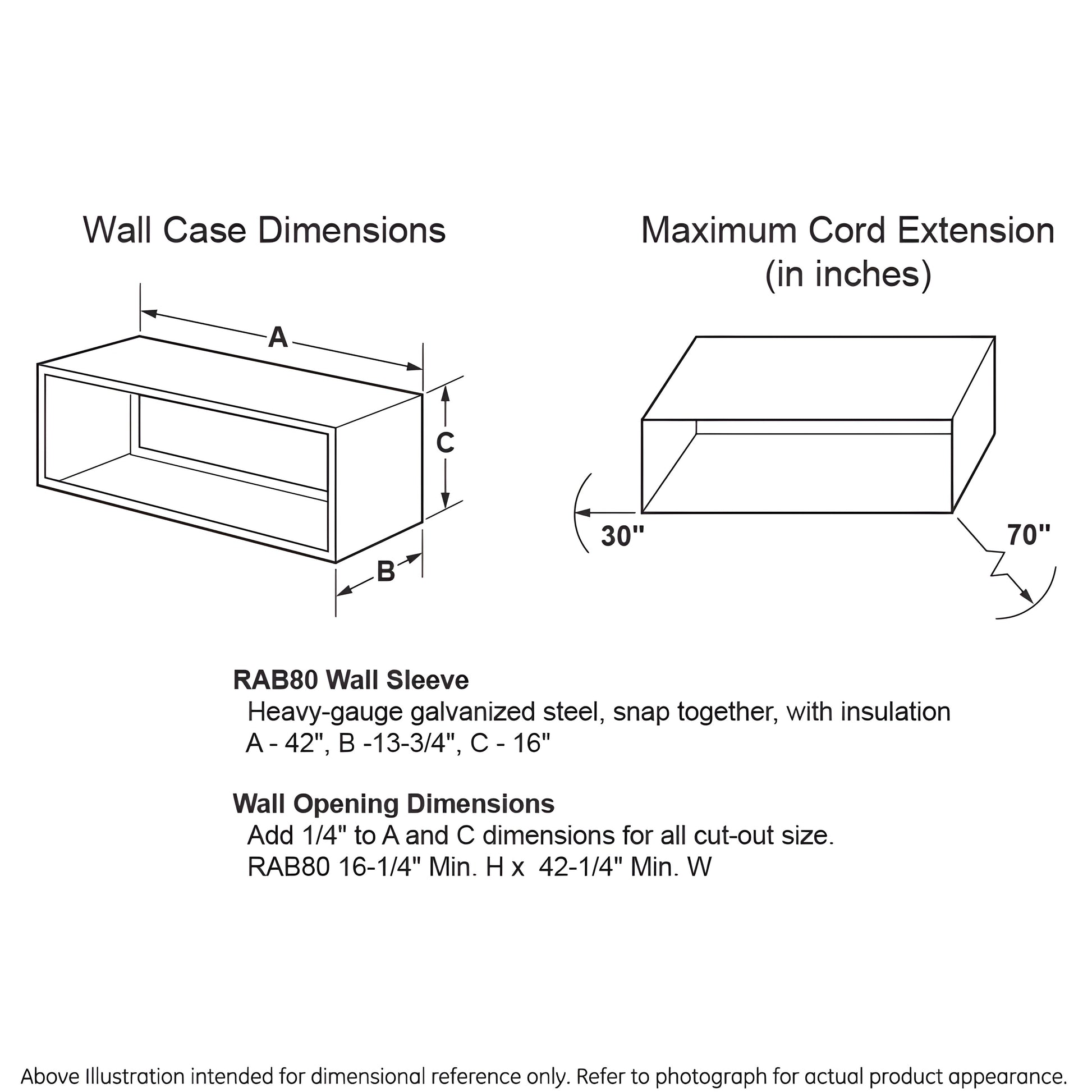

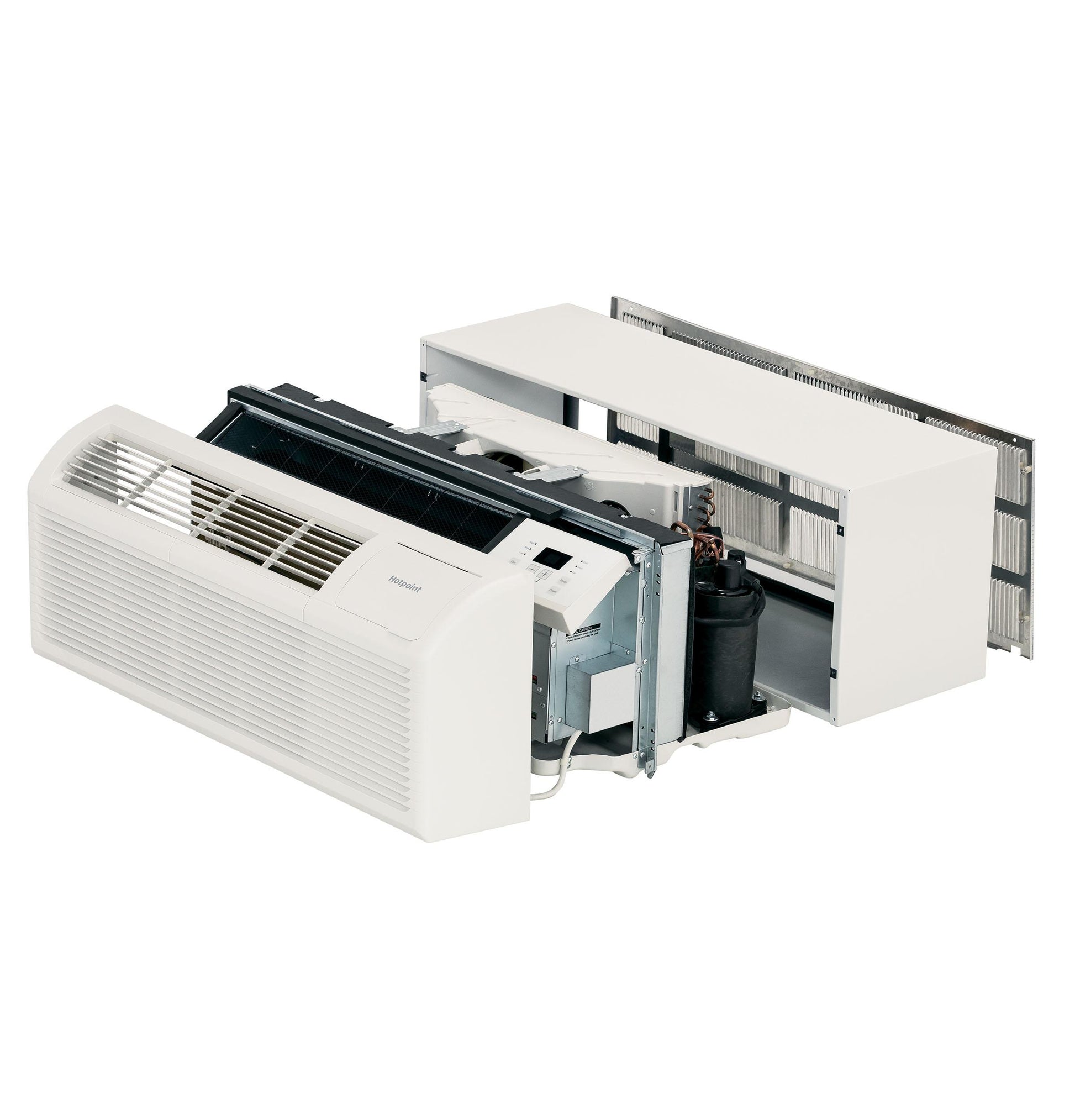

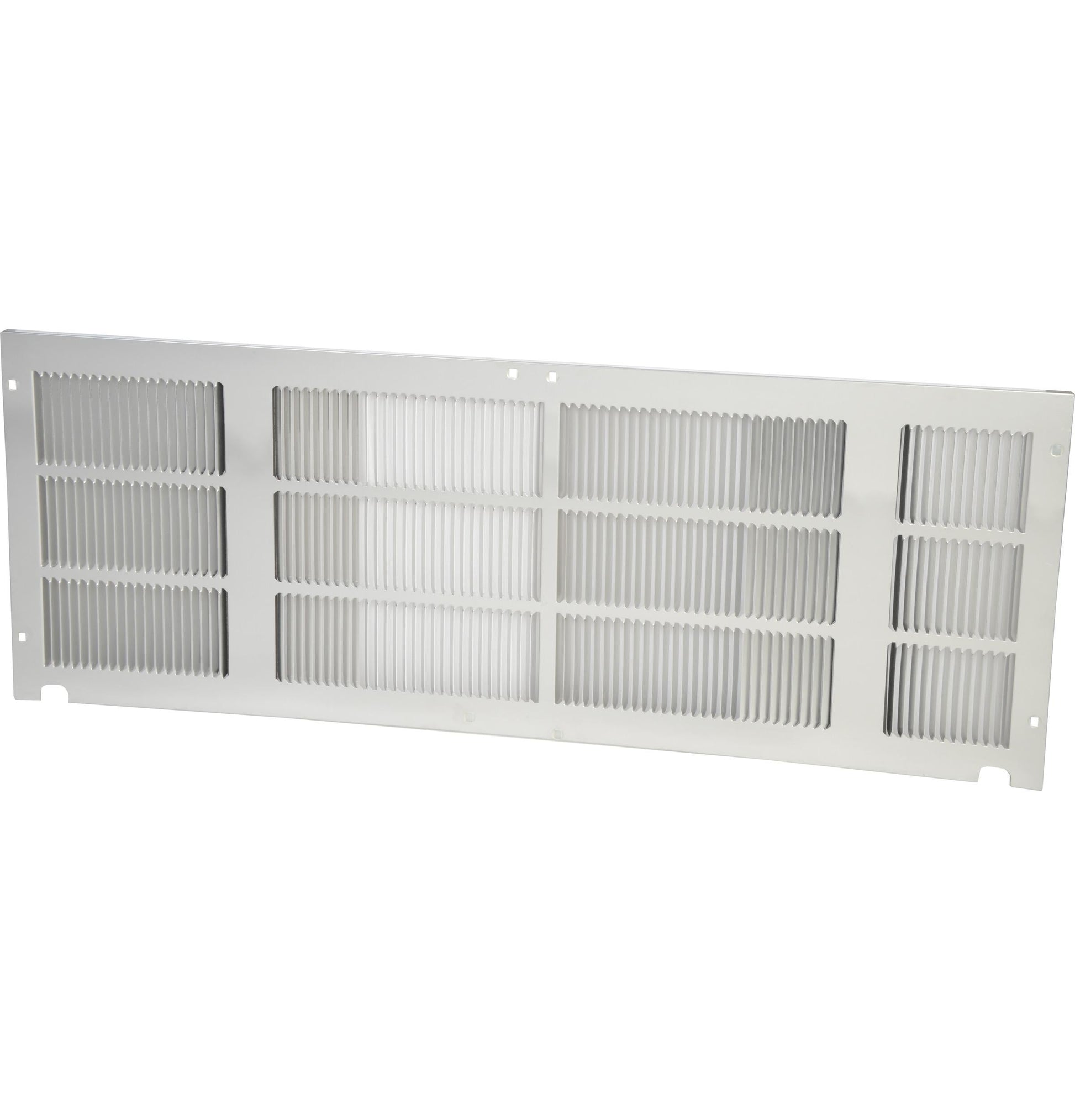

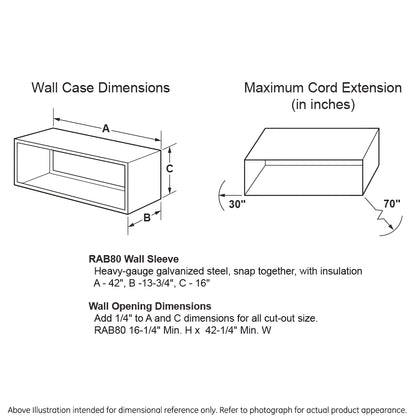

Hotpoint PTAC units are easy to install, simply remove the old and slide in the new! The AH11H09E3B Hotpoint PTAC unit comes with a 20 amp, 265 volt power cord included. New installations require a grille and wall sleeve, however if you are replacing a PTAC unit, your current grille and sleeve may be fine. Hotpoint has a long history as an industry leader in the appliance and comfort control industries.
Features
- 3-speed fan
- Power cord (LCDI) included
- 4-temperature limiting options
- Freeze and frost protection
- Auto power recovery
- Self diagnostics
- Automatic emergency heat
- Backed by an industry leader
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

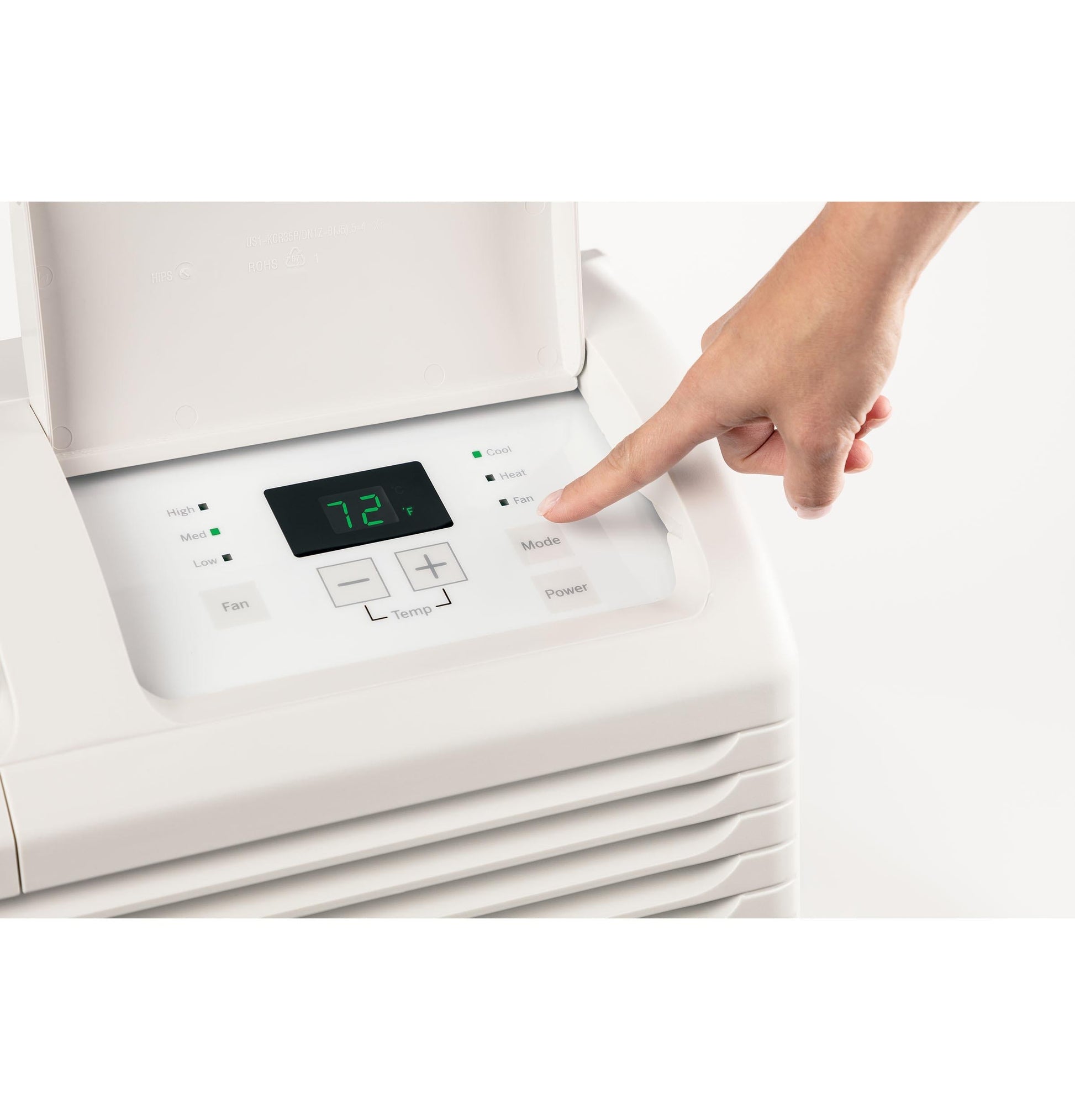

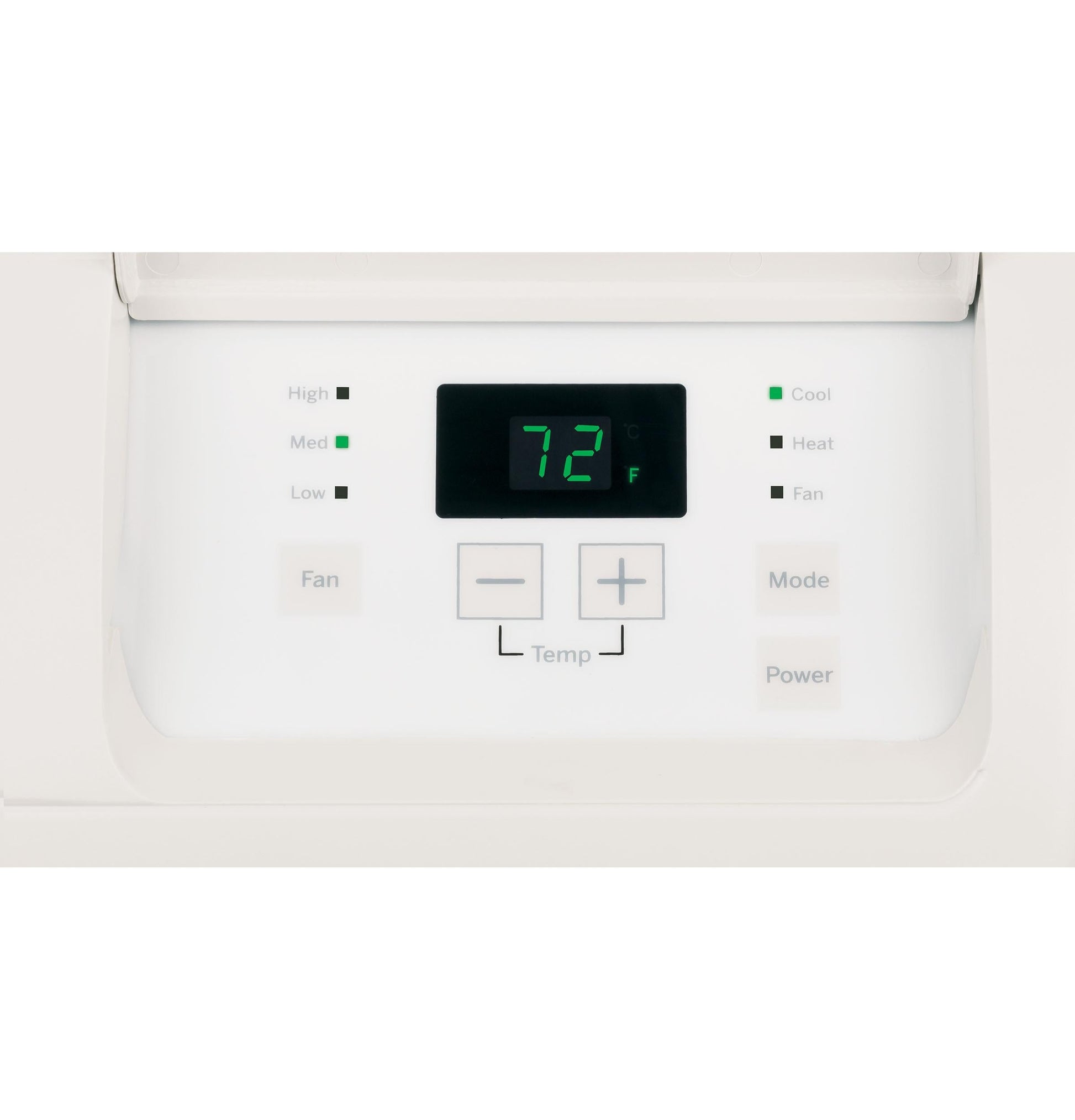

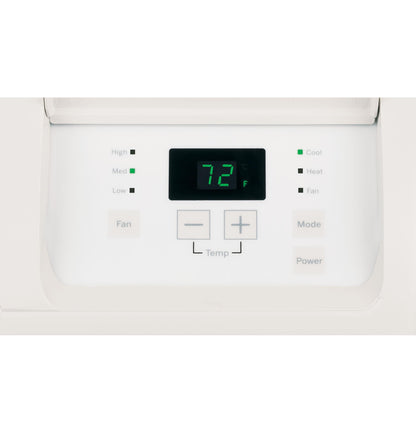

- Intuitive display
Specifications
| Cooling EER (BTUH / Watt) |
11.4 |
| CFM Indoor Fan Medium |
385 |
| Cooling BTUH (MIN) |
8800.0 |
| Heating - Reverse Cycle - BTUH |
8100 |
| CFM Indoor Fan High |
431 |
| CFM Indoor Fan Low |
333 |
| Cooling BTUH (MAX) |
9000.0 |
| Installation |
Through-the-Wall |
| Color Appearance |
White |
| Heating - Reverse Cycle - Watts |
719 |
| Cooling - Watts |
796 |
| Cooling - Amperes |
3.01 |
| Heating - Electric - Heater Watts |
3535/2935 |
| Heating - Reverse Cycle - Amps |
3.1 |
| Voltage (MAX) |
265.0 |
| Heating - Reverse Cycle - COP |
3.3 |
| Heating - Electric - Heater Amps |
13.46 |
| Warranty Notes |
See written warranty for full details |
| Parts Warranty |
Limited 1-year entire appliance
Limited 5-year sealed refrigerating system |
| Labor Warranty |
Limited 1-year entire appliance
Limited 5-year sealed refrigerating system |
| Net Weight |
101.0 |
| Overall Depth |
21.0 |
| Overall Width |
42.0 |
| Overall Height |
16.0 |
| Approximate Shipping Weight |
112.0 |
| Refrigerant Type |
R410A |
| Discharge Grille |
2-position |
| Heat Pump |
Yes |
| Venting Features |
Concealed Manual Vent Control
Vent Air Filter |
| Heating System |
Heat Pump with Resistance Backup |
| Chassis Type |

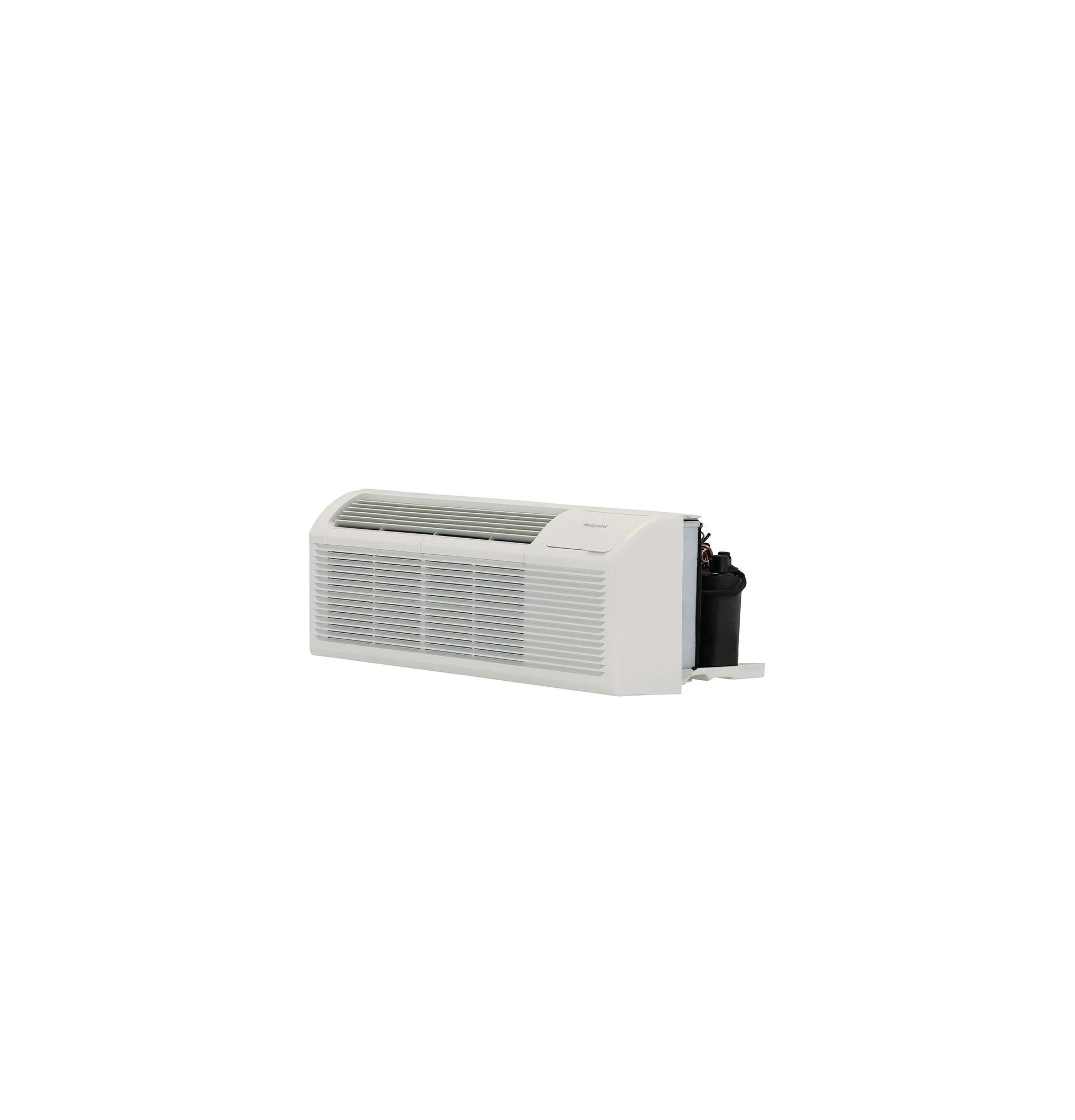

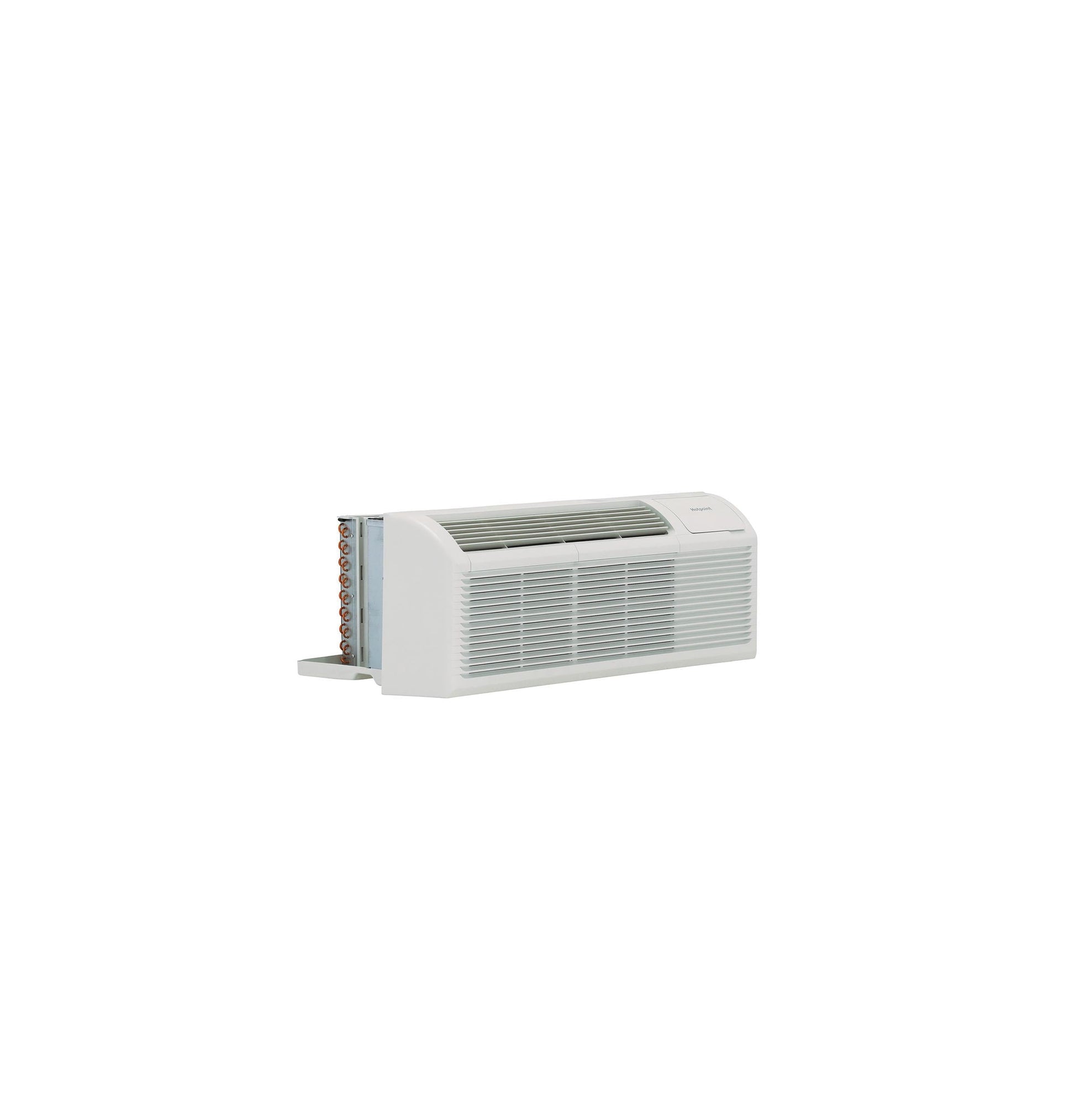

Slide-In |
| Rotary Compressor |
Yes |
| Auto Power Recovery |
Yes |
| Fan Speed Selections |
3 Cooling
3 Fan Only
3 Heating |
| Heat - Cool |
Yes |
| Control Type |
Electronic |
| Unit Features |
Auto Power Recovery
Automatic Emergency Heat
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Pump with Resistance Heat Backup
Power Cord included
Remote Thermostat Compatibility
Sub-Base required |
| Manual Vent Control |
Hidden |
| Outdoor Vent / Exhaust |
Yes |
| Product Type |
Packaged Terminal Air Conditioners (PTAC) |
| "SmartFan" Fan Cycle |
Yes |
| Fan Motor |
2 |
| Temperature Range |
62 - 86 F |
What Our Experts Think
-
Efficient Heating – With 9K BTU and a heat pump system, it delivers powerful yet energy-efficient heating.
-
Electric Resistance Heat – Provides a consistent, reliable heat source, perfect for maintaining comfortable indoor temperatures.
-
Compact Design – Ideal for smaller spaces, offering flexibility in installation without compromising performance.
-
Low Energy Consumption – With 2.0 amps, it ensures efficient power use, reducing electricity costs.
-
265V Power – Designed to handle higher voltage for faster and more efficient heating.
-
Advanced Technology – Combines heat pump technology with electric resistance to enhance performance and extend the unit's lifespan.
Q&A
Q: What is the cooling and heating capacity of this unit?
A: It has a 9,000 BTU capacity, suitable for small to medium rooms.
Q: Does this unit require a specific voltage?
A: Yes, it operates on 265V and requires a 20-amp circuit.
Q: What type of heating does this unit provide?
A: It features a heat pump for primary heating with electric resistance backup for colder temperatures.
Q: Is this unit suitable for residential use?
A: While designed for commercial applications like hotels and apartments, it can be used in residential settings with proper electrical requirements.
Q: Does it come with a wall sleeve and grille?
A: These are usually sold separately. Check with the retailer for compatible accessories.
Q: Is professional installation required?
A: Yes, it’s recommended to have this unit installed by a qualified technician due to its voltage and electrical requirements.
Maintenance Tips
-

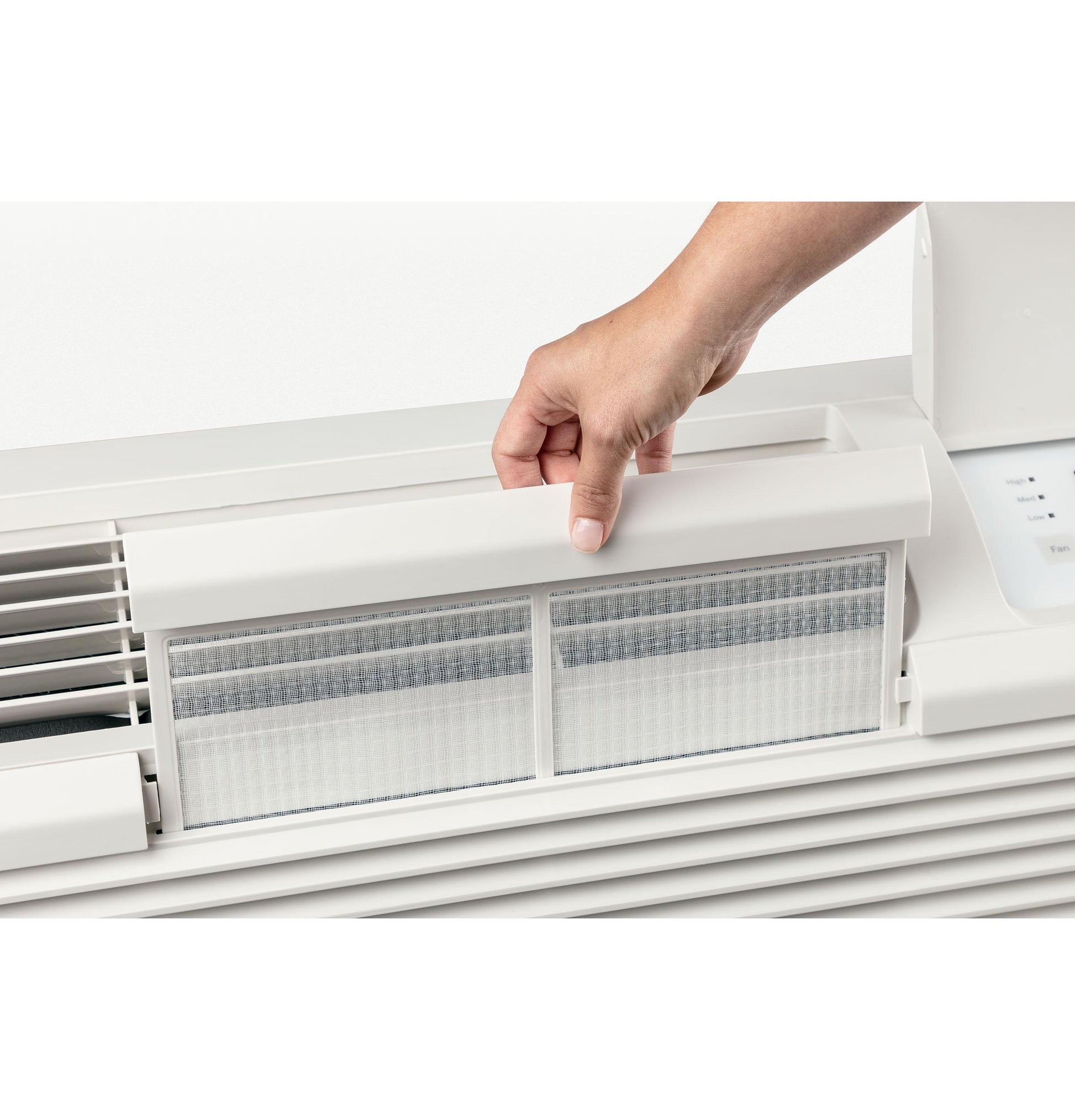

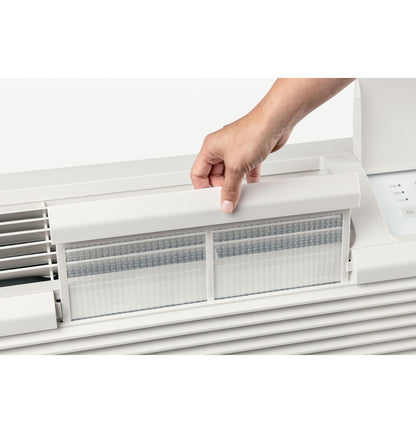

Clean or Replace the Air Filter (Every 30 Days)
- A clogged filter reduces efficiency and airflow. Wash reusable filters with warm, soapy water and let them dry completely before reinserting.
-
Inspect and Clean the Evaporator & Condenser Coils (Every 6 Months)
- Dust buildup can reduce efficiency. Use a soft brush or vacuum cleaner to gently clean the coils.
-

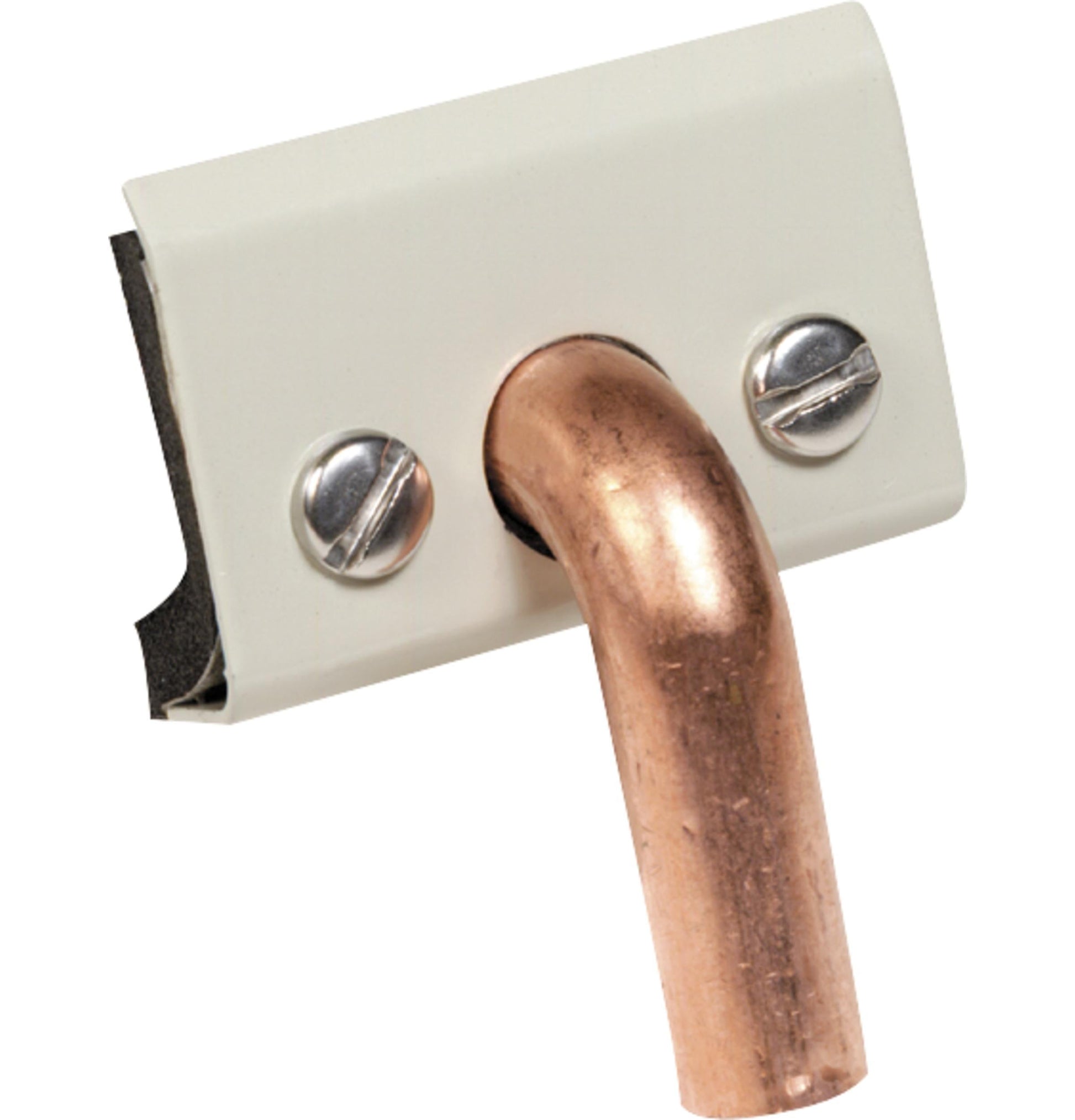

Check the Condensate Drain & Pan (Every 3-6 Months)
- Ensure the drain line is clear to prevent water buildup and potential leaks.
-
Inspect the Outdoor Unit (Every 6 Months)
- If the unit is installed in an area exposed to dirt and debris, clean the condenser fins with a garden hose (avoid high pressure).
-
Test the Thermostat & Controls (Quarterly)
- Verify that the unit maintains accurate temperatures and responds correctly to setting adjustments.
-
Check the Power Supply & Electrical Components (Annually)
- Ensure the 265V power connection is secure and that there are no exposed or damaged wires.
