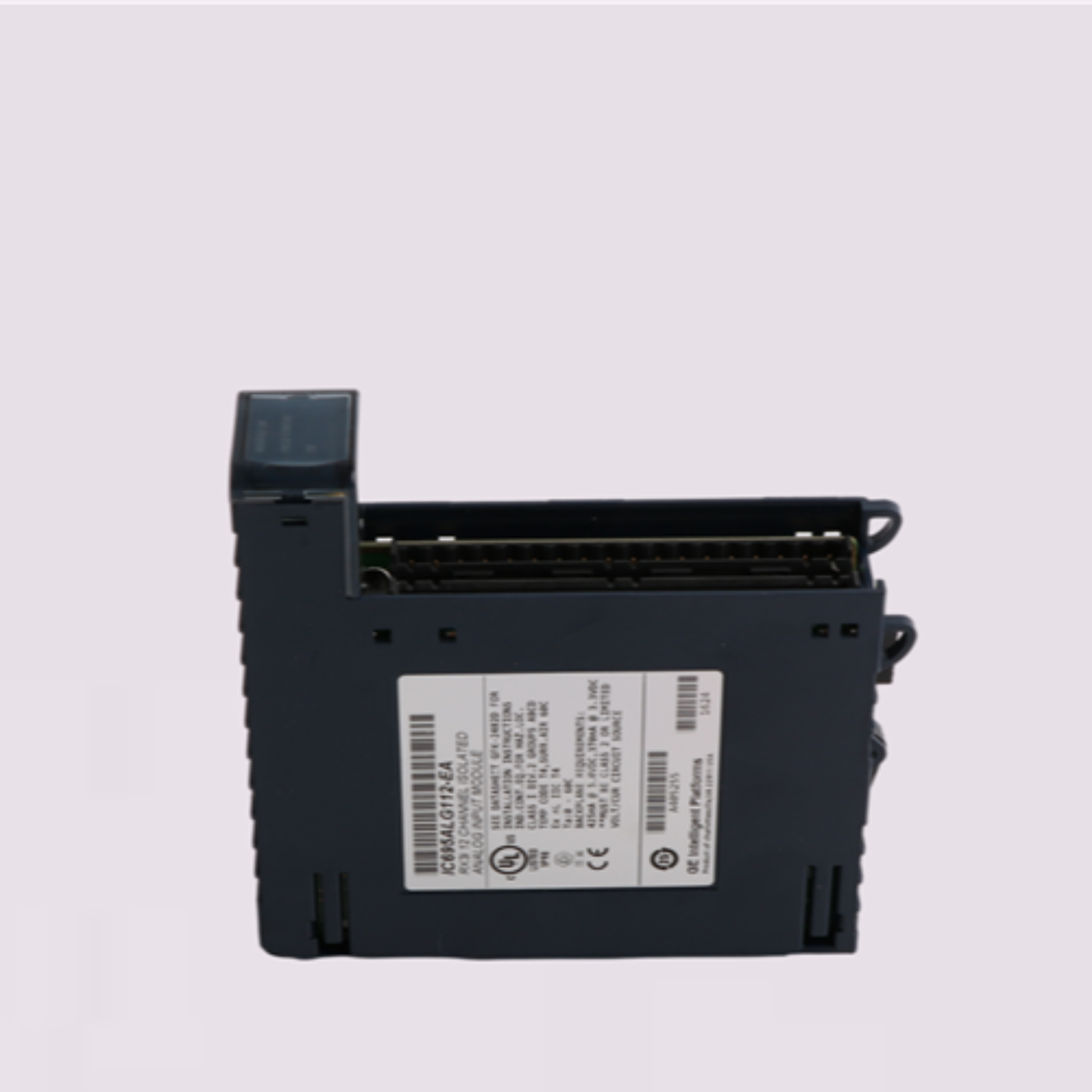

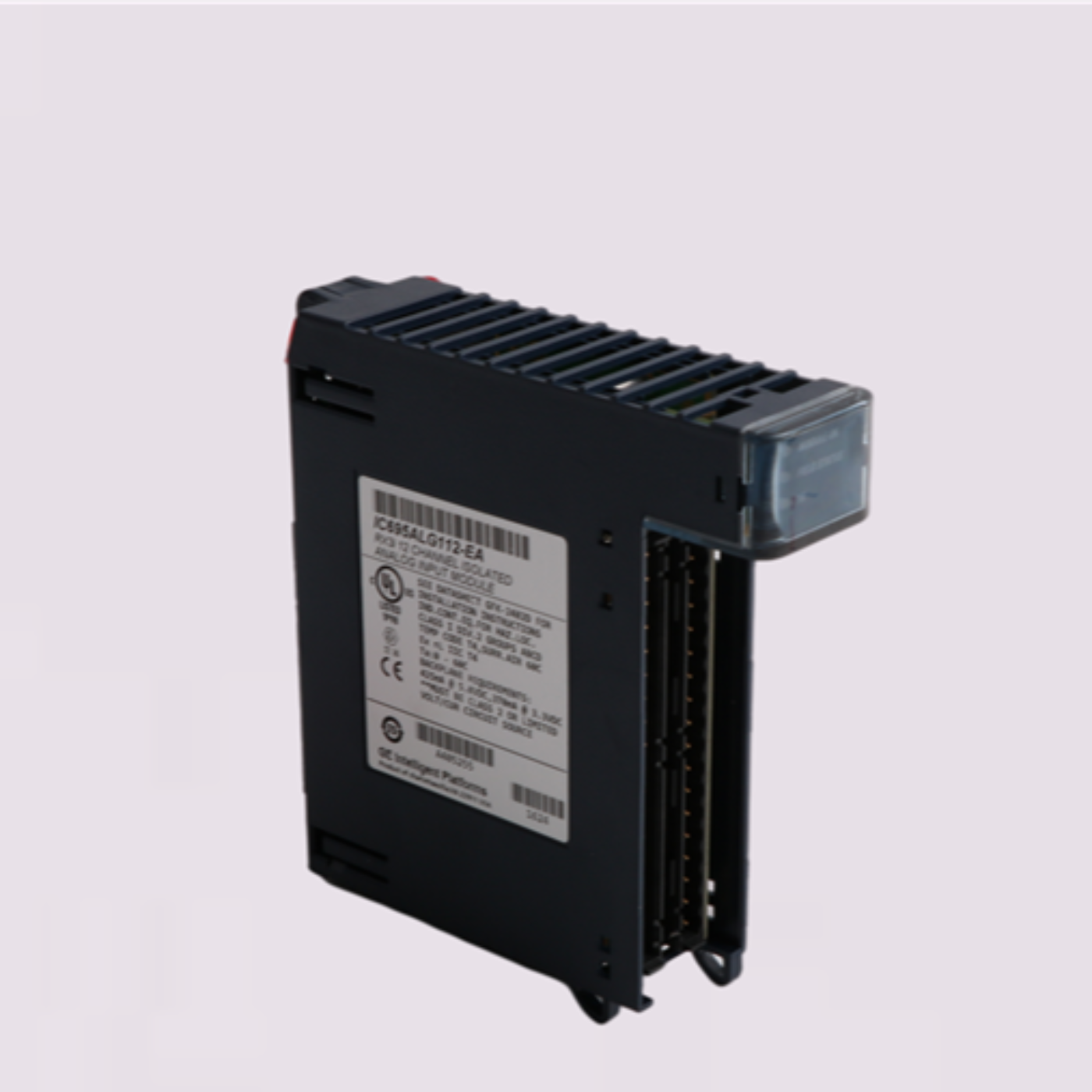

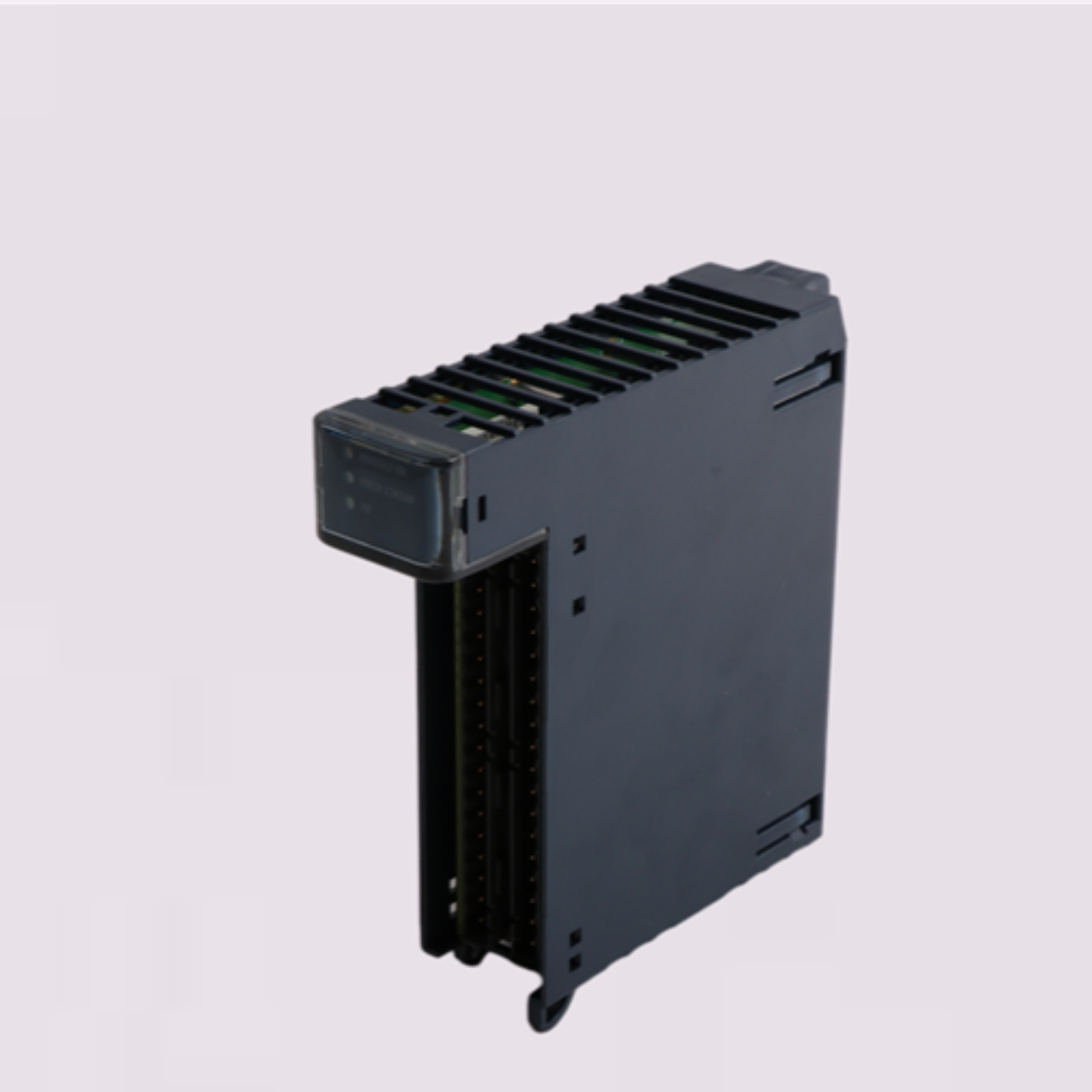

Fanuc Corporation | GE Fanuc General Electric Isolated Analog Module - IC695ALG112-EA
The GE Fanuc IC695ALG112-EA is an 8-channel isolated analog input module, offering high accuracy, versatile signal support, and robust performance for industrial data acquisition and process control applications.
The GE Fanuc IC695ALG112-EA Isolated Analog Module is a versatile and high-precision component designed for industrial automation applications. It provides 8 channels of isolated analog inputs, supporting a range of input signals such as voltage and current. This module is ideal for collecting and processing data from various sensors and transducers in demanding environments.
This module is widely used in industries such as manufacturing, utilities, and process automation, where accurate and reliable analog data collection is essential.
Features
- Input Range Versatility: Supports multiple voltage and current ranges to accommodate diverse application needs.
- Channel Isolation: Each channel is electrically isolated, enhancing safety and reducing interference.
- High Accuracy and Resolution: Ensures precise data acquisition for critical industrial processes.
- Diagnostics and Status Indicators: Built-in diagnostics simplify troubleshooting and maintain system reliability.
- Seamless Integration: Compatible with GE Fanuc RX3i series PLCs, making it easy to expand system capabilities.
Â
SpecificationsÂ
| Condition |
New/Never Used Surplus |
| Brand |
GE Fanuc |
| Category |
PLCs and Accessories |
| Part Number |
IC695ALG112-EA |
| Subcategory |
PLC Expansion Modules |
| Weight |
0.3 kgs |
| Dimensions |
5.1 cm x 12.7 cm x 12.7 cm |
| Resolution |
16-bit ADC converted to Floating Point or Integer |
| Number of Input Channels |
Eight (8) |
| Input Current Range |
4-20 mA; 0-20 mA |
| Input Voltage Range |
0 - 10 VDC (unipolar), -10 to +10 VDC (bipolar), +/- 5VDC, 0 to 5VDC, 1-5VDC |
| Digital Filtering |
8Hz, 12Hz, 16Hz, 40Hz, 250Hz, 1000Hz |
What Our Experts Think
-
Isolated Signal Input: Provides electrical isolation for voltage or current signals, ensuring stable and reliable data processing in noisy environments.
-
High Accuracy: Offers precise analog-to-digital conversion for accurate monitoring and control of industrial processes.
-
Wide Input Range: Supports a broad range of input signals (0-10V, 4-20mA, etc.), offering flexibility in various automation applications.
-
Easy Integration: Compatible with GE Series 90-30 PLCs, simplifying setup and reducing system downtime.
-
Durable Construction: Built to withstand harsh industrial conditions, ensuring long-term reliability in critical automation systems.
Q&A
Q: What is the IC695ALG112-EA Isolated Analog Module?
A: It’s a GE Fanuc isolated analog input module designed for use with the GE Fanuc RX3i PLC system, enabling precise data acquisition from analog signals.
Q: What types of inputs does it support?
A: The module supports 8 differential analog inputs, allowing accurate measurement and isolation for industrial automation systems.
Q: What is the advantage of the isolated design?
A: The isolated design protects the system from electrical noise and interference, ensuring reliable data collection and system stability.
Q: Why choose the IC695ALG112-EA?
A: It offers high accuracy, improved system protection, and easy integration into existing GE Fanuc systems, ideal for demanding industrial applications.
Q: Is this an OEM product?
A: Yes, it’s a genuine GE Fanuc product, ensuring optimal compatibility and high-quality performance.
Maintenance Tips
-
Calibration Check: Regularly verify and recalibrate the analog input and output signals.
-
Inspect Connections: Ensure all wiring and connectors are secure, clean, and corrosion-free.
-
Dust Prevention: Clean with anti-static tools to avoid dust accumulation on the module.
-
Signal Integrity: Monitor for accurate signal transmission and address any inconsistencies.
-
Environmental Control: Keep the module in a stable, dry, and dust-free environment.
-
Firmware Updates: Keep the module’s firmware up to date using GE-approved software.
