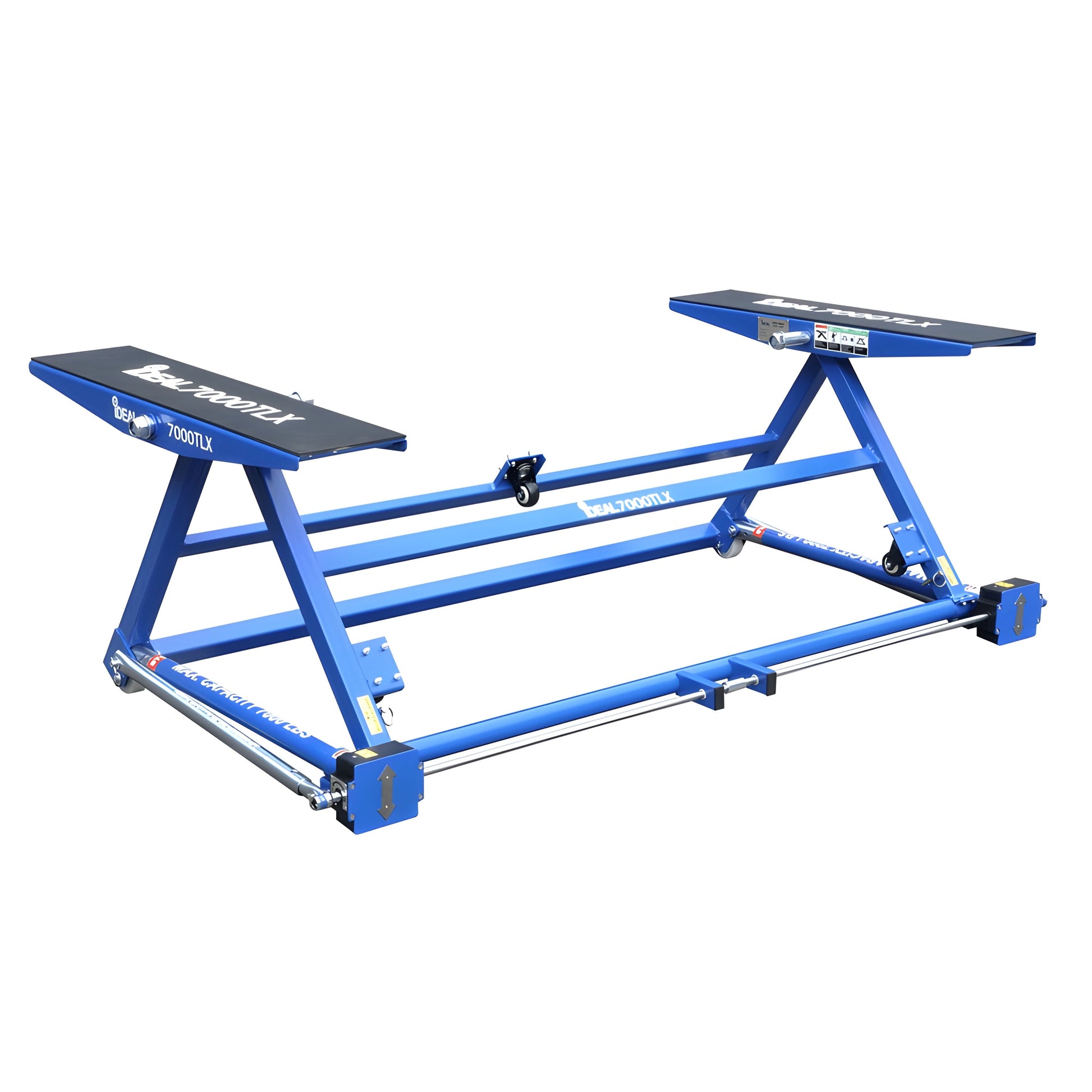

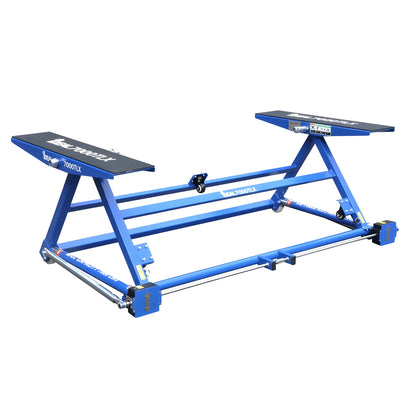

iDEAL 7000TLX Automotive Tilt Lift - TLX-7000
The iDEAL 7000TLX Tilt Lift is designed to simplify under-car work with its powerful 7,000 lb. lifting capacity and compact, versatile design. Built with adjustable-width platforms and dual-action precision gear drives, it ensures safe, reliable lifting for a wide range of vehicles. Its low 4-1/2" minimum height allows access to low-clearance cars, while risers extend the maximum lift height to 23-1/2". Powered by a standard 10 Amp corded drill, this lift raises vehicles in just 30–40 seconds, offering a fast and efficient solution for professional and home garages alike.
Features
-
7,000 lbs. lifting capacity
-

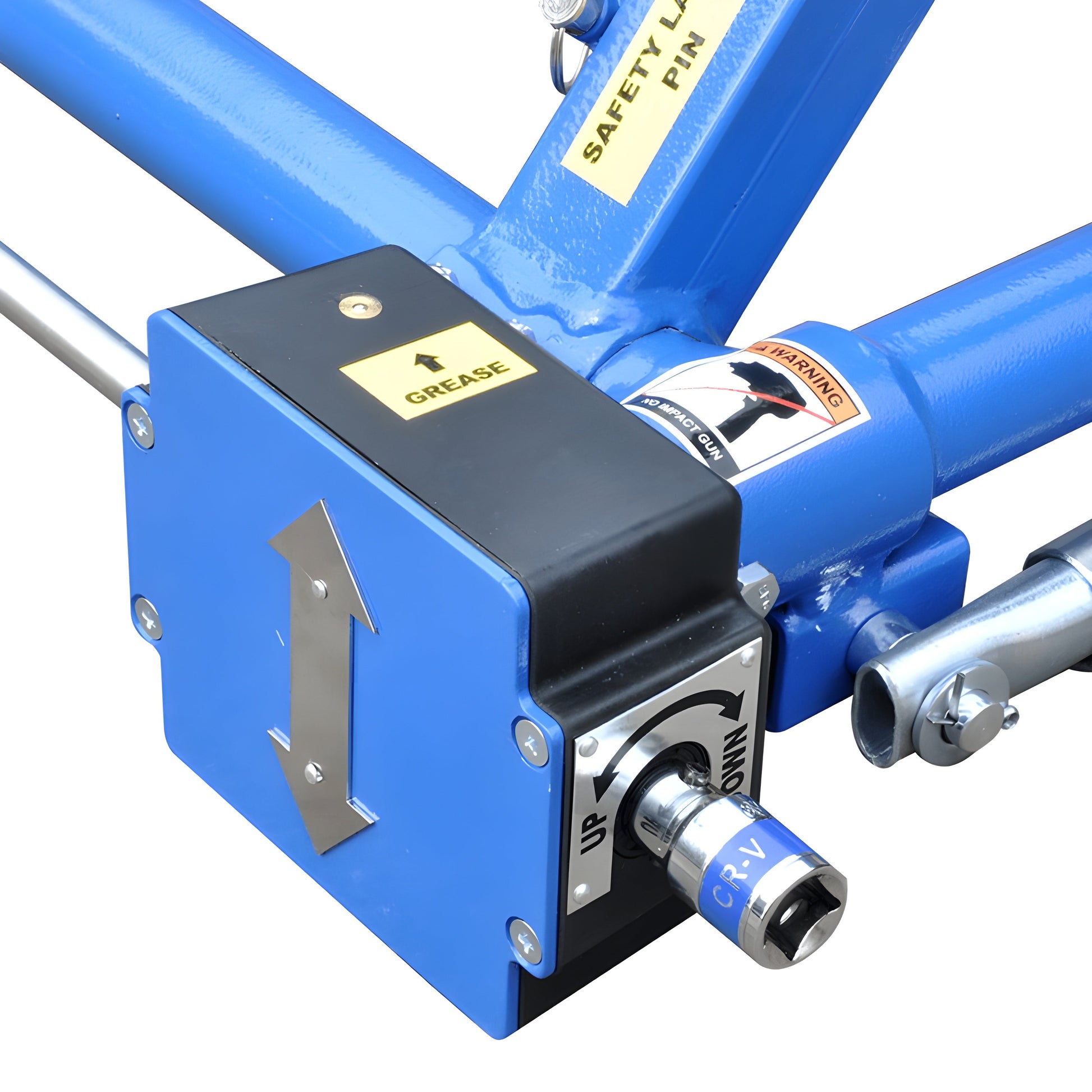

Twin dual-action precision gear drives
-
Adjustable width platforms (59-1/4" to 63-3/4")
-
Compact, easy-to-use and maintain design
-
4-1/2" minimum height for low-clearance vehicles
-
Maximum lift height of 23-1/2" (with risers)
-
Rugged powder-coat finish for durability
-
Weather-resistant for indoor or outdoor use
-

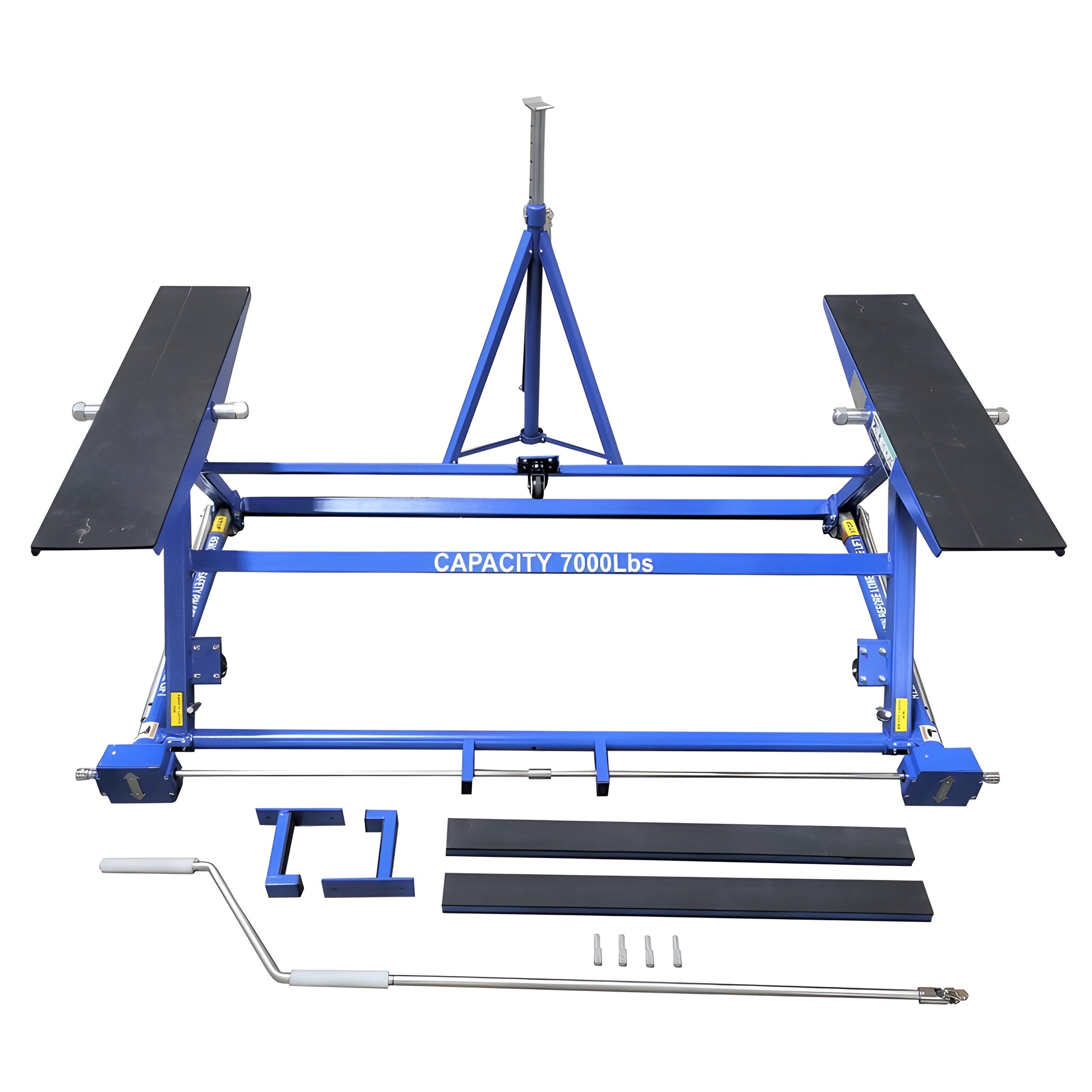

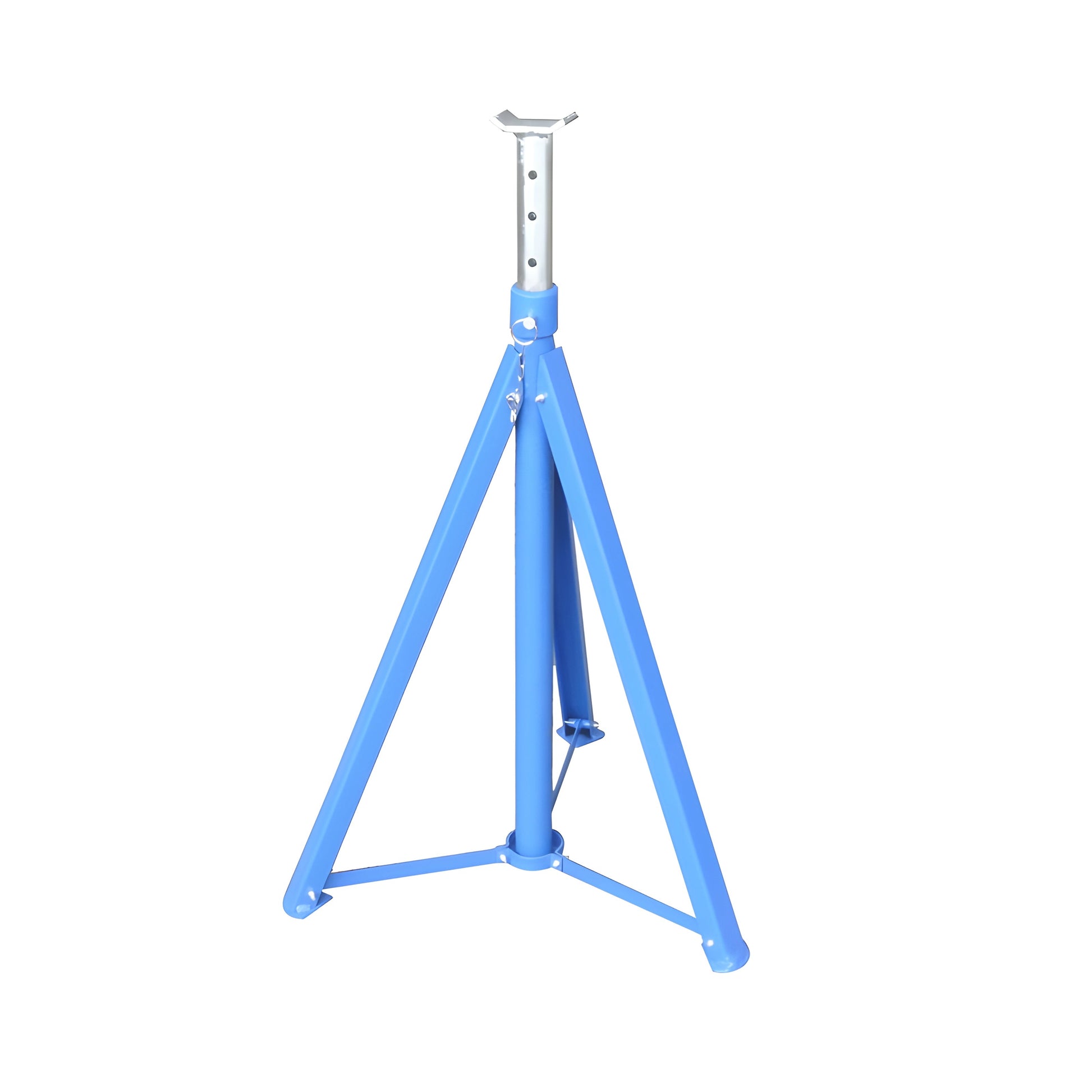

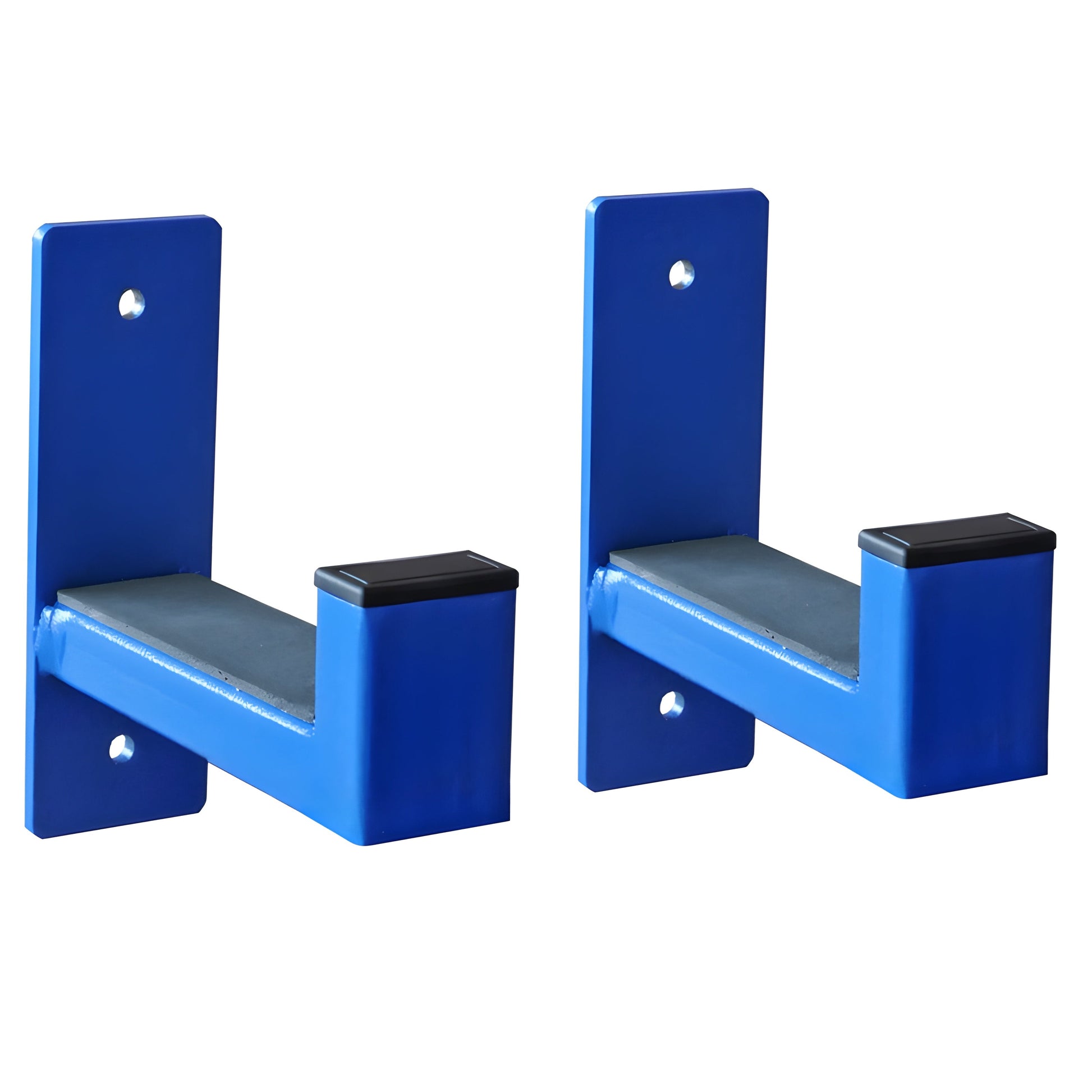

Includes jack stand, platform risers, drill-drive adapters, wall mount brackets, and manual handle with socket adapter
-
Backed by a 1-year limited warranty
Specifications
-
Model: 7000TLX
-
Capacity: 7,000 lbs.
-
Overall Length: 51-3/4"
-
Overall Width: 64-3/8"
-
Minimum Height: 4-1/2"
-
Maximum Lift Height: 22-1/2" (23-1/2" with risers)
-
Platform Size: 31-1/2" x 7-1/2"
-
Platform Width Adjustment: 59-1/4" to 63-3/4"
-
Inside Platform Width: 44-1/2" to 49-1/4"
-
Lift Speed: 30–40 seconds
-
Lift Weight: 111 lbs.
-
Power: 10 Amp, 120V AC, corded drill
-
Shipping Weight: 214 lbs.
-
Pallet Dimensions: 35"L x 66"W x 11"H
What Our Experts Think
-
Compact and efficient—ideal for garages with limited space
-
Fast operation with corded drill power (no hydraulics needed)
-
Weather-resistant finish makes it versatile for indoor and outdoor setups
Q&A
Q: What powers the 7000TLX Tilt Lift?
A: It operates using a standard 10 Amp, 120V corded drill.
Q: What is the maximum lifting height?
A: Up to 22-1/2", or 23-1/2" when using the included risers.
Q: Can it lift larger vehicles?
A: Yes, with a 7,000 lb. capacity, it can handle most passenger vehicles and light trucks.
Maintenance Tips
-
Regularly inspect the gear drives for wear and lubricate as recommended
-
Store indoors when not in use to extend product life, even though it is weather-resistant
-
Check platform risers and safety accessories before every use
-
Clean the powder-coated finish periodically to prevent surface wear
