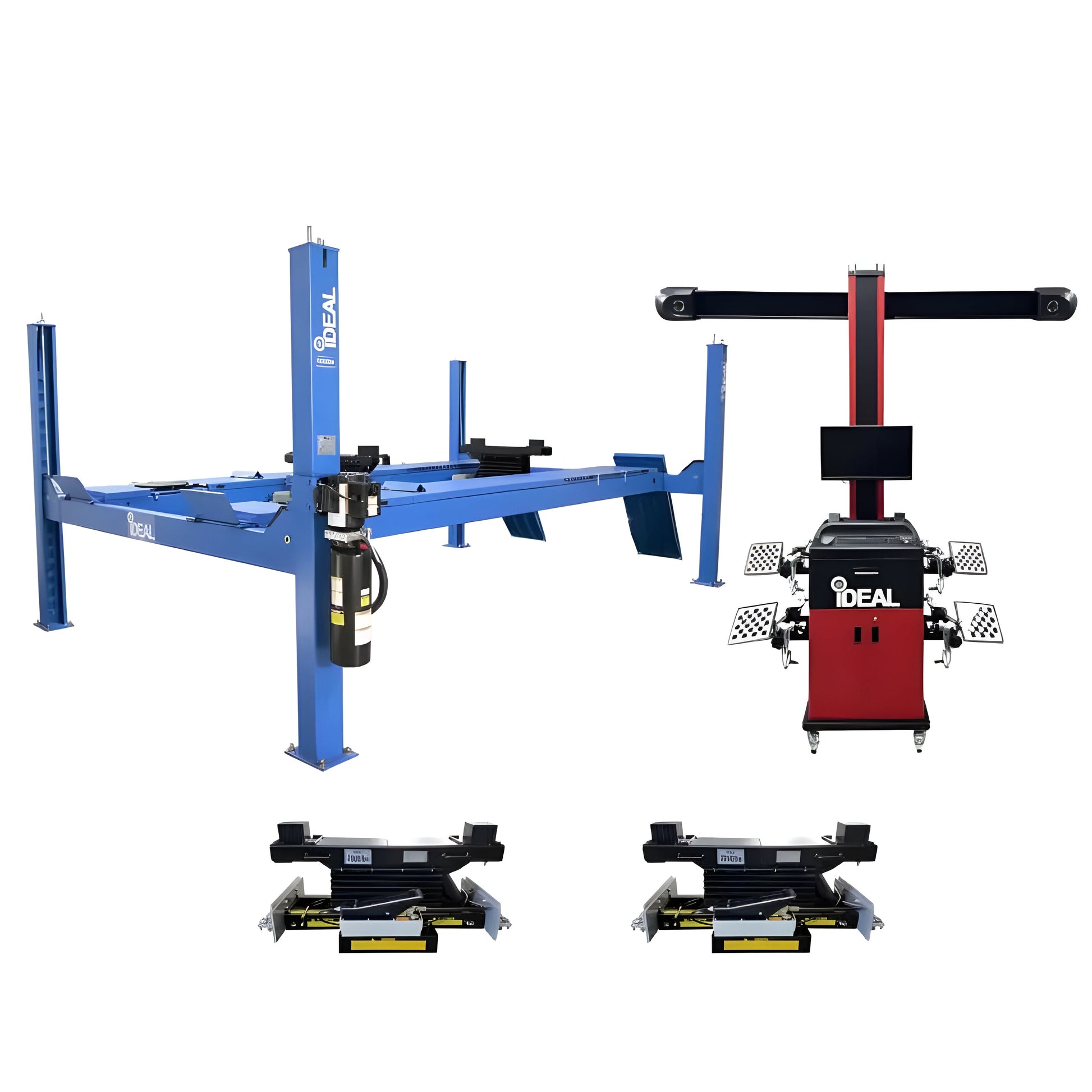

iDeal CK-FP14KA with CX-IWA-60-2000T-K and RAJ-7K-H Combo - CK-FP14KACX-IWA-60-2000T-K-1

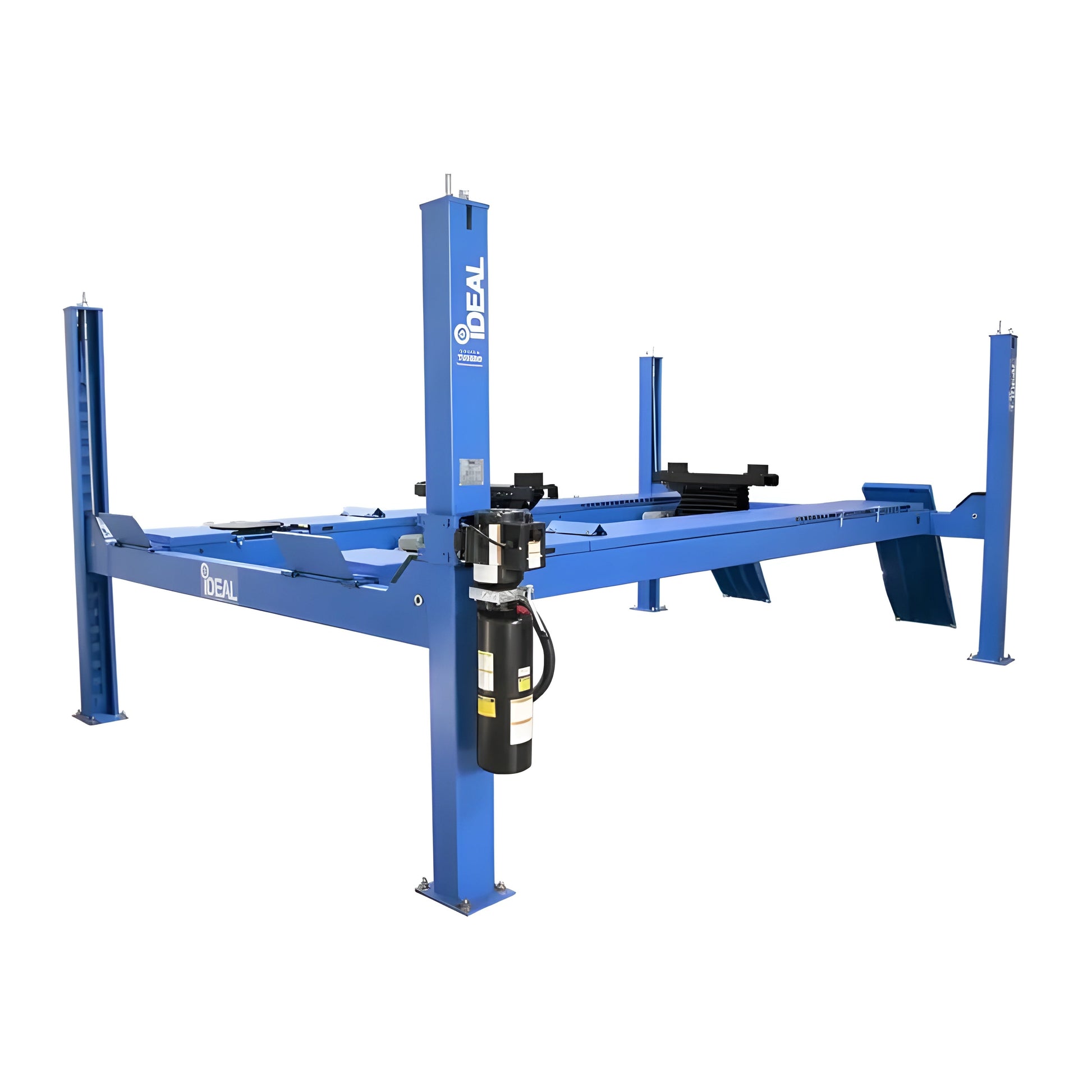

Need a powerful, all-in-one alignment solution? The iDEAL FP14KAC-X 14K-4 Post Alignment Lift is built to elevate your shop’s efficiency. Boasting a massive 14,000 lb capacity and a maximum wheelbase of 182.5 inches, it effortlessly accommodates everything from compact cars to heavy-duty trucks. Featuring 18 locking height positions, a cable lift system, and 20-inch-wide runways, it ensures unmatched stability and flexibility. Best of all, the convenient “bolt-on” runway alignment kit makes installation quick and hassle-free. Get ready to lift with confidence!
Teamed up with the iDEAL 3D iPRO Wheel Aligner, you get alignment accuracy down to 0.01 degrees, thanks to high-resolution cameras that work like magic. The aligner’s portable design makes it easy to switch between bays, and its loaded database of vehicle specs means you’re ready for any job. Add the Tuxedo RAJ-7K-H 7K Rolling Air Jack into the mix, and you’ve got a dream team for lifting and adjusting with ease. This high-mount jack slides effortlessly along the rails, giving you smooth, on-rail adjustments with up to 7,000 lbs of lifting power. Drooling already? We understand.
Specification
- Lift model: FP14KAC-X
- Capacity: 14,000 lbs
- Overall length with ramp: 252-1/2"
- Overall width (without power unit): 131-7/8"
- Overall width (with power unit): 142"
- Overall height: 92-1/2"
- Max rise height: 79-1/2"
- Min height: 9-7/8"
- Width between posts: 116-1/4"
- Length between posts: 196"
- Width between runways: 43" or 46"
- Width of runways: 20"
- Max wheelbase: 182-1/2"
- Max alignment wheelbase (2-wheel): 166-3/4"
- Min / Max alignment wheelbase (4-wheel): 103" / 157"
- Ramp length: 44"
- Max clearance under runway: 69-5/8"
- Drive-thru clearance: 100"
- Base plate: 10-1/2" x 9"
- Power requirement: 220V - 20 Amp 1 PH
- Ship weight: 3,810 lbs
- Minimum bay size: 16' x 25'

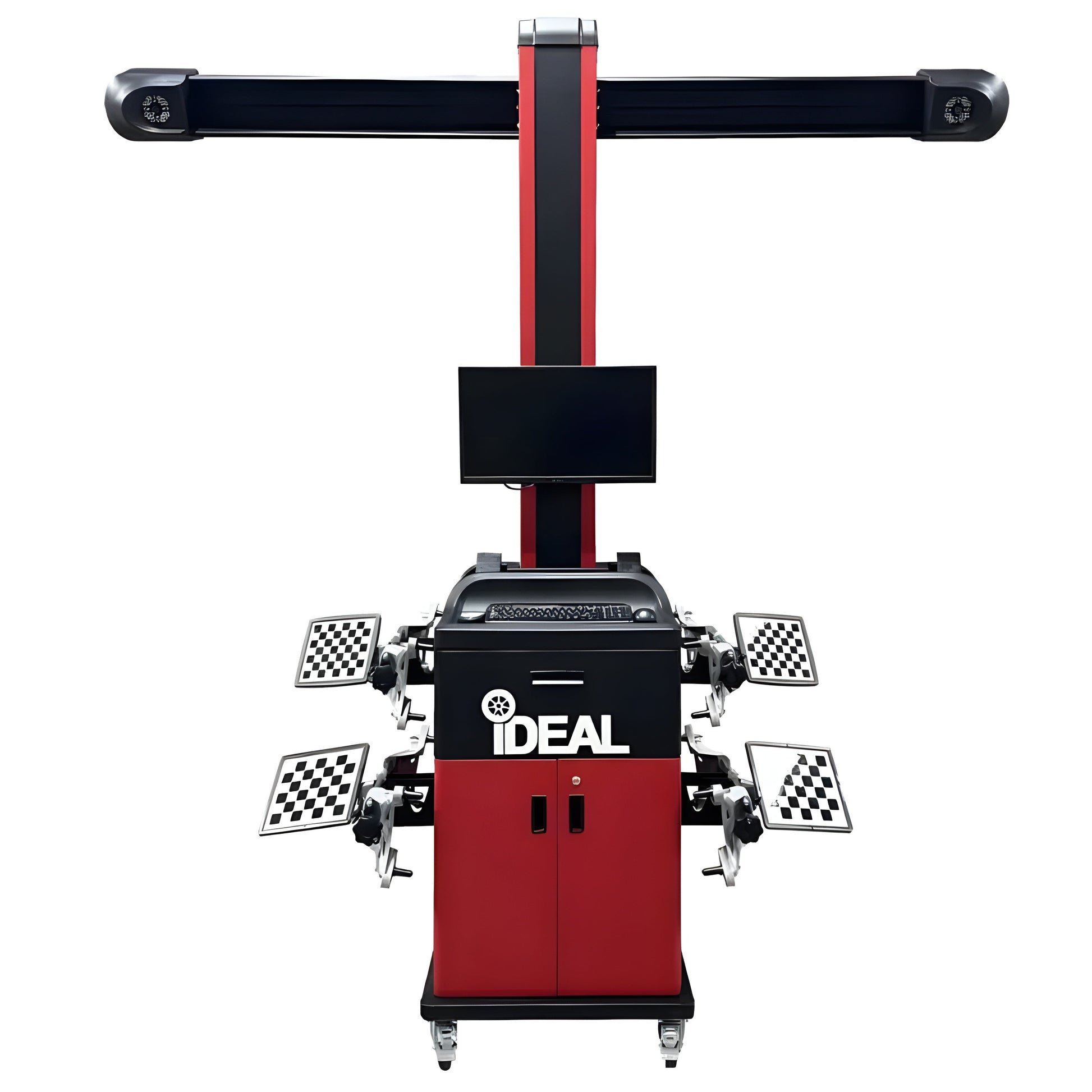

- Aligner Model: IWA-60-2000T-K
- Aligner Type: 3D 'Wide Scope' Imaging
- Operating System: Windows 10
- Software: Techno Vector 7
- Accuracy: 0.01 Degrees
- Certification: CE
- Target Size (4): Standard
- Cameras: 2 (High Resolution / Wide Scope)
- Lift Compatibility: 4 Post or Scissor Alignment Lift required
- Standard Wheel Clamps (4): 12" - 24"
- Toe Adjustment: Yes
- Raised Mode: Yes
- Live Caster: Yes
- Runout Compensation: Yes
- Wheel Alignment Mode: Yes
- Database Update: Yes
- Customer Manager: Yes
- Product ships from Montana & Includes training
- Lift Range Height: 35" to 67"
- Max Wheelbase: Up to 13' (157.5")
- Power Requirement: 120V - 15 Amp / 1 PH / 60 Hz
- Ship Weight: 500 lbs (2 pcs)

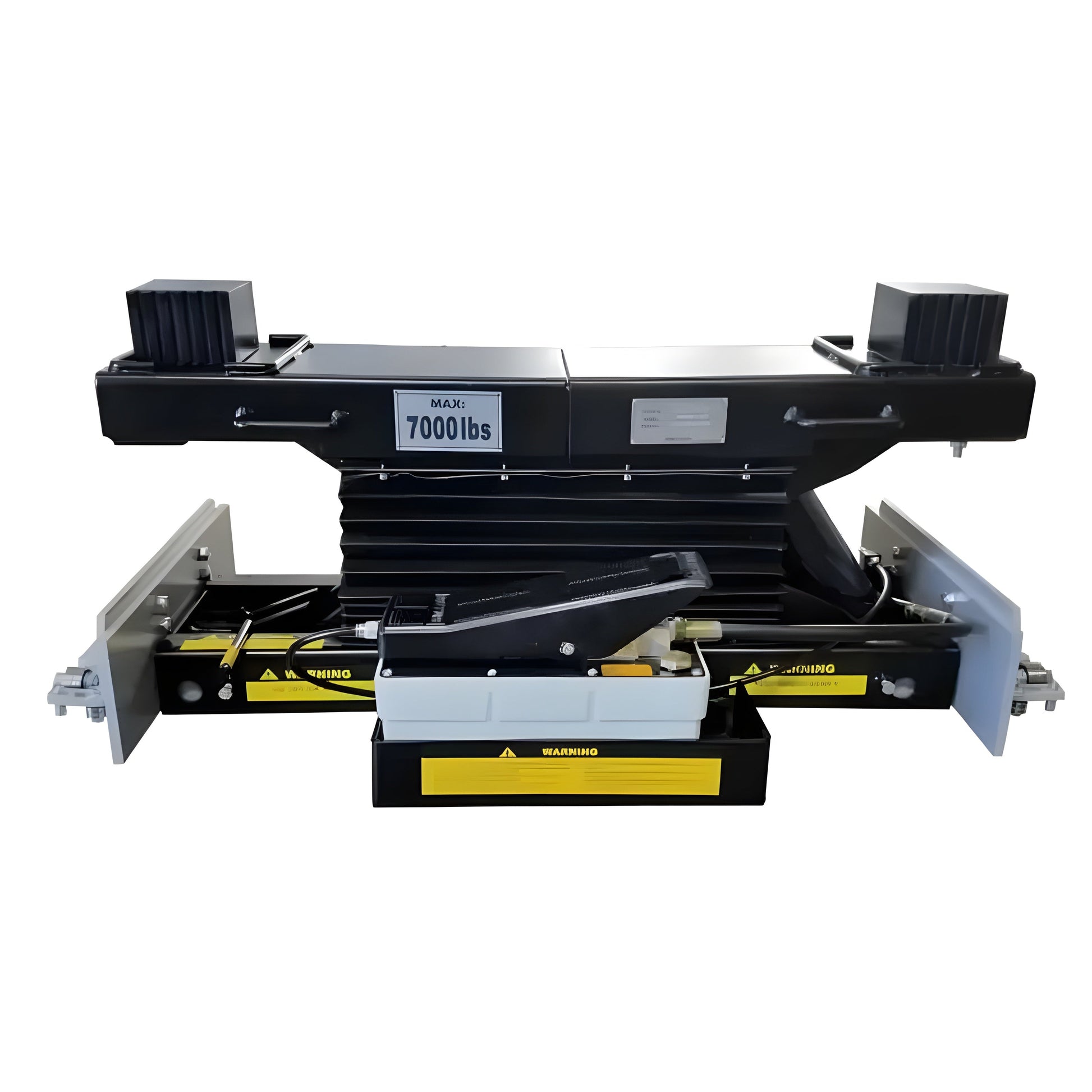

Specifications
- Capacity: 7,000 lbs
- Mount Type: High Mount, designed for low-position jack rails
- Roller Body Operation: Dual spring-loaded with roller bearing wheels for smooth on-rail rolling
- Support Arms: Telescoping and locking for stability and precise positioning
- Operation: Air/hydraulic for efficient and smooth lifting
- Locking Height Positions: Two positions for flexible lifting options
- Adapters: Includes rubber height adapters (set of 2)
Features
- 14000 LBS Capacity
- High performance commercial alignment lift
- Durable, high quality cable lift system
- Extended rise height
- 'BOLT-ON' Runway alignment kit
- 166.7" Max alignment wheelbase (2 wheel)
- 157" Max alignment wheelbase (4 wheel)
- 182.5" Max service wheelbase
- 18 locking height positions
- Full width rear wheel slip plates
- Two turntable positions w/spacer covers
- 20" Wide runways
- Narrow & wide runway mounting positions
- Single point pneumatic lock release
- Fully adjustable lock stops for easy leveling
- Slack cable safety devices
- Self-chocking approach ramps w/ nylon rollers
- Wheel chocks (1PR)
- Durable powder coat finish
- Wide scope, high-resolution 3D industrial-grade cameras
- Mobile design for multi-bay capability
- 0.01-degree alignment accuracy
- Durable powder-coated metal cabinet
- Wireless internet support
- Multiple 2D & 3D views with live readings screen
- Pre-installed 25+ years of specification database
- Integrated adjustment diagrams & help system
- Multi-functional LED guide on camera boom
- Compatible with multiple alignment lift styles
- Remote control capability via Android devices
- Includes storage cabinet, printer drawer, and brackets for storing wheel adapters and targets
- Equipped with 12"-24" wheel clamps and durable magnesium alloy targets with protective oil-resistant layer
- Accessories include steering wheel holder, brake depressor, and wheel chocks
- VIN code scanner capable (not included)
- Optional yearly specification and software updates
- High mount design for low jack rails
- Adjustable height roller body assemblies
- Dual spring-loaded roller body operation for stability
- Smooth on-rail rolling with roller bearing wheels
- Telescoping and locking support arms
- Air/hydraulic operation for reliable lifting
- Protective skirts for added durability
- Two locking height positions
- Rubber height adapters for customization and safety
Manual
What Our Experts Think
-
The iDeal CK-FP14KA combo package is a complete automotive service solution, combining a 14,000 lb four-post lift with premium wheel service equipment.
-
Includes the CX-IWA-60-2000T-K wheel alignment system, delivering accurate and efficient alignments.
-
Comes with the RAJ-7K-H rolling jack, allowing safe lifting of vehicle axles for tire and suspension work.
-
Designed for professional repair shops and service centers handling passenger cars, light trucks, and SUVs.
-
Provides exceptional value by integrating lifting, alignment, and wheel service into one streamlined package.
Q&A
Q: What vehicles can this setup handle?
A: With a 14,000 lb capacity, it accommodates most cars, trucks, and SUVs.
Q: Why choose this package instead of separate equipment?
A: It’s a complete, matched system that ensures seamless operation between the lift, alignment, and jack.
Q: What’s the advantage of the RAJ-7K-H rolling jack?
A: It allows easy lifting of axles while the vehicle is on the four-post lift, perfect for suspension or tire work.
Q: Is this system shop-ready?
A: Yes, it’s built for busy commercial shops that need efficiency and reliability.
Maintenance Tips
-
Perform regular hydraulic fluid checks on the lift and jack.
-
Keep the alignment sensors and targets clean for accurate readings.
-
Lubricate moving parts on the lift and rolling jack as recommended.
-
Inspect safety locks, cables, and hoses regularly to ensure safe operation.
