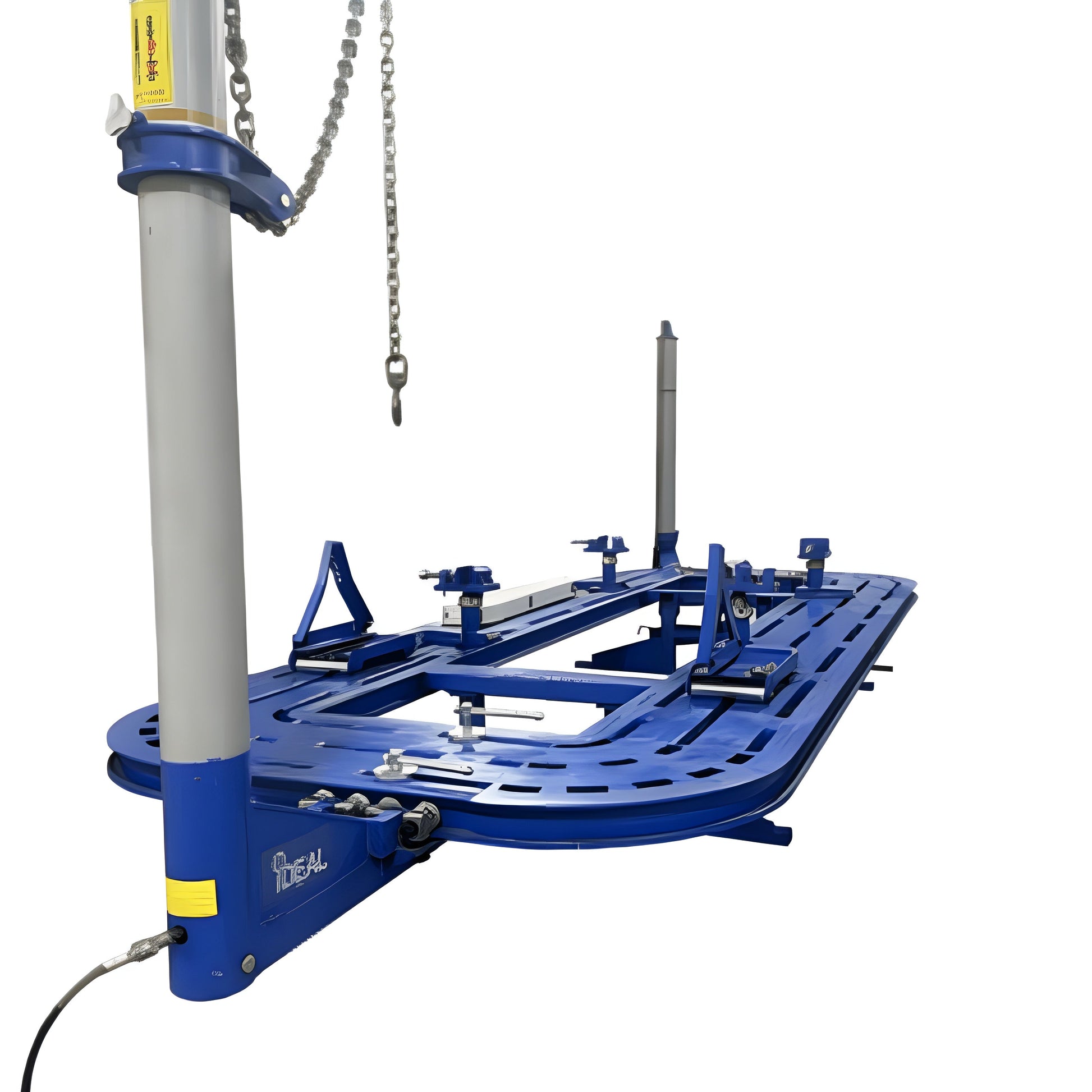

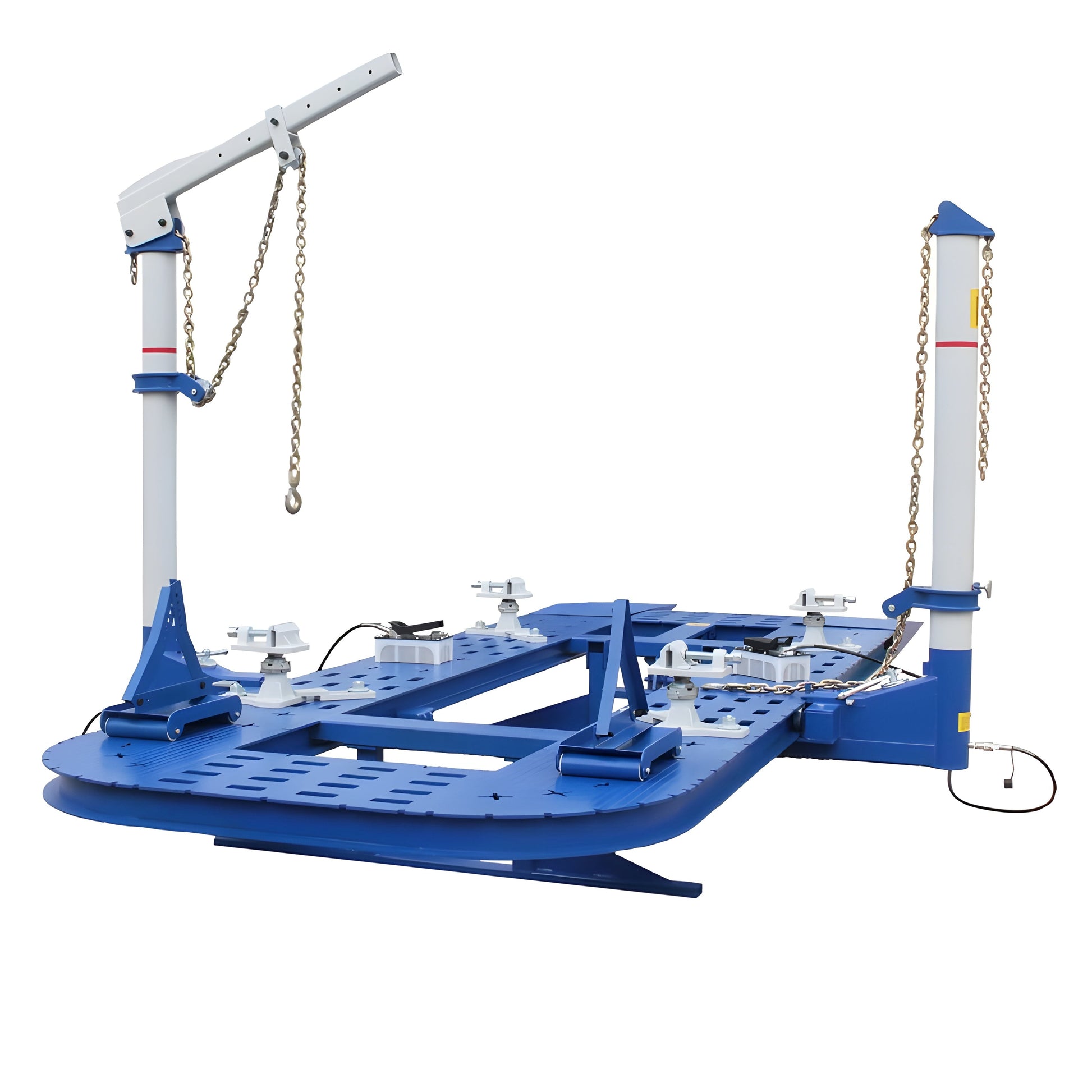

iDeal FR-77-18, 18' Tilt Deck Steel Plate Platform Frame Rack - FR-77-18
Is your current frame rack slowing down your workflow? Outdated equipment not only costs you time and money but also makes it harder to deliver consistent results. The iDeal FR-77-18 Tilt Deck Steel Plate Platform Frame Rack is designed to change that. Built with an 18-foot steel deck and a 7,700 lbs. lifting capacity, this powerhouse can take on even the toughest repair jobs with ease.
Equipped with two 10-ton pulling towers operating at 10,000 PSI hydraulic pressure, the FR-77-18 provides the pulling force you need for heavy-duty frame straightening. The tilt deck design with drive-on ramps ensures easy vehicle positioning, while the universal anchoring system adapts to a wide range of vehicle models. Add in quick-disconnect hydraulic fittings, an overhead boom tower extension, and dual high-quality air/hydraulic pumps, and you have a frame rack that delivers power, precision, and versatility every time.
Key Features
-
Heavy-duty steel deck construction
-

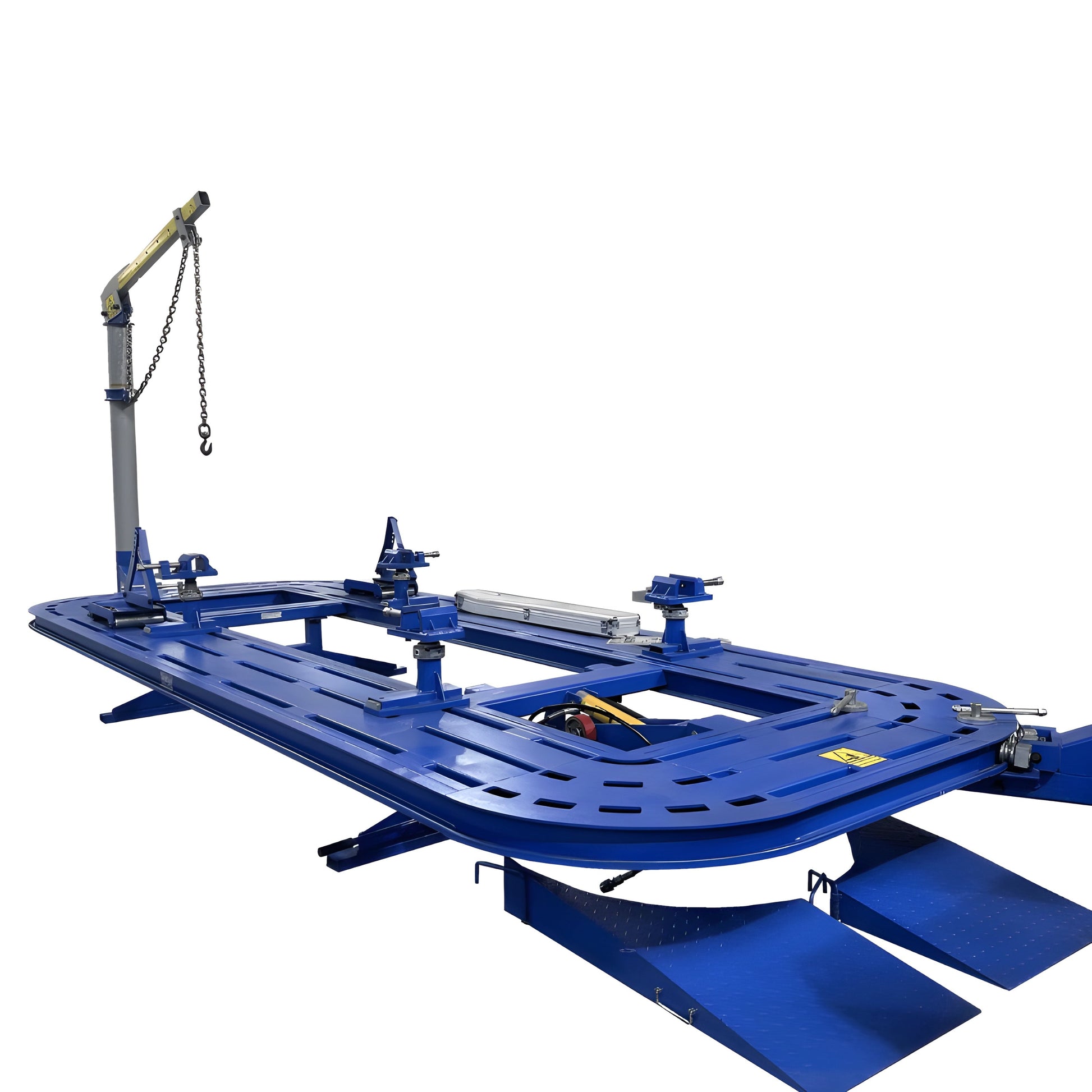

Tilt deck operation with 7,700 lbs. capacity and drive-on ramps
-
Universal anchoring system with adjustable pinch weld assemblies
-

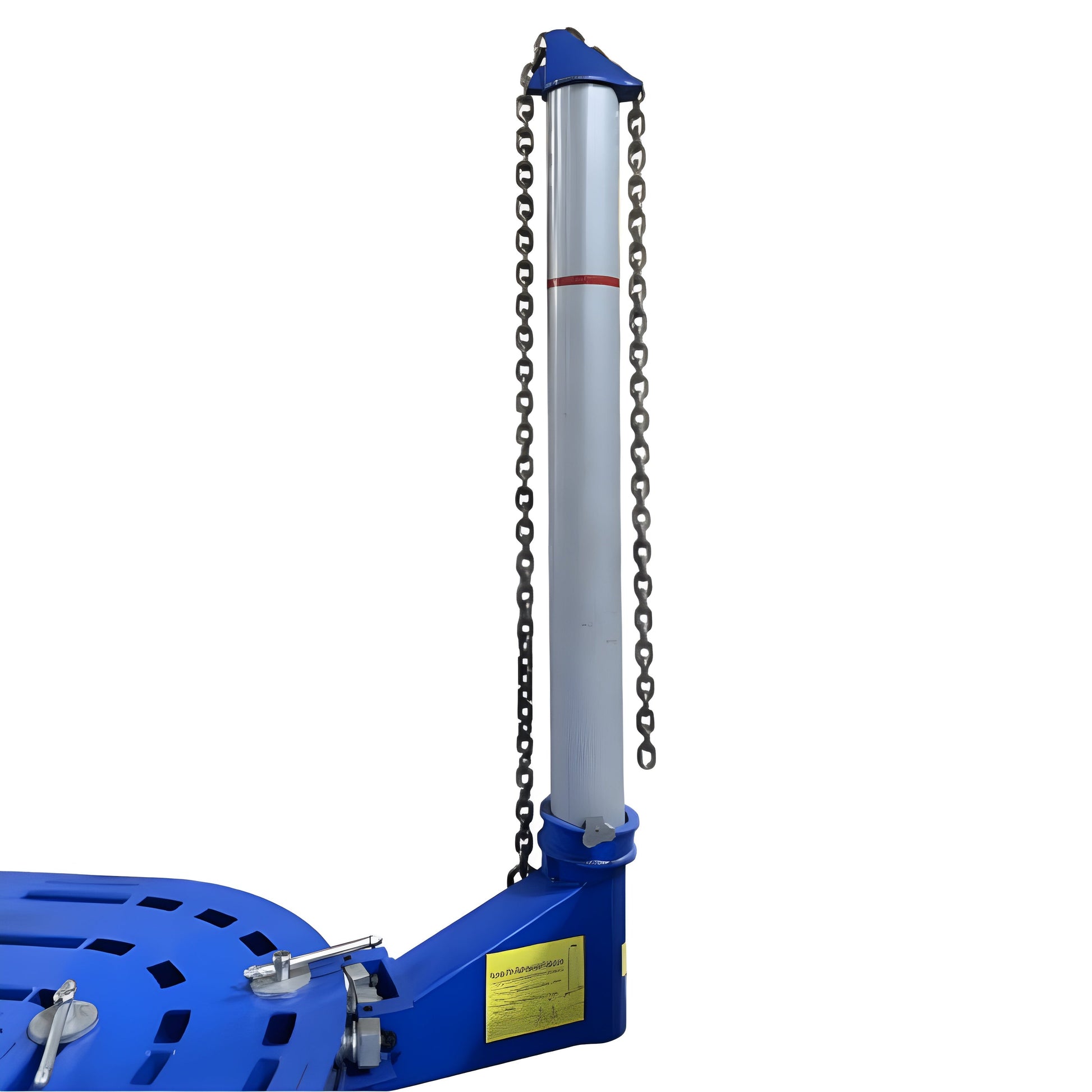

Two 10-ton pulling towers with telescoping heads
-

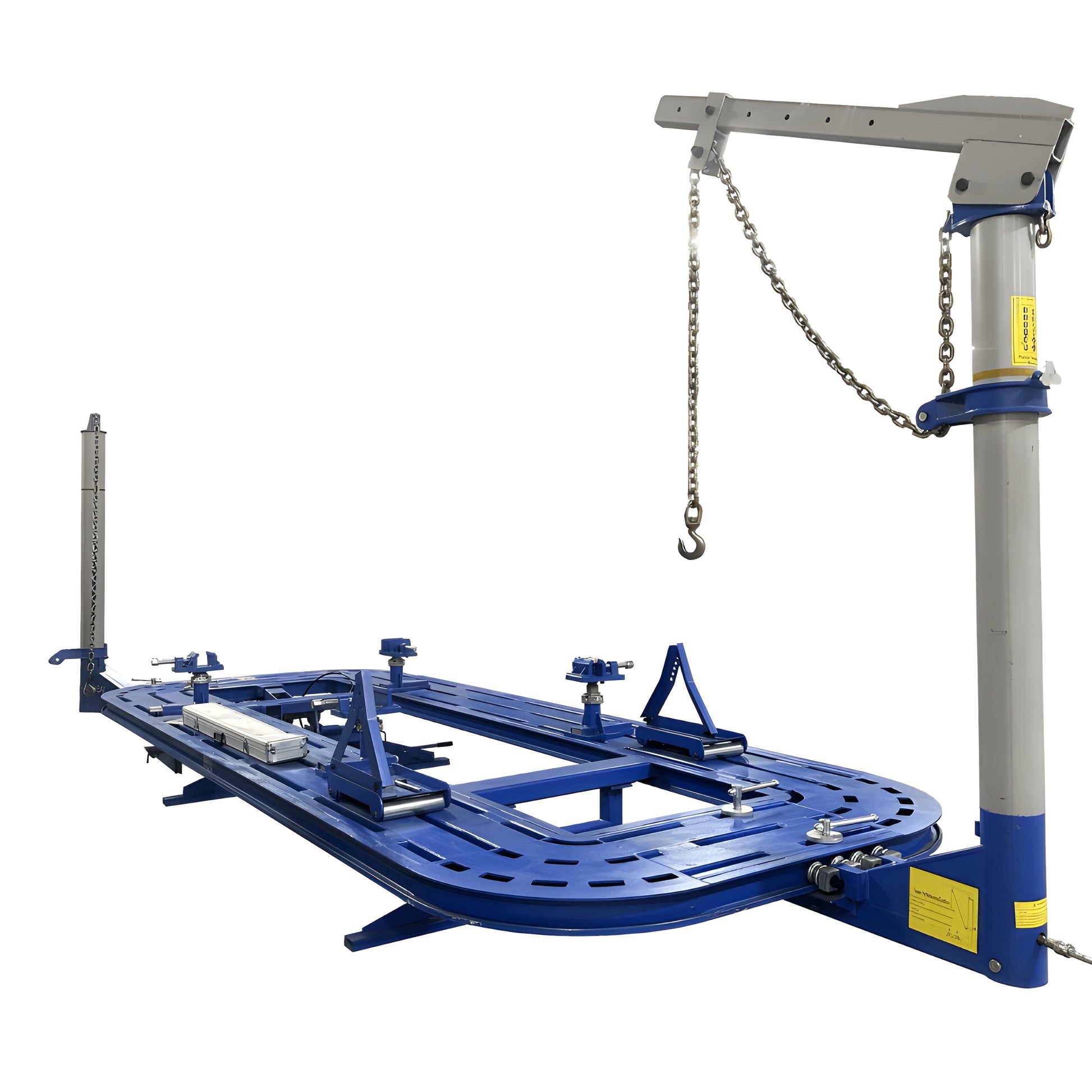

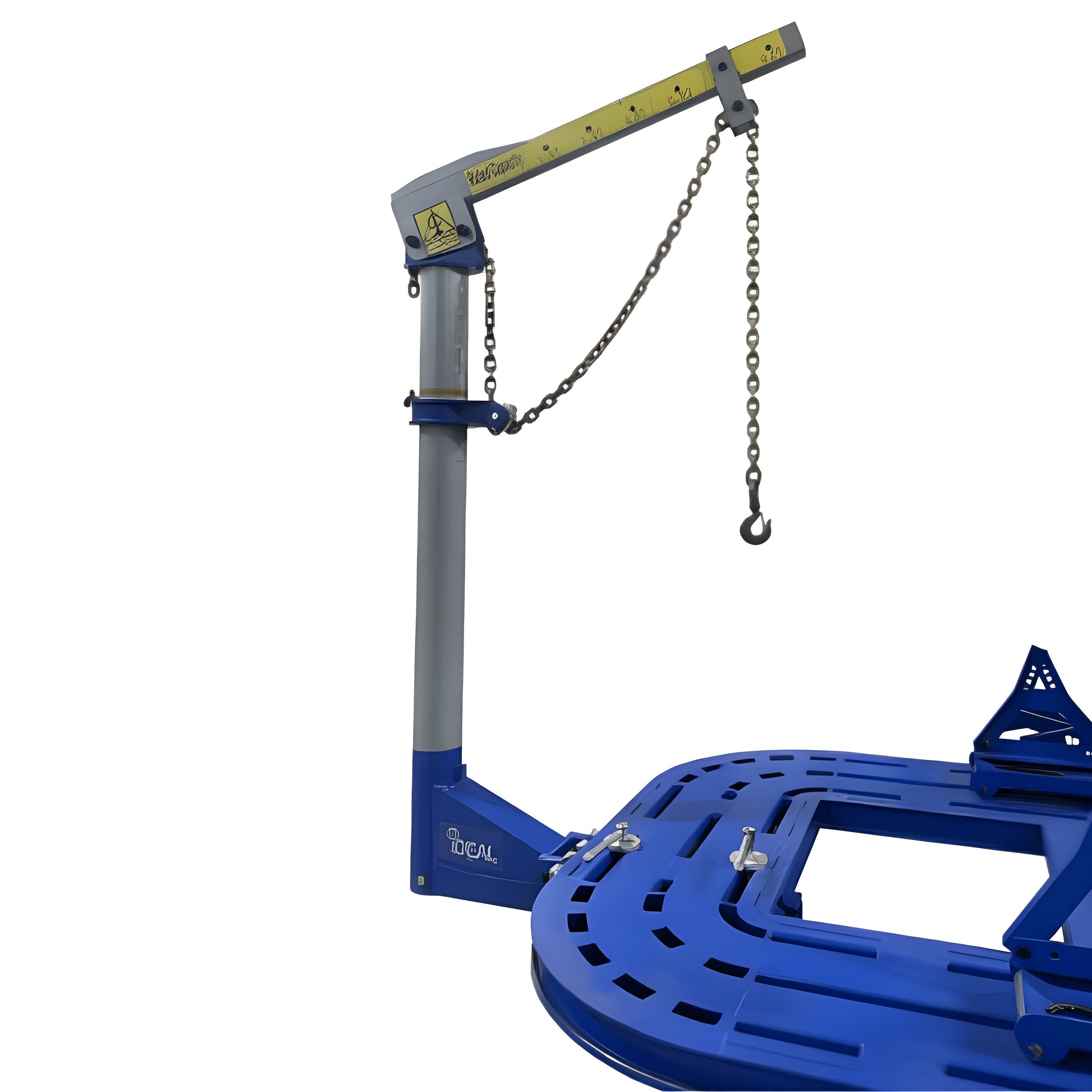

Adjustable tower collars and overhead boom extension
-
Quick disconnect hydraulic fittings
-
Two 10′ pulling chains with hooks
-
Dual air/hydraulic pumps with pressure gauges
-
Universal wheel stand and dead vehicle dolly
-
Long-lasting powder-coated finish
Specifications
-
Model: FR-77T-18
-
Deck Length: 18′
-
Deck Width: 82.6″
-
Deck Height: 19.7″
-
Pull Force per Tower: 10 ton
-
Hydraulic Pressure: 10,000 PSI
-
Air Pressure Required: 100–120 PSI
-
Lifting Capacity: 7,700 lbs
-
Shipping Weight: 4,189 lbs
-
Net Weight: 5,300 lbs
-
Pallet Dimensions: 240″L x 84″W x 35″H
What Our Experts Think
-
Tilt deck design makes vehicle loading quick and hassle-free
-
Dual 10-ton pulling towers provide strong pulling power for heavy repairs
-
Universal anchoring system adapts to multiple vehicle types
-
Durable steel deck and powder-coated finish ensure long service life
Q&A
Q: What is the lifting capacity of the FR-77-18?
A: It can lift up to 7,700 lbs.
Q: How many pulling towers are included?
A: Two 10-ton towers with telescoping heads come standard.
Q: Is it easy to position vehicles on the rack?
A: Yes — the tilt deck with drive-on ramps makes loading simple and efficient.
Maintenance Tips
-
Keep hydraulic fittings lubricated for smooth operation
-
Inspect the chains, ramps, and anchoring system regularly
-
Clean the deck surface after heavy jobs to avoid corrosion
-
Store in a dry area to protect the powder-coated finish
