iDeal IWA-60-8500-HD-K Wheel Aligner - IWA-60-8500-HD-K-1
The IWA-60-8500-HD-K delivers precision, speed, and accuracy for heavy-duty vehicle alignment. Running on Techno Vector 7 software with CE-certified accuracy down to 0.01 degrees, this advanced aligner uses four extended-range 3D tower cameras to measure up to four axles simultaneously. It accommodates vehicles up to 50 feet long and 13 feet wide, and best of all, requires no lift—operating directly on the floor for maximum efficiency.
Features
-
Heavy-duty 3D multi-axle imaging aligner
-
Windows-based system with Techno Vector 7 software
-
Accuracy: 0.01° (CE certified)
-

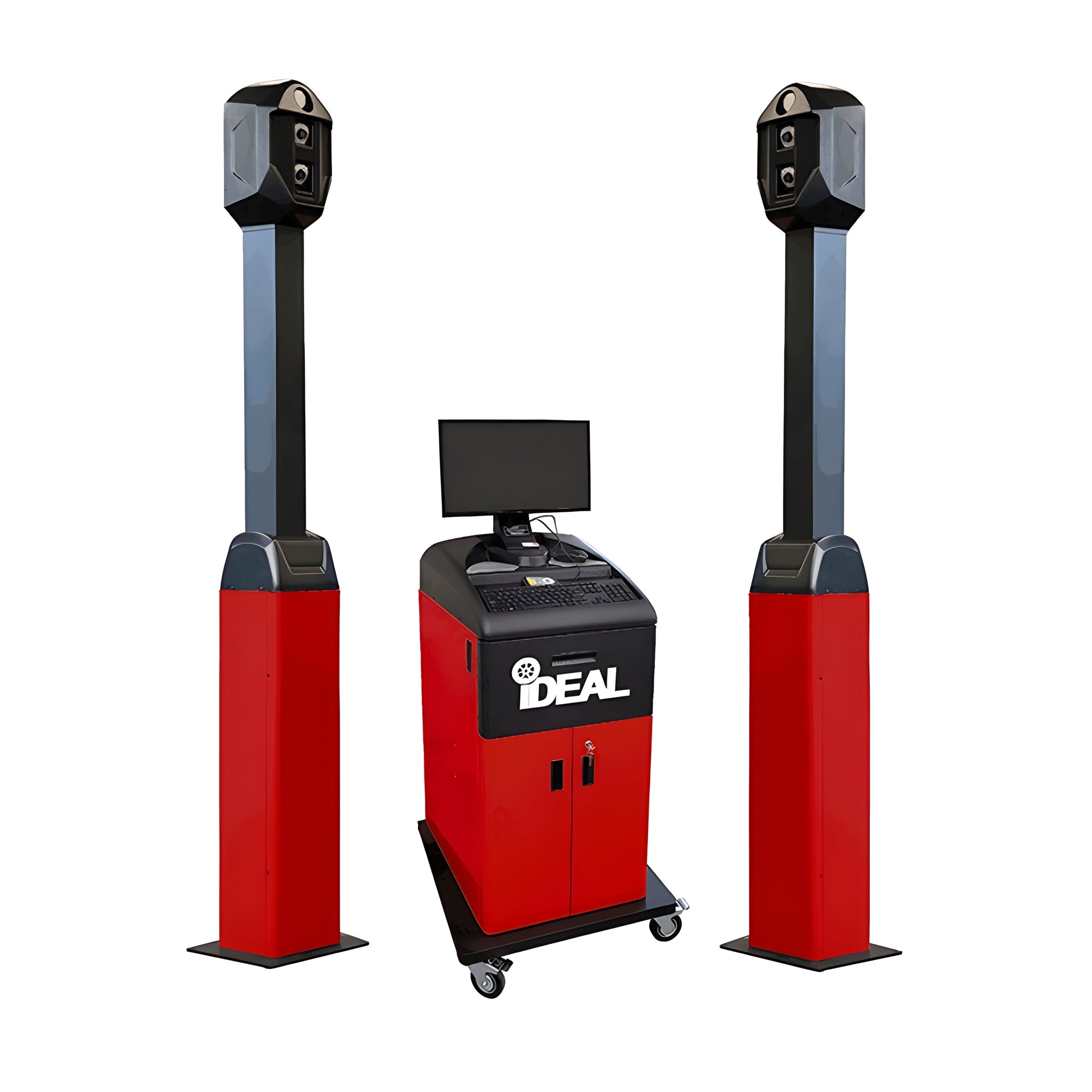

Four extended-range 3D tower cameras
-
Measures up to 4 axles at once
-
Works on vehicles up to 50 ft long and 13 ft wide
-
Operates directly on the floor—no lift required
-
Integrated quick reference vehicle database
-
Dynamic LED tower guides for technician assistance
-
HD turntable and drive-on ramp sets included
-
Mobile cabinet for flexible placement
-
Wireless remote control operation
-
Live reading screens for front and rear axles
-
Customer database and report generation
-

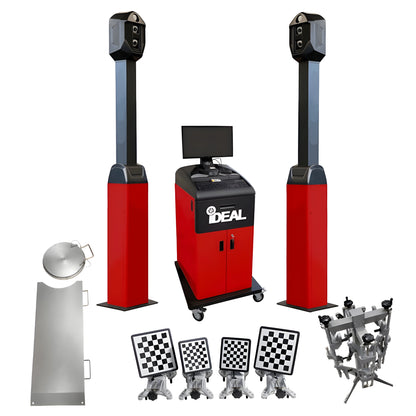

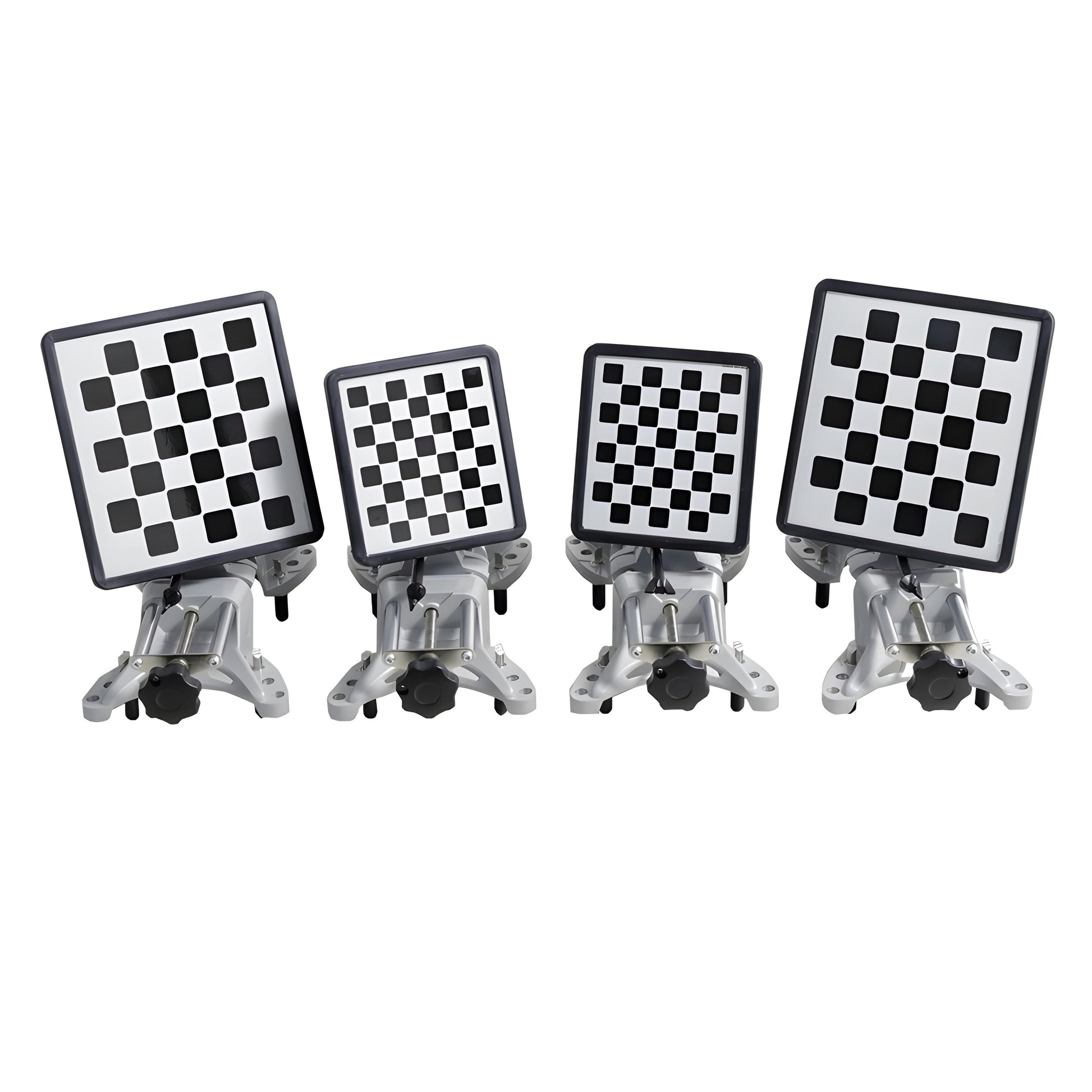

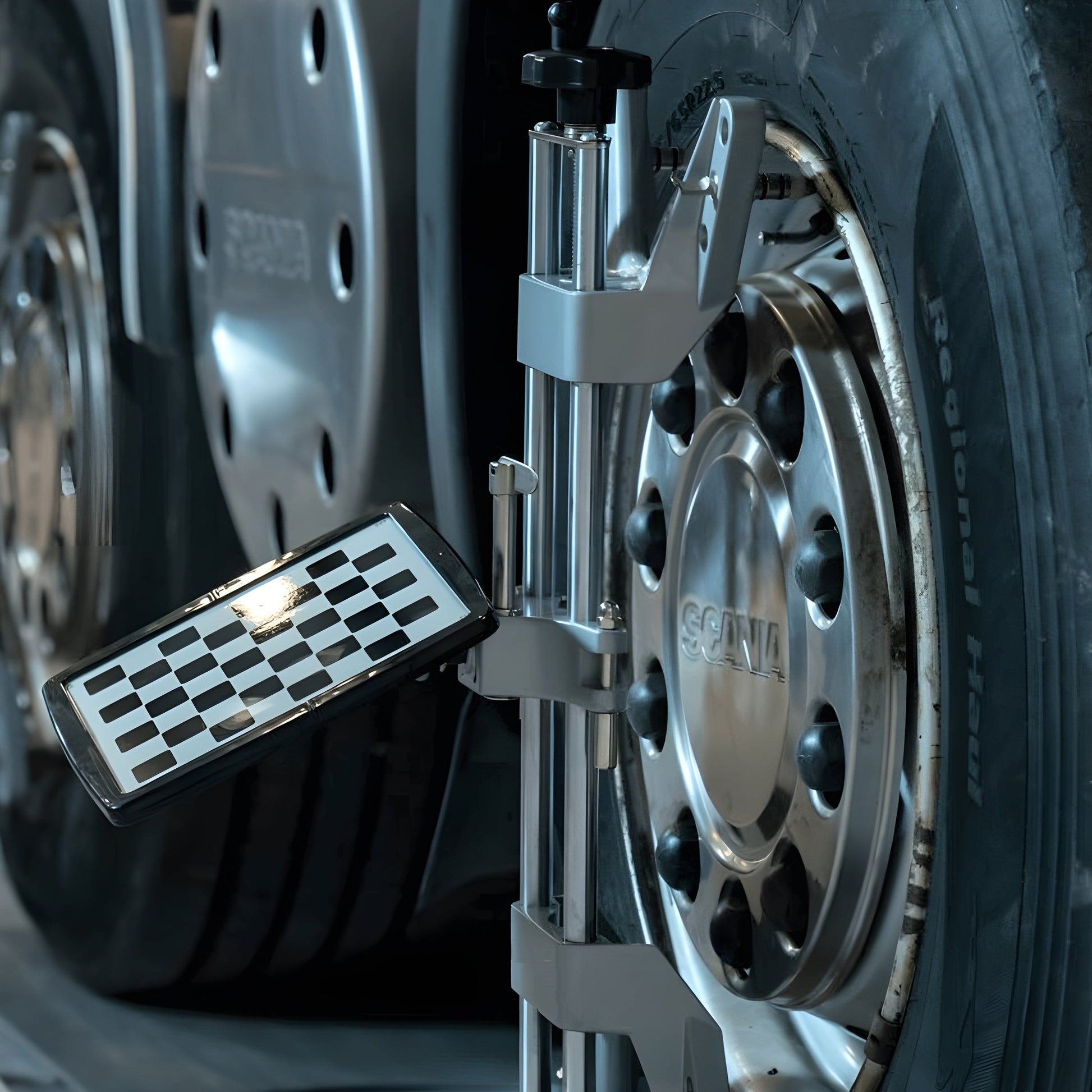

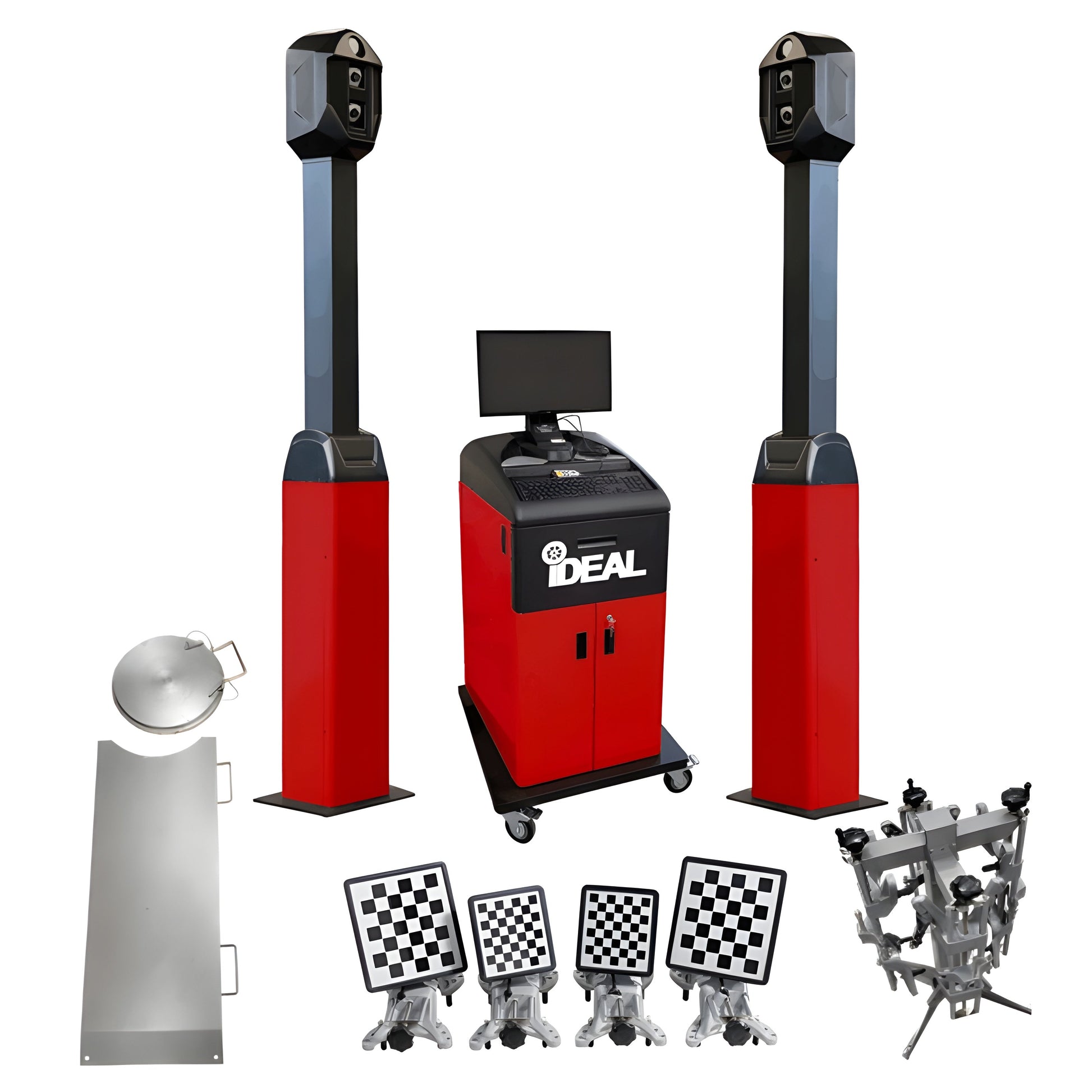

Includes wheel clamps (15”-27”), targets, storage stands, and accessories
Specifications
-
Model: IWA-60-8500-HD-K
-
Type: Heavy Duty 3D Multi-Axle Imaging
-
Operating System: Windows
-
Software: Techno Vector 7
-
Accuracy: 0.01°
-
Certification: CE
-
Cameras: 4
-
Wheel Clamps: 15”-27” (8 included)
-
Wheel Alignment Modes: 2–8 Wheels
-
Max Vehicle Width: 13 ft
-
Max Vehicle Wheelbase: 50 ft
-
Power: 120V – 15 Amp, 1PH, 60Hz
-
Shipping Weight: 1,285 lbs (3 pcs)
What Our Experts Think
-
No-lift floor operation saves time and improves workflow efficiency
-
High-resolution cameras and LED tower guides ensure unmatched precision
-
Mobile and flexible design adapts easily to any shop layout
Q&A
Q: Can this aligner handle large commercial trucks or buses?
A: Yes, it supports vehicles up to 50 ft long and 13 ft wide.
Q: Do I need a lift to operate this machine?
A: No, it operates directly on the floor without a lift.
Q: Is the software easy to update?
A: Yes, it includes database updates and optional yearly spec updates.
Maintenance Tips
-
Regularly clean cameras and targets for consistent accuracy
-
Update software and database for latest vehicle specs
-
Inspect cables, clamps, and accessories for wear and tear
