iDEAL SC-2K-UTV-X 2,000 lb. Mower Lift Single Column - SC-2K-UTV-X-1

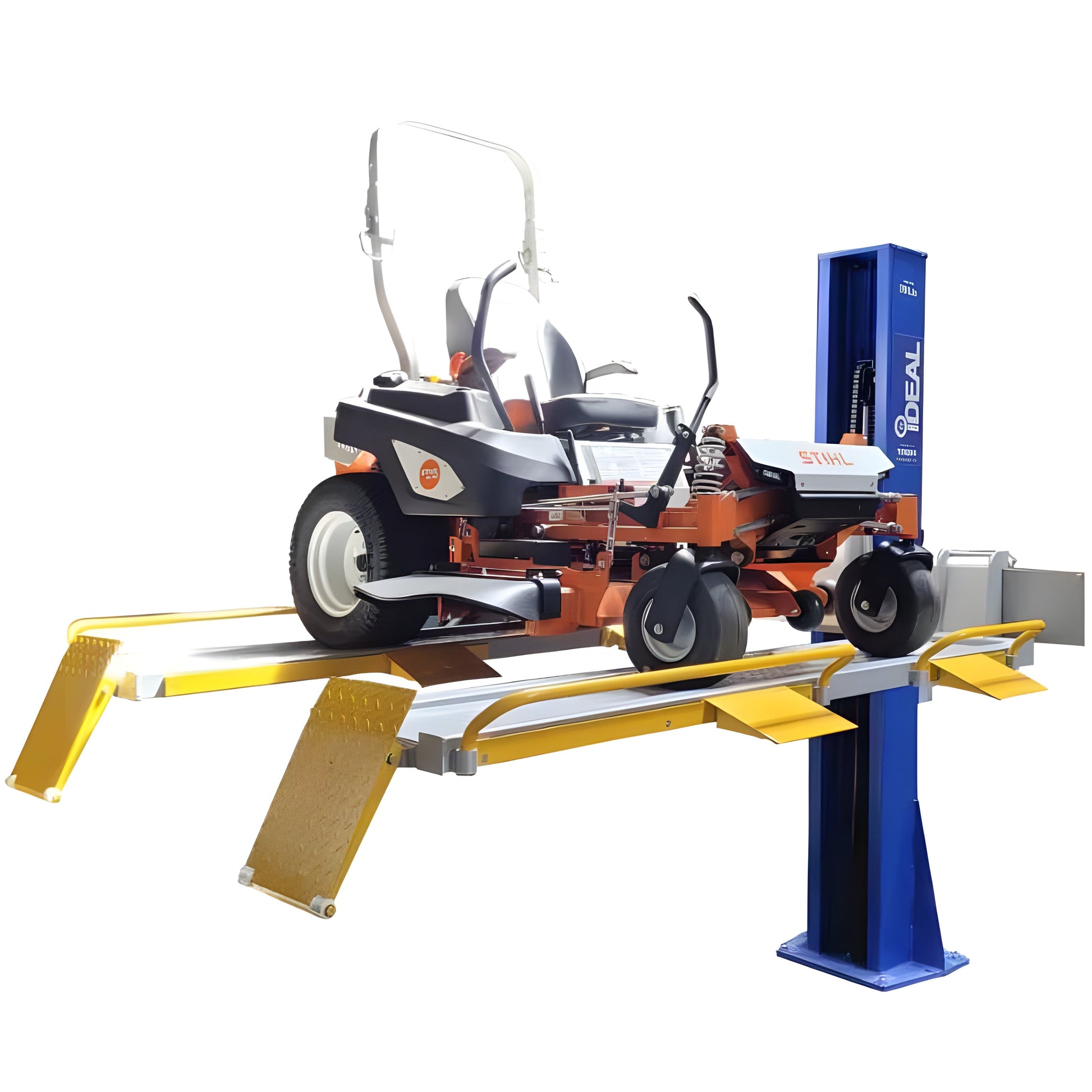

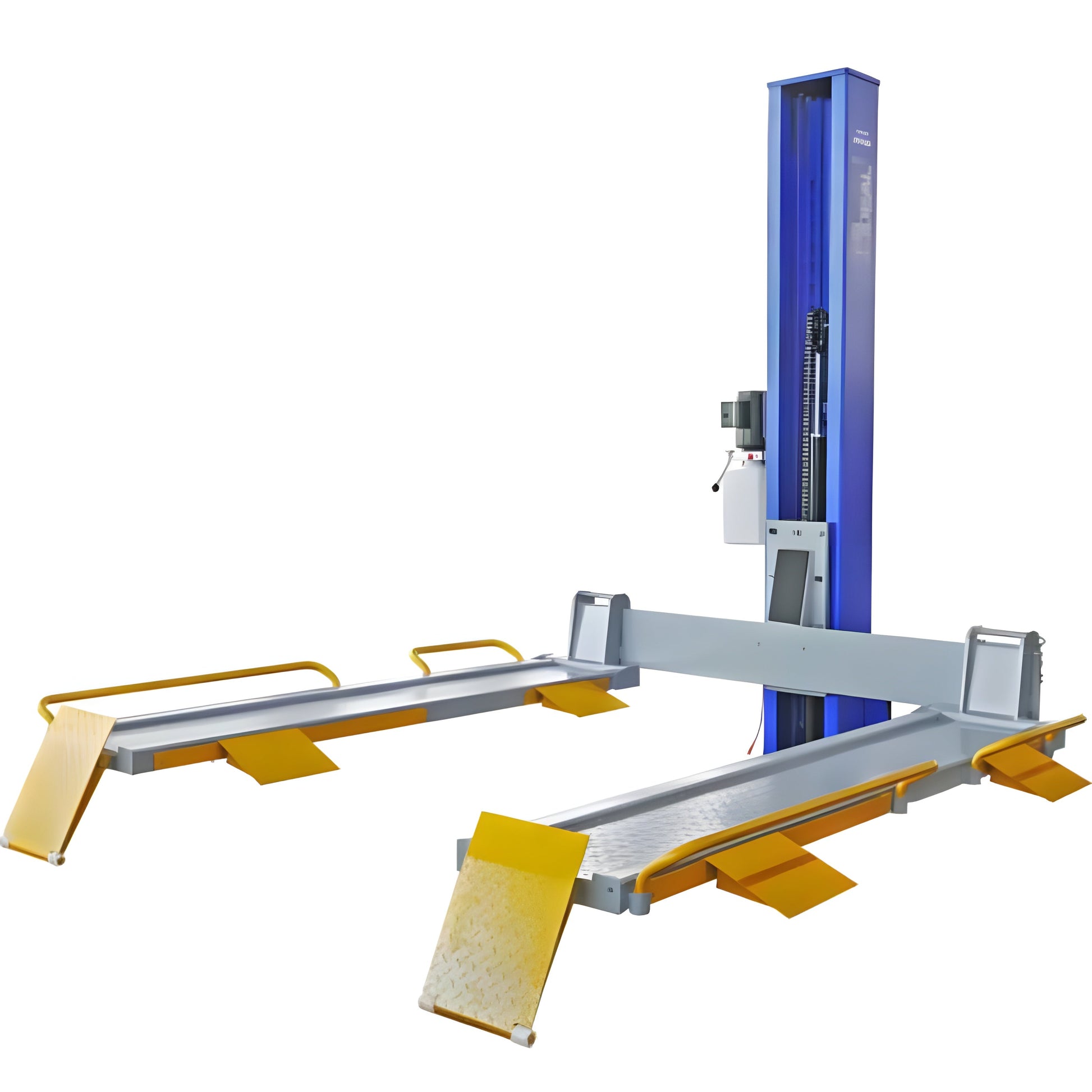

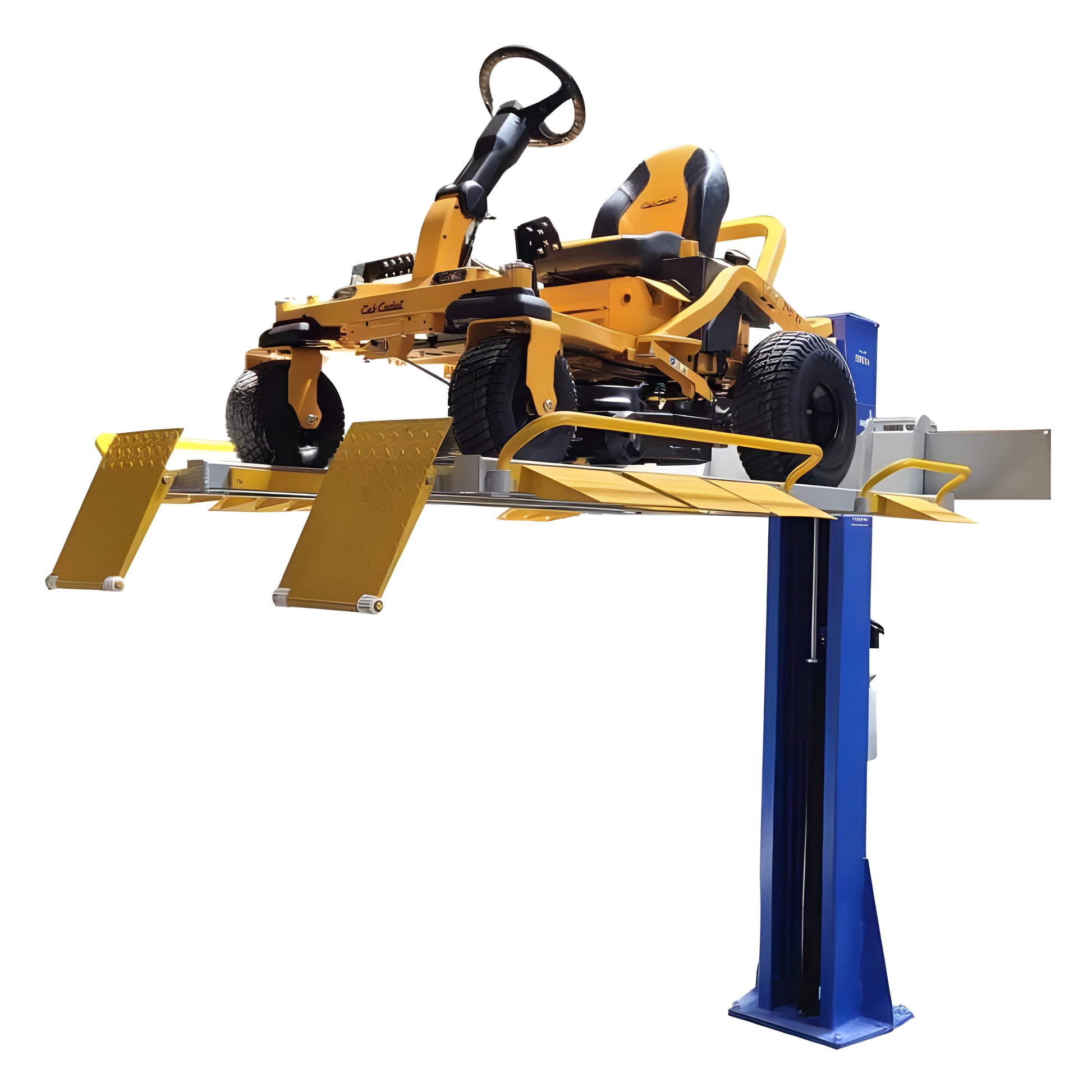

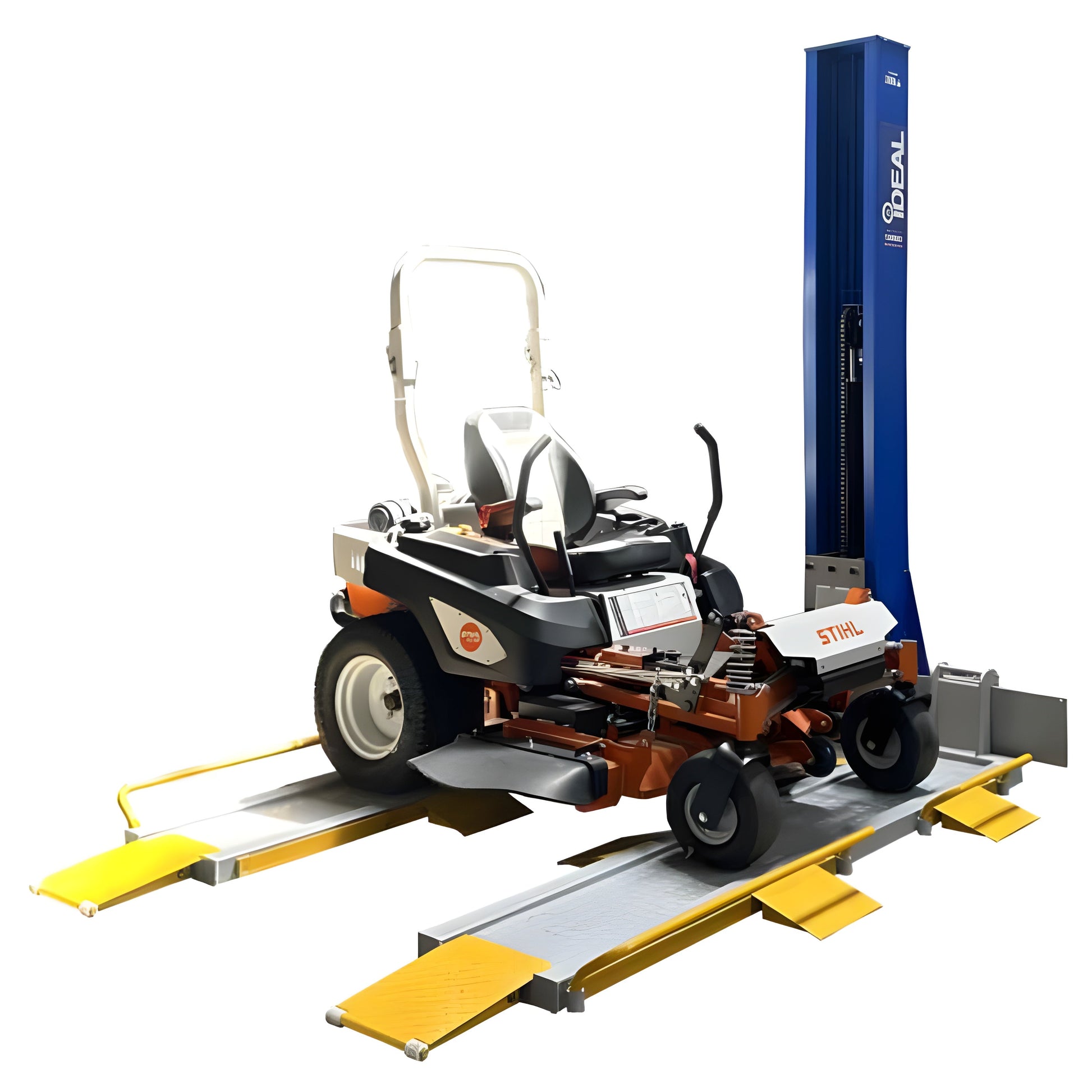

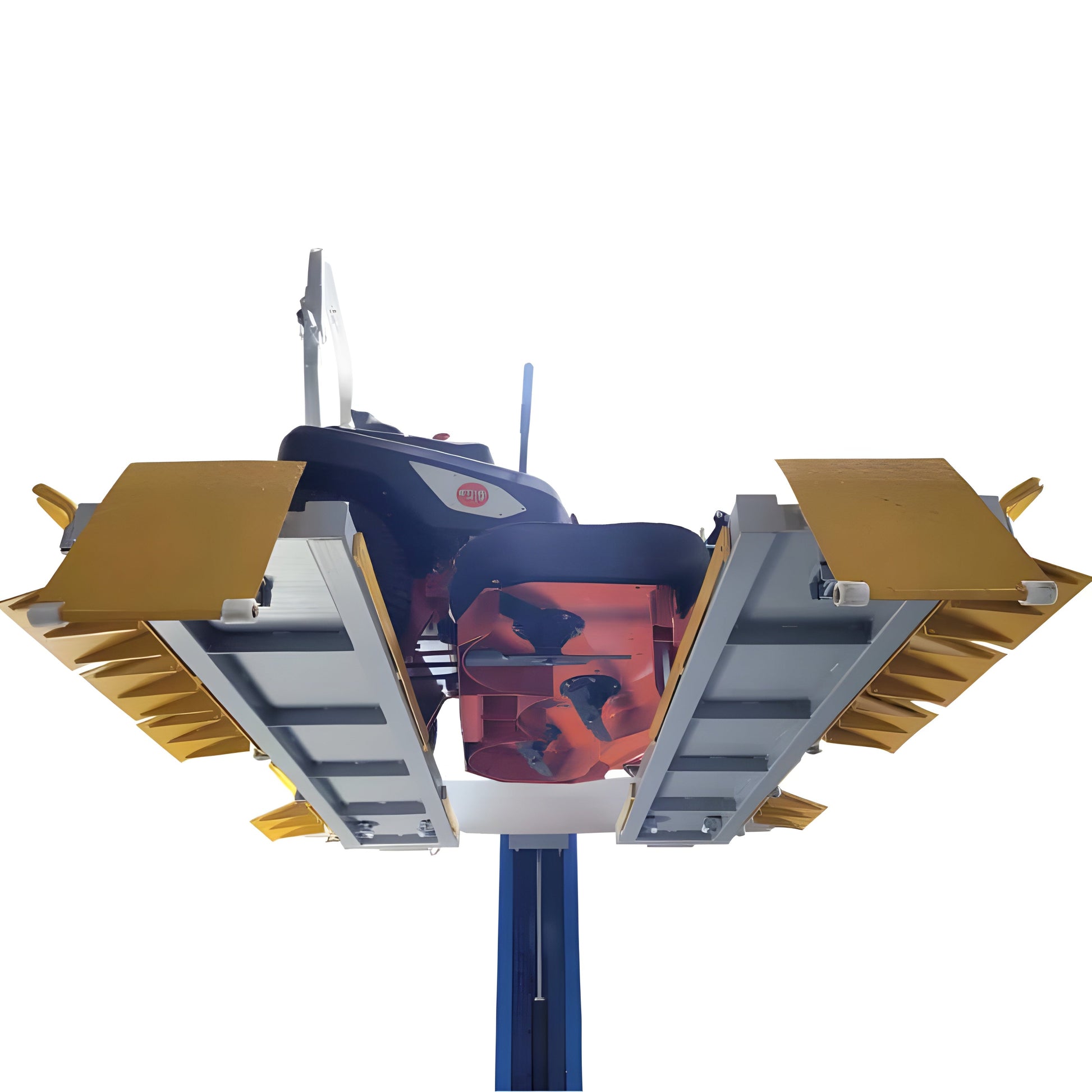

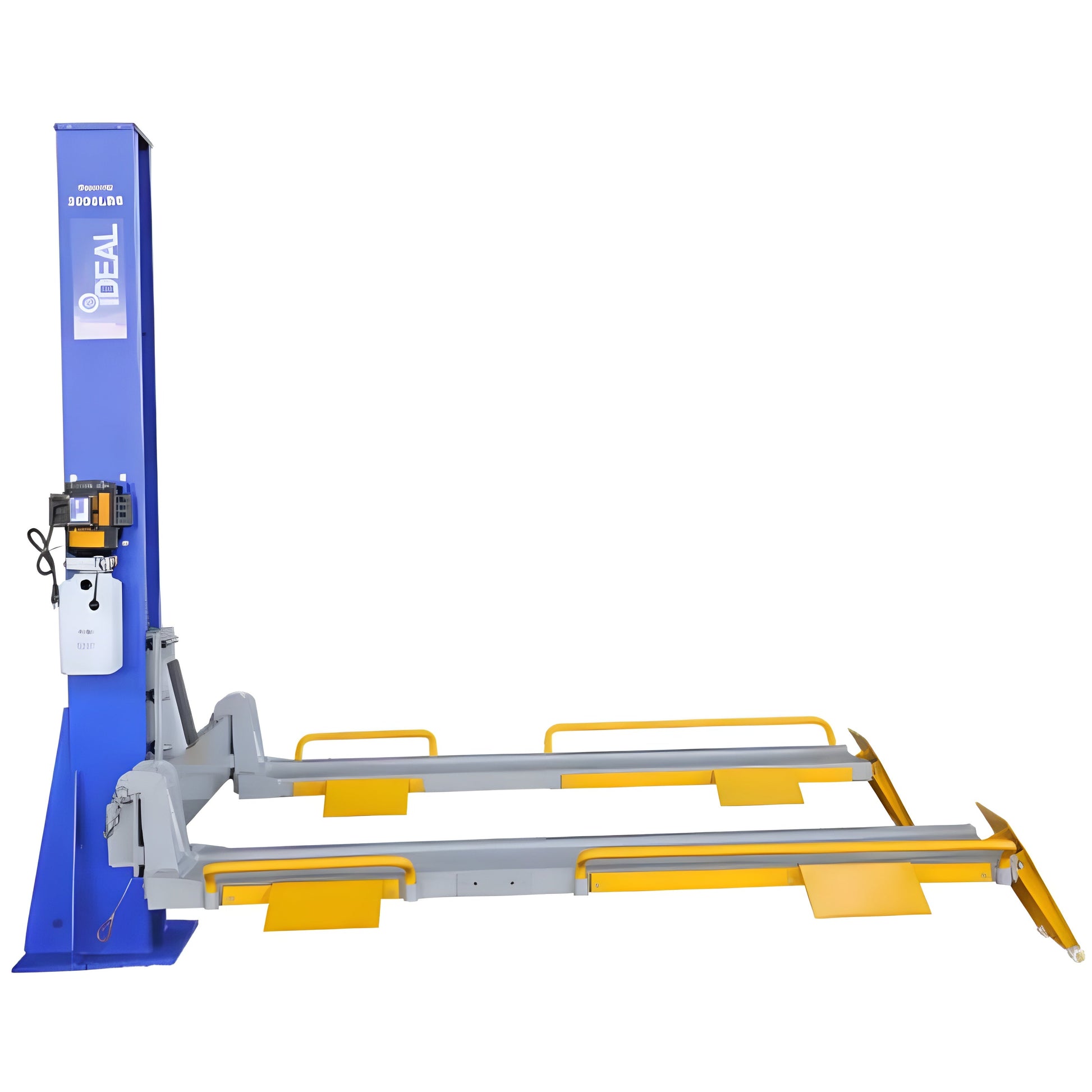

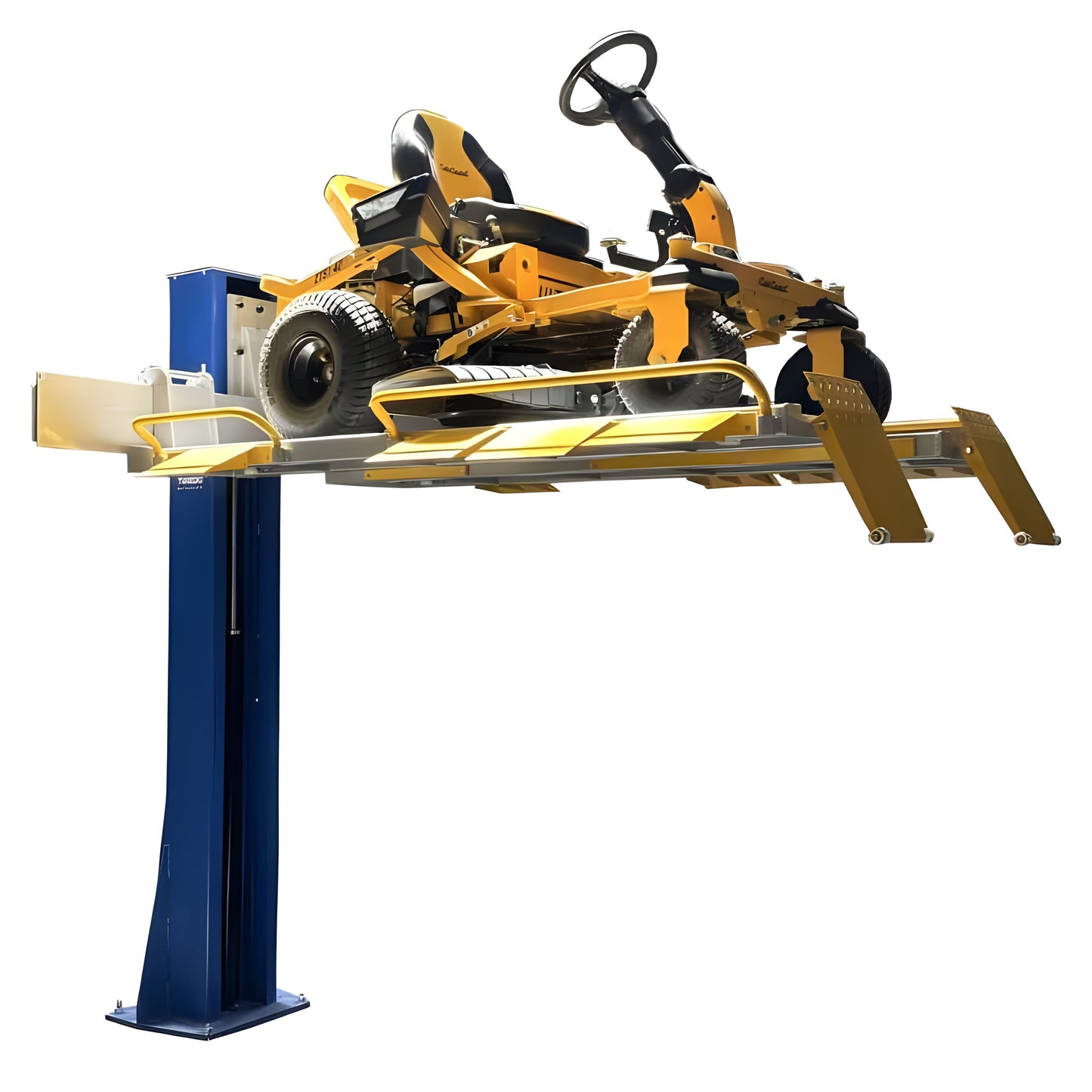

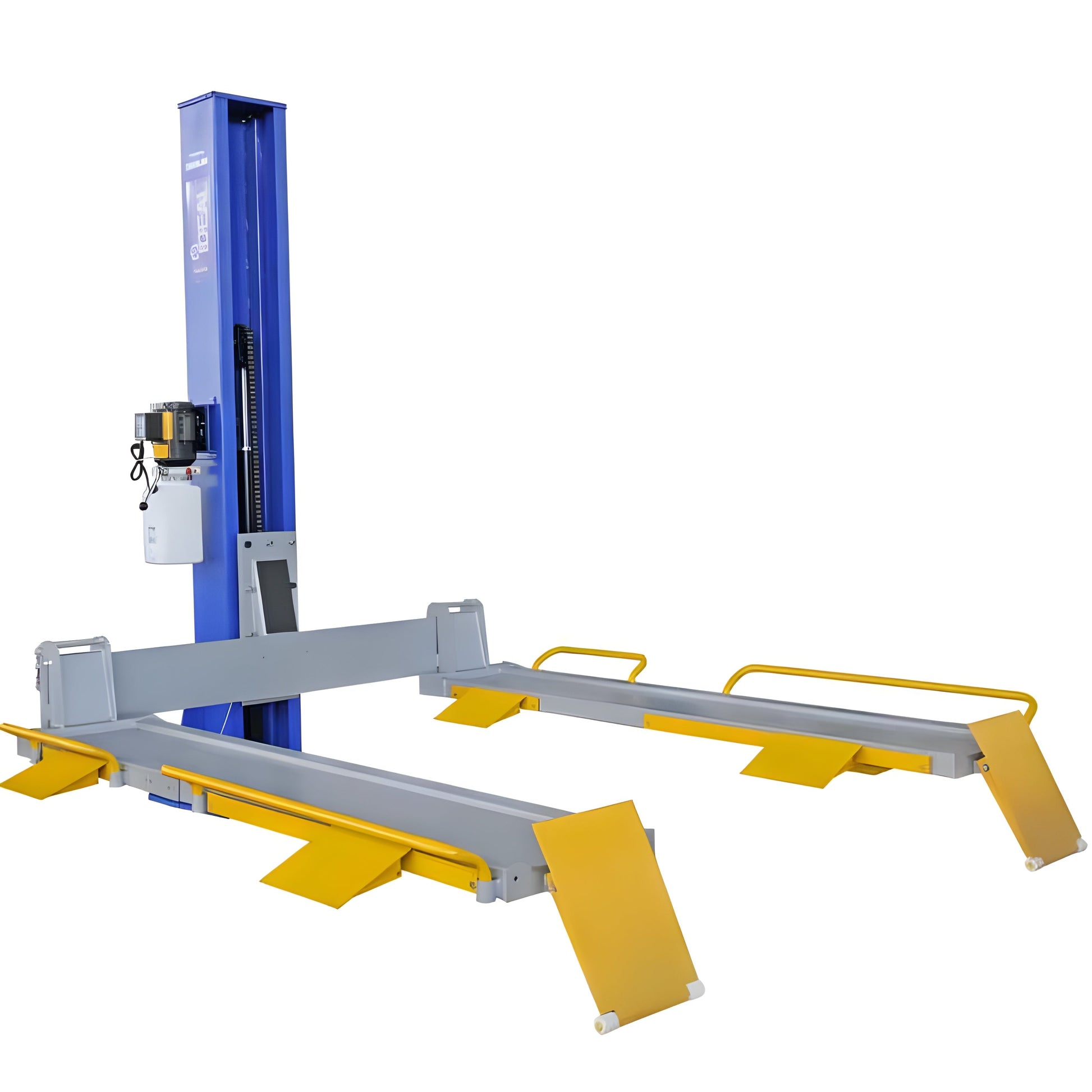

The iDEAL SC-2K-UTV-X is a versatile single-column service lift designed for ATVs, UTVs, golf carts, and mowers. With a 2,000 lb. capacity, adjustable platform widths, and a powerful 115V DURO hydraulic power unit, it provides reliable lifting for both service and storage. Its low-profile platforms, quick-release locking mechanisms, and 20 different height positions ensure safety, convenience, and efficiency for any shop or garage.

Features

• 2,000 lbs. lifting capacity

• Multi-use single-column design with dual adjustable platforms

• Accommodates ATVs, UTVs, golf carts, riding mowers, and zero turns

• Load vehicles from the front or side of the platforms

• Adjustable platforms for undercarriage clearance

• Retractable nylon roller brackets with quick-release bolster pins

• 20 locking height positions for flexibility and safety

• Extended rise height for added storage and service clearance

• Alternate power unit mounting options (front, side, or rear)

• Quick removal outer wheel stop bars

• 8 multi-position platform side ramps

• 2 pivoting steel wheel stop ramps with nylon rollers

• 115V electric/hydraulic operation with single-point lock release

• Rugged steel construction with durable powder-coated finish

Specifications

• Model: SC-2K-UTV-X

• Capacity: 2,000 lbs.

• Overall Width: 102"

• Overall Height: 106.3"

• Overall Length/Depth: 130"

• Max Clearance Under Platforms: 76.8"

• Platform Min Height: 4.7"

• Platform Max Height: 81.3"

• Platform Width: 17.7"

• Runway Width: 12.2"

• Platform Length: 90.4"

• Adjustable Platform Widths (OD): 52.8" – 84.6"

• Adjustable Side Ramp Widths (CL): 35.4" – 67"

• Locking Positions: 20

• Ship Weight: 1,624 lbs.

• Power: 115V – 20 Amp – 1 PH

• Shipping Dimensions: 124"L x 32"W x 45"H

What Our Experts Think

• Great all-in-one lift for shops handling UTVs, ATVs, and mowers

• Adjustable design makes it extremely versatile for different vehicle sizes

• Compact single-column footprint saves space compared to 4-post lifts

Q&A

Q: What vehicles can this lift handle?
A: It’s designed for ATVs, UTVs, golf carts, mowers, and other small-to-mid-sized vehicles.

Q: How high can it lift?
A: The platforms rise from a minimum of 4.7" to a maximum of 81.3".

Q: Does it require special power?
A: No, it runs on a standard 115V, 20 Amp, 1-phase connection.

Maintenance Tips

• Keep the hydraulic system topped with manufacturer-approved fluid

• Inspect the locking mechanisms and roller brackets regularly

• Store indoors to maintain powder-coated finish and extend life

• Grease pivoting ramps and moving parts as recommended
