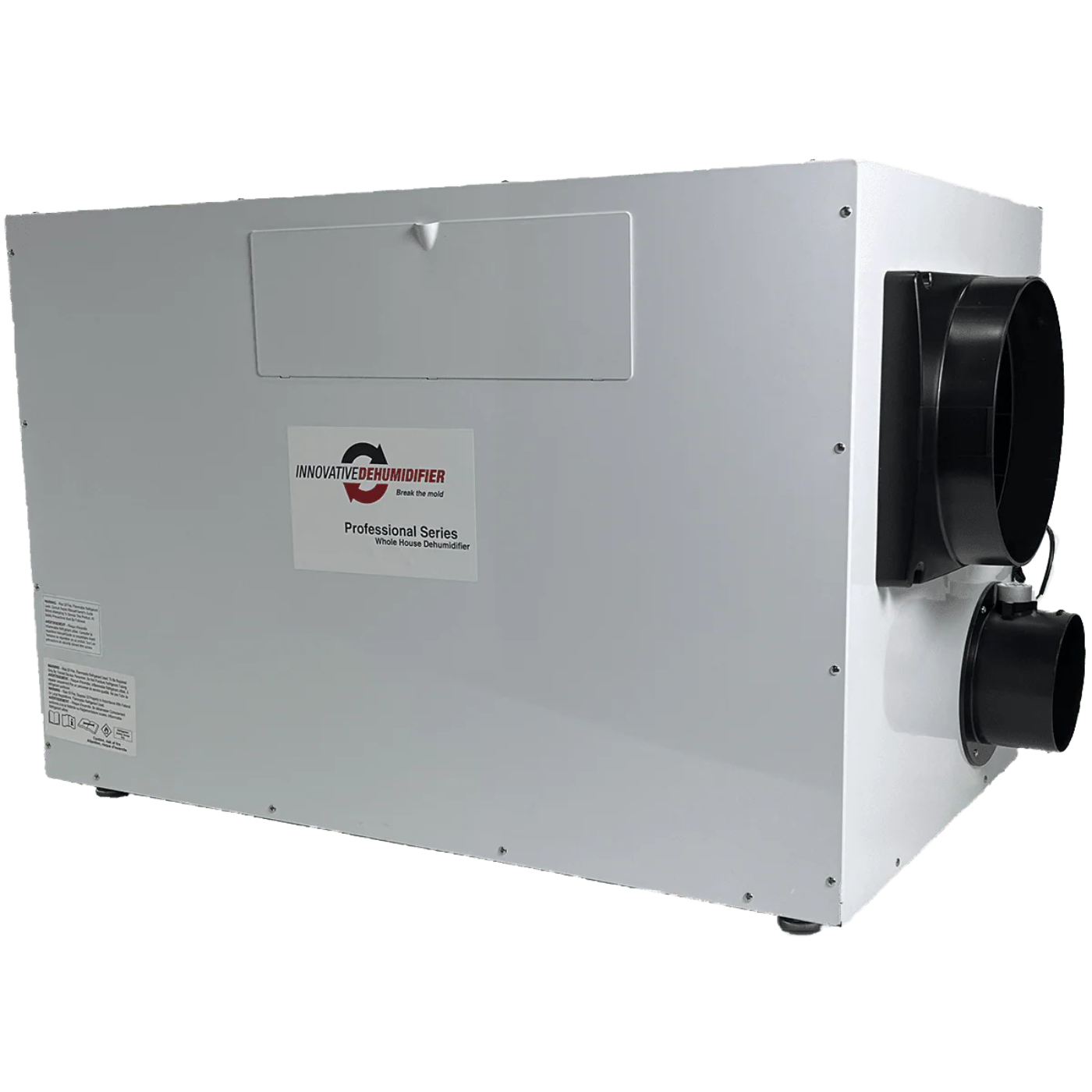

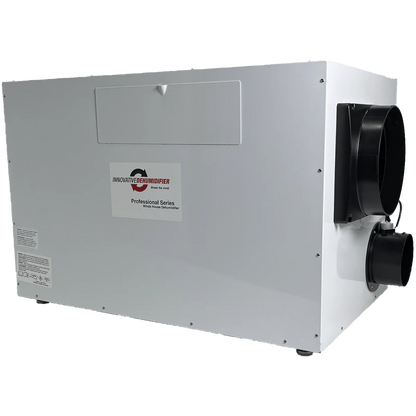

Innovative Dehumidifiers WH200 Professional Series Whole House Dehumidifier - in15471
The Innovative Dehumidifier Systems WH200 Professional Series Whole House Dehumidifier removes a massive 200 pints of harmful excess moisture per day from large areas up to 5,500 square feet (45,000 cubic feet). This effective machine is also compact and efficient, as well as eco-friendly.
Versatile Installation
Installation options mean more effective usage in a variety of extra-large areas. Even with its high capacity for moisture removal, the IDS WH200 unit is surprisingly compact at 37.3 x 23.4 x 24.3 inches overall. This gives you more installation options.
Highly Efficient
This IDS Dehumidifier operates at an efficient 3.38 L/kWh on a single-phase 60Hz 115V circuit. It has a 3-prong plug, so it doesn’t have to be hard-wired. However, it can be hardwired if that is the preferred installation method.
Earth-Friendly
Using R32 refrigerant, and with its efficient operation, the WH200 dehumidifier is environmentally friendly. With automatic restart and defrosting, it’s also worry-free to operate. It also includes a fresh air filter so the air in dehumidified spaces is cleaner.
Features
-
Wide Humidity Range Available: Determine your desired relative humidity setpoint from 36 to 90 percent RH.
-
Digital Display: You’ll always be able to see the current relative humidity (RH) on the display screen and use it to create the desired setpoint.
-

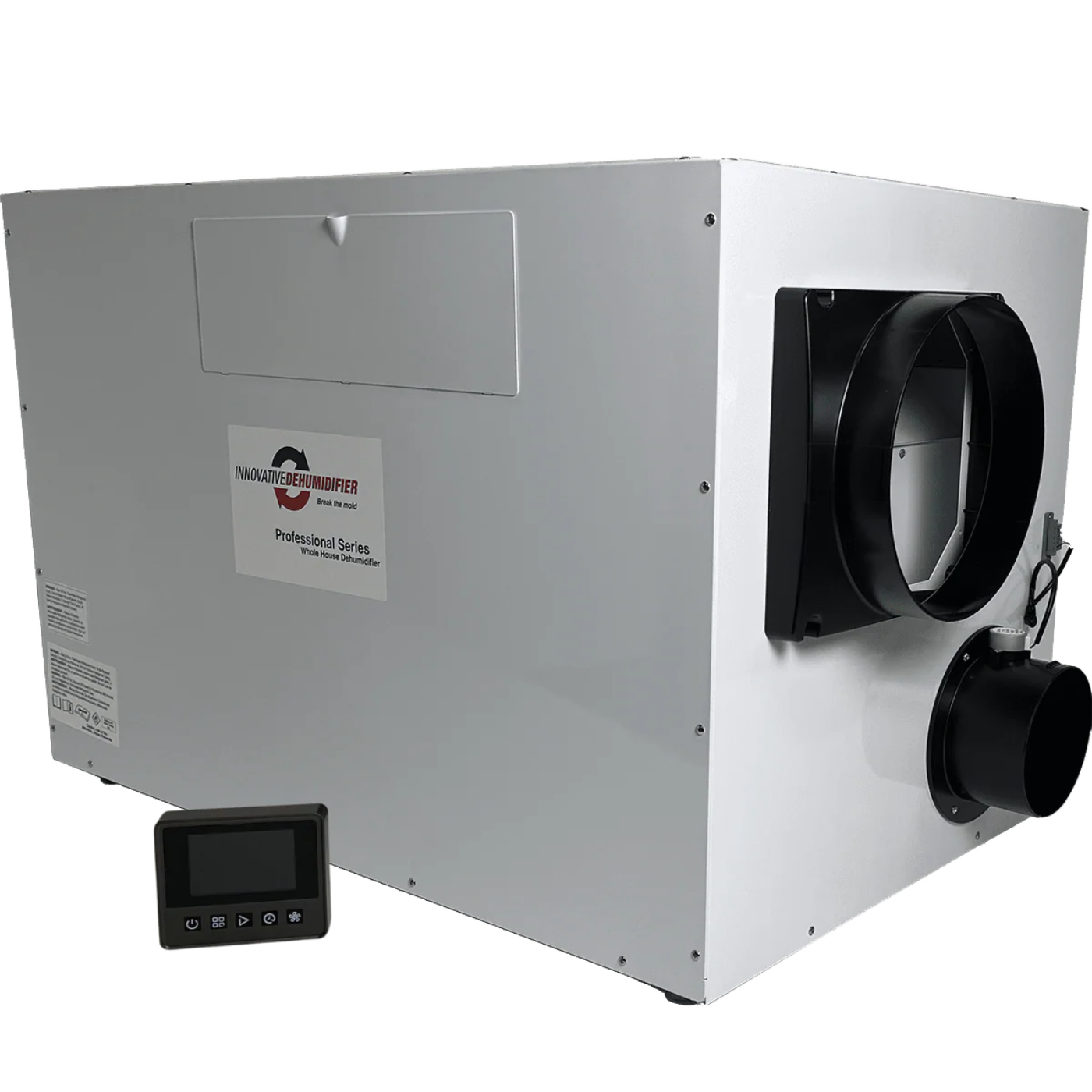

Wired Controller: This model includes a wired digital controller for added convenience.
-
Ducting Collars: Included with the WH200 are two collars for ducted applications.
-
Gravity Drain System: This whole house dehumidifier uses a simple gravity drain to remove accumulated condensate. Attach the included 12-foot tube to the drain port and direct the other end to an appropriate drain site.
-
Auto Defrost: Should the coils become frosted during operation, this unit has an automatic defrost function, so you never need to worry.
-
Auto Restart: Another way you can enjoy peace of mind. After a power outage, this unit automatically restarts when power is restored and retains your settings.
-
Air Filter: The included air filter captures unwanted particulates, resulting in cleaner and drier areas.
-
Standalone Use: Set up the WH200 in a sealed underground area, a large storage space, or other places where high humidity is causing damage to facilities or goods. This includes crawl spaces or basements in large homes, schools, and gyms.
-
Ducted Setup: Install this whole house dehumidifier in a remote room and duct it to the area with excess moisture. Great for large community spaces, art rooms, animal recovery or grooming areas, and more.
-
Integrated HVAC: For spaces such as smaller pre-schools, instructional rooms, and other heated/cooled spaces, the WH200 can be integrated into the HVAC air conditioning system.
-
Motorized Damper: This model now features an integrated 6-inch motorized intake damper for bringing in fresh outdoor air.
Specifications
| Internal Condensate Pump |
No |
| Manufacturer-Suggested Room Size |
5600 sq. ft. |
| Sylvane’s Suggested Room Size |
5600 sq. ft. |
| Number of Speeds |
1 |
| Pint Capacity |
200.0 pints |
| Certifications |
ETL |
| Color |
Gray |
| Controls |
Manual |
| Drain Hose Diameter |
0.75 in. |
| Drain Hose Length |
12 ft. |
| Fan Operation |
Runs Only When Dehumidifying |
| Filter Type |
MERV-10 |
| Lowest Operating Temp. |
40°F |
| Maximum CFM |
420.0 CFM |
| Noise Level |
59 dB |
| Number of Filters |
1 |
| Recommended For |
Crawlspace, Basement, Garage/Workshop, Large/Multi-Room, Education & Government Facilities |
| Refrigerant Type |
R-32 |
| Maximum Amperage |
8.5 A |
| Maximum Wattage |
600 W |
| Power Cord Length |
10 ft. |
| Power Supply |
Plug, 110–120 V |
| Dimensions (H x W x D) |
24.3" x 23.4" x 37.3" |
| Weight |
165.3 lbs. |
| Additional Features |
Continuous Drain Capable, Drain Hose Included, Humidistat, Low Temperature Operation (41°F & Under), Automatic Defrost, Ductable, Auto-Restart |
What our Experts Think
-
Professional-Grade Performance – Built to control humidity in large residential or light commercial spaces.
-
High-Capacity Moisture Removal – Effectively protects against mold, mildew, and structural damage.
-
Energy-Efficient Operation – Designed for continuous use while keeping energy costs low.
-
Quiet & Reliable – Runs smoothly with minimal noise for seamless integration.
-
Innovative Durability – Heavy-duty construction ensures long-term, dependable performance.
Q&A
Q: What is the capacity of the WH200 dehumidifier?
A: It removes up to 200 pints of moisture per day, making it ideal for large residential and light commercial spaces.
Q: What size area can it cover?
A: The WH200 is designed to control humidity in spaces up to 15,000 sq. ft.
Q: Is this unit energy efficient?
A: Yes, it is Energy Star® certified, ensuring high performance with lower energy costs.
Q: How can it be installed?
A: It can be integrated into existing HVAC systems or used as a standalone dehumidification unit.
Q: What benefits does it provide?
A: It reduces excess humidity, prevents mold and mildew, improves air quality, and protects furnishings and structures.
Maintenance Tips
-
Clean or replace the air filter every 3–6 months to maintain airflow.
-
Inspect and flush the condensate drain line regularly to prevent blockages.
-
Wipe down exterior panels and vents to remove dust and debris.
-
Place unit on a stable, level surface in a ventilated area.
-
Adjust humidity settings seasonally for optimal performance.
-
Schedule annual professional servicing for long-term efficiency and reliability.
