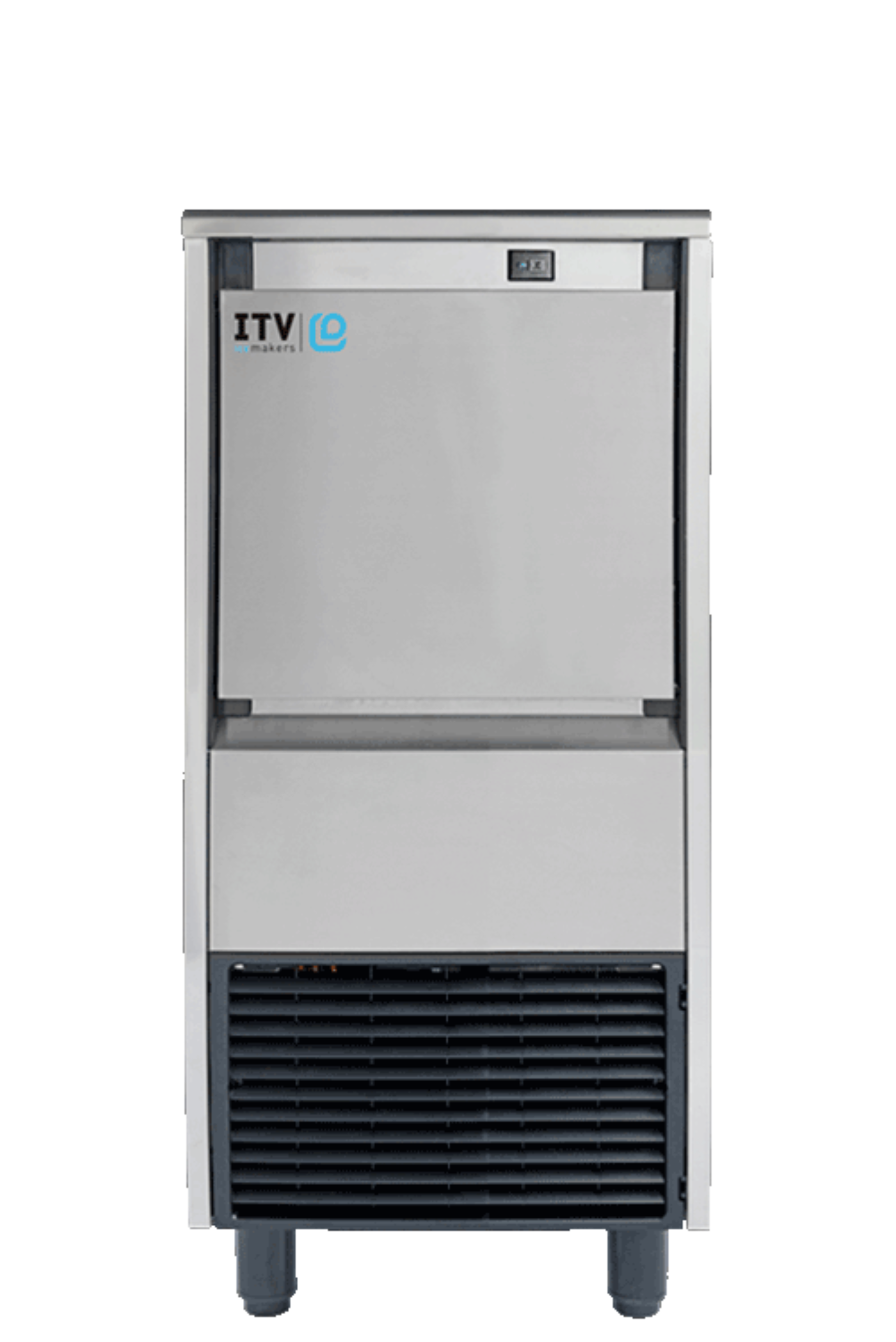

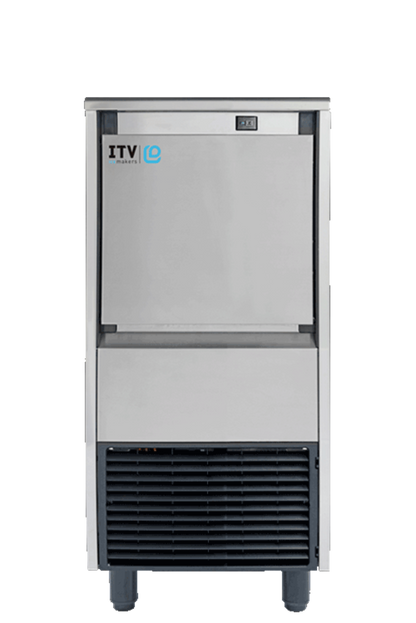

ITV - DELTA NG 80 R290 A, Commercial Delta Gourmet Cubers Ice Maker Self-Contained Ice Cube Machine 77lbs
ITV - DELTA NG 80 R290 A, Commercial Delta Gourmet Cubers Ice Maker Self-Contained Ice Cube Machine
Features
PRODUCES SOLID GOURMET CRYSTAL CLEAR ICE CUBES
A3S: ANTI-SCALE SPRAY SYSTEM. ITV PATENTED SPRAY SYSTEM WITH FLEXIBLE NOZZLES THAT AVOID
LIMESCALE DEPOSITS WITH SMALL VIBRATIONS
STIF: STRONG INOX FRAME. SOLID MACHINE STRUCTURE IN 4 COLUMNS WITH AISI 304 STAINLESS STEEL
FRAME
STRONGEST DOOR IN THE MARKET. MADE OF STAINLESS STEEL. OPENING AND DAMPING SYSTEM PATENTED
BY ITV
FRONT VENTILATION CONCEPT: FRONTAL IN-OUT AIR SYSTEM ALLOWS ´BUILT IN´ MACHINES
CLEANING SWITCH: ALLOWS CIRCULATION OF WATER WITH DESCALING PRODUCT (CALKLIN OR SIMILAR)
WITHOUT COOLING
“NEVER STOP” MOTOR PUMP DEVELOPED BY ITV. PUMP WITHOUT SEALS, WHICH AVOIDS DETERIORATION IN
HARD WATER
EASI: EASY ACCESS FOR SERVICE & INSTALLATION. ALL PANELS CAN BE DISASSEMBLED SEPARATELY
ON/OFF LIGHTED ROCKER SWITCH IN FRONT PANEL
TROPICALIZED MACHINES (T CLASS) / HEIGHT ADJUSTABLE LEGS FROM 105MM TO 155MM
Specifications
| SPECS |
| Quantity |
1/Each |
| Width |
15.95 Inches |
| Depth |
20.28 Inches |
| Height |
29.30 Inches |
| Hertz |
60 Hertz |
| Voltage |
115 Volts |
| 24 Hour Ice Yield |
77 Pounds |
| Bin Storage Capacity |
33 lb. |
| Condenser Type |
Air Cooled |
| Ice Type |
Full / Half Size Cubes |
| Installation Type |
Undercounter |
| Material |
Stainless Steel |
| Plug Type |
NEMA 5-15P |
| Type |
Ice Machines |
What our Experts Think
-
Compact Gourmet Ice Maker – Produces up to 77 lbs of crystal-clear, slow-melting ice cubes daily.
-
Self-Contained Design – Built-in storage eliminates the need for a separate bin, saving space.
-
Premium Cube Quality – Perfect for cocktails, fine dining, and upscale beverage service.
-
Eco-Friendly Refrigerant – Uses R290 for efficient, environmentally responsible cooling.
-
Reliable Commercial Build – Ideal for bars, restaurants, and cafés needing consistent ice production.
Q&A
Q: What type of ice does the DELTA NG 80 produce?
A: It makes gourmet cube ice, crystal-clear and slow-melting—ideal for cocktails and premium beverage service.
Q: What is the daily ice production capacity?
A: This machine produces up to 77 lbs of ice per day, suitable for small to medium-volume operations.
Q: Is this unit self-contained?
A: Yes, it has a built-in ice storage bin, eliminating the need for a separate bin.
Q: What refrigerant does it use?
A: It operates on eco-friendly R290 refrigerant, ensuring energy-efficient and sustainable performance.
Q: Where is this ice maker best used?
A: Perfect for restaurants, bars, hotels, and cafes looking to serve high-quality ice cubes.
Maintenance Tips
-
Clean and sanitize the ice bin and cube-forming areas regularly for food safety.
-
Wipe exterior surfaces with mild soap and water to maintain appearance.
-
Keep air vents and condenser coils free of dust for efficient performance.
-
Replace water filter as recommended to ensure clear, high-quality ice.
-
Check water inlet and drain lines for blockages or leaks.
-
Perform periodic descaling to prevent mineral buildup in the system.
-
Ensure unit is level and has proper ventilation for reliable operation.
