| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |
| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

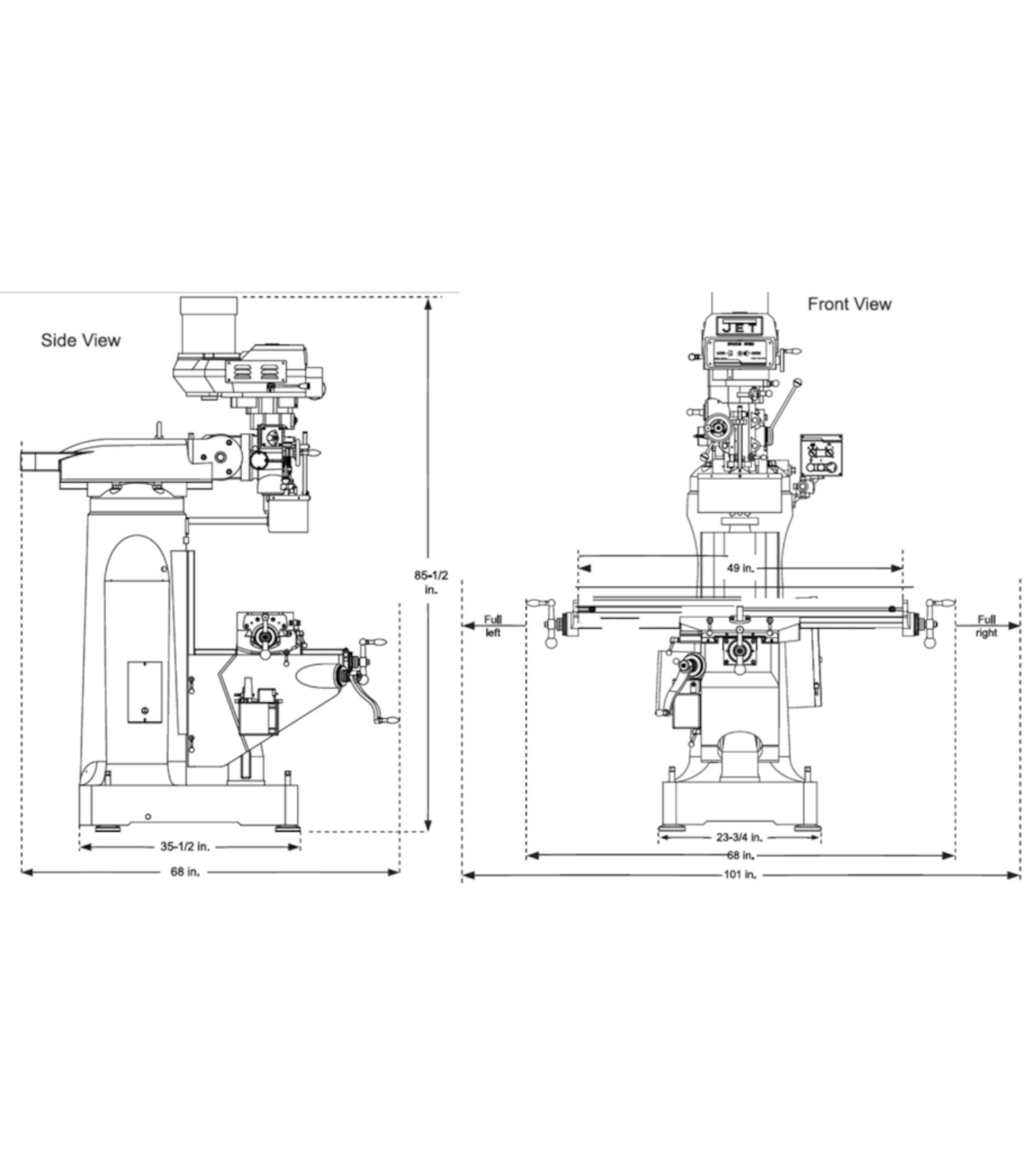

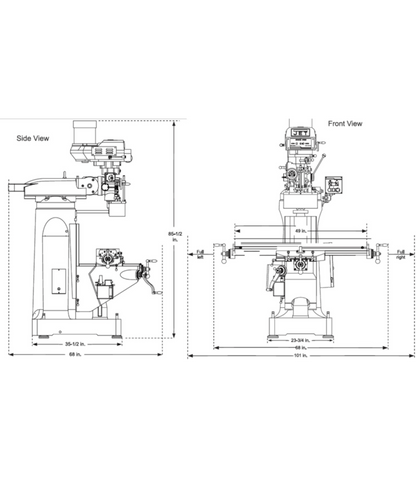

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
3-axis milling with X, Y, Z control offers full versatility for precise operations.
-
ACU-RITE 203 knee DRO provides accurate digital readouts for enhanced machining precision.
-
X-axis JET Powerfeed ensures smooth, consistent automatic feed for reliable cuts.
-

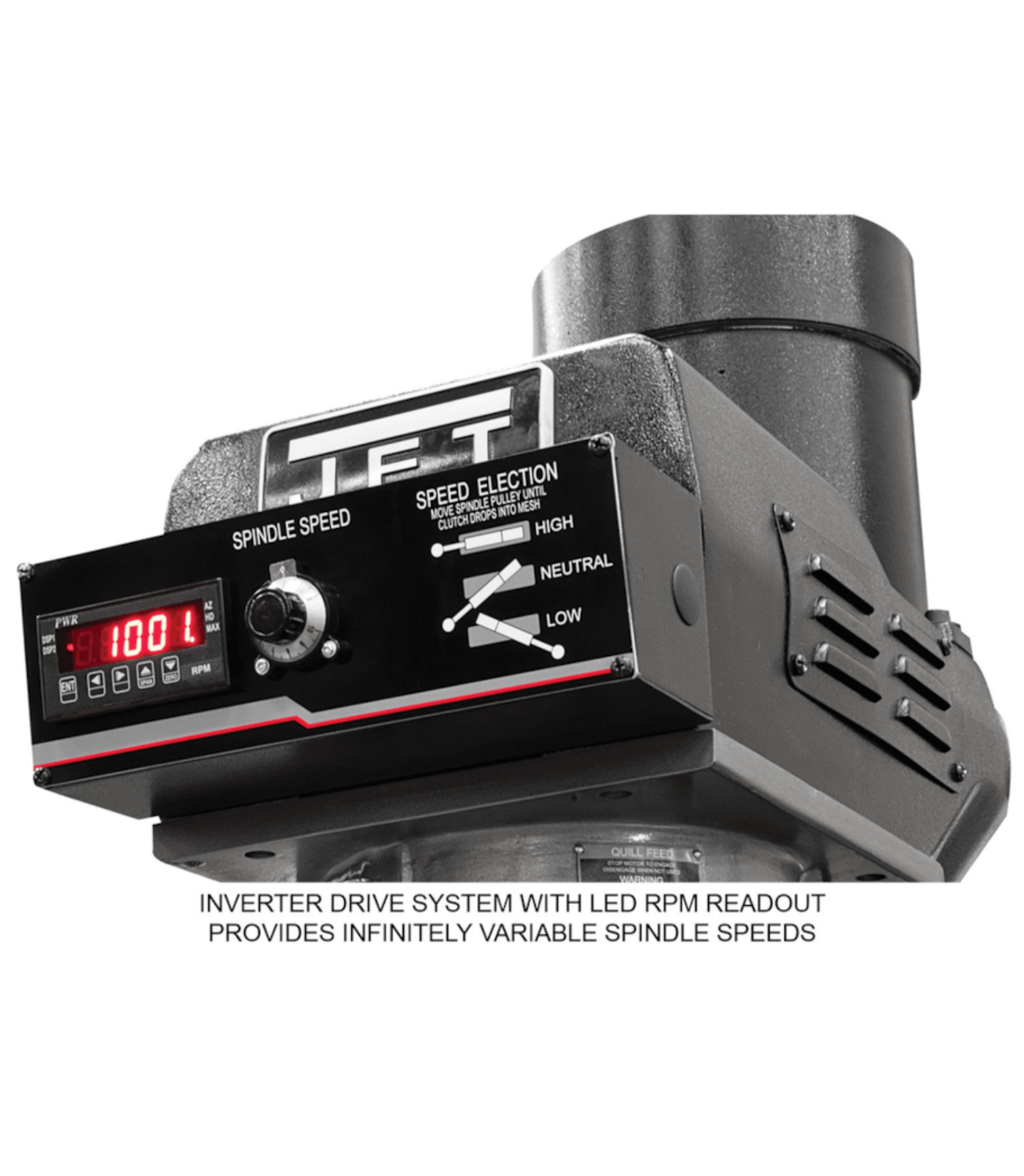

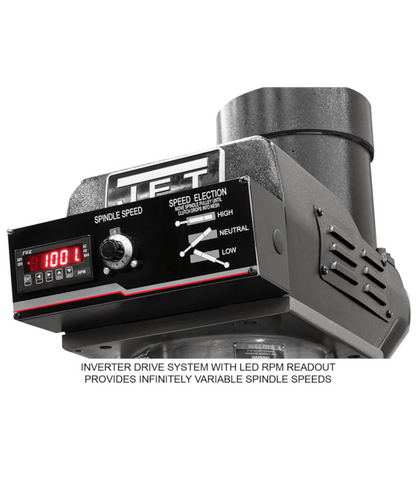

Variable speed spindle adapts to various materials and milling tasks.
-
Rigid cast-iron construction minimizes vibration, ensuring stability, accuracy, and long-term durability.
Q&A

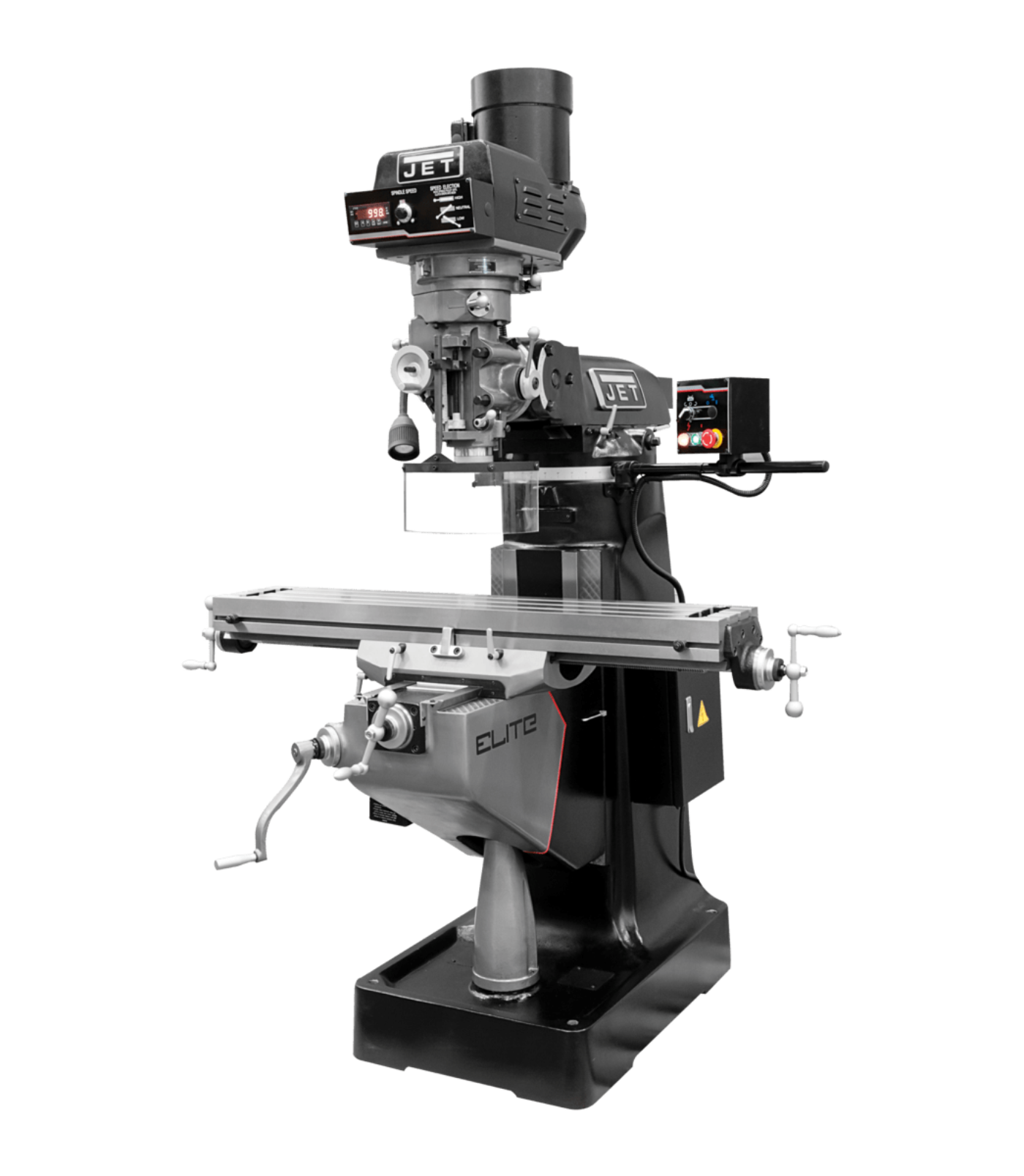

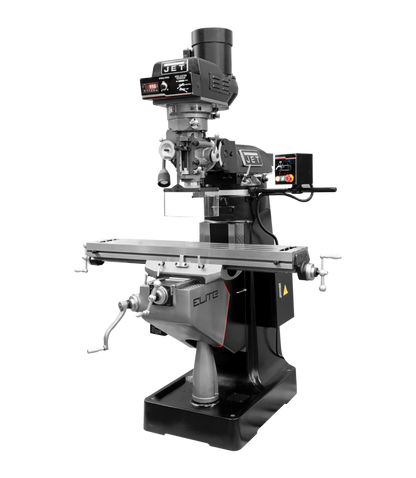

Q: What type of mill is the JET Elite ETM-949?
A: It’s a 9x49 electronic milling machine (ETM) with a 3-axis ACU-RITE 203 DRO for the knee and X-axis JET powerfeed.
Q: What does the 3-axis ACU-RITE 203 (Knee) DRO provide?
A: It delivers precise measurements for the knee, X, and Y axes, enhancing accuracy, repeatability, and setup efficiency.
Q: What is the function of the X-axis JET powerfeed?
A: It provides smooth, controlled automatic feed along the X-axis, improving precision, surface finish, and productivity.
Q: What is the milling capacity?
A: The mill offers 9-inch width travel and 49-inch longitudinal travel, suitable for medium to large workpieces.
Q: Where is this mill best used?
A: Ideal for machine shops, prototyping, and production environments requiring high-precision, reliable milling.
