| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |

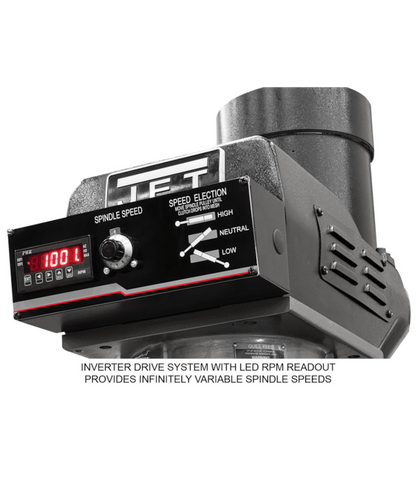

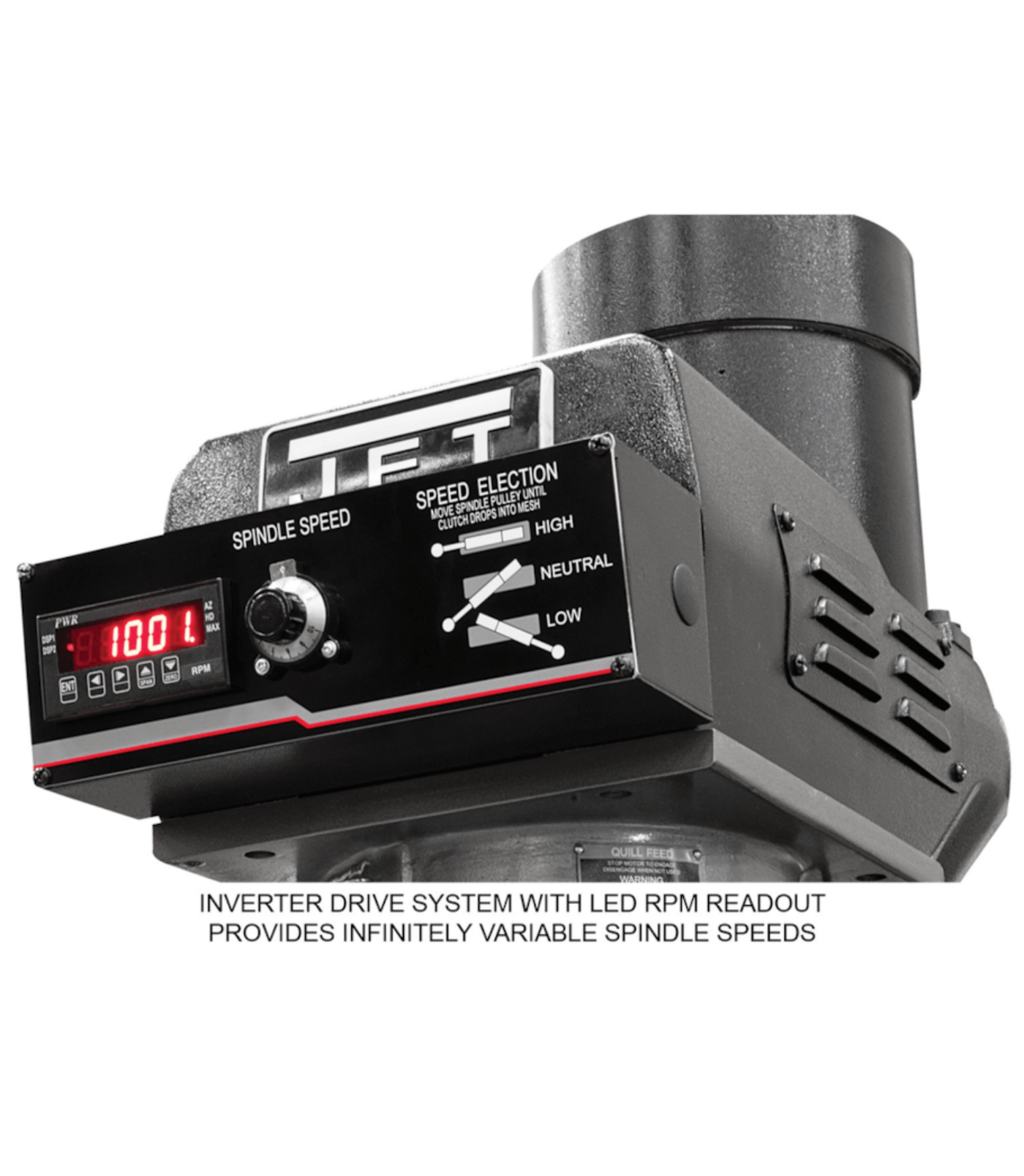

| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

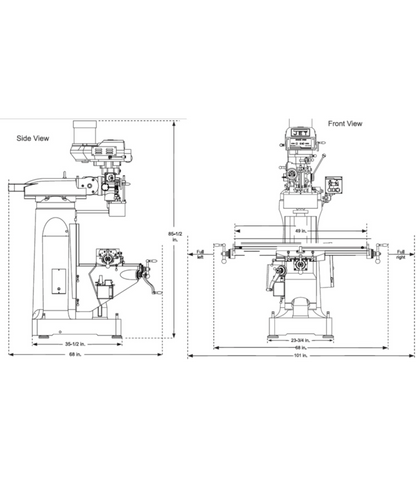

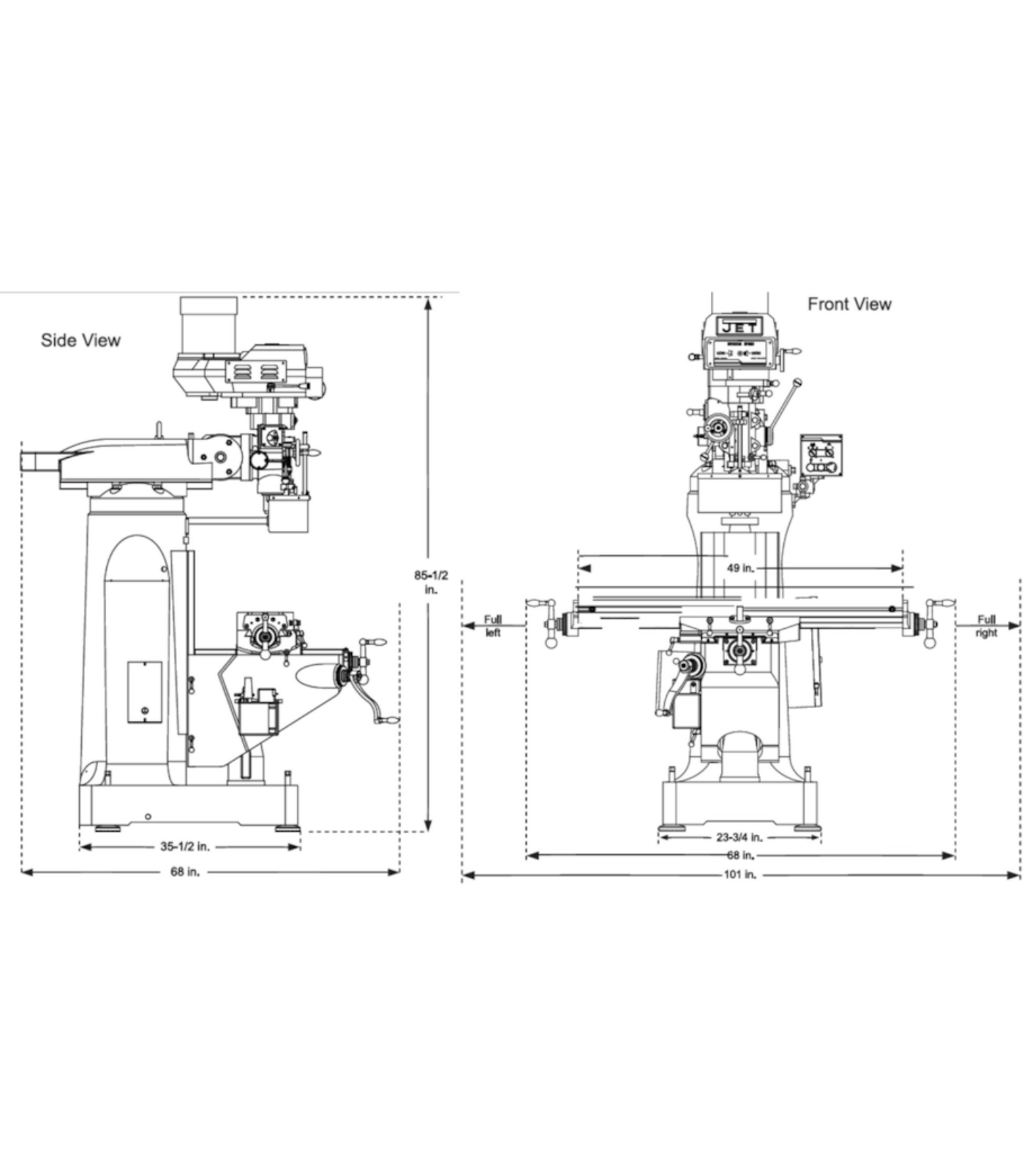

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
3-Axis Precision: X, Y, and Z-axis control delivers accurate and repeatable milling operations.
-
ACU-RITE 303 Knee DRO: Advanced digital readout ensures precise measurements and improves workflow efficiency.
-
X & Y-Axis JET Powerfeeds: Automates table movement for consistent and efficient cuts.
-

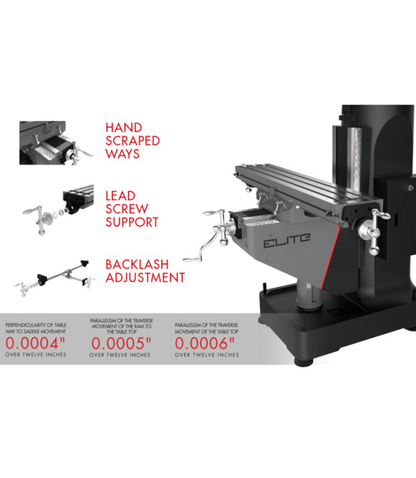

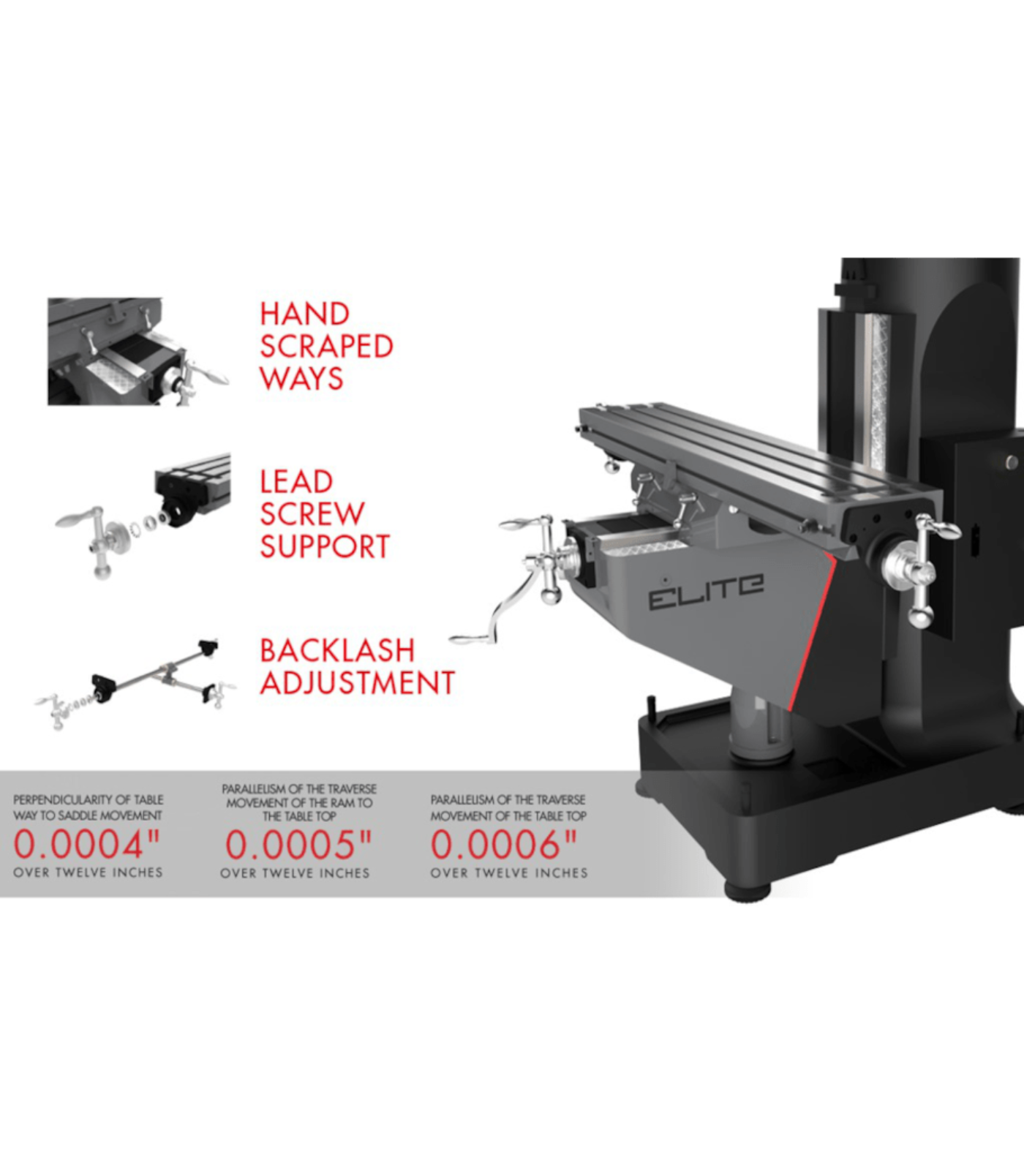

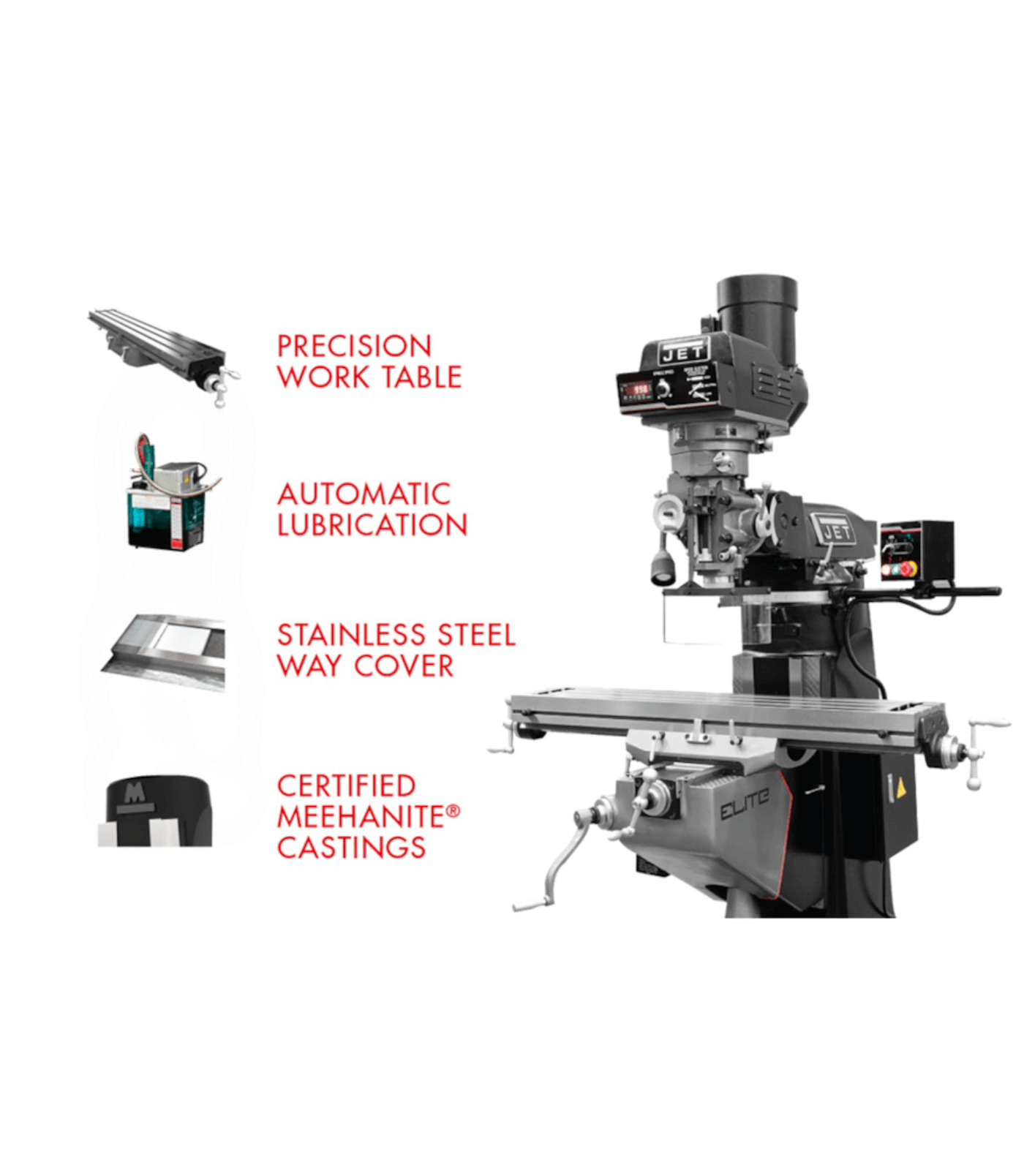

Heavy-Duty Construction: Rigid cast-iron frame reduces vibration and enhances durability.
-
Industrial Reliability: Designed for professional machine shops, toolrooms, and demanding metalworking applications.
Q&A

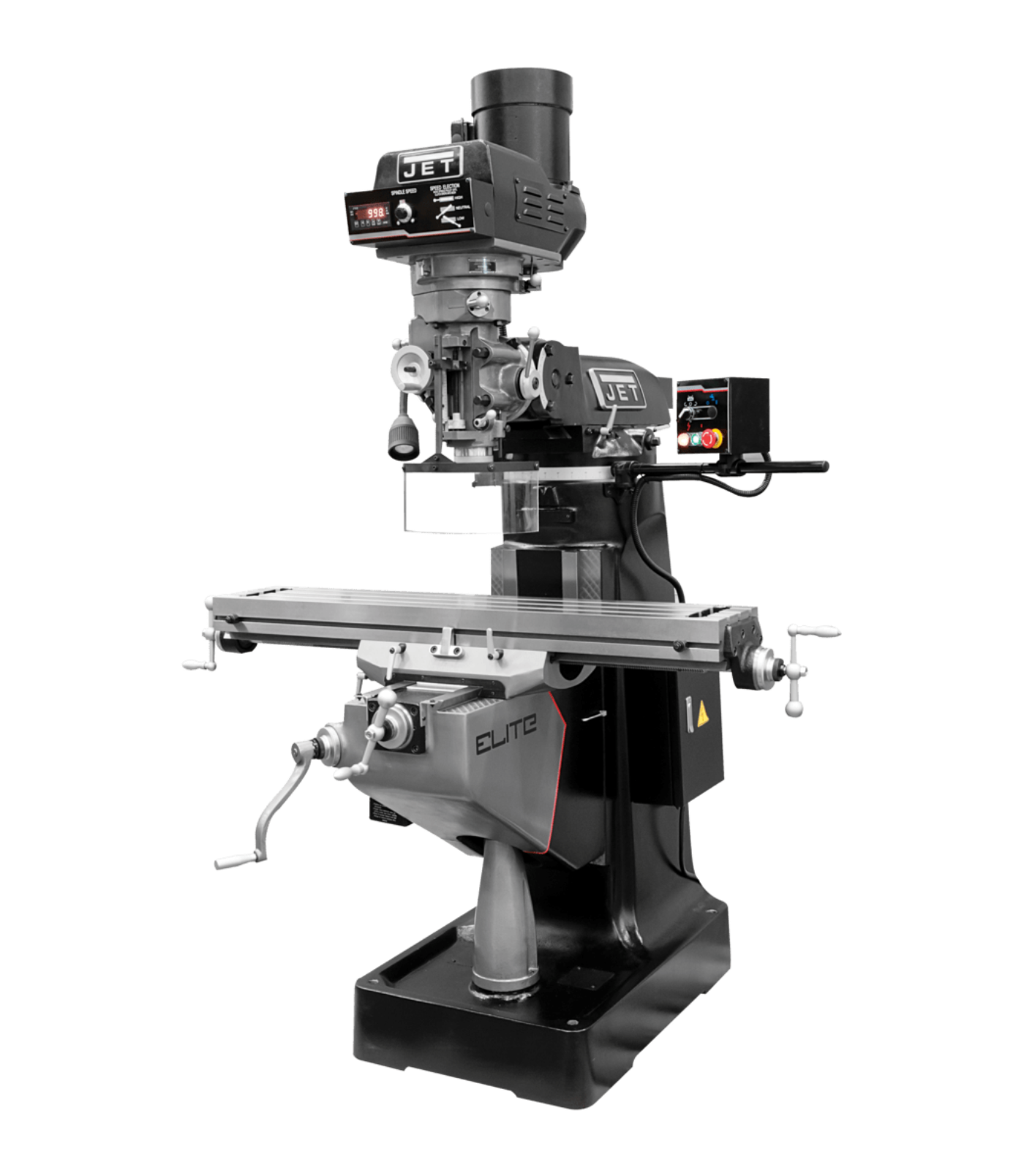

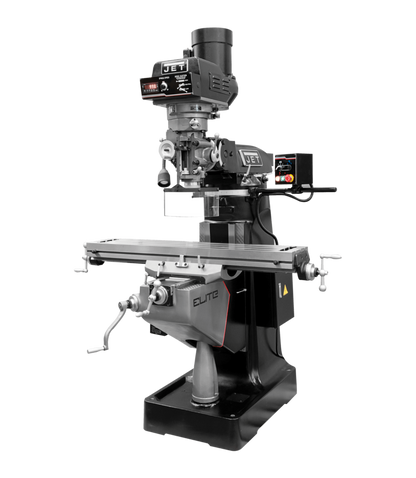

Q: What is the JET Elite ETM-949 Mill?
A: The ETM-949 is a professional vertical milling machine equipped with a 3-axis ACU-RITE 303 knee-mounted DRO and X, Y-axis JET Powerfeeds, designed for precise machining, prototyping, and production.
Q: What does the 3-axis ACU-RITE 303 (Knee) DRO provide?
A: The knee-mounted DRO delivers accurate digital readouts for X, Y, and Z axes, ensuring precision, repeatability, and efficient setup for complex milling operations.
Q: How do the X and Y-axis JET Powerfeeds help?
A: The dual-axis Powerfeeds allow smooth, controlled movement along the X and Y axes, improving surface finish, machining accuracy, and reducing operator fatigue during repetitive milling tasks.
Q: What milling operations can it perform?
A: Supports milling, drilling, boring, slotting, and precision surface finishing with high repeatability and efficiency.
Q: What is the worktable size?
A: The mill features a durable, spacious worktable suitable for medium to large workpieces and versatile machining setups.

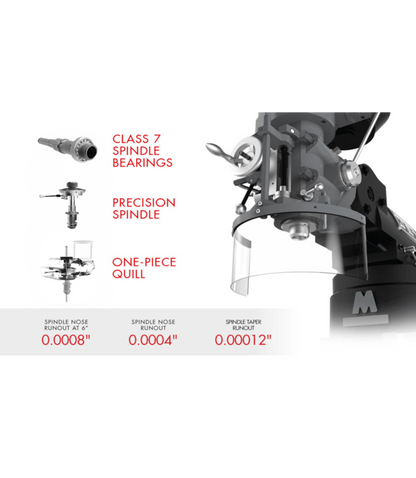

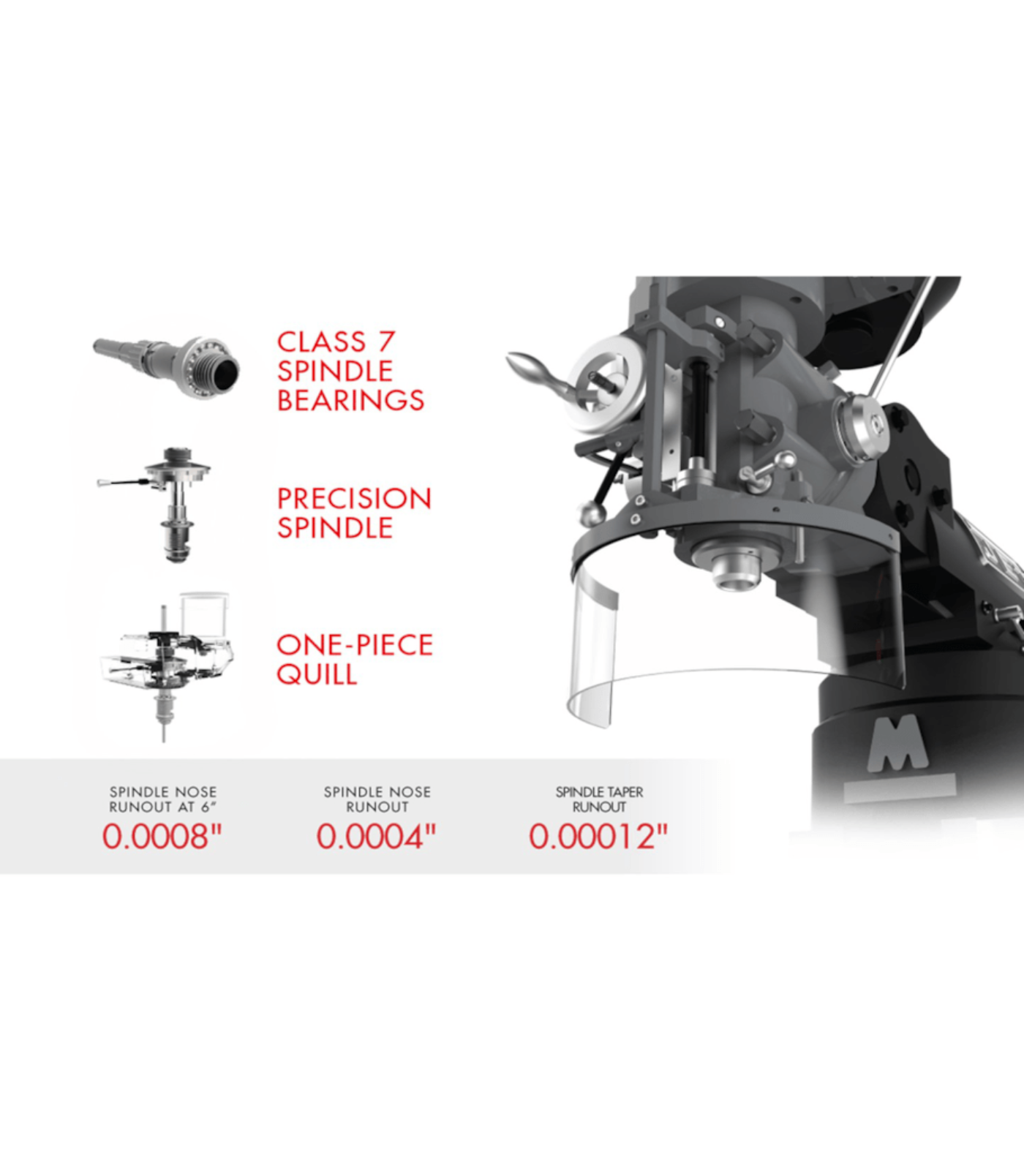

Q: What spindle features does it offer?
A: Equipped with a high-torque spindle, it allows precise speed control for a wide range of materials and cutting applications.
Q: What type of motor powers the mill?
A: A heavy-duty industrial motor ensures smooth operation, consistent torque, and reliable performance for demanding milling tasks.
Q: How precise and durable is the mill?
A: Precision-ground ways and a rigid frame provide long-term accuracy, stability, and durability under professional use.
Q: Who is this mill ideal for?
A: Ideal for machine shops, tool rooms, prototyping facilities, and educational programs requiring advanced digital measurement with dual-axis feed control.
Q: Does it meet safety and quality standards?
A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for reliability, accuracy, and operator safety.
Q: What sets this configuration apart?
A: The combination of 3-axis knee-mounted ACU-RITE 303 DRO and X, Y-axis Powerfeeds provides precise digital measurement and automated feed control, enhancing productivity, repeatability, and efficiency for complex and repetitive milling operations.
