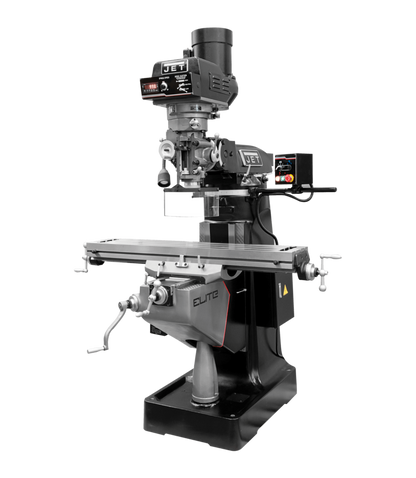

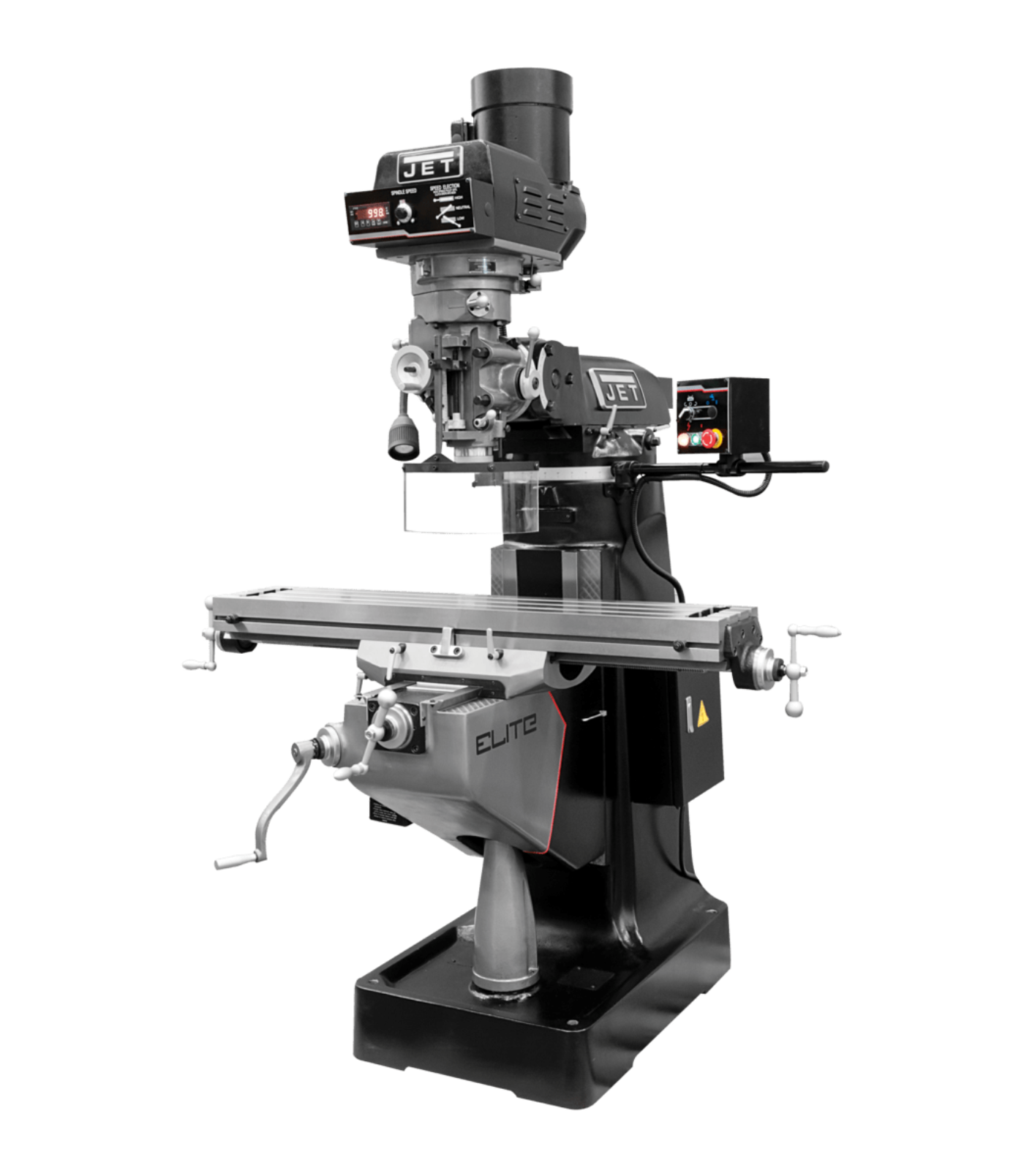

JET Elite ETM-949EVS Mill with 2-Axis ACU-RITE MILLPWR G2 CNC - JT9-894090
Elite offers World Class Mills fully loaded with features. When working on the design of the mills we focused our efforts on the most accurate spindle assembly to meet strict tolerance requirements. To improve the reliability and durability we went back and did things the old fashioned way, we hand scraped the ways to a minimum of 16-point per inch. For operator safety all Elite Mills are CSA / CUS Certified and all come with a spindle safety guard.
Features
- Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed

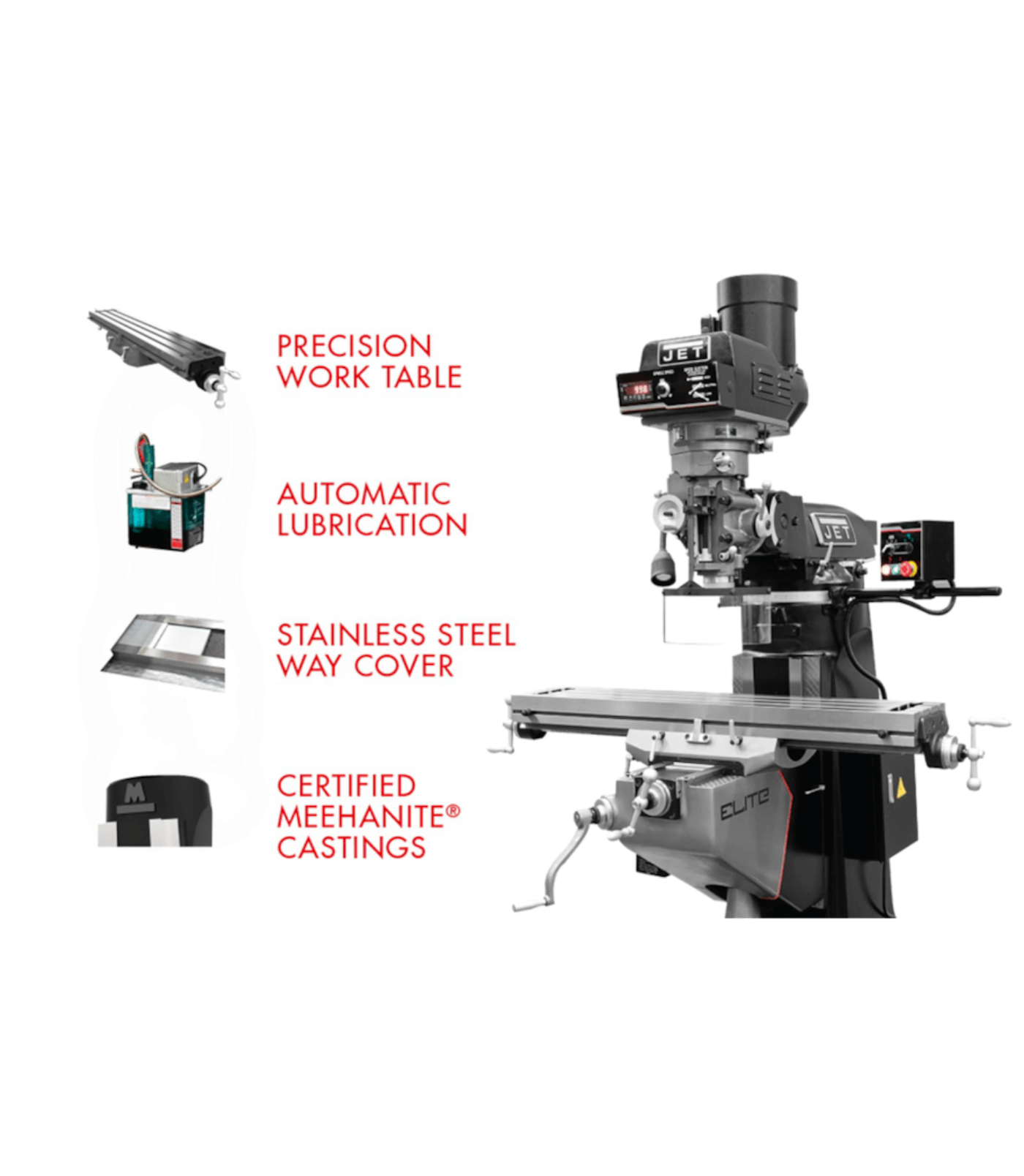

- Certified Meehanite® castings
- Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
- Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances

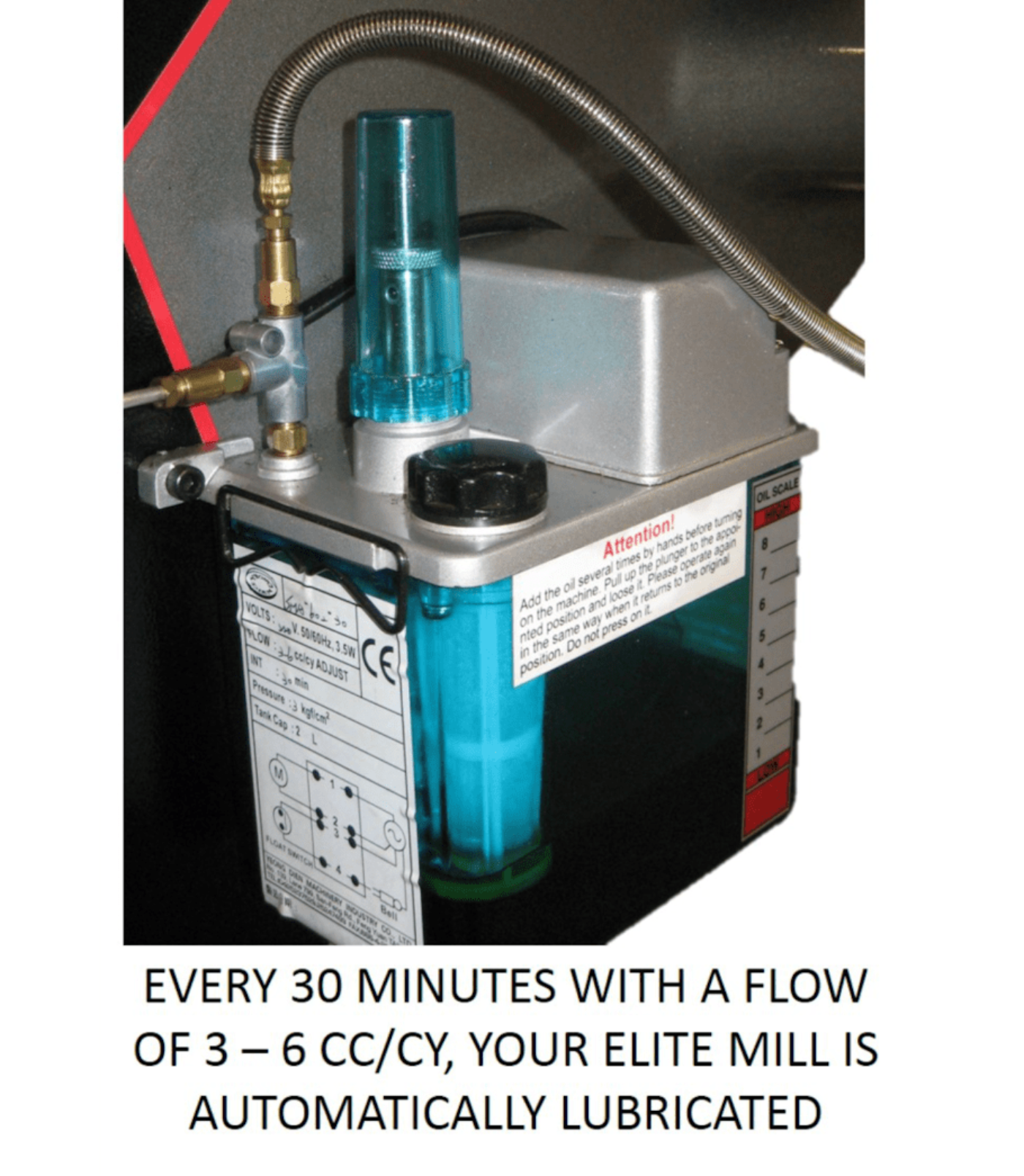

- Every 30 minutes with a flow of 3 to 6 cc/cy, your Elite mill is automatically lubricated
- Hardened and ground table
- Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials
- Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
- Patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys
- Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy

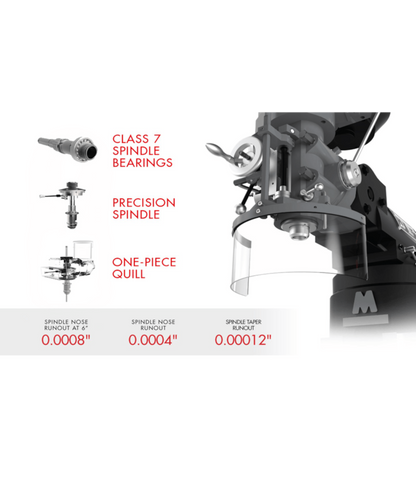

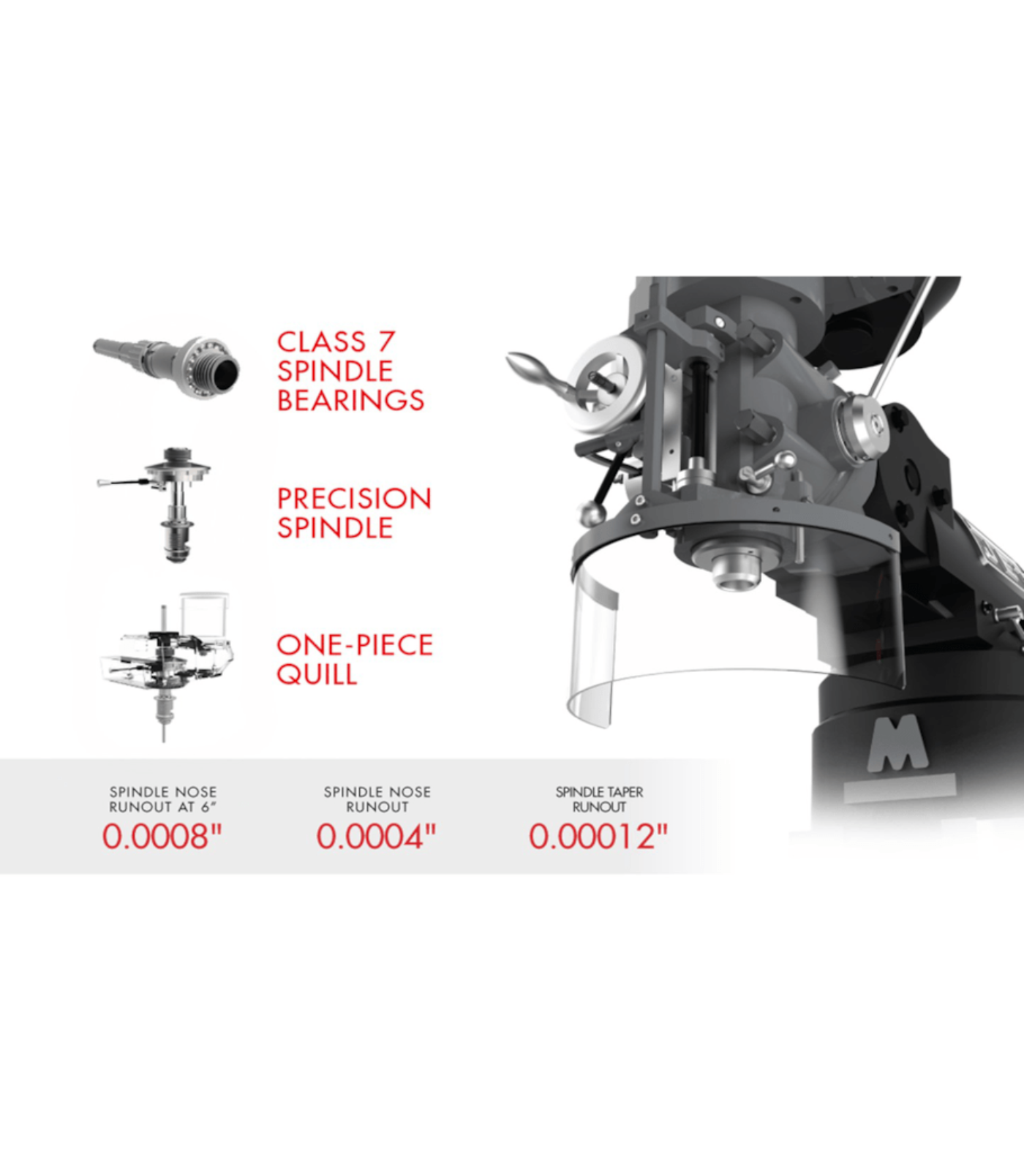

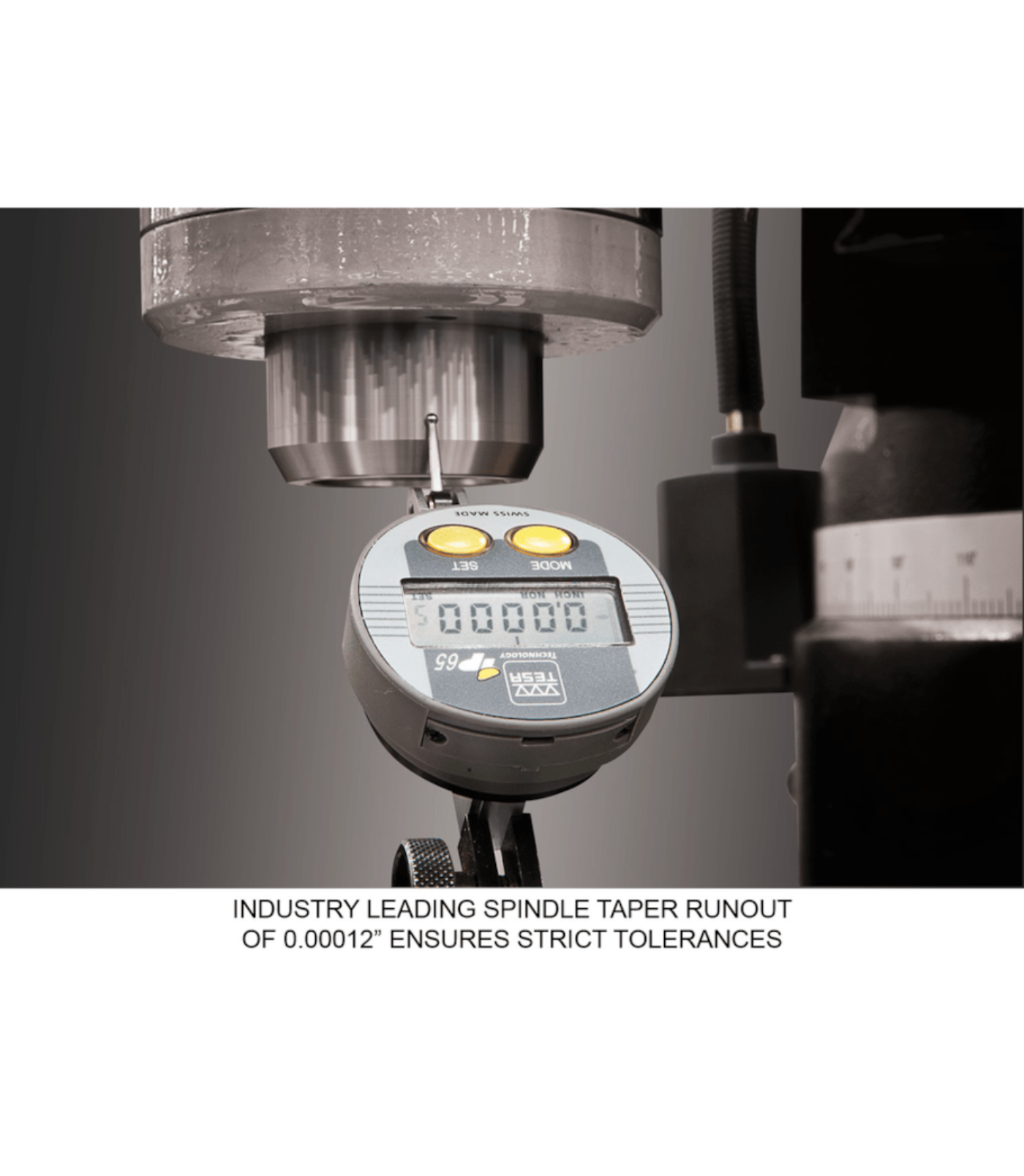

- Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012"
- Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover
- The electronic spindle brake, when activated, interrupts power to the spindle to prevent accidental start ups

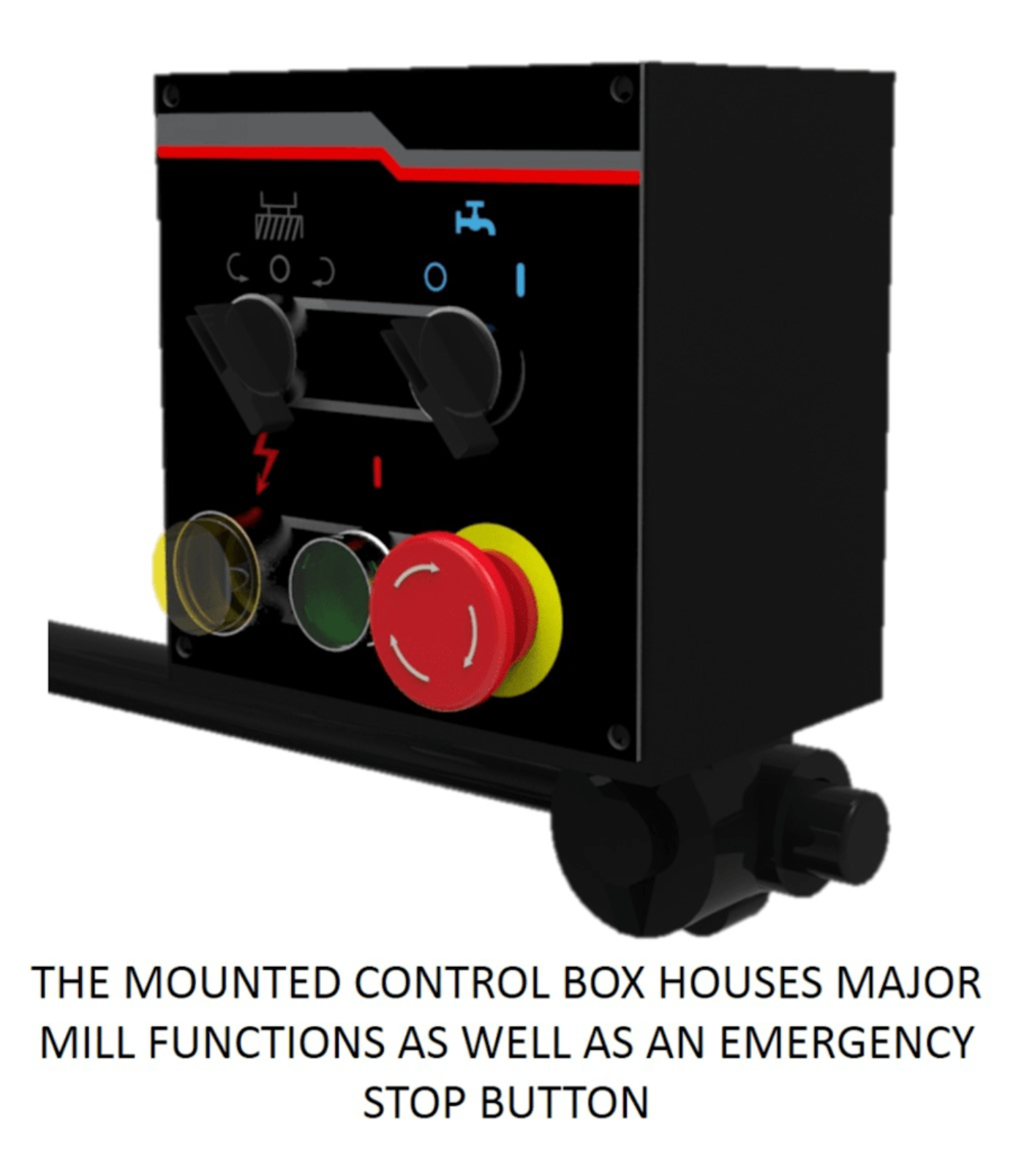

- The mounted control box houses major mill functions as well as an emergency stop button

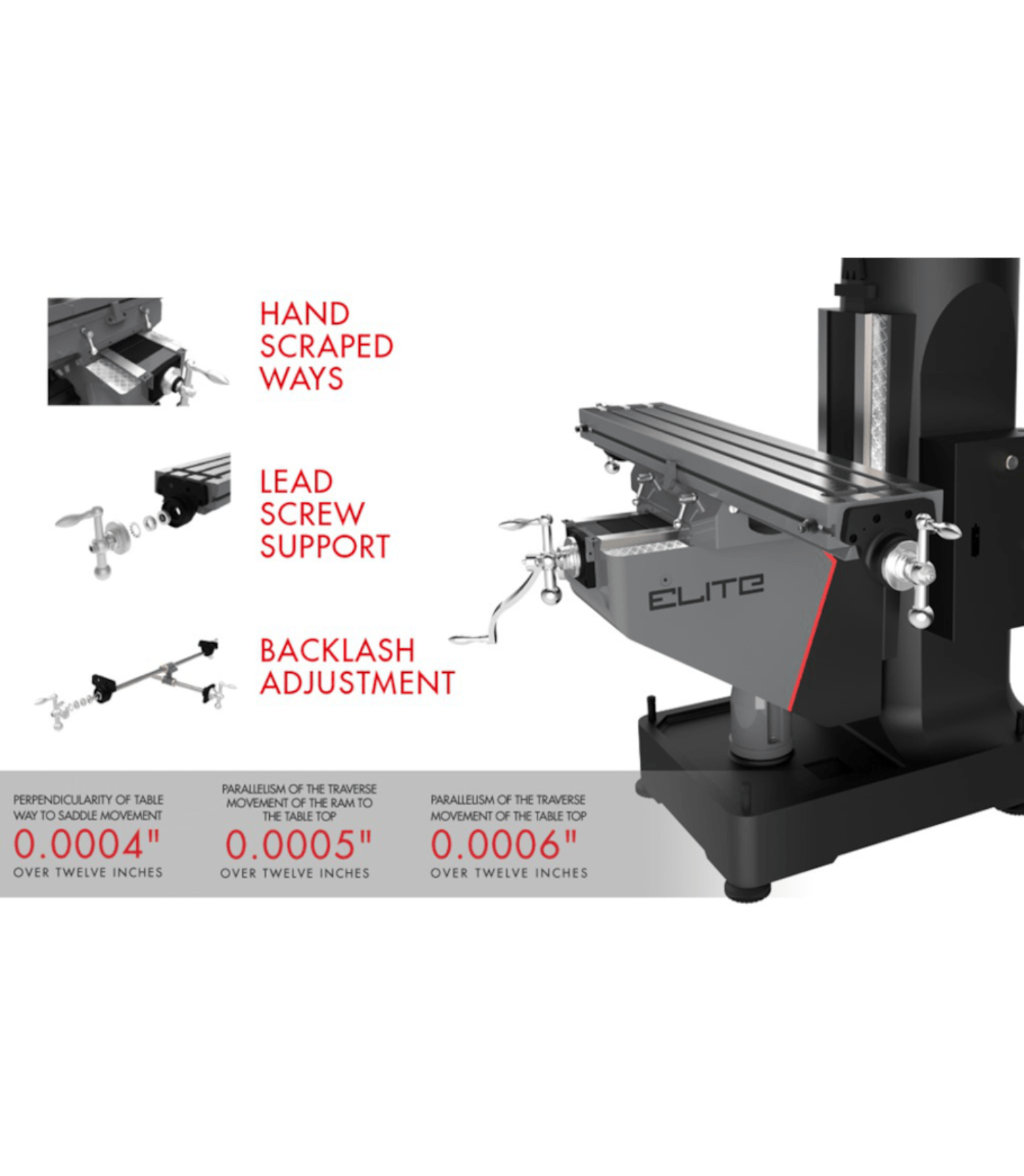

- The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements

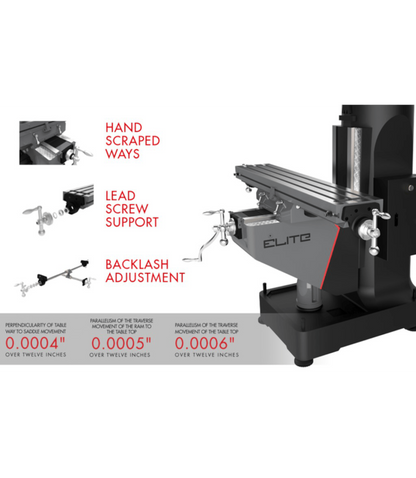

- The Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements
- Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |
| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

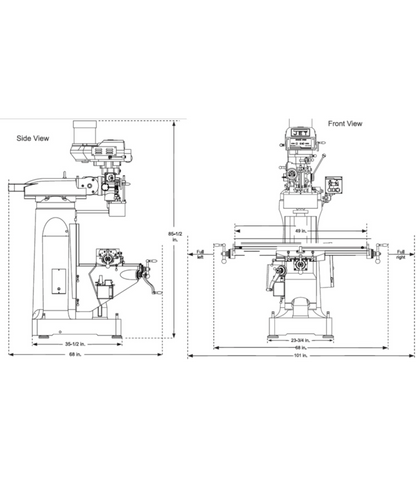

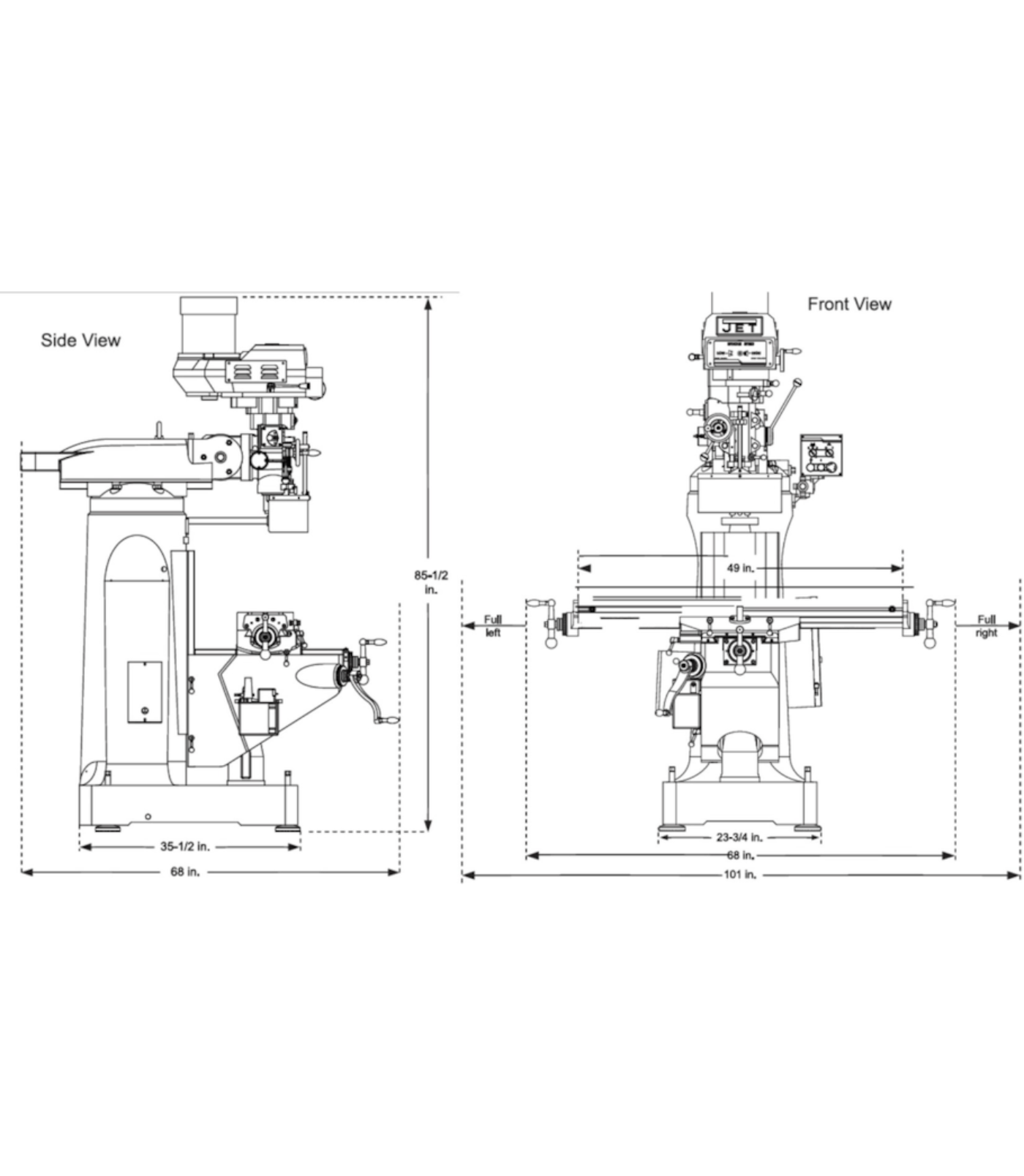

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
2-Axis CNC Control: ACU-RITE MILLPWR G2 offers conversational programming, making CNC milling more intuitive.
-

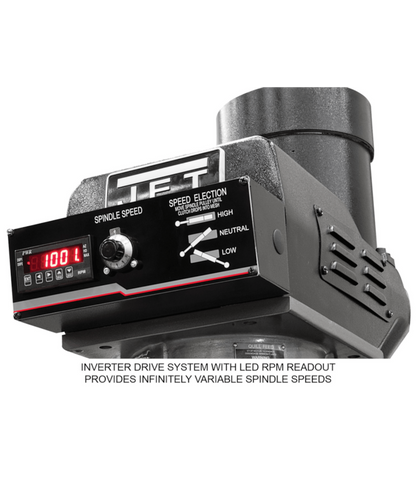

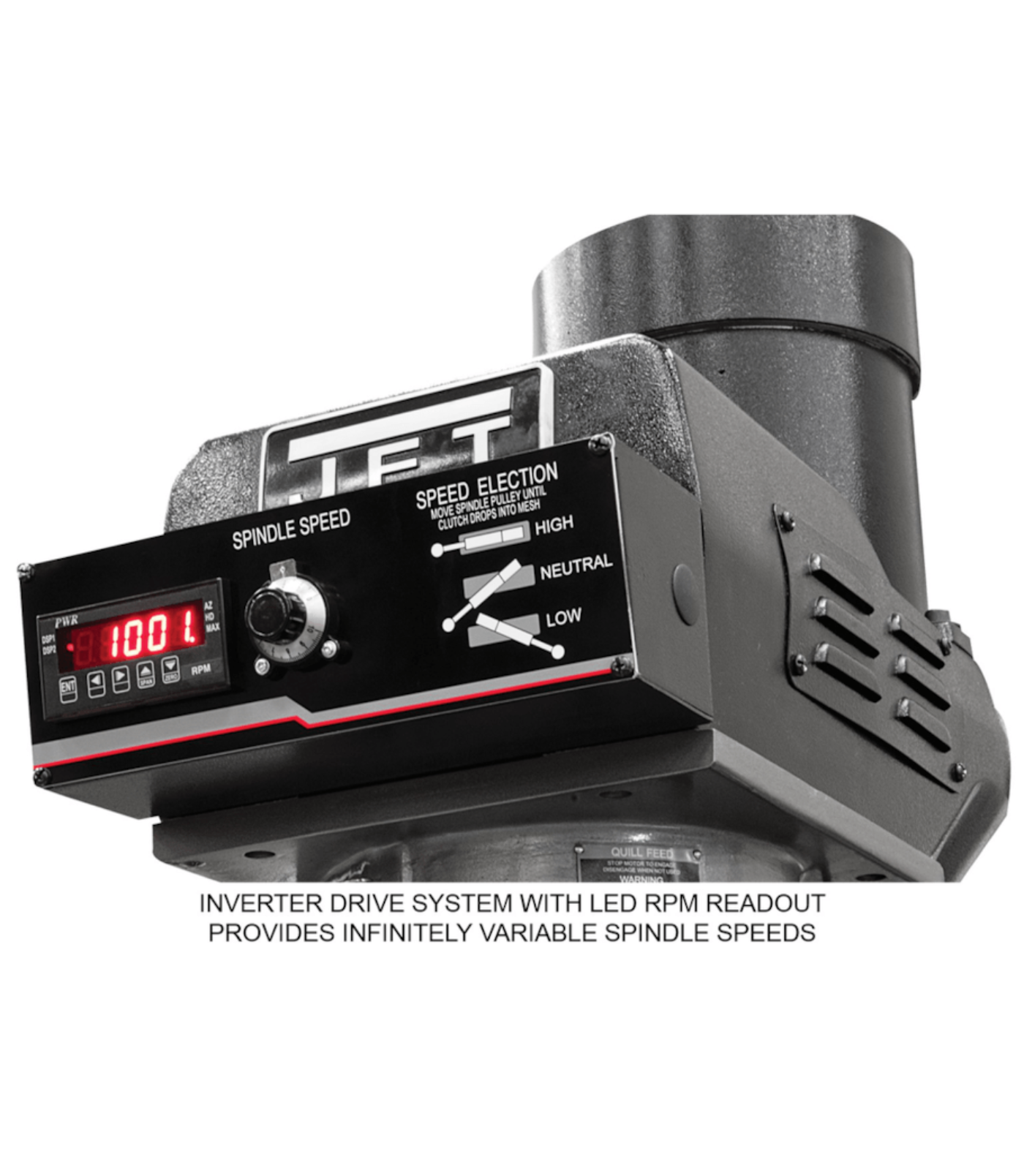

Electronic Variable Speed (EVS): Smooth spindle adjustments without belt changes increase productivity.
-
Hybrid Capability: Functions as both a CNC and manual mill, offering flexibility for different projects.
-
High Precision: CNC-driven accuracy ensures consistent results for complex part machining.
-
Time-Saving Automation: Simplifies repeat jobs while reducing operator error and fatigue.
-
Shop-Ready Performance: Ideal for toolrooms, prototyping, and small-batch production environments.
Q&A
Q: What is the JET Elite ETM-949EVS with ACU-RITE MILLPWR G2 CNC?
A: It’s a 9x49 Elite electronic variable speed milling machine paired with a 2-axis ACU-RITE MILLPWR G2 CNC control system, offering both manual flexibility and CNC automation in one machine.
Q: Why is this model a smart choice?
A: The MILLPWR G2 CNC allows operators to easily program and run automated 2-axis milling operations while still keeping the ability to operate manually for one-off or simple jobs.
Q: Who should use this mill?
A: Ideal for shops that need CNC precision with manual versatility, including prototyping, short-run production, and training environments.
Q: What sets it apart from standard DRO mills?
A: Unlike digital readout-only mills, this model provides true CNC automation with conversational programming, tool path storage, and advanced machining functions — all powered by the reliable EVS spindle system.
Maintenance Tips
-
Clean table, ways, and quill after every use; apply light oil to prevent rust.
-
Follow JET’s lubrication schedule for spindle, bearings, and knee.
-
Inspect CNC control, cabling, and feedback systems to ensure accuracy.
-
Check gibs, backlash, and fasteners regularly to maintain precision.
-
Monitor spindle speed control and powerfeed smoothness; lubricate as directed.
-
Keep oil reservoirs filled, replacing fluids at recommended intervals.
-
Store in a clean, dry, vibration-free environment to extend CNC and machine life.
