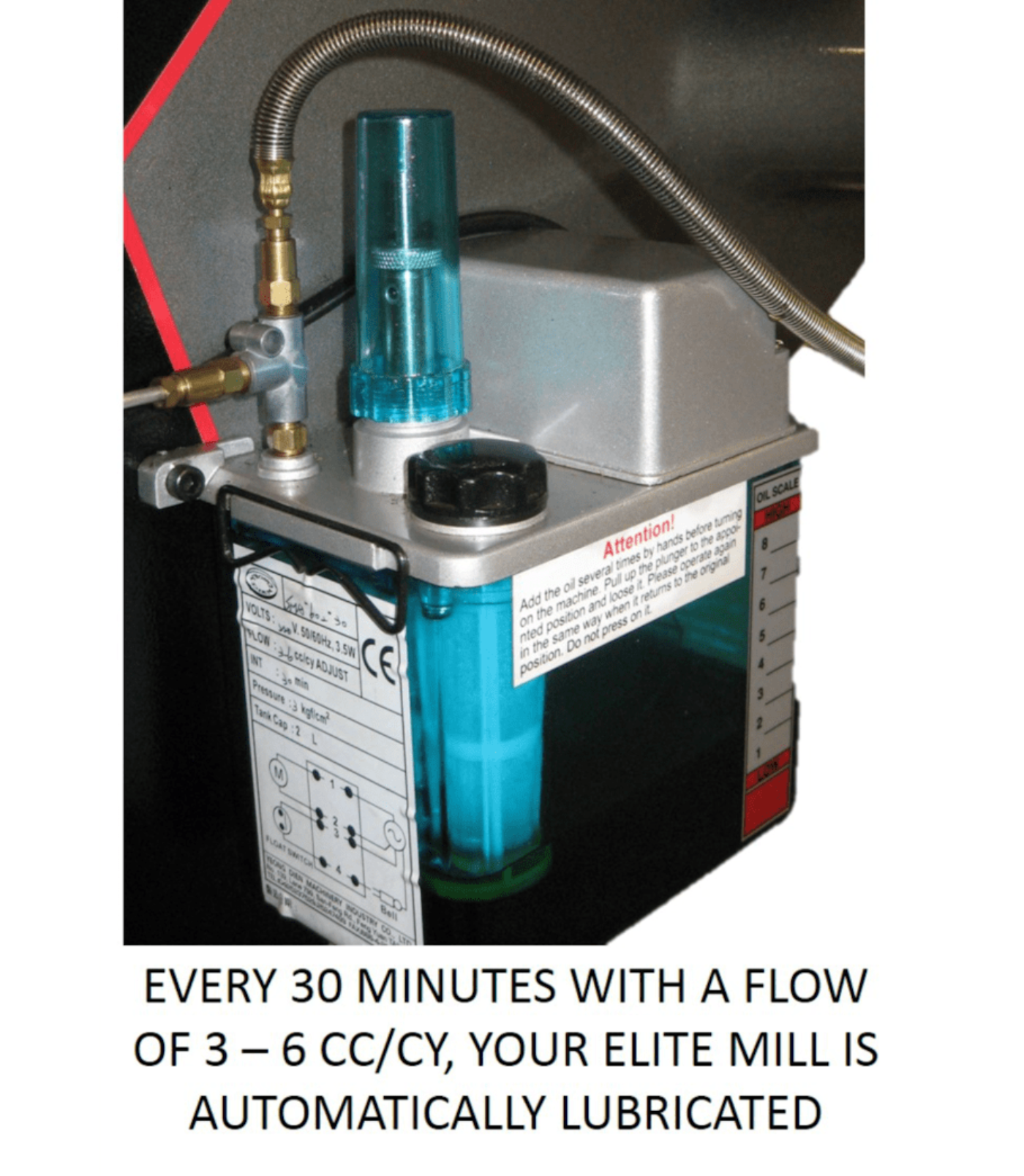

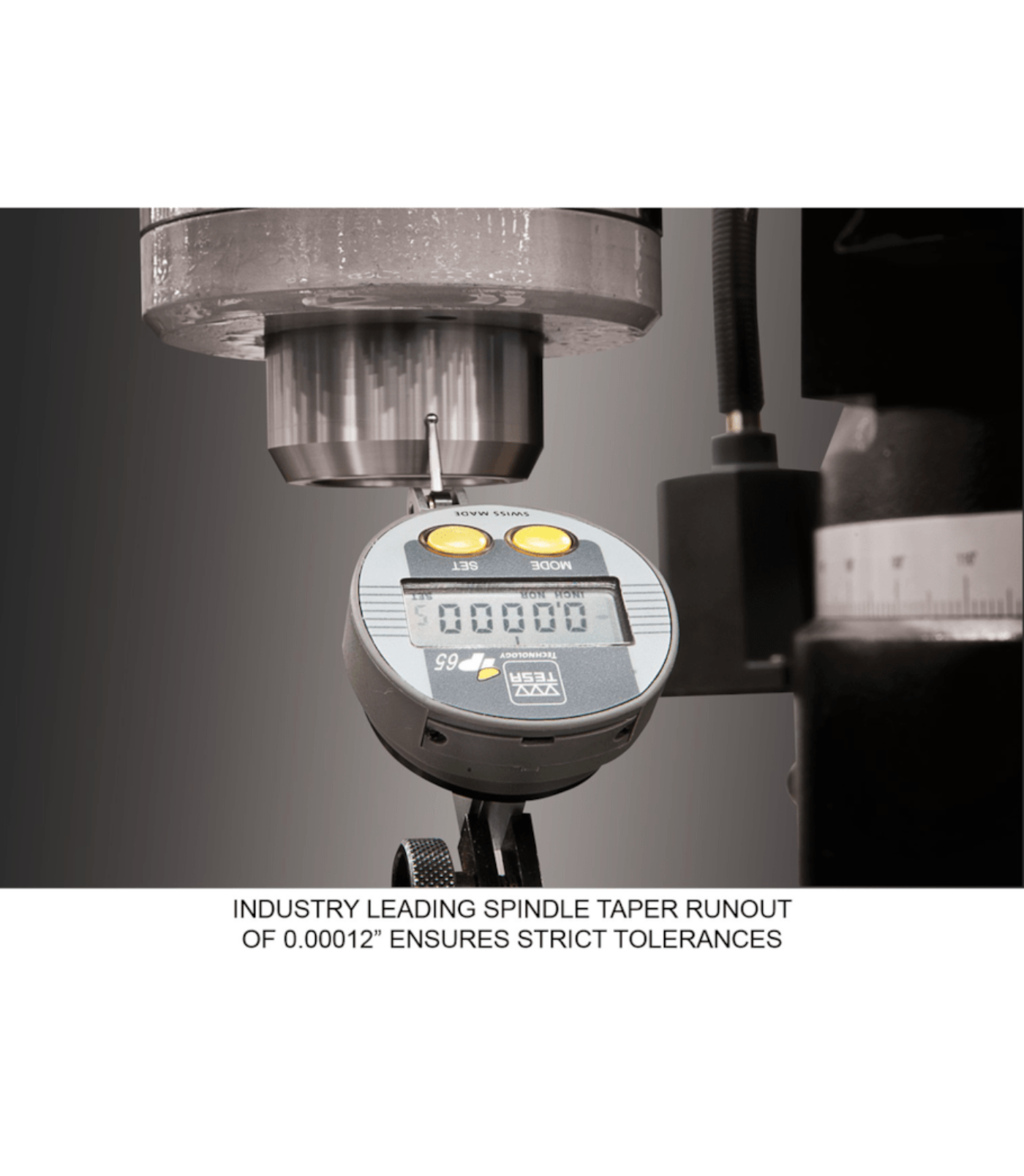

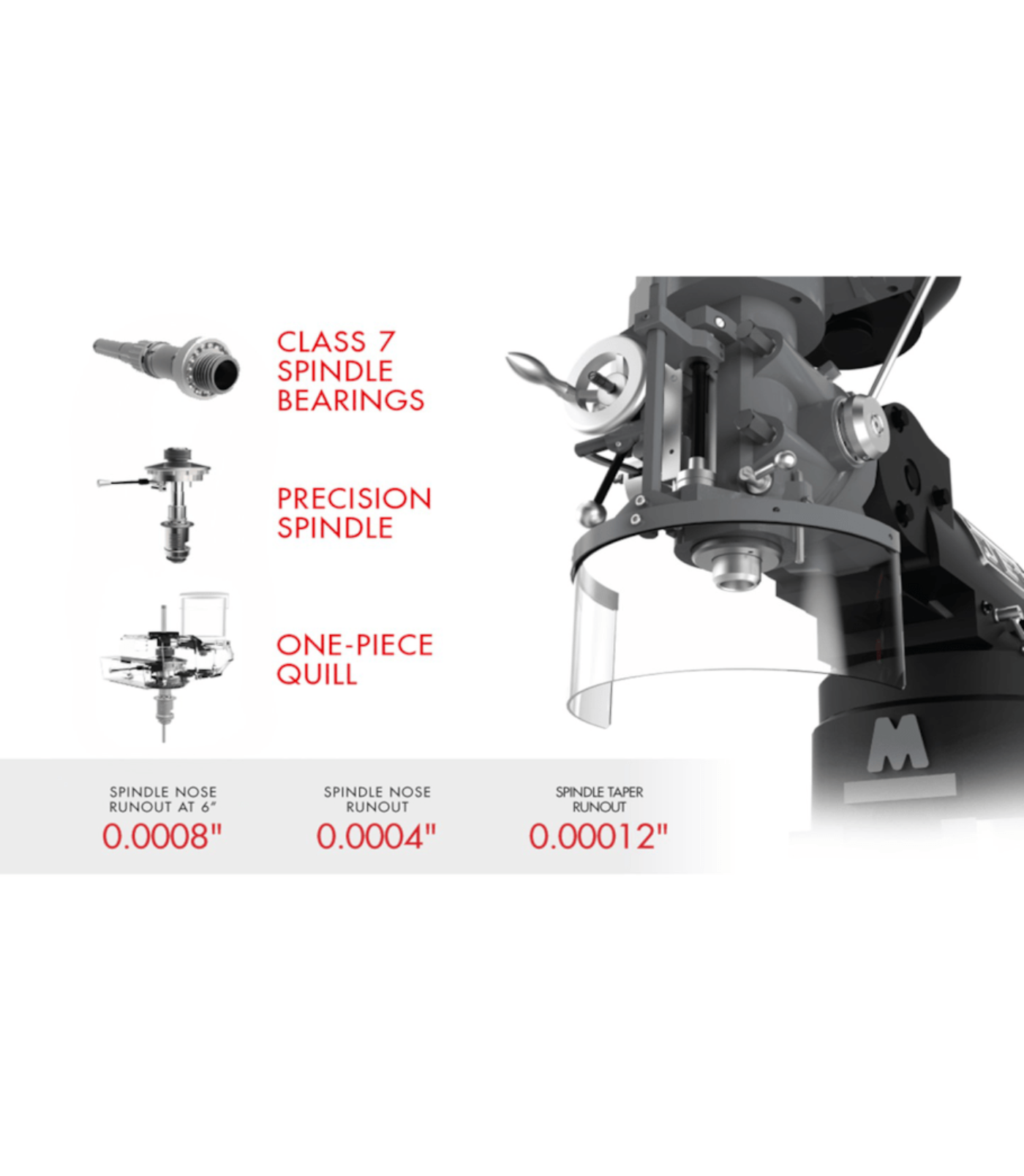

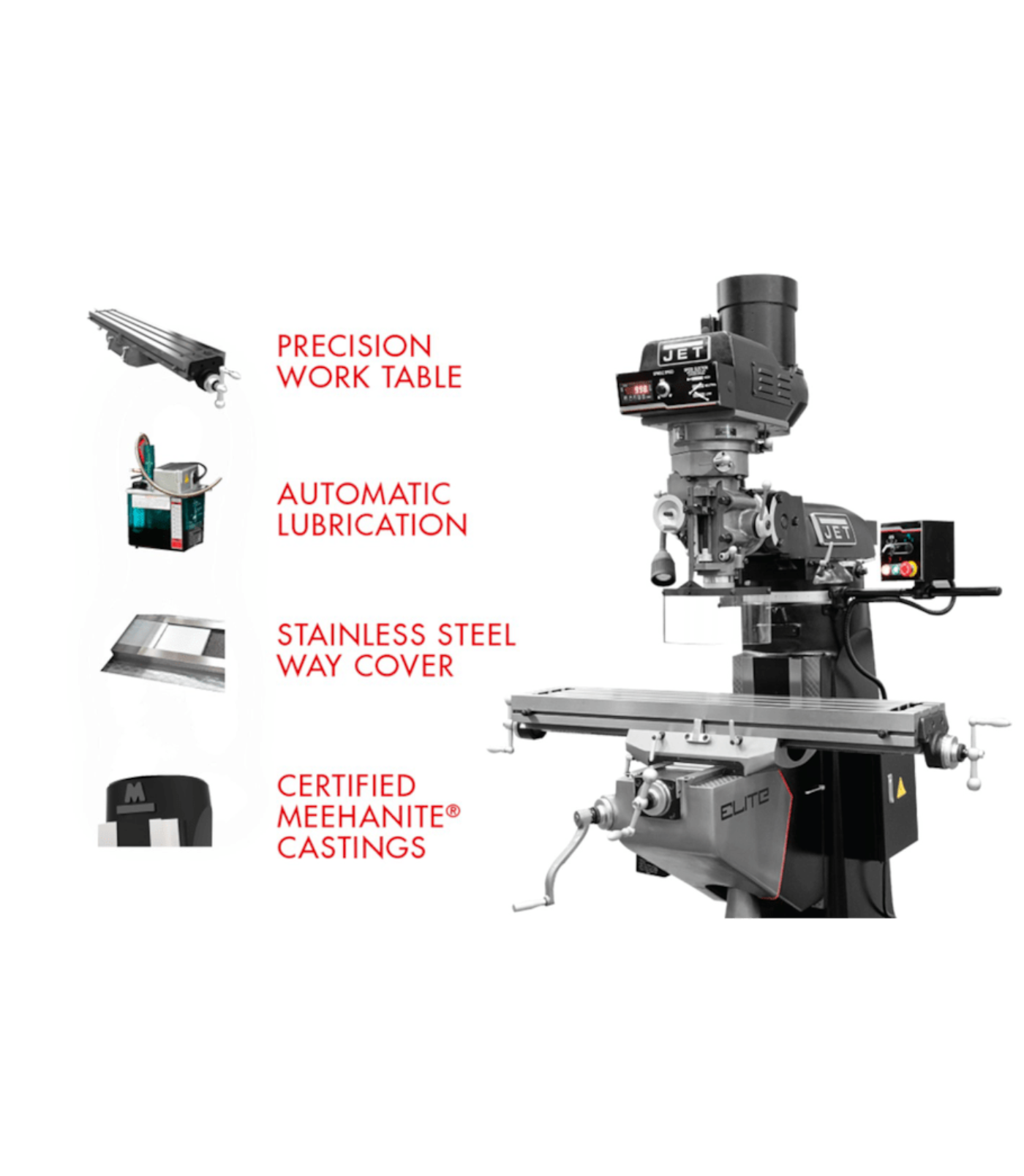

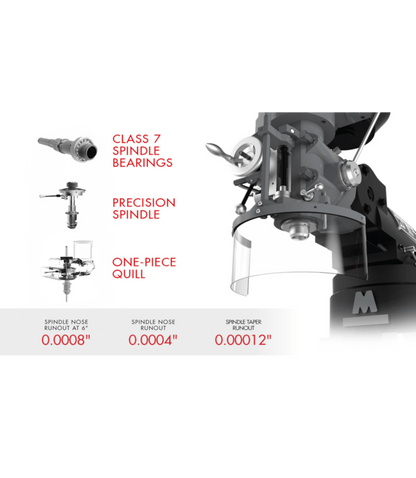

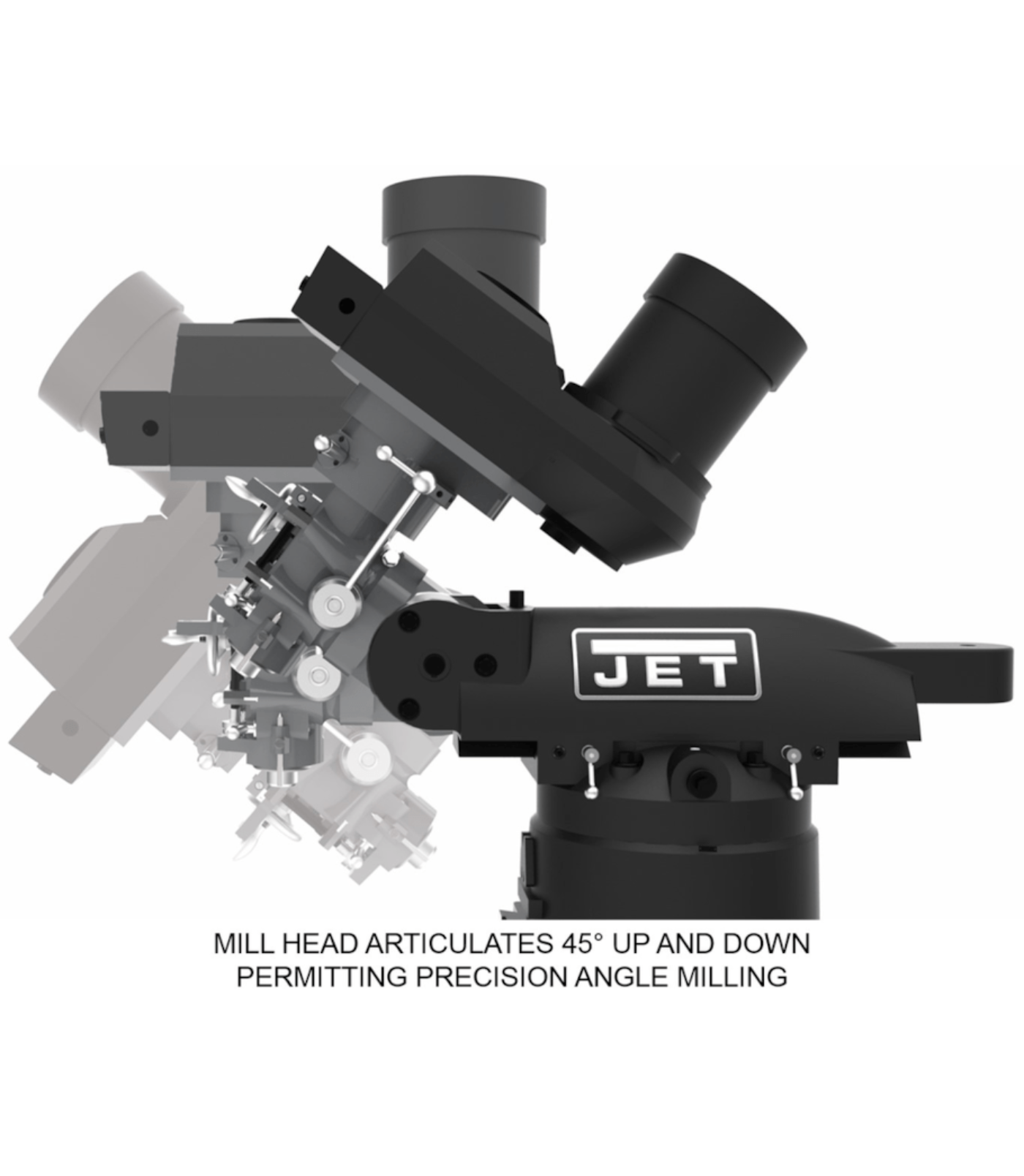

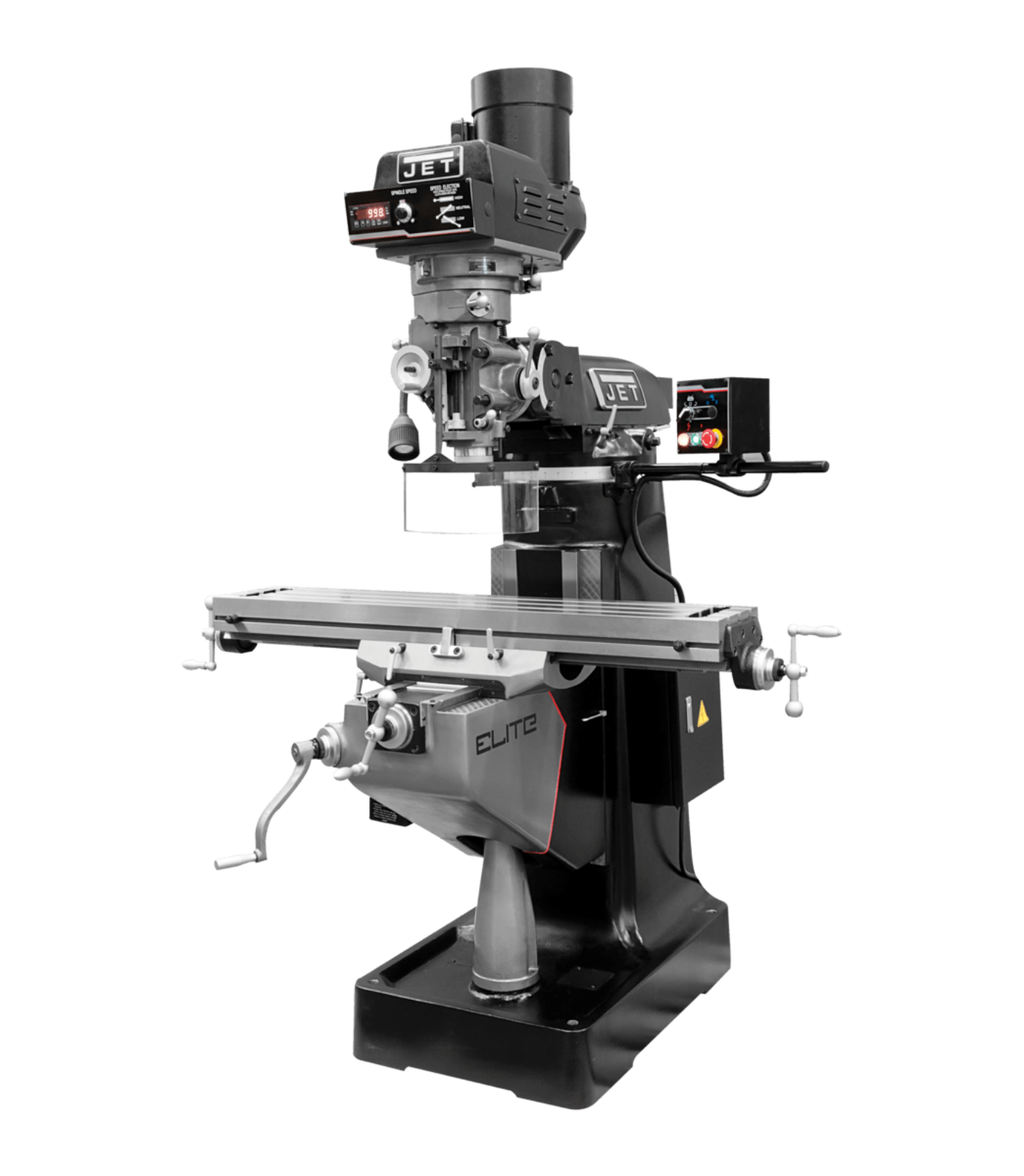

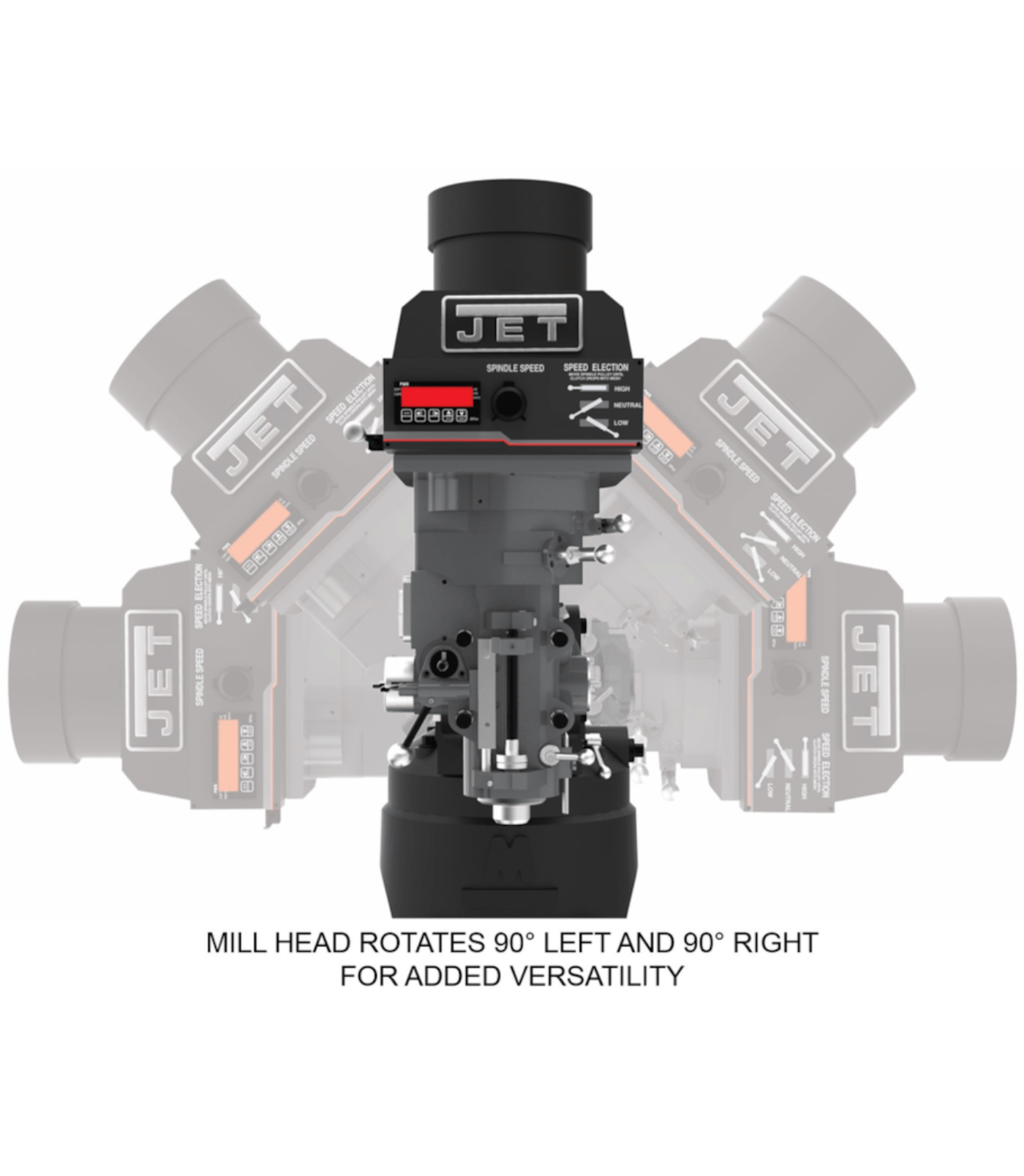

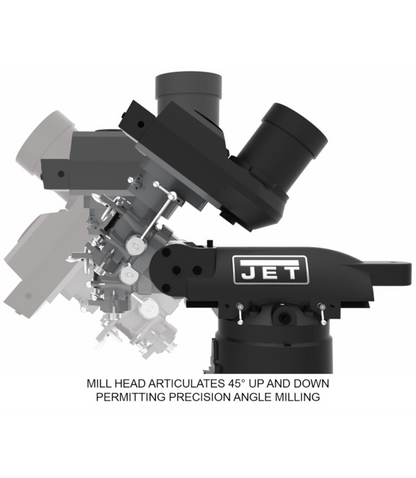

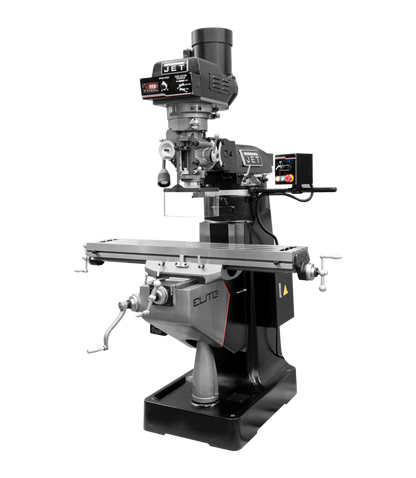

Elite offers world class mills fully loaded with features, including certified Meehanite® castings, a Chromium Molybdenum spindle, and a hardened and ground table that provides a stable and accurate platform for milling. When working on the design of the mills we focused our efforts on the most accurate spindle assembly to meet strict tolerance requirements. This spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for an industry-leading spindle taper runout of 0.00012". To improve the reliability and durability we went back and did things the old fashioned way, we hand scraped the ways to a minimum of 16-point per inch. Every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety all Elite Mills are CSA/CUS Certified and all come with a spindle safety guard.
Features
- Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
- Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
- Patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys
- Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
- Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover
- The electronic spindle brake, when activated, interrupts power to the spindle to prevent accidental start ups

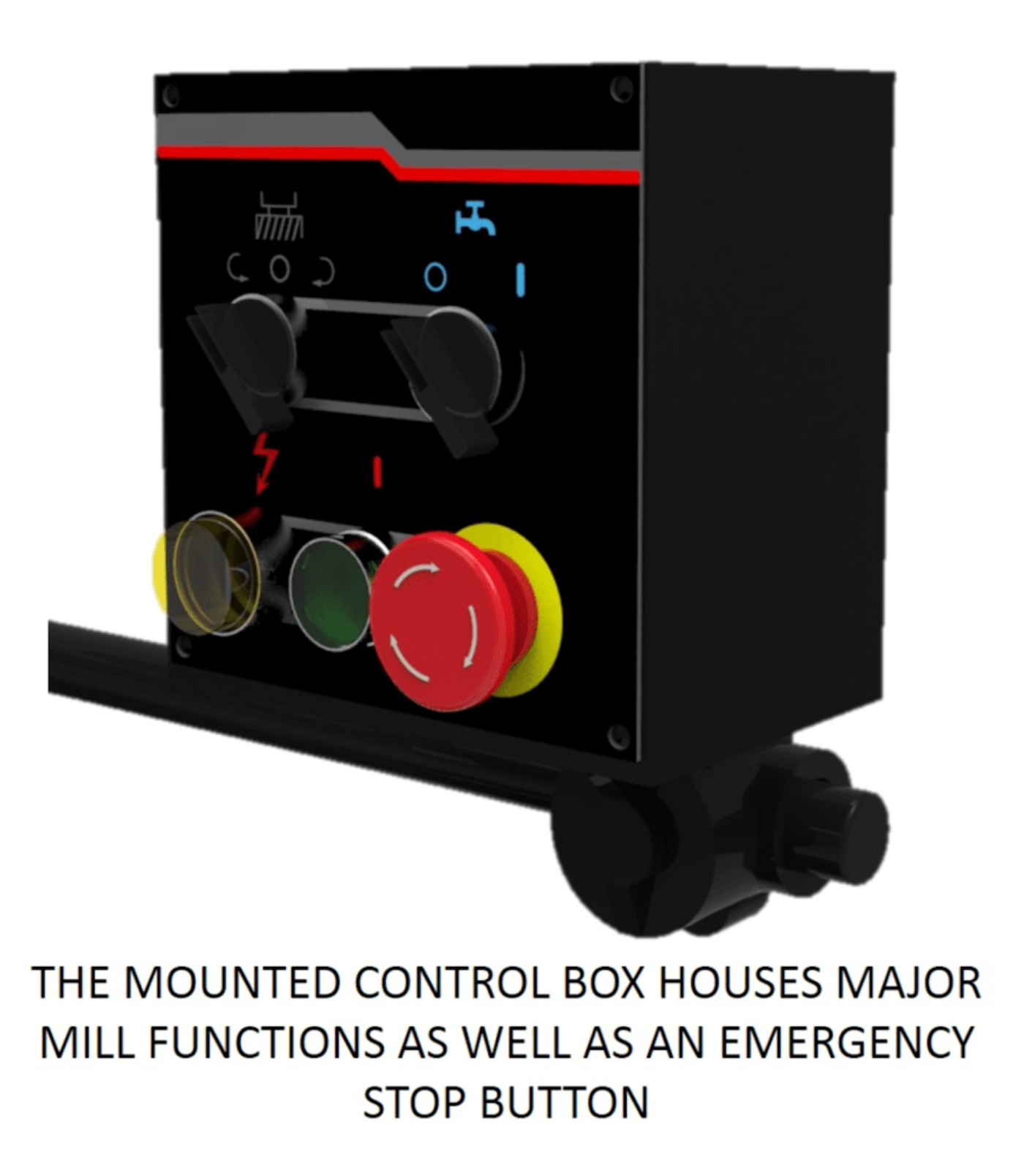

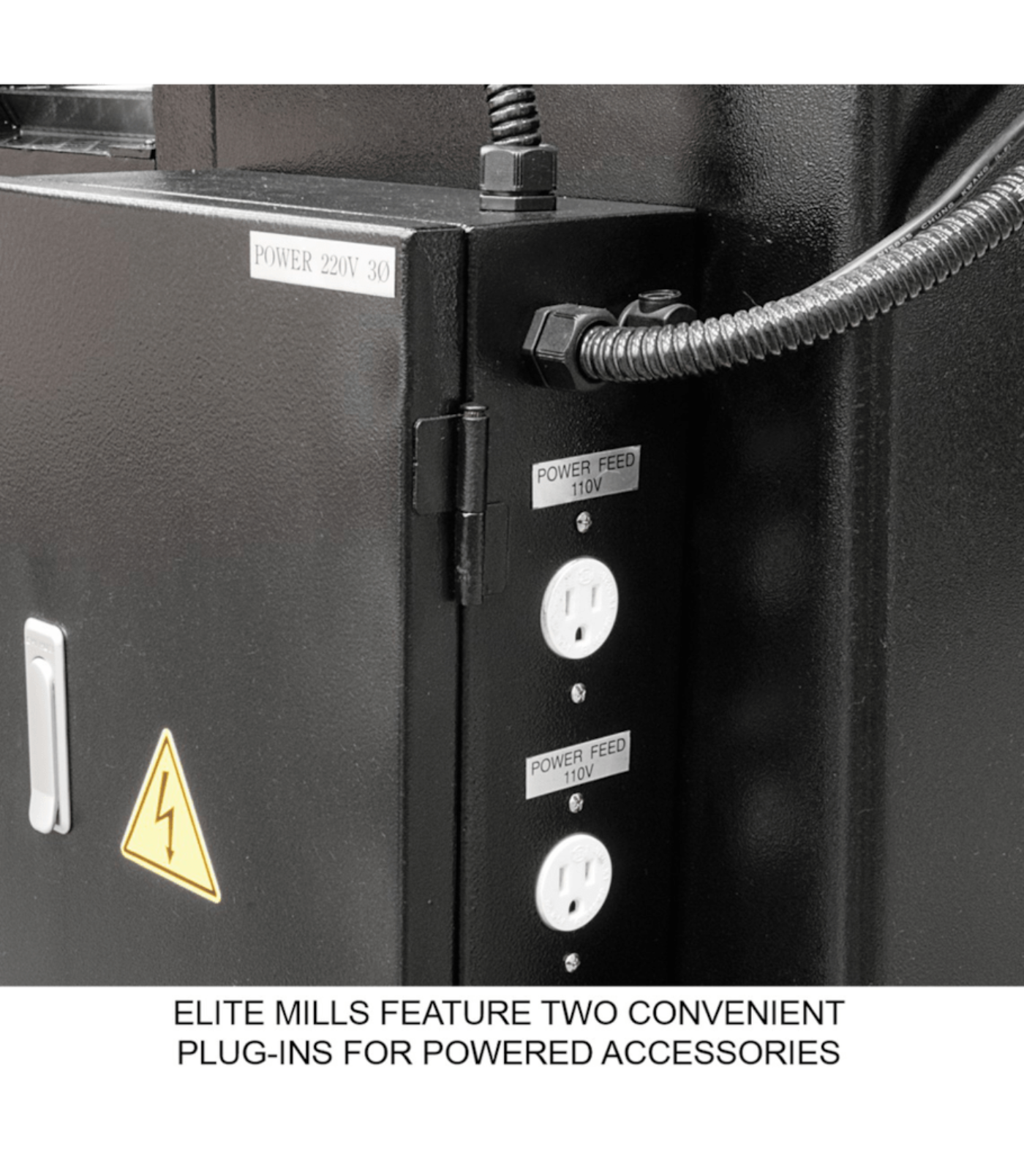

- The mounted control box houses major mill functions as well as an emergency stop button

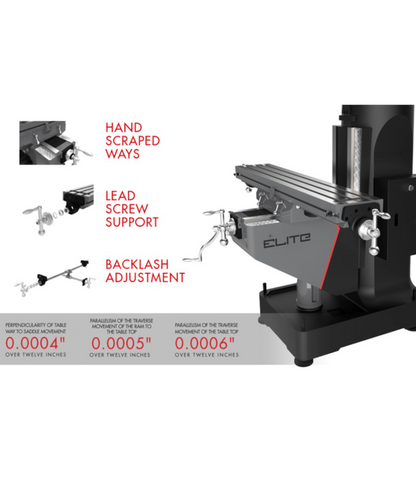

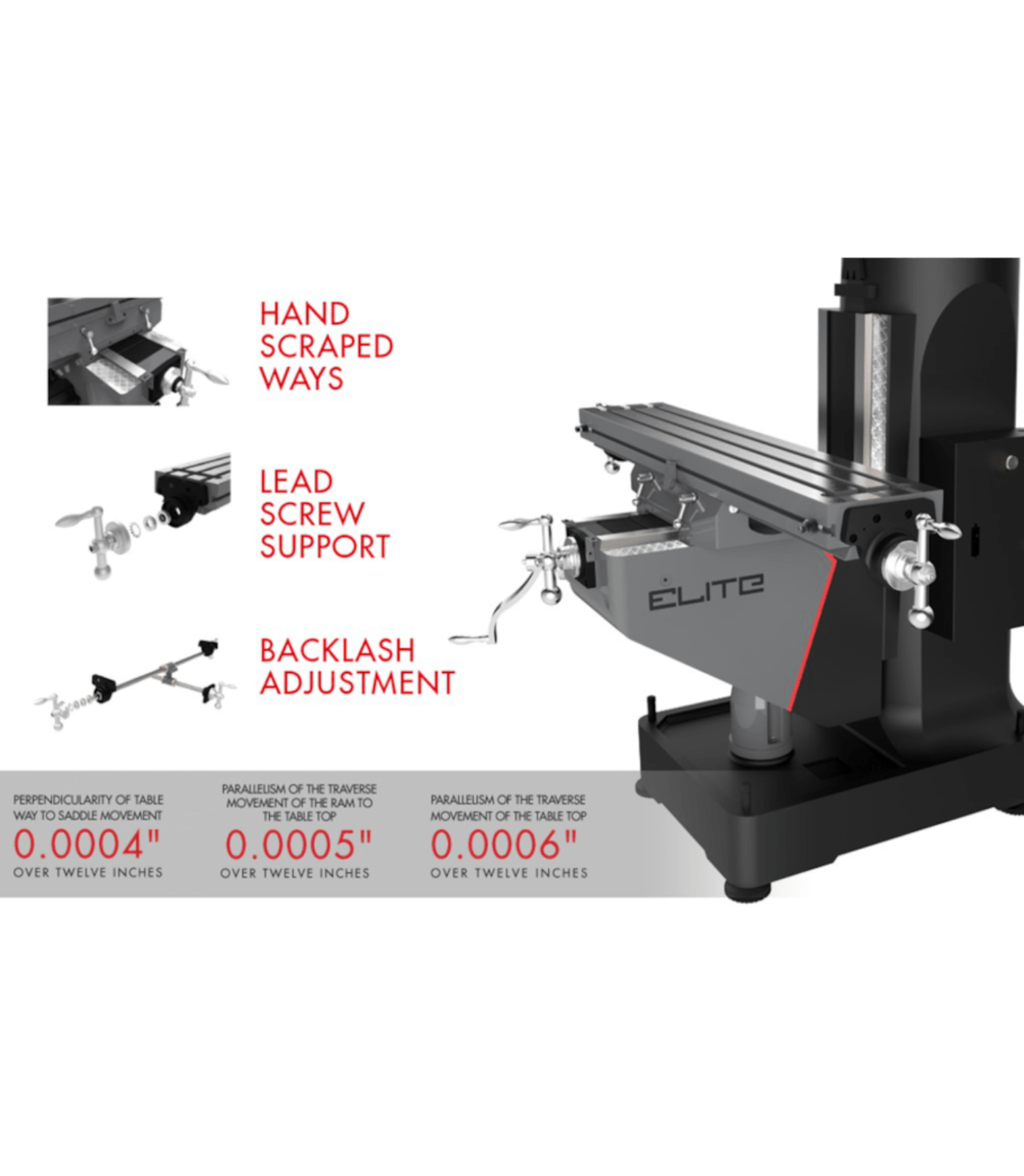

- The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements

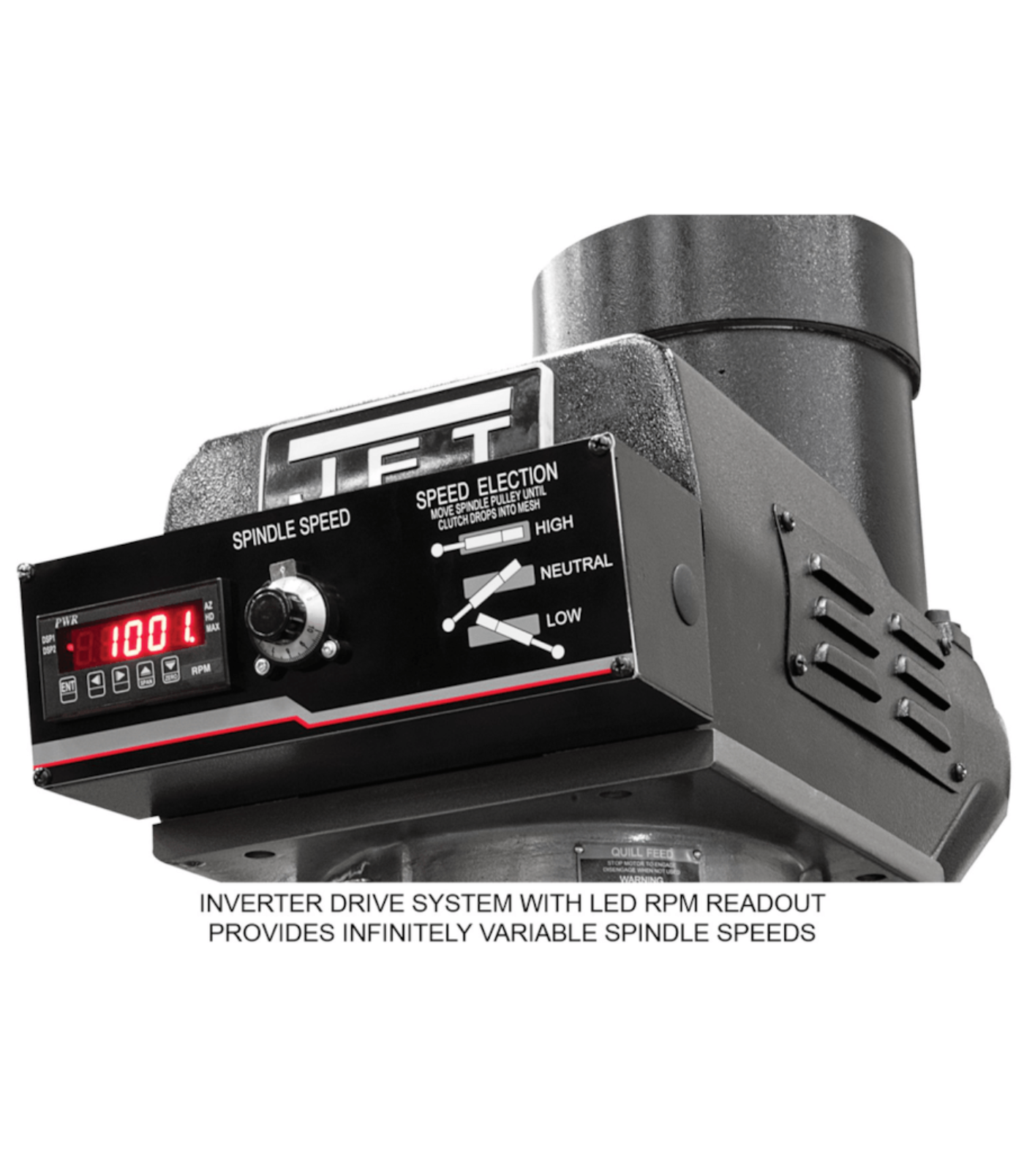

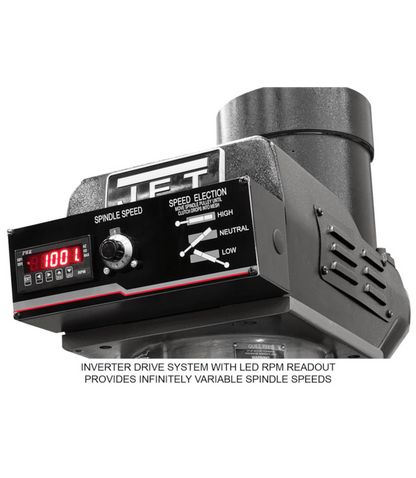

- Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
Specifications
| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |
| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

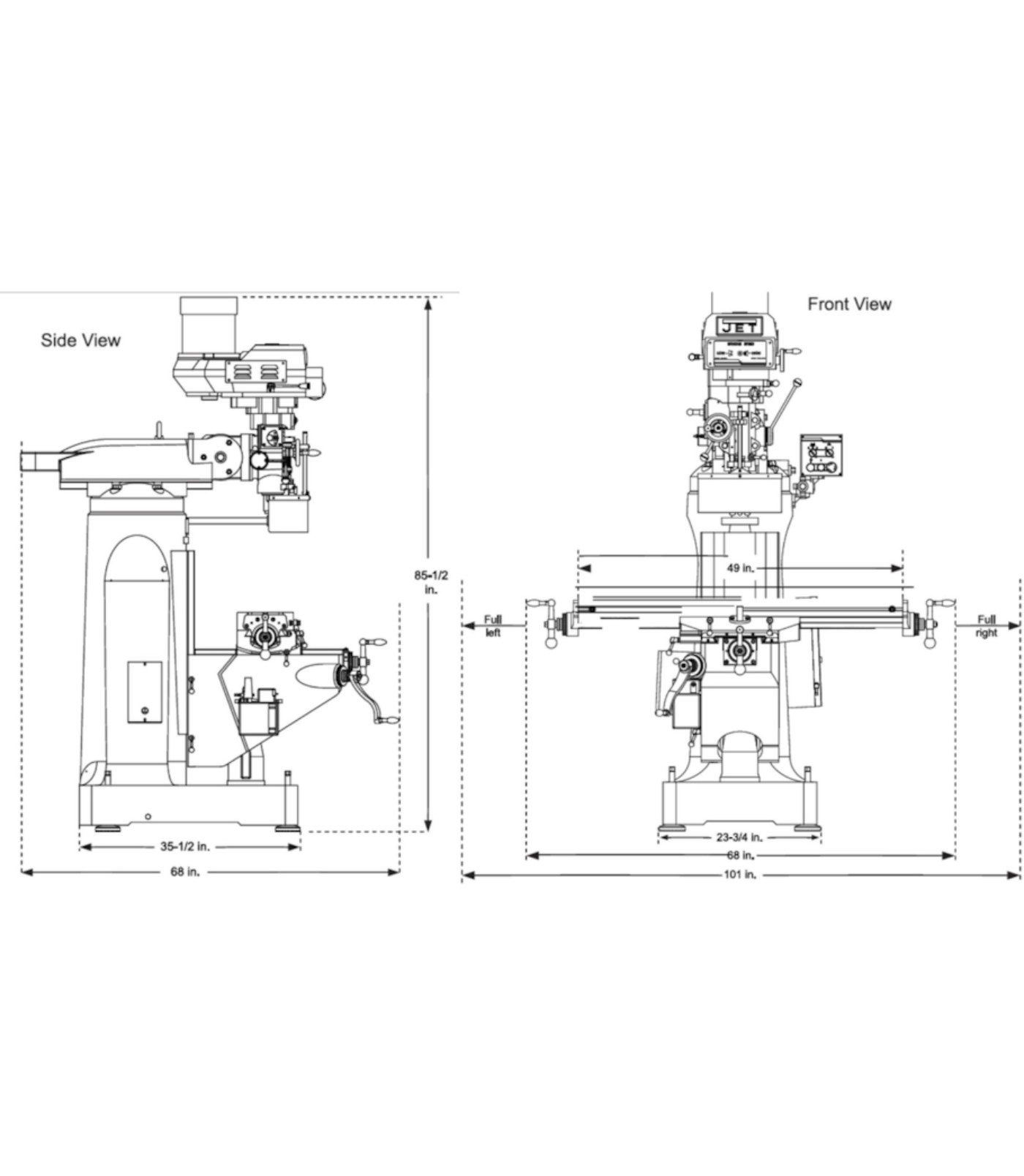

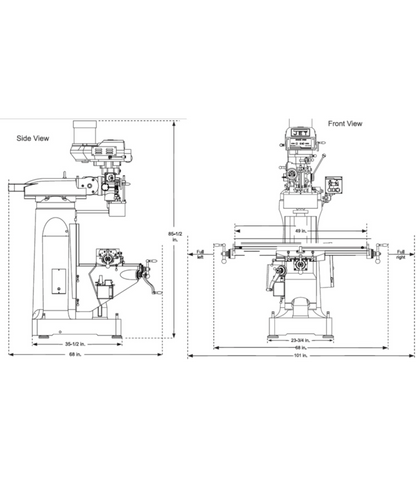

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
3-axis milling with X, Y, Z control provides full versatility for precise machining tasks.
-
ACU-RITE 303 quill DRO delivers advanced, accurate digital readouts for high-precision operations.
-
Variable speed spindle adapts to a wide variety of materials and milling processes.
-
Rigid cast-iron construction minimizes vibration, ensuring stability, accuracy, and long-term durability.
Q&A
Q: What type of mill is the JET Elite EVS-949?
A: It’s a 9x49 electronic variable speed (EVS) milling machine equipped with a 3-axis ACU-RITE 303 DRO for quill measurements.
Q: What does the 3-axis ACU-RITE 303 (Quill) DRO provide?
A: It delivers precise, real-time measurements for X, Y, and Z axes, enhancing accuracy, repeatability, and machining efficiency.
Q: What is the milling capacity?
A: The mill offers 9-inch width travel and 49-inch longitudinal travel, suitable for medium to large workpieces.
Q: How is spindle speed controlled?
A: Electronic variable speed control allows precise adjustments for different materials and milling operations.
Q: Where is this mill best used?
A: Ideal for machine shops, prototyping, and production facilities requiring high-precision, reliable milling.
Maintenance Tips
-
Clean table, spindle, and quill surfaces after each use to remove chips and coolant residue.
-
Lubricate slides, bearings, lead screws, and quill components per the manufacturer’s recommended schedule.
-
Keep ACU-RITE 303 DRO scales and sensors free from dust and debris for accurate readings.
-
Inspect X, Y, and Z-axis drives regularly for smooth, precise operation.
-
Check belts, gears, and drive components for wear, proper tension, and alignment.
-
Tighten fasteners, tool holders, and attachments to maintain rigidity and machining accuracy.
-
Verify spindle and quill alignment for precise milling performance.
-
Schedule routine professional servicing to extend machine life and maintain peak performance.
