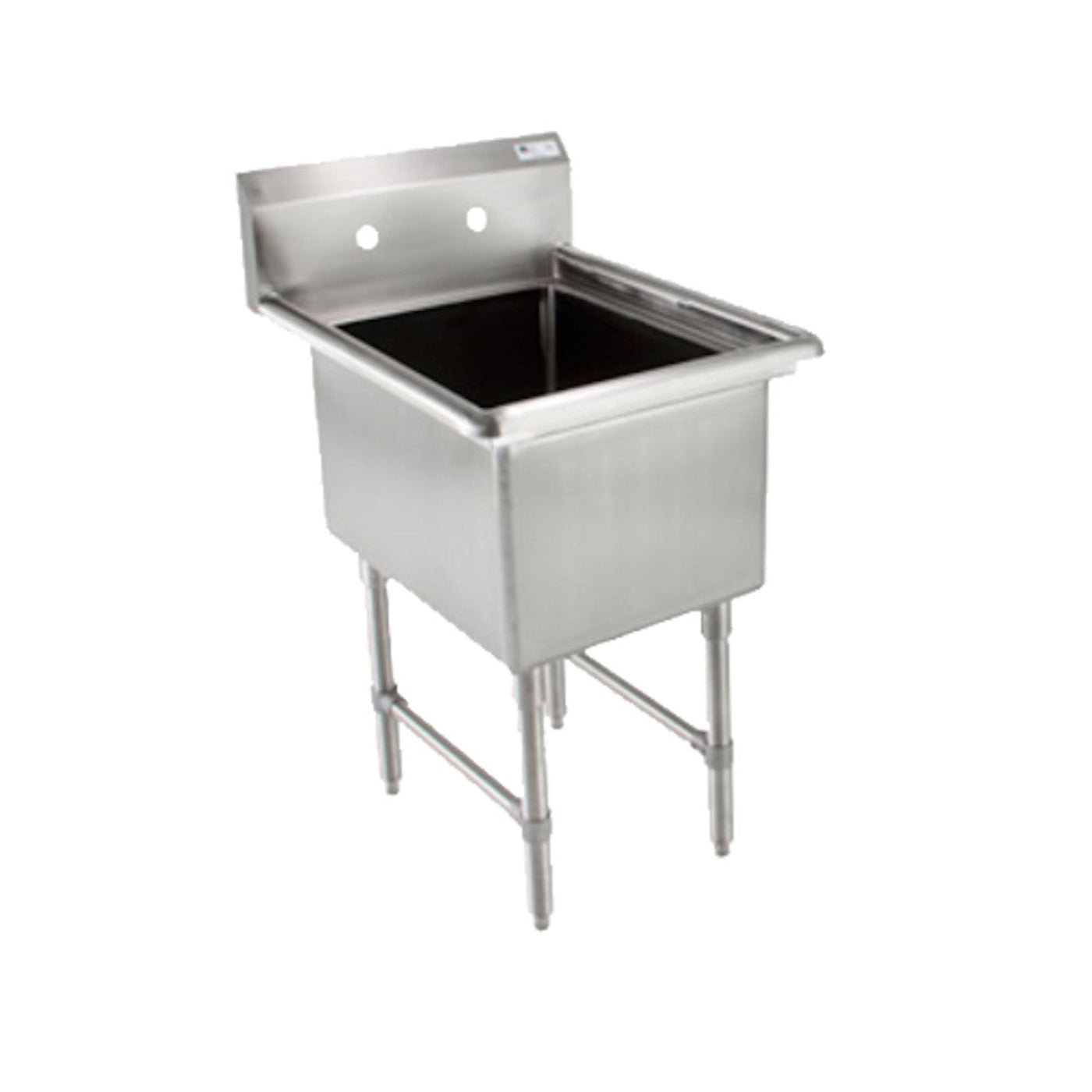

John Boos 1B16204 One-Compartment "B" Series Sink
This John Boos 1B16204 is ideal for washing hands, rinsing foods, or filling water containers. With a single compartment design, this John Boos Sink is made for light duty applications. Its design, however, is engineered to withstand almost any type of environment. With a 16 gauge stainless steel construction, it is built to withstand commercial and industrial environments. It has a stainless steel top, tig welded and polished with a #4 satin finish. Its stainless steel bowl is 14" deep with all its corners coved at a 3/4" radius. The bottom of the sink bowl has a 3-1/2" diameter die stamped opening to aid drainage. Its 10" high boxed backsplash protects the walls and surrounding surfaces from potential water damage. The backsplash has 1-1/8" faucet holes (Faucet not included). This 1B16204 has bull-nosed outside corners to provide a safe, clean, and polished edge.
Features
- 16 gauge stainless steel bowl and top
- Type 300 stainless steel with #4 polish, satin finish
- 14" deep bowls
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45-degree
- 1" turned down rear lip
- 1-1/8" faucet holes in backsplash
- All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
- Standard stainless steel legs are 1-5/8" in diameter
- Stainless steel sink tops are tig welded
- Exposed welds are polished to match adjacent surfaces
- Stainless steel frame is mig welded
- 1-1/4" Round O.D. stainless steel bracing
- Stainless steel gussets
- 1" adjustable bullet feet
Specifications
| Model |
1B16204 |
| Dimensions |
43" H × 21" W × 25.5" D |
| Approximate Weight |
44 lbs |
What our Experts Think
-
Durable Stainless Steel: High-quality construction ensures long-lasting performance.
-
Floor-Mounted Design: Provides stability for heavy-duty cleaning tasks.
-
Spacious 24" x 24" Basin: Accommodates mop cleaning and other janitorial needs efficiently.
-
Easy to Clean: Smooth stainless steel surface resists stains and simplifies maintenance.
-
Professional & Practical: Perfect for commercial kitchens, janitorial closets, and industrial spaces.
Q&A
Q: What are the dimensions of the PBMS2424-6 mop sink?
A: Designed with a 24" x 24" basin, providing ample space for mop buckets and cleaning tasks.
Q: What material is it made from?
A: Constructed from high-quality stainless steel for durability, corrosion resistance, and easy cleaning.
Q: Is it suitable for commercial use?
A: Yes, ideal for restaurants, cafeterias, commercial kitchens, and industrial cleaning areas.
Q: How is it installed?
A: Floor-mounted design allows secure installation with standard plumbing connections.
Q: Does it include additional features?
A: Reinforced structure and splash guards provide enhanced functionality and durability.
Q: What makes it unique?
A: Combines professional-grade construction with hygiene, reliability, and ease of maintenance for commercial cleaning.
Maintenance Tips
-
Clean the sink regularly with warm, soapy water; rinse and dry thoroughly.
-
Avoid abrasive pads or harsh cleaners to protect the stainless steel surface.
-
Sanitize periodically with a food-safe or commercial sanitizer to maintain hygiene.
-
Check drains, faucets, and fittings regularly to prevent clogs or leaks.
-
Inspect floor anchors and mounting hardware periodically for secure installation.
-
Do not use the sink to dispose of harsh chemicals that could damage the surface.
