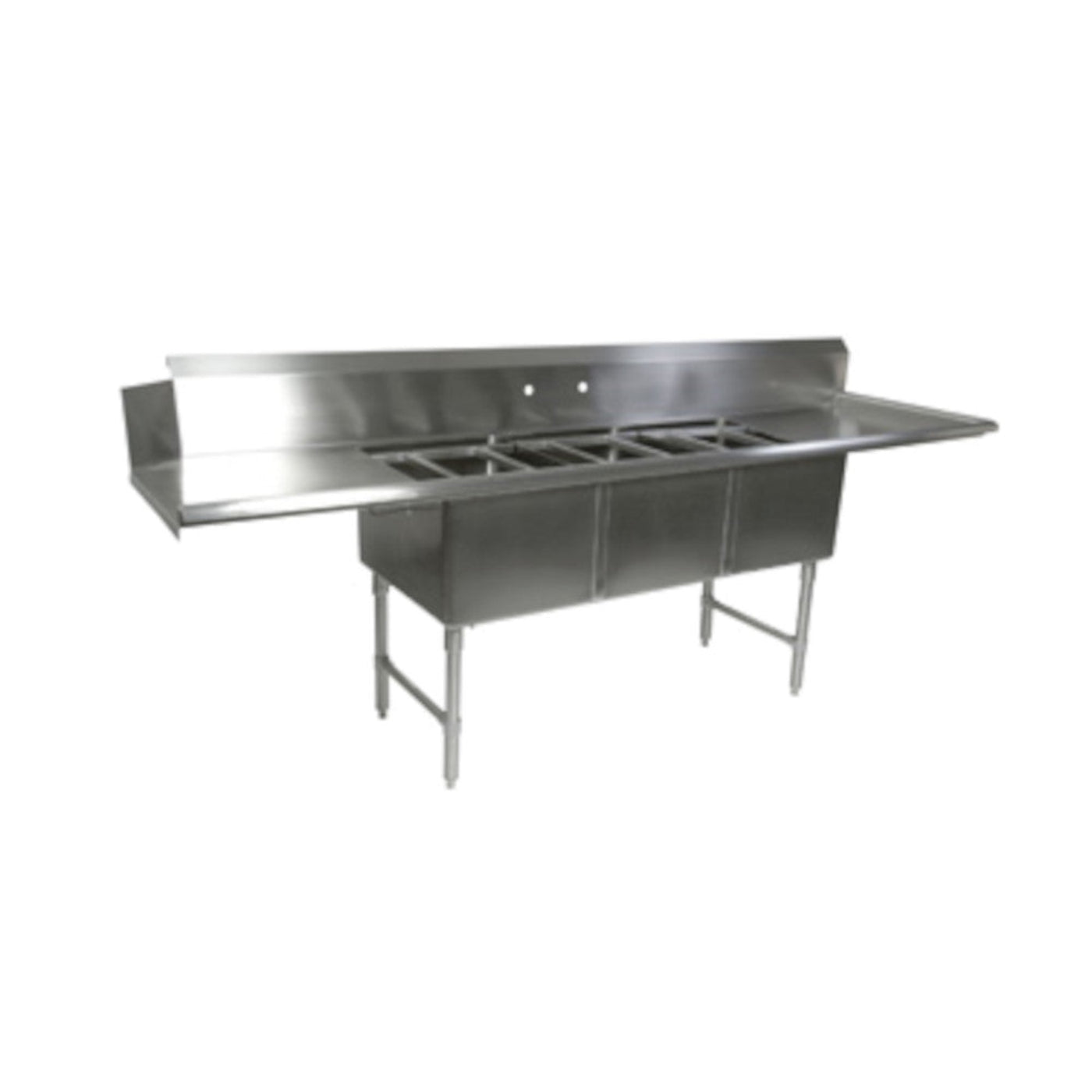

John Boos DT3B244-2D24R 121.5"W x 30"D Dishtable/Pot Sink with Two Drainboards
This John Boos DT3B244-2D24R Dishtable / Pot Sink is durable, easy to use, and perfect for commercial or industrial applications. With a 16 gauge stainless steel construction, it's top and bowls have been finished with a #4 satin polish. It has stainless steel legs, gussets, feet, and bracing. Its corners have been coved at a 3/4" radius. The sink tops are TIG welded and the bases are MIG welded. The exposed welds have been polished to match the adjacent surfaces. This DT3B244-2D24R has a 3-1/2" diameter die stamped opening in the bottom of the bowls to aid drainage. While the backsplash does have 8" on-center with 1-1/8" faucet holes, this Dishtable / Pot Sink does not come with a faucet. (Faucet must be purchased separately).
Features
- (3) sink compartments
- (2) 24" drainboards
- Dish machine attachment on left side
- 16 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- 14" deep bowls
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45 degree
- 1" turned down rear lip
- 8" on-center with 1-1/8" faucet holes in backsplash
- All outside corners of assembly are bull-nosed
- Bull-nosed corners provide safe, clean, and polished edge
- Standard stainless steel legs are 1-5/8" in diameter
- Legs located directly under sink bowls, providing increased stability and max weight support
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surface
- Stainless steel bases are MIG welded
- Material
- 16 gauge type 300 stainless steel bowls and top with #4 polish, satin finish
- 1-5/8" Round O.D. stainless steel legs
- 1-1/4" Round O.D. stainless steel bracing
- Stainless steel gussets
- 1" adjustable stainless steel bullet feet
Specifications
| Model |
DT3B244-2D24R |
| Compartment Dimensions |
24" W x 24" front-to-back x 14" D |
| Overall Dimensions |
36" H x 121.5" W x 30" D |
| Approximate Weight |
550 lbs. |
What our Experts Think
-
Three-Compartment Design – Ideal for washing, rinsing, and sanitizing pots, pans, and dishes.
-
Two Drainboards – Provides ample space for drying and staging items on both sides.
-
Spacious 121.5" x 30" Surface – Supports high-volume kitchen operations.
-
Durable Stainless Steel Construction – Built for heavy-duty commercial use.
-
John Boos Reliability – Professional craftsmanship ensures long-lasting performance.
Q&A
Q: What are the dimensions of this John Boos dishtable?
A: It measures 121.5" wide x 30" deep, providing a large surface for dish and pot handling.
Q: What type of sink is included?
A: It’s a dishtable/pot sink with a single large compartment for washing dishes or pots efficiently.
Q: How many drainboards does it have?
A: It features two 24" drainboards for drying dishes or staging prep work.
Q: What material is it made from?
A: Constructed from stainless steel for durability, hygiene, and easy cleaning.
Q: Is this table suitable for commercial kitchens?
A: Yes, ideal for restaurants, cafeterias, and institutional kitchens requiring large dishwashing stations.
Maintenance Tips
-
Rinse sink and both drainboards after each use to prevent residue buildup.
-
Clean with mild soap and warm water; avoid harsh chemicals or abrasives.
-
Dry thoroughly to reduce water spots and prevent corrosion.
-
Use stainless steel polish weekly to maintain shine and protection.
-
Keep drains and seams clear to prevent clogs and bacterial growth.
-
Inspect welds, legs, and fasteners regularly for stability and durability.
