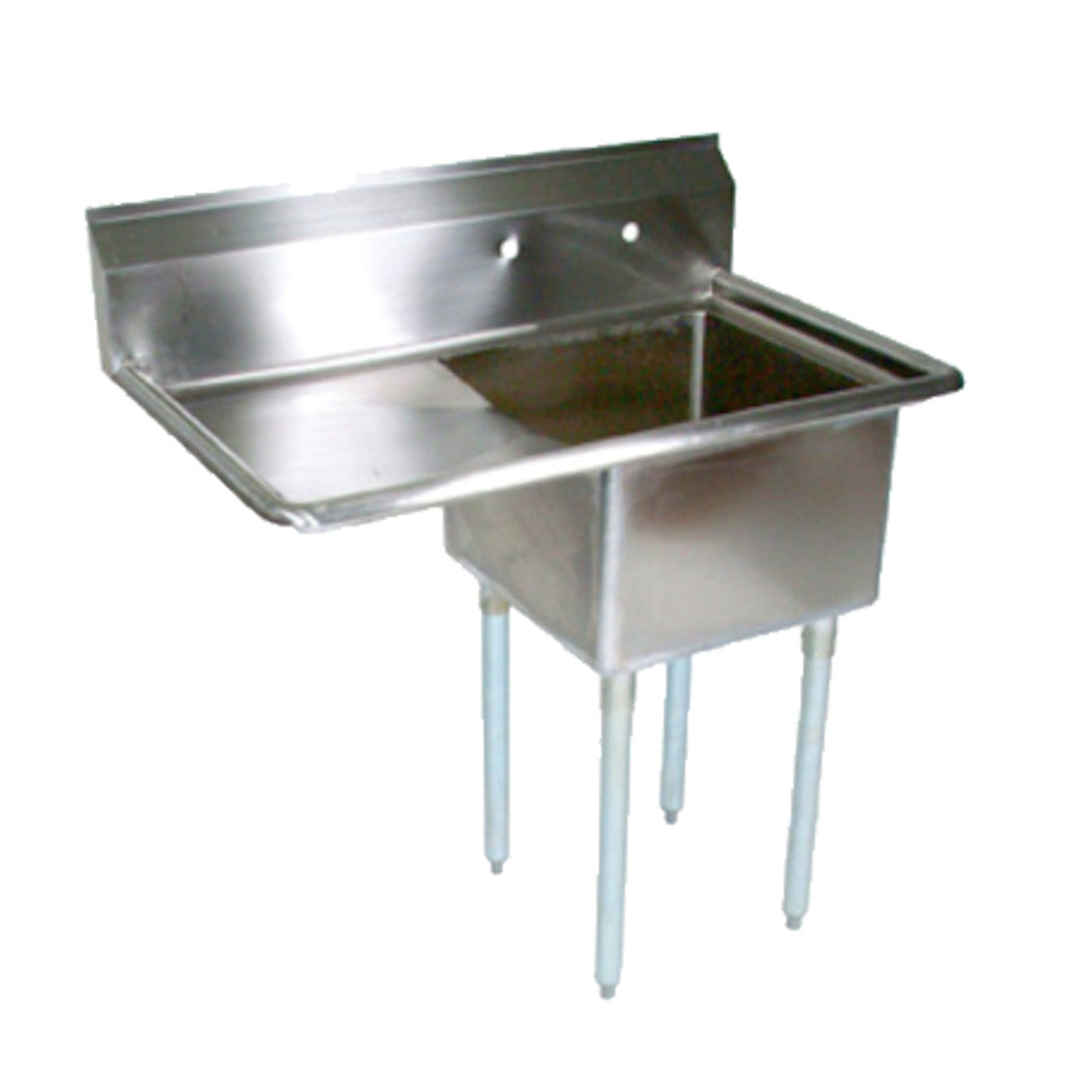

John Boos E1S8-1824-14L24 One-Compartment E-Series Sink with 24" Left Drainboard
This John Boos E1S8-1824-14L24 E-Series Sink is durable, easy to use, and designed for commercial or industrial applications. It has a stainless and galvanized steel construction with an 18 gauge type 300 stainless steel bowl and top. Both the bowl and top have been polished with a #4 satin finish. The legs, base, and gussets are galvanized steel. The adjustable bullet feet are made of plastic. This E1S8-1824-14L24 E-Series Sink has a full length 10" high boxed backsplash. It has 1" faucet holes in the backsplash, but the faucet is not included. Faucet must be purchased separately.
Features
- (1) sink compartment
- (1) 24" left drainboard
- 18 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45-degrees
- 1" tile edge
- 1" faucet holes in backsplash
- All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
- Standard galvanized legs are 1-5/8" in diameter
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surfaces
- Galvanized steel base
- Material
- 18 gauge type 300 stainless steel top and bowls with #4 polish, satin finish
- 1-5/8" Round O.D. galvanized steel legs
- Galvanized steel gussets
- 1" plastic bullet feet
Specifications
| Model |
E1S8-1824-14L24 |
| Compartment Dimensions |
18" W x 24" front-to-back x 14" D |
| Overall Dimensions |
43.75" H x 44.5" W x 29.5" D |
| Approximate Weight |
58 lbs. |
What our Experts Think
-
Single-Compartment E-Series Sink – Efficient for washing, rinsing, and prep tasks.
-
24" Left Drainboard – Provides convenient space for drying and staging dishes.
-
Durable Stainless Steel – Built for heavy-duty commercial kitchen use.
-
Compact & Efficient – Fits neatly into smaller kitchen layouts.
-
John Boos Quality – Professional-grade craftsmanship ensures long-lasting performance.
Q&A
Q: What are the dimensions of this John Boos sink?
A: It features one compartment measuring 18" x 24" x 14" with a 24" left-side drainboard for added workspace.
Q: What material is it made from?
A: Constructed from durable stainless steel for long-lasting use, hygiene, and easy cleaning.
Q: What is the purpose of the drainboard?
A: The 24" left drainboard provides space for drying dishes or staging prep items.
Q: Is this sink suitable for commercial kitchens?
A: Yes, it’s ideal for restaurants, bars, and foodservice operations needing efficient dishwashing solutions.
Q: Does it meet NSF standards?
A: Yes, it is NSF-certified for foodservice use and health code compliance.
Maintenance Tips
-
Rinse sink and drainboard after each use to prevent residue buildup.
-
Clean with mild soap and warm water; avoid harsh chemicals or abrasives.
-
Dry thoroughly to reduce water spots and prevent corrosion.
-
Use stainless steel polish weekly to maintain shine and durability.
-
Keep drain and seams clear to prevent clogs and bacterial growth.
-
Inspect welds, legs, and fasteners regularly for stability and long-term durability.
