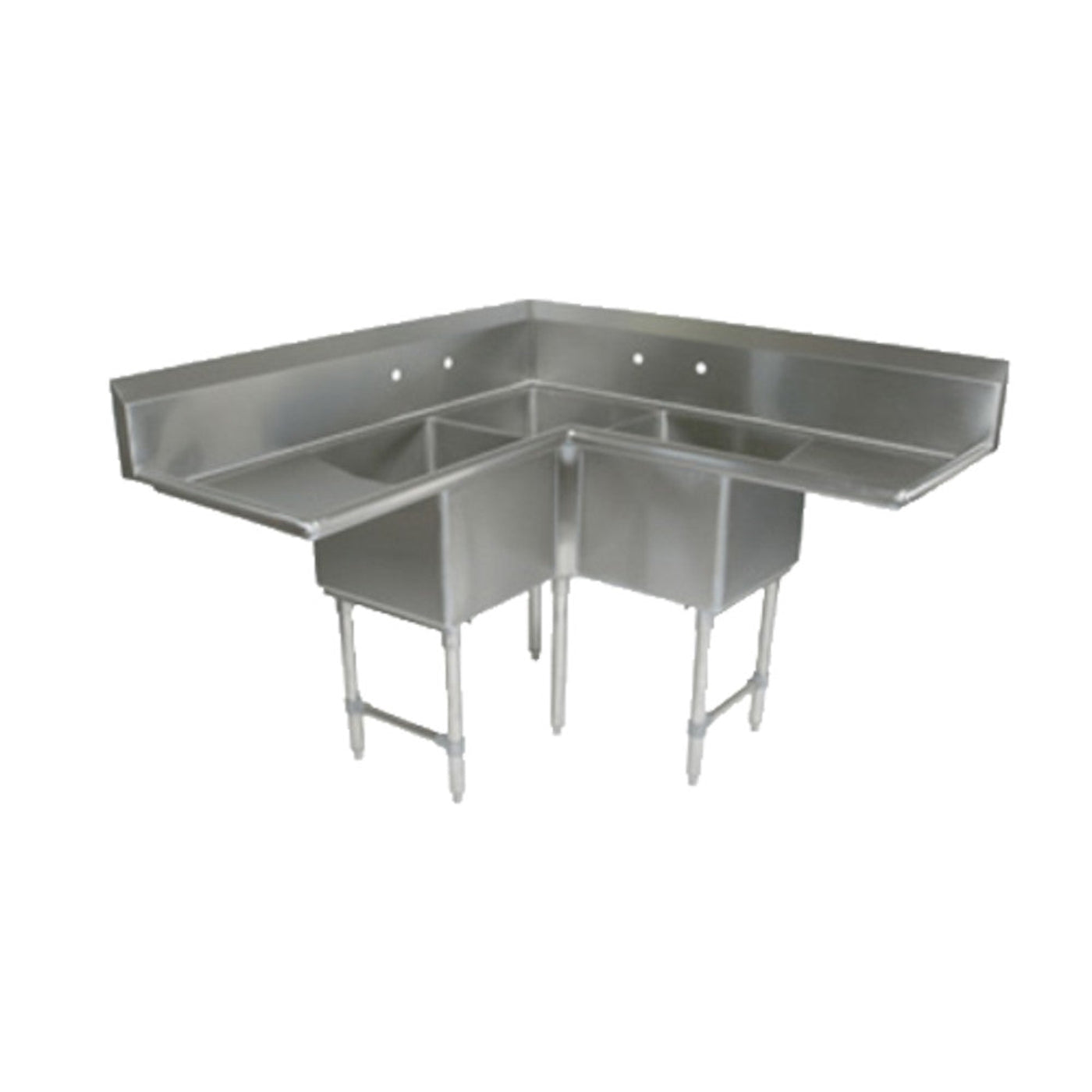

John Boos E3BCS-244-2D24 Three-Compartment Corner Sink, Two 24" Drainboards
This John Boos E3BCS-244-2D24 Three-Compartment Sink is perfect for commercial and industrial applications. With a stainless steel and galvanized steel construction, it is durable and easy to maintain. Its bowls and sink tops are made of 18 gauge type 300 stainless steel and have a #4 polish, satin finish. The corners have been coved at 3/4" radius. The bottom of each bowl is formed for drainage to a 3-1/2" diameter die stamped opening. This E3BCS-244-2D24 has a 9" high boxed backsplash with a 2" return to the wall at 45-degrees. Its backsplash has 8" O.C. faucet holes and 1-1/8" faucet holes. This Sink's outside corners have been bull-nosed to provide safe, clean, and polished edges.
Features
- (3) sink compartments
- (2) 24" left and right drainboards
- Corner design
- 18 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- 14" deep bowls
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- 9" high boxed backsplash with 2" return to wall at 45-degree
- 8" O.C. faucet holes in backsplash
- 1-1/8" faucet holes in backsplash
- All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
- Galvanized legs are 1-5/8" in diameter
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surfaces
- Galvanized frame is MIG welded
- Material
- 18 gauge type 300 stainless steel with #4 polish, satin finish bowls and top
- 1-5/8" Round O.D galvanized legs
- 1-1/4" Round O.D. stainless steel bracing
- Galvanized gussets
- 1" adjustable plastic bullet feet
Specifications
| Model |
E3BCS-244-2D24 |
| Compartment Dimensions |
24" W × 24" front-to-back × 14" D |
| Overall Dimensions |
43.75" H × 75" W × 29.5" D |
| Approximate Weight |
134 lbs |
What our Experts Think
-
Space-Saving Design: Corner configuration maximizes kitchen layout efficiency.
-
Triple Compartments: Three bowls support washing, rinsing, and sanitizing simultaneously.
-
Added Convenience: Two 24" drainboards provide extra drying and staging space.
-
Durable Build: Stainless steel construction ensures long-lasting strength and easy cleaning.
-
Professional Grade: Perfect for restaurants, bars, and foodservice facilities needing high-volume sink capacity.
Q&A
Q: How many compartments does this sink have?
A: It includes three spacious compartments, ideal for washing, rinsing, and sanitizing.
Q: Does it feature drainboards?
A: Yes, it comes with two 24" drainboards for added workspace and drying efficiency.
Q: What material is it made from?
A: Built from durable stainless steel, it’s corrosion-resistant, sanitary, and easy to maintain.
Q: What makes this sink unique?
A: Its corner design saves space while maximizing workflow in busy kitchens.
Q: Where is this sink best used?
A: Perfect for restaurants, catering operations, and commercial kitchens needing an efficient corner sink solution.
Maintenance Tips
-
Clean stainless steel surfaces with mild soap and warm water; dry thoroughly to prevent water spots.
-
Sanitize sink compartments regularly to maintain hygiene.
-
Avoid harsh chemicals or abrasive pads that may scratch or corrode the finish.
-
Keep drainboards clean and dry to prevent buildup or staining.
-
Check plumbing connections often and tighten to prevent leaks.
-
Ensure the sink is level for proper drainage and stability.
-
Inspect welds and joints periodically for long-term durability.
