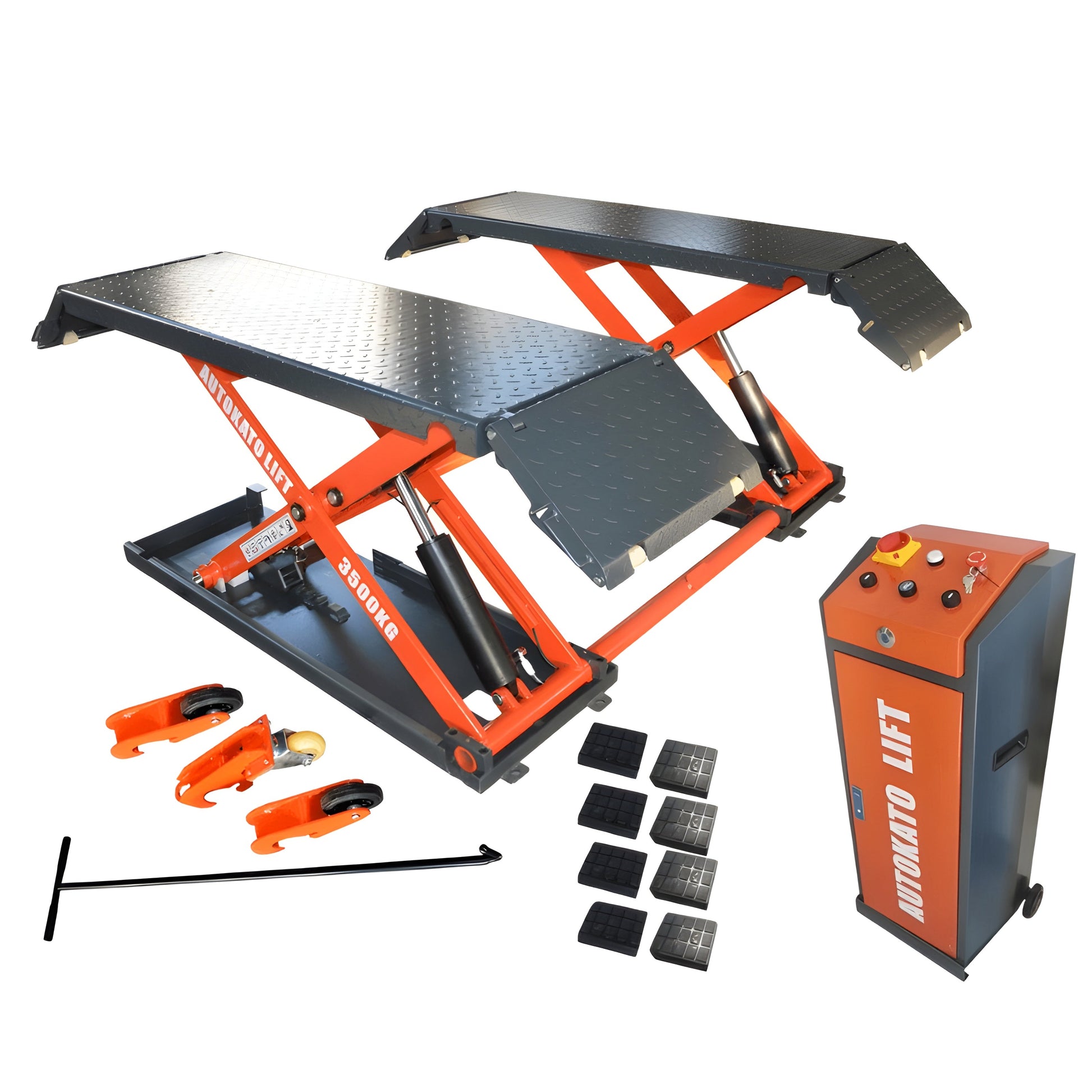

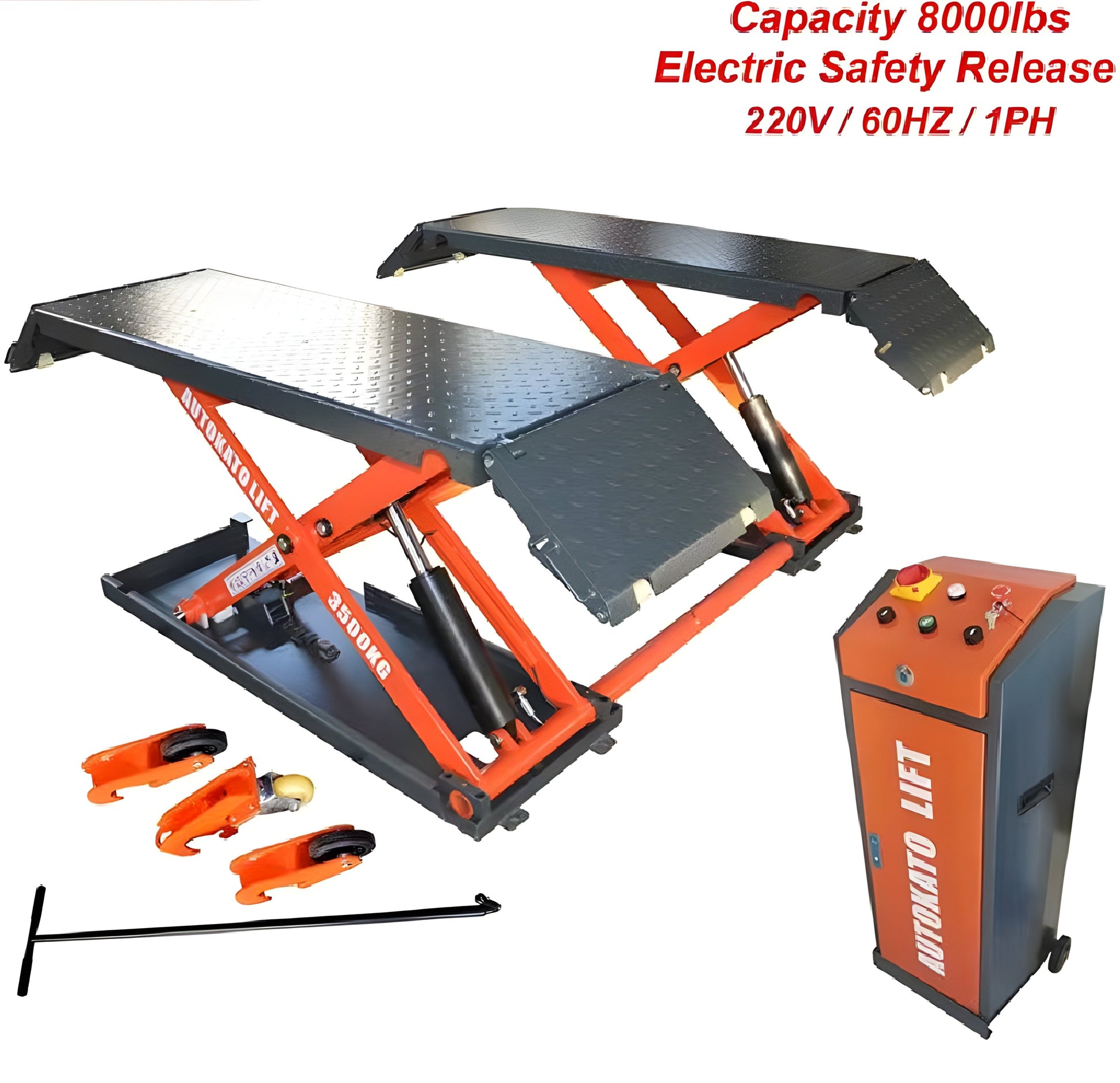

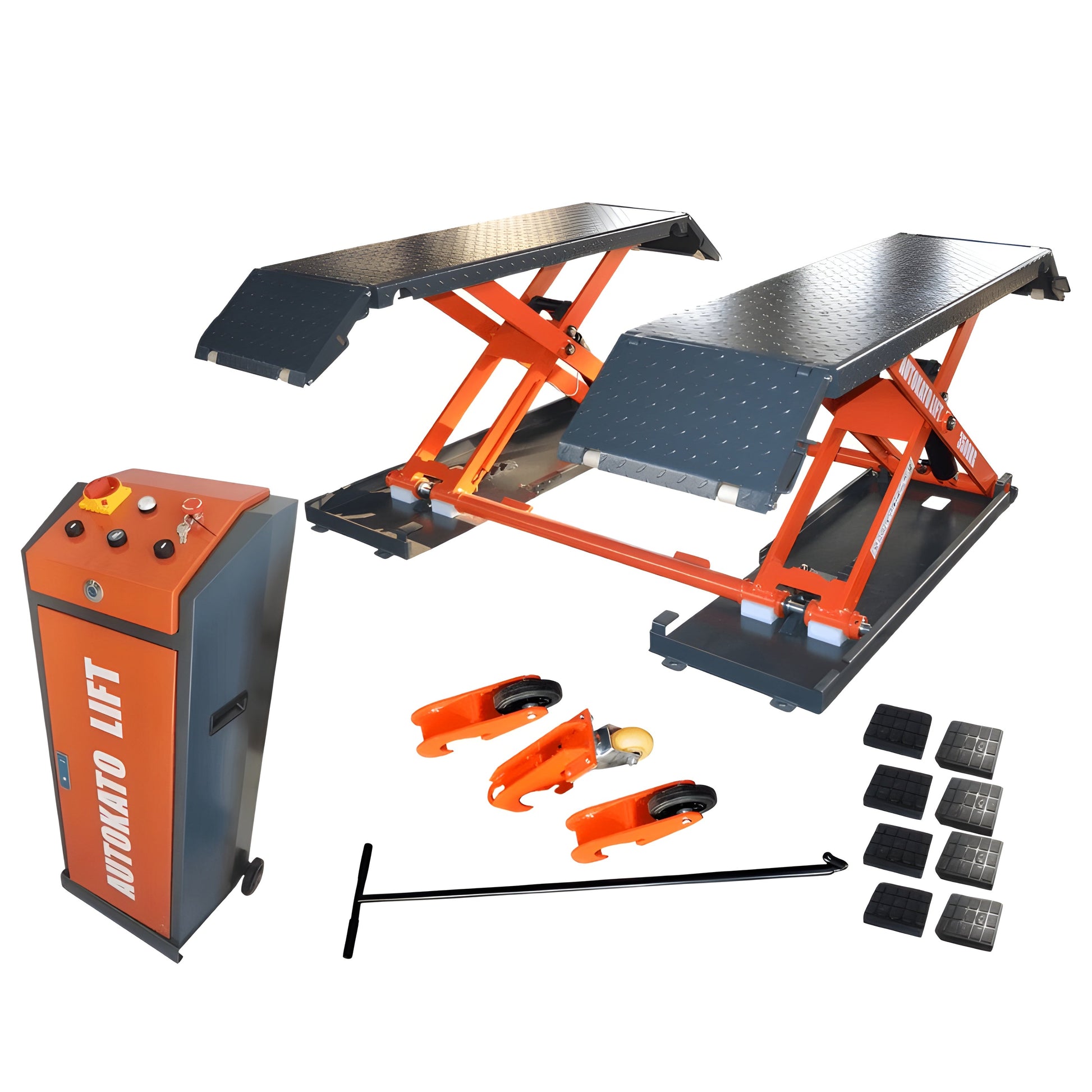

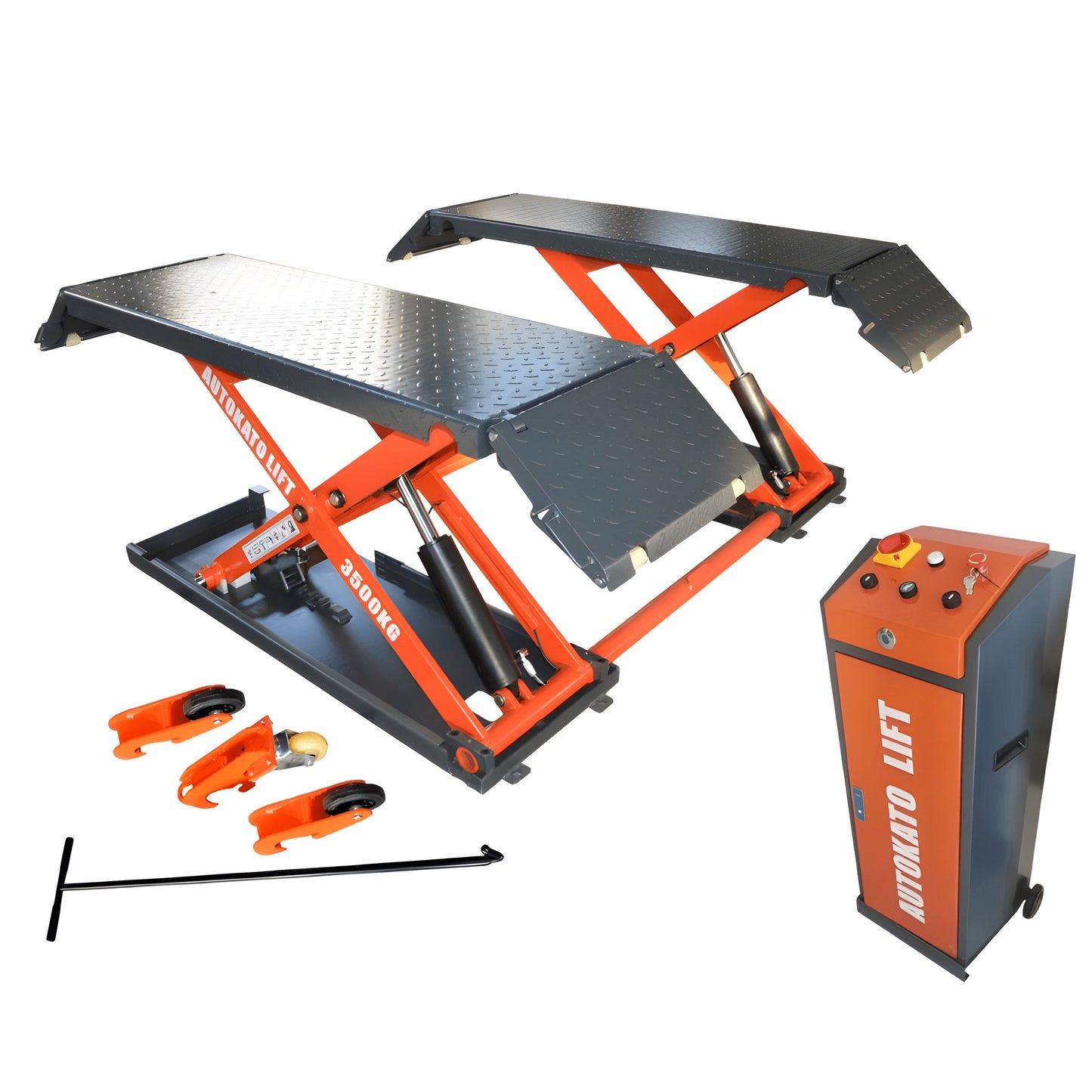

Katool KT-X85 8000lb Mid Rise Scissor Lift - Electric Lock - X85-110
Say goodbye to crawling on cold concrete and elevate your car care routine with the Katool KT-X85 Scissor Lift. Far beyond a standard jack stand, this heavy-duty lift boasts an impressive 8,000-pound capacity—more than enough to raise even the heaviest vehicles with ease. Need access underneath for maintenance or inspection? No problem. The KT-X85 adjusts smoothly from 4.25 to 40.15 inches, giving you optimal clearance and a more comfortable, efficient workspace.
The KT-X85 lift boasts a surprisingly compact design. Plus, it offers the flexibility of mobile or fixed mount options, adapting to your garage layout for maximum efficiency. We prioritize your safety with a secure 24V control system and a height limit switch to prevent over-lifting accidents. Featuring composite rubber lifting blocks and self-lubricated parts, this lift is in it for the long haul. This lift is CE-approved and certified, so you can rest assured it meets the highest safety standards. Invest in the Katool KT-X85 Scissor Lift today and transform your garage into a professional-grade workshop!
Specifications:
- Lifting Capacity: 8000lbs. (3500KG)
- Max. Lifting Height: 40.15"
- Min. Height: 4.25"
- Platform Length: 57"
- Length Overall: 83.5"
- Platform Width: 20.5"
- Width Overall: 76.75"
- Power: 110v (30amp) or 220v
- Net Weight: 1213lbs
- Oil: AW-46 or AW-32 (colder climates)
-

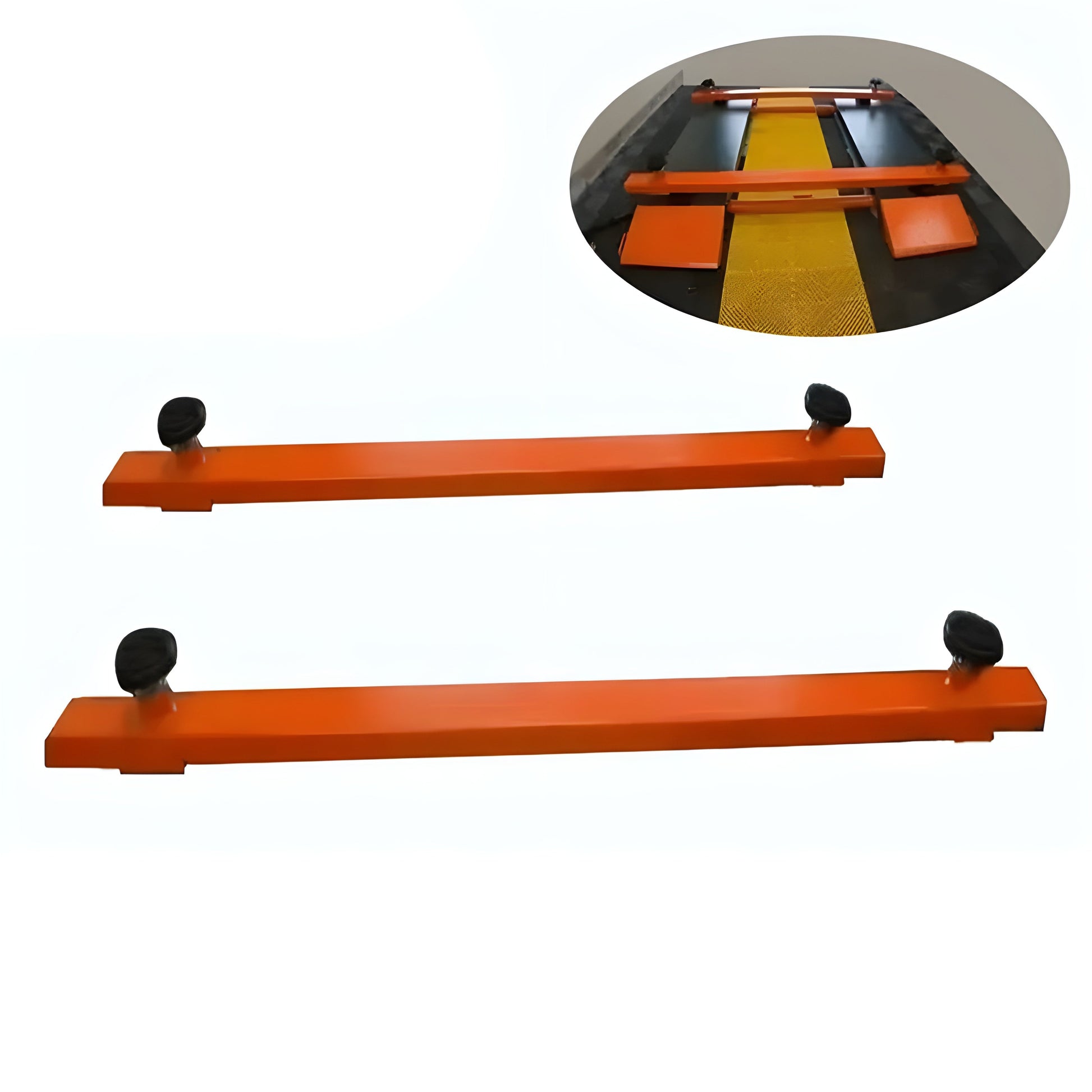

Optional: Support Bars
- Overall Length: 73"
- Pin Distance: 48" to 59" Wide
-
Adapter Height: 6.2" to 8" Tall
Features:
- 8000lbs(3500KG) lifting capacity
- Lock Style: Electric
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Mobile or fixed mount design
- Starting-up system design

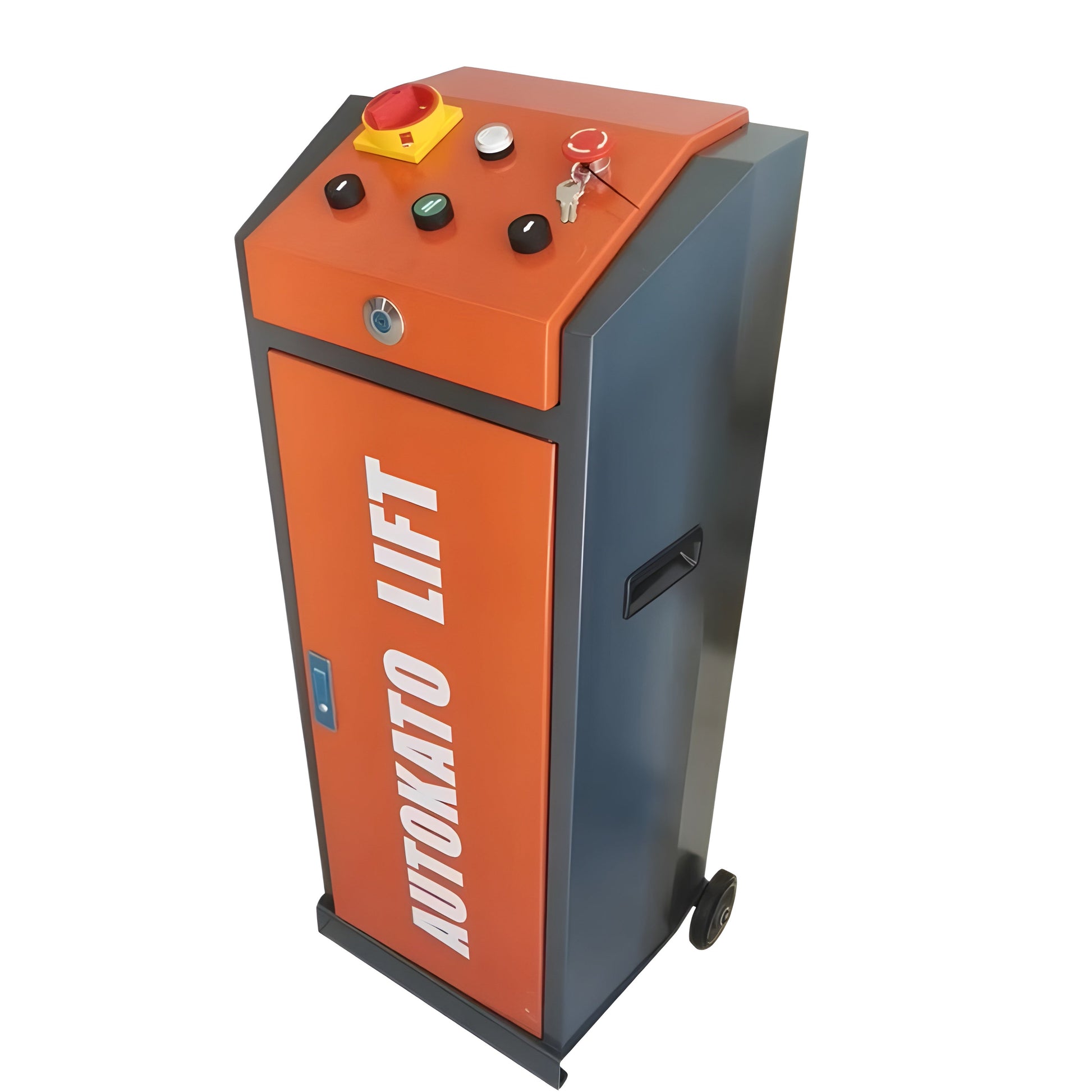

- 24V safe control system
- Height limit switch
- Composite rubber lifting blocks included
- Comes with self-lubricated bushing and bearing
- Drive-up ramps lock design as platform extension for long vehicles
- Includes: Caster Kit for Mobility
- Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating
- Katool Warranty:
- One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
- Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
- Optional: Support Bars - Sold Separately

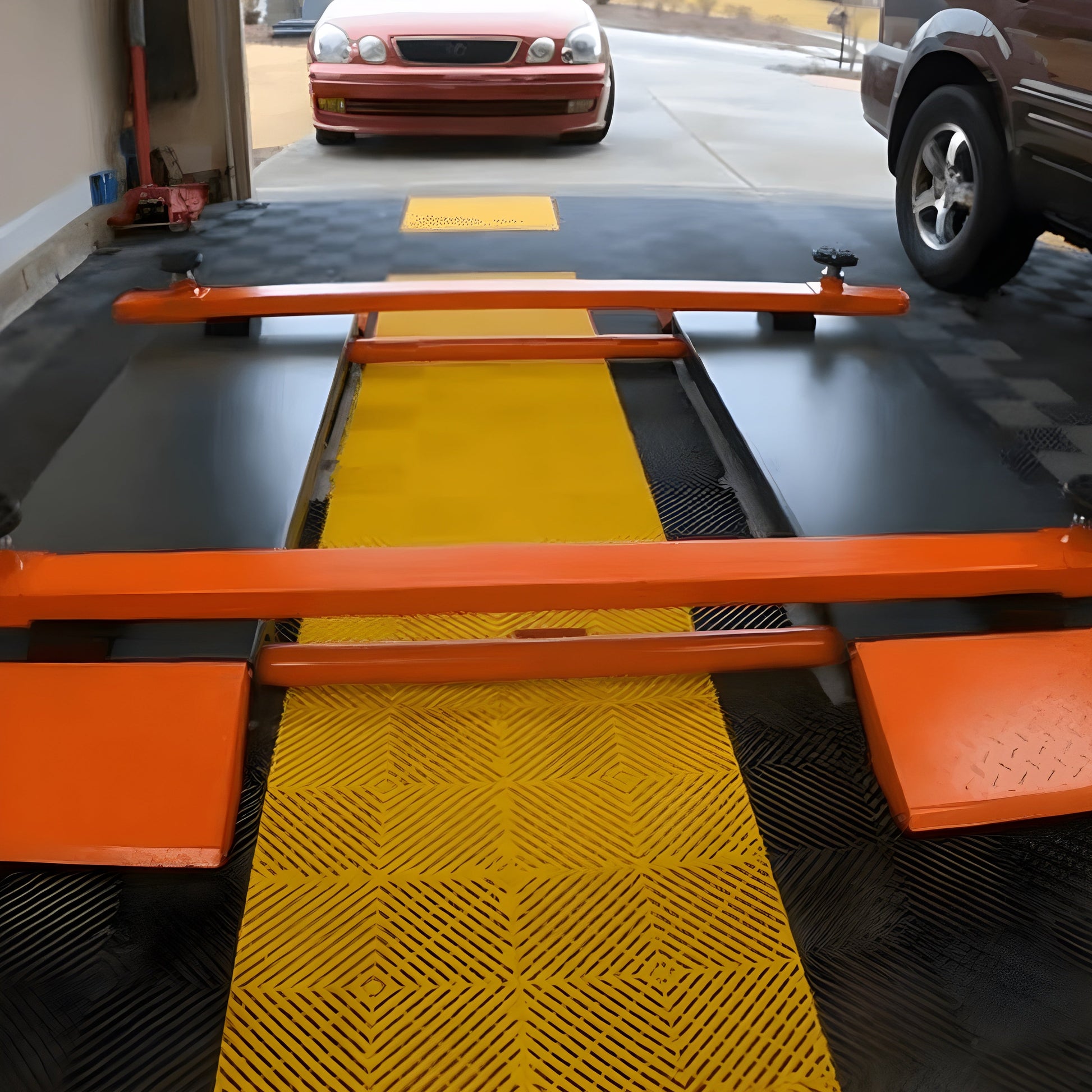

- Support Bars spread the weight out evenly and have more adjustment for lifting SUVs and full frame vehicles.
KT-X85 Manual
What Our Experts Think
-
Mid-rise scissor lift with 8,000 lbs lifting capacity for cars, SUVs, and light trucks
-
Electric lock system ensures safe and precise vehicle lifting
-
Compact, space-saving design ideal for small to medium-sized workshops
-
Provides full under-vehicle access for tire, brake, and suspension work
-
Durable steel construction built for daily professional use
Q&A
Q: What is the lifting capacity of the KT-X85?
A: 8,000 lbs, suitable for most passenger vehicles and light-duty trucks.
Q: How does the electric lock work?
A: It securely locks the lift at desired height for safe and stable operation.
Q: Is this lift suitable for small garages?
A: Yes, its compact mid-rise design saves floor space without compromising access.
Q: What type of work is it best for?
A: Ideal for tire, brake, underbody, and suspension service.
Maintenance Tips
-
Inspect and lubricate pivot points and scissor arms regularly
-
Check electrical connections and safety locks for proper function
-
Keep lift platforms and surrounding area clean to avoid debris
-
Verify hydraulic fluid levels as per manufacturer’s recommendations
-
Follow the service schedule to maintain safe and long-term operation
