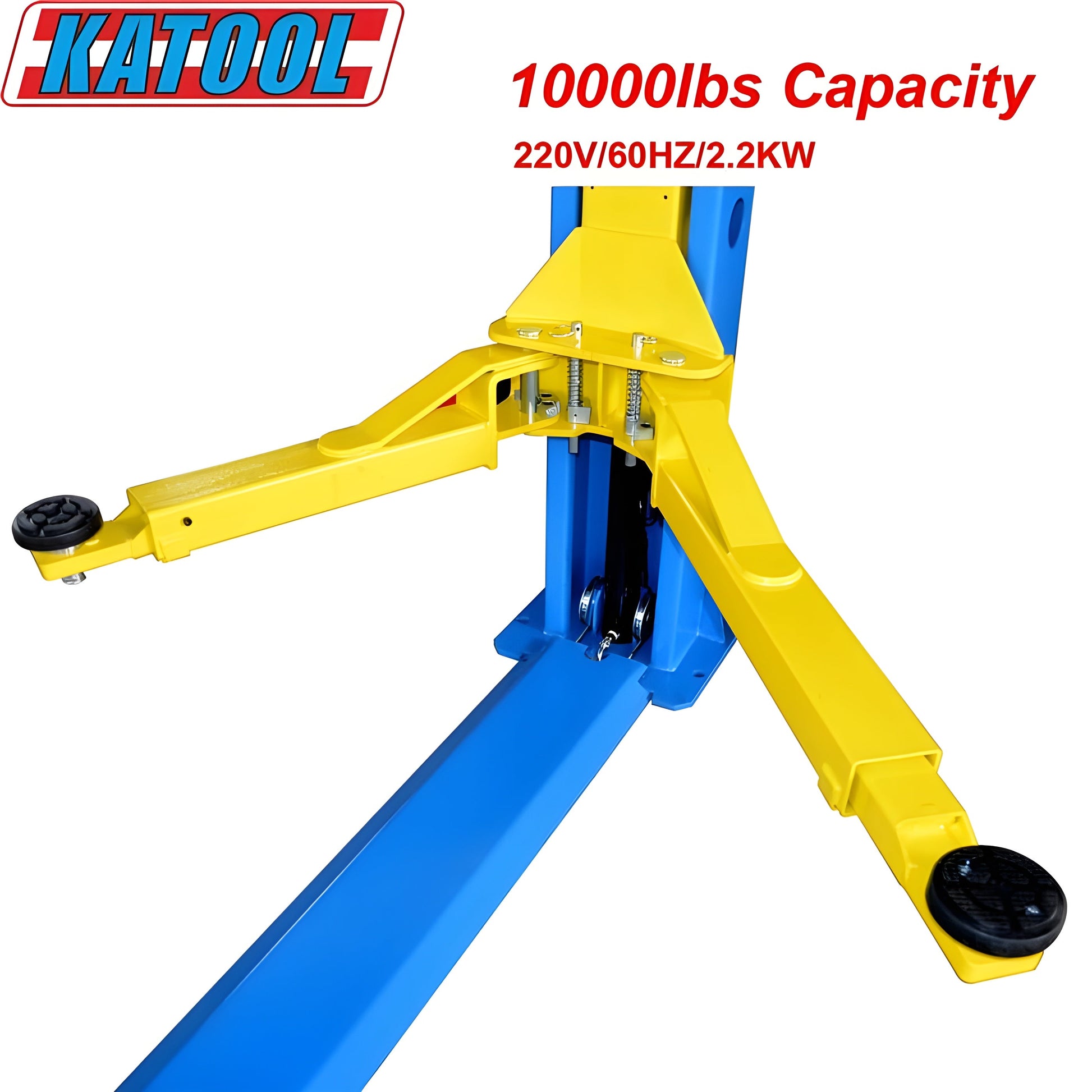

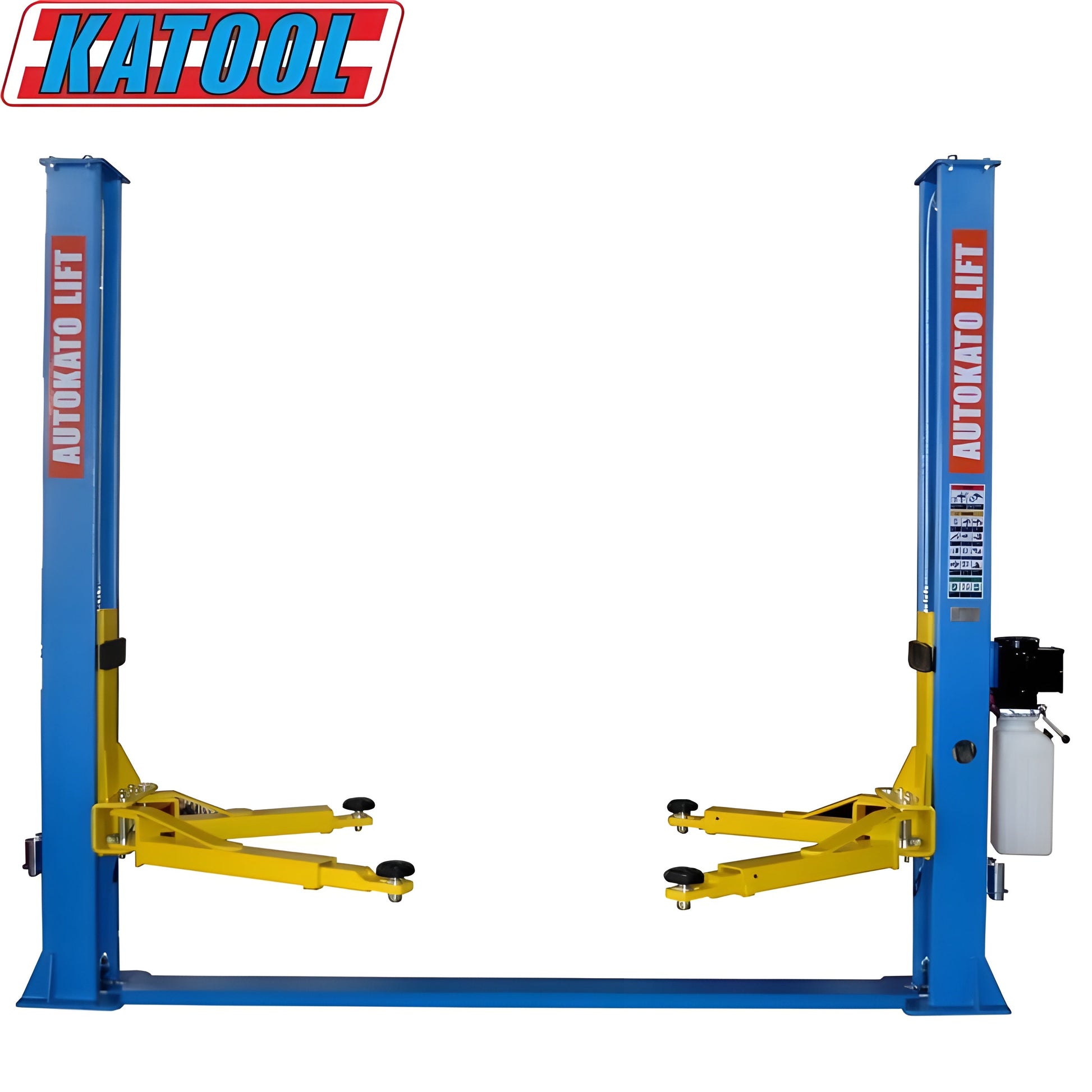

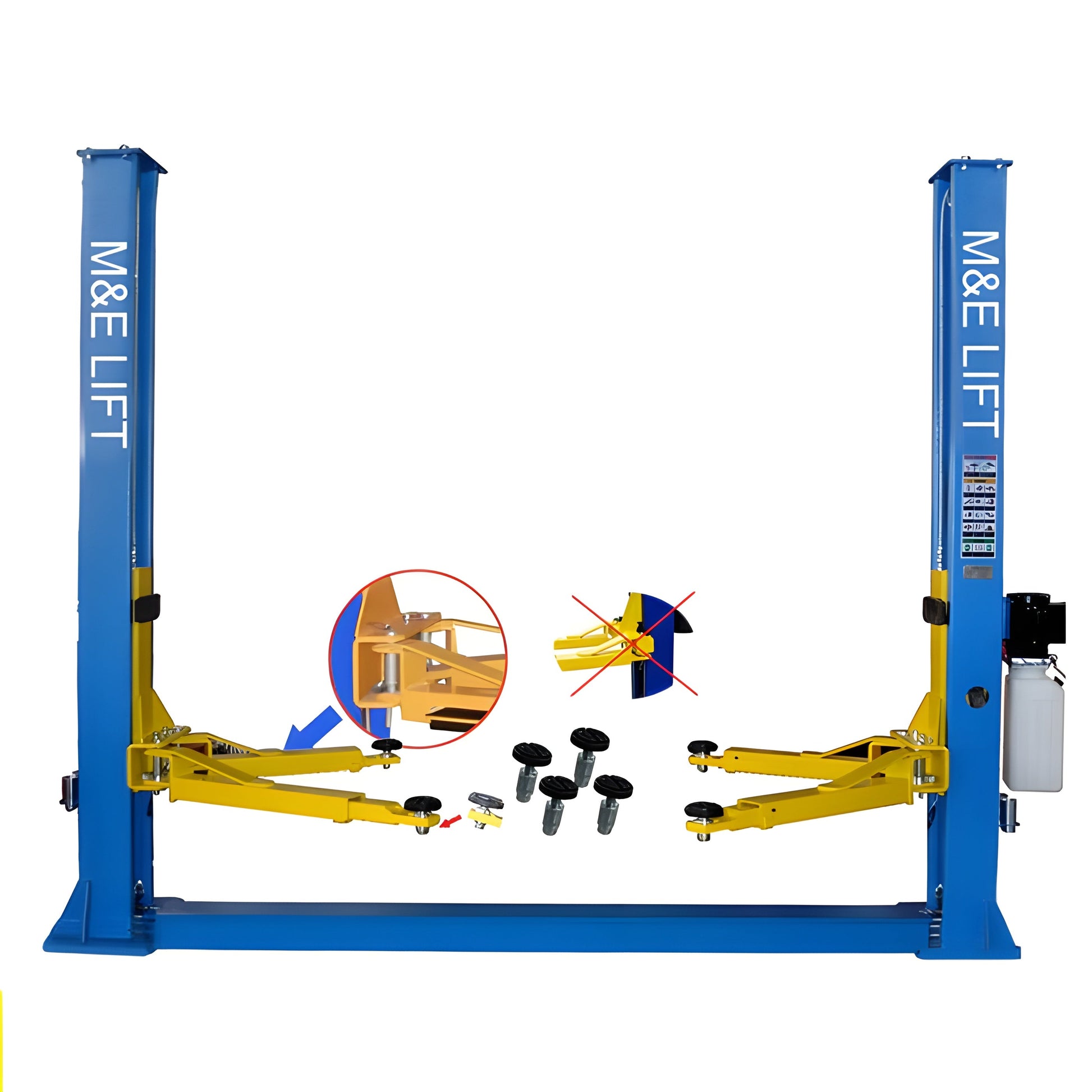

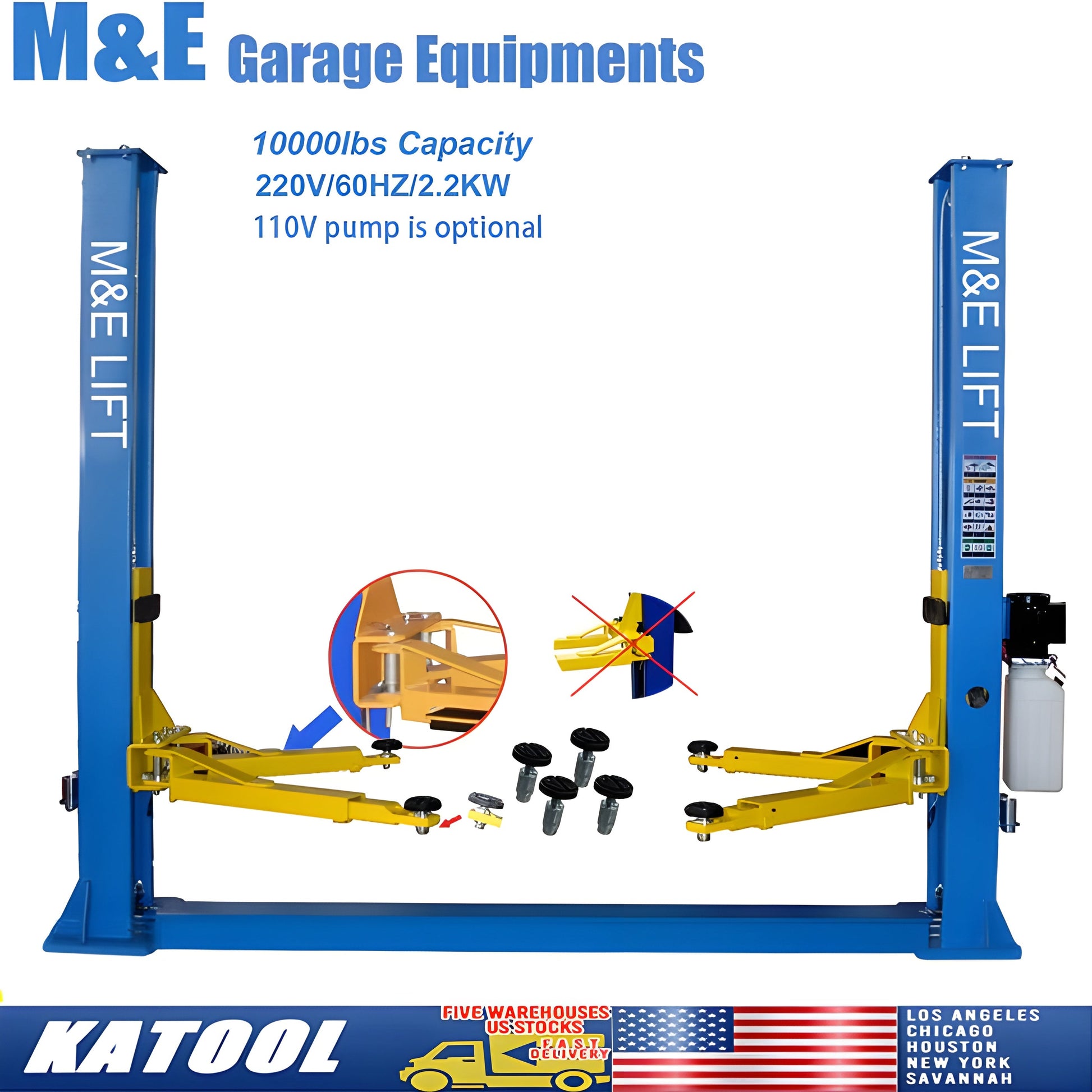

Katool Two Post Vehicle Lift 10,000lbs H105 - KT-H105
The Katool KT-H105 Two-Post Lift offers outstanding performance and safety, making it an ideal choice for professional auto shops. With a heavy-duty 10,000-pound lifting capacity, it’s built to handle large vehicles with ease and reliability.
Safety First:
-
Exceeds Safety Standards: CE-approved and rigorously tested to surpass industry standards for dynamic and static load capacity.
-
Dual Release & Secure Design: Manual safety release accessible from both sides and a base plate configuration ensure safe operation.
-
Enhanced Protection: Rubber pad door opening protection safeguards your workspace.
Versatility & Efficiency:
-
Effortless Lifting: Dual hydraulic chain-drive cylinders and a top-level hydraulic system provide smooth and efficient lifting.
-
Adaptable Configuration: Screw-on pads and extension support adapters (+100mm) offer increased versatility for various vehicles.
-
Convenient Operation: 220V/60HZ/1PH power configuration ensures seamless operation.
Important Note: Proper concrete foundation (minimum 5.9” thickness, 3000 PSI rating) is crucial for safe installation. Consult a professional for concrete assessment before purchase.
Features
-
10,000-lb Lifting Capacity: Handles even heavy-duty vehicles like trucks and SUVs with ease.
-
Exceeds Safety Standards: CE-approved and surpasses industry standards for dynamic and static load capacity, offering peace of mind.
-
Dual-Side Manual Safety Release: Provides easy access for secure vehicle positioning.
-
Base Plate Configuration & Dual Hydraulic Chain-Drive Cylinders: Ensures stability and efficient lifting operation.
-
Rubber Pad Door Opening Protection: Safeguards your workspace and prevents damage.
-

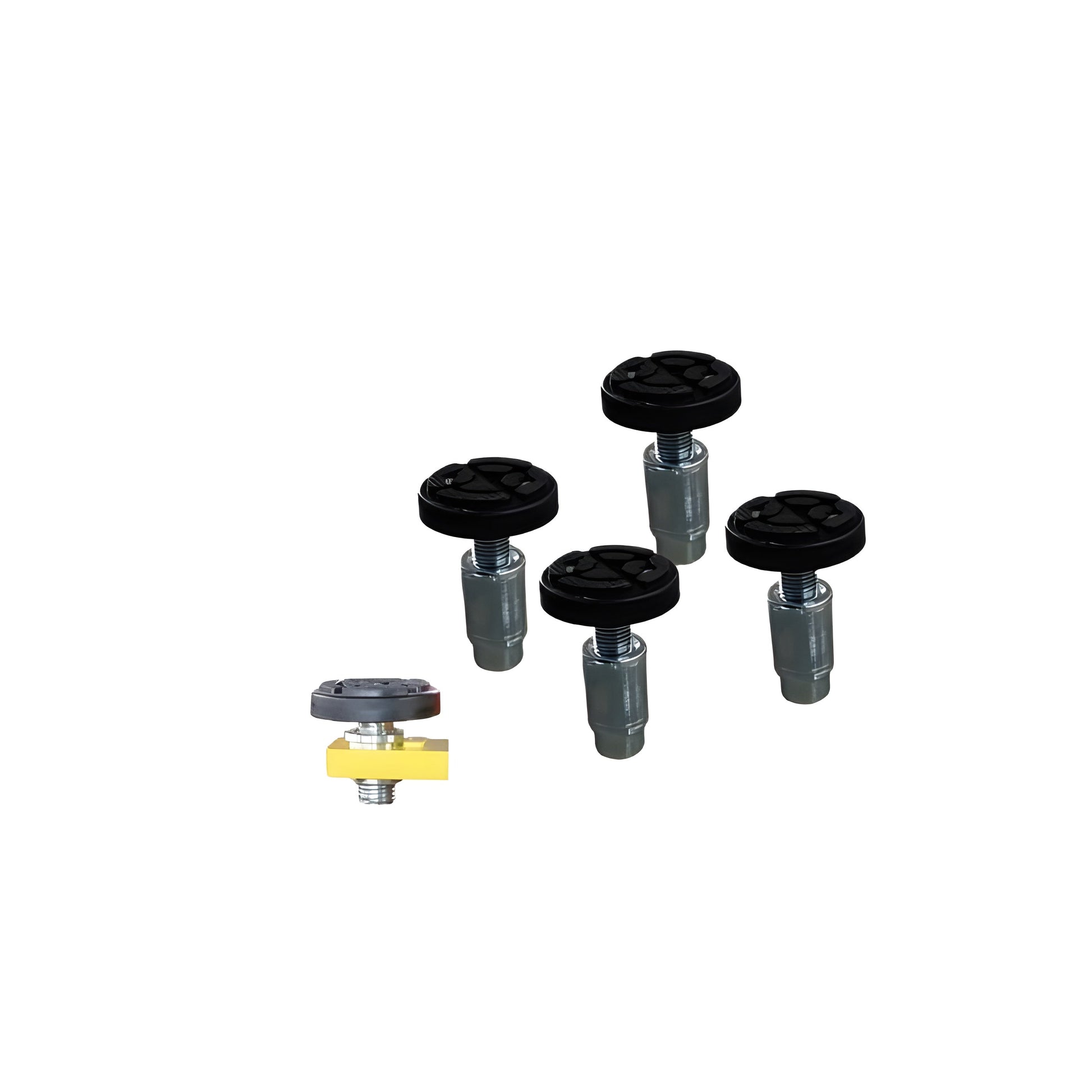

Screw-on Pads & +100mm Extension Adapters: Offers increased adaptability for various vehicle types.
-
Top-Level Hydraulic System: Delivers smooth and reliable lifting performance.
-
220V/60HZ/1PH Power Configuration: Ensures convenient operation.
Specification
-
Lifting Capacity: 10,000 lbs. (4500 kg)
-
Max. Lifting Height: 70.8" (1800 mm)
-
Min. Height: 3.9" (100 mm)
-
Height Overall: 110.9" (2818 mm)
-
Width Overall: 140.4" (3565 mm)
-
Other Dimensions: Listed in description (Outside Column, Inside Column, Drive-Thru Clearance, Arm Reaches)
-
Motor: 220VAC/60HZ/1PH/2.2 kW
-
Net Weight: 570 kg
What Our Experts Think
-
10,000 lbs lifting capacity handles cars, SUVs, and light-duty trucks
-
Two-post clear-floor design allows full under-vehicle access
-
Heavy-duty steel construction built for daily professional use
-
Space-saving design ideal for workshops and service centers
-
Equipped with safety locks for secure and reliable lifting
Q&A
Q: What is the lifting capacity of the KT-H105?
A: 10,000 lbs, suitable for most cars, SUVs, and light trucks.
Q: Is the KT-H105 safe for professional use?
A: Yes, it includes automatic safety locks and durable lift arms.
Q: Does the clear-floor design improve access?
A: Absolutely, it provides open space under the vehicle for easy servicing.
Q: What power supply is required?
A: Standard 220V single phase.
Maintenance Tips
-
Check and maintain hydraulic fluid levels regularly
-
Lubricate lift arms, locks, and moving parts for smooth operation
-
Inspect cables, bolts, and anchors for wear or looseness
-
Keep posts and floor area clean from dust and debris
-
Follow the manufacturer’s maintenance schedule for maximum lifespan
