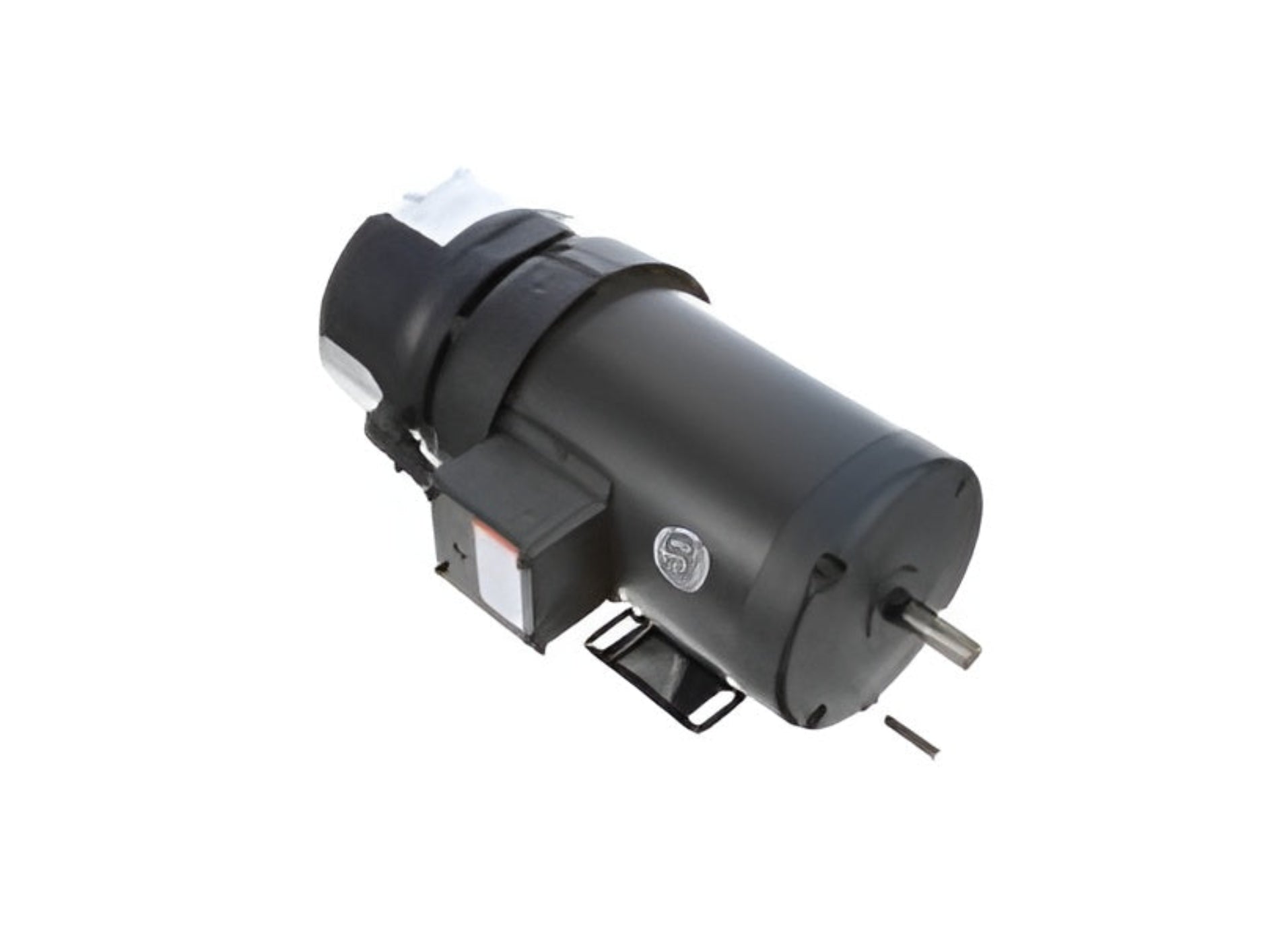

Marathon Leeson AC Motor 1 hp 1760 RPM Three Phase 230/460 - 119561.00
The Leeson 119561.00 is an AC motor designed for reliable performance in various applications. This three-phase motor operates at a speed of 1760 RPM and has a power rating of 1 horsepower. It features a rigid base mount and a totally enclosed fan-cooled design, making it suitable for environments that require durability and efficiency.
- Power: 1 hp
- Type: Brake Motor
- Voltage: 230/460
Product Highlights
This motor is ideal for use in applications that demand consistent performance and safety. The TEFC enclosure protects against dust and moisture, ensuring long-term operation.
-
Brand: Leeson
-
Part #: 112786561
Specifications
-
Frame: 56
-
RPM: 1760
-
Full Load Amps: 3.2/1.6
-
Motor Application: Brake Motor
-
Open End Bearing: 6203
-
Phase: Three Phase
-
Mounting: Rigid Base
-
Enclosure Designation: Totally Enclosed Fan Cooled
-
Poles: 4
-
Voltage Rating: 230/460
-
Efficiency Group: 85.5%
-
Rotation: Reversible
-
Frame Material: Rolled Steel
-
Service Factor: 1.15
-
Drive End Bearing: 6203
-
Enclosure: TEFC
-
Hz: 60
-
Insulation: B
-
Weight: 39.0 LB
-
EAN or UPC: 691720098608
What Our Experts Think
-
1 HP AC motor designed for reliable general-purpose use.
-
Operates at 1760 RPM for smooth, efficient performance.
-
Dual-voltage configuration (230/460V) suitable for three-phase systems.
-
Built with a TEFC (Totally Enclosed Fan Cooled) enclosure for added protection.
-
Ideal for industrial and commercial machinery requiring consistent duty.
Q&A
-
What is the horsepower rating?
1 HP.
-
What is the motor speed?
1760 RPM.
-
Which voltages are supported?
230/460V, three-phase.
-
What enclosure type does it feature?
TEFC (Totally Enclosed Fan Cooled).
-
Where is this motor commonly used?
Pumps, conveyors, compressors, fans, and other industrial equipment.
Maintenance Tips
-
Keep air passages and fan covers clear for proper cooling.
-
Inspect wiring connections regularly for secure operation.
-
Lubricate bearings as recommended by the manufacturer.
-
Ensure proper alignment during installation to reduce vibration.
-
Operate within rated voltage and load conditions to extend service life.
