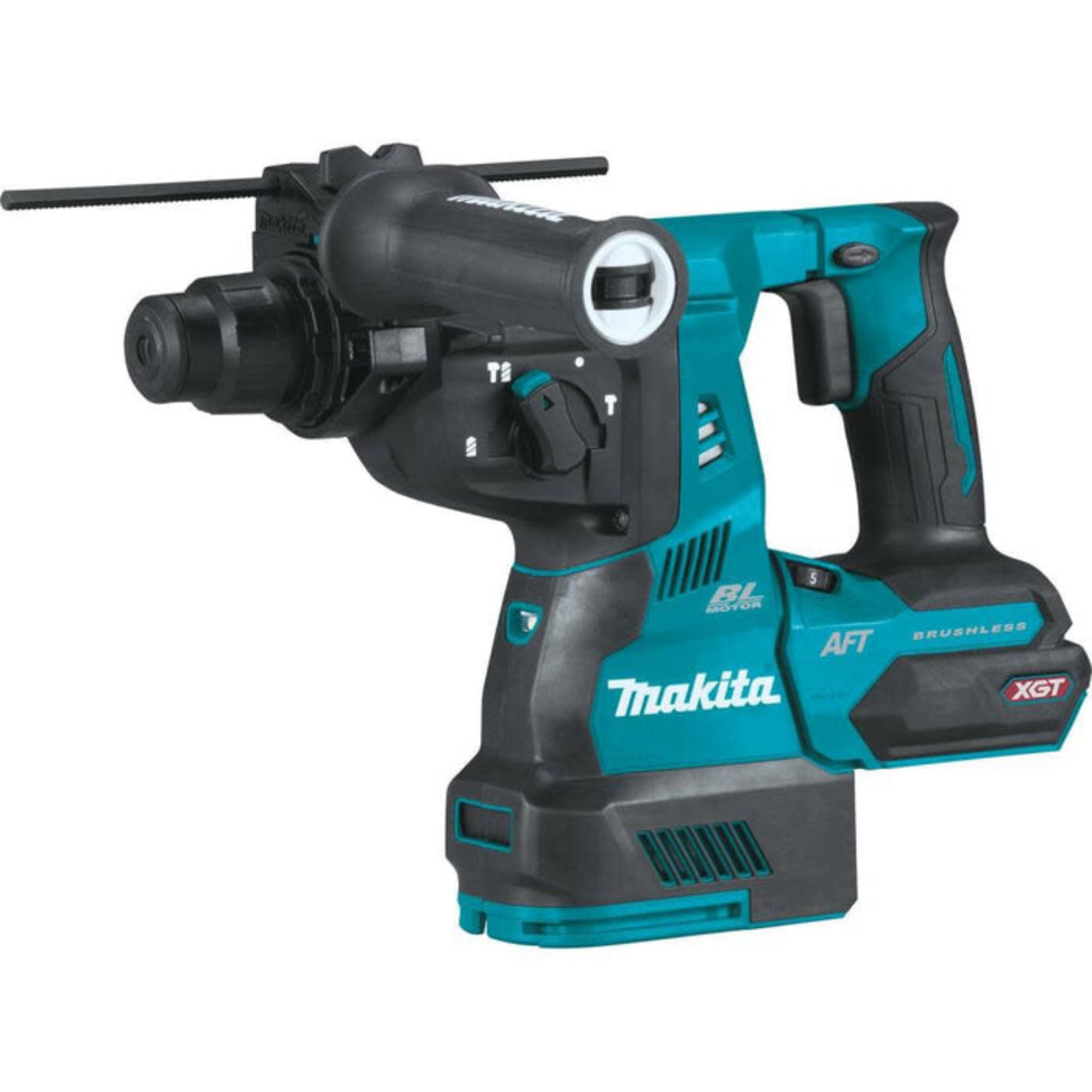

The Makita 40 Volt Max XGT® 1-1/8 Inch AVT rotary hammer is powered by a brushless motor that delivers a full 2.8 ft-lb of impact energy, with 0 to 980 RPM and 0 to 5000 BPM. The XGT® technology delivers up to 135 of 3/8 Inch holes per charge when using one 40 Volt max XGT® 4.0 Amp-hour battery. Active feedback-sensing technology which electronically turns off the motor if rotation of bit is suddenly forced to stop and Anti-Vibration Technology (AVT®) for reduced vibration. AVT counterbalances that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. It offers enhanced durability in harsh job site conditions. The vibration-absorbing back handle and side handle minimizes vibration thereby reducing user fatigue.
Features
- OUTPOWER: Makita-built brushless motor along with 40V max XGT® battery combine to deliver the power performance required for heavy-load application
- OUTSMART: Constant speed control automatically applies additional power under load for optimum performance
- OUTLAST: Overload protection is designed to protect the motor from burnout in abnormally high torque situations
- XGT® technology delivers up to 135 of 3/8" holes using a fully charged 40V XGT® 4.0Ah battery*

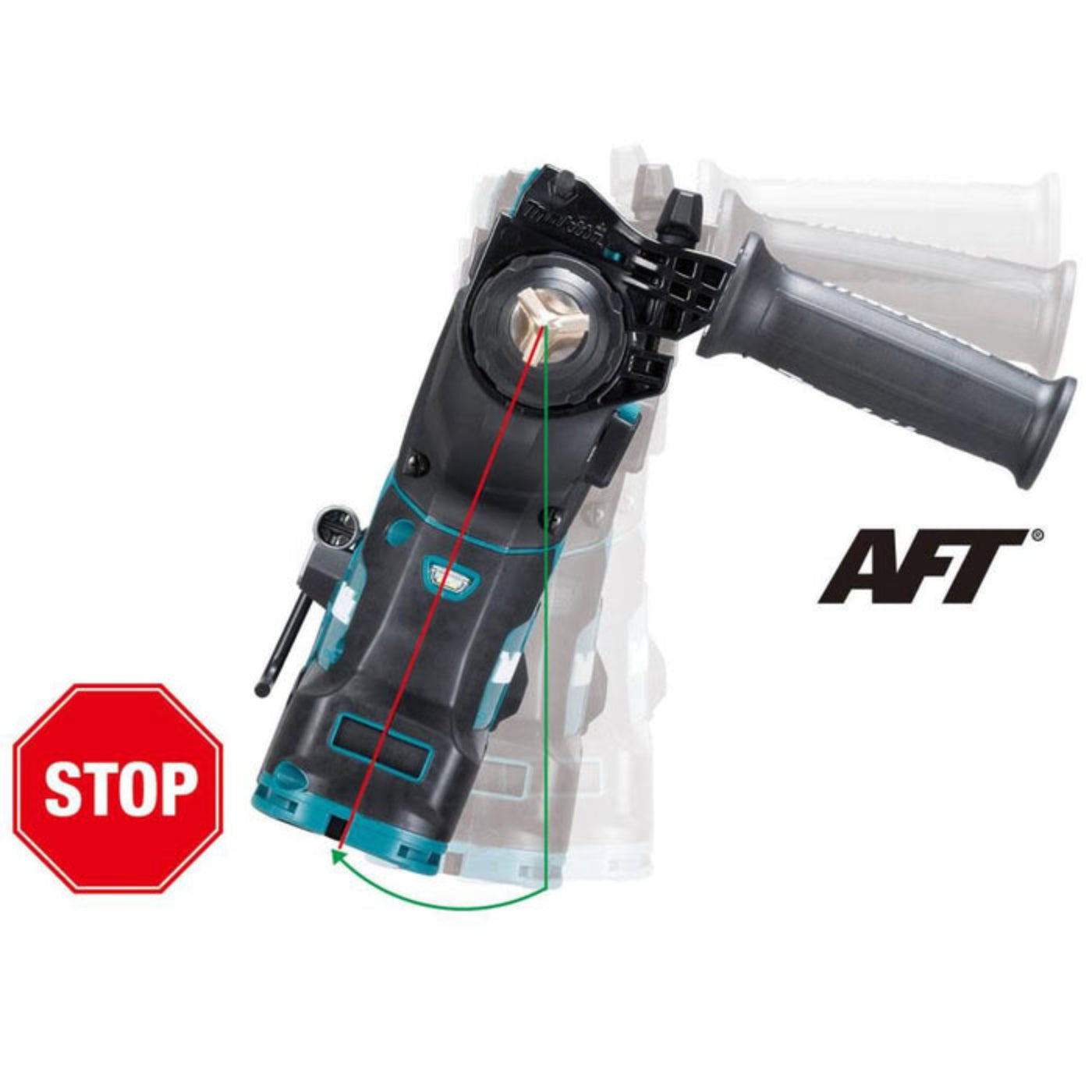

- Active Feedback-Sensing Technology (AFT®) electronically turns off the motor if rotation of bit is suddenly forced to stop
- Anti-Vibration Technology (AVT®) is an internal counterbalance system along with vibration-absorbing handles that work together to reduce vibration
- Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS® Extractor options
- Auto-Start Wireless System (AWS®) which utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
- Electric brake allows the tool to be repositioned faster for maximum productivity
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation
What Our Experts Think
-
High-Power Performance: Equipped with a brushless motor, delivering 2.8 ft-lb of impact energy and speeds of 0-980 RPM and 0-5,000 BPM, ideal for heavy-duty applications.
-
Extended Battery Life: Powered by Makita’s 40V Max XGT® technology, allowing for up to 135 holes of 3/8" depth per charge with a 4.0Ah battery, reducing downtime.
-
Enhanced Comfort: Features Anti-Vibration Technology (AVT®) and vibration-absorbing handles to minimize user fatigue, making it comfortable during extended use.
-
Safety Features: Includes Active Feedback-Sensing Technology (AFT®) that shuts off the motor if rotation is suddenly stopped, ensuring safety during use.
-
Durable Design: Built with a torque-limiting clutch to prevent gear damage and an electric brake for quick tool repositioning, enhancing durability and efficiency.
Q&A
Q: What is the Makita GRH01Z Rotary Hammer?
A: The Makita GRH01Z is a high-performance cordless rotary hammer powered by Makita's 40V Max XGT system. Designed for heavy-duty concrete applications, it offers the power and speed of corded models without the hassle of cords.
Q: What is included with the GRH01Z tool?
A: The package includes the rotary hammer, side handle assembly, grease, and a cloth towel. Note that the battery and charger are sold separately.
Q: Who is the GRH01Z suitable for?
A: Ideal for professional contractors and construction workers requiring a cordless solution for heavy-duty concrete drilling applications.
Maintenance Tips
-
Clean After Use: Remove dust and debris from the tool, especially around the chuck, vents, and handles, to prevent buildup and ensure optimal performance.
-
Inspect the Chuck: Check the SDS-PLUS chuck for wear or damage. Ensure bits are securely fastened before each use to avoid slippage.
-
Lubricate Moving Parts: Periodically lubricate the chuck and other moving parts using the recommended grease to reduce friction and prevent wear.
-
Battery Maintenance: Fully charge the 40V Max XGT battery before use. Store the battery in a cool, dry place when not in use to extend battery life.
-
Check Safety Features: Regularly test the Active Feedback-Sensing Technology (AFT®) and Anti-Vibration Technology (AVT®) for proper functionality.
-
Inspect Air Vents: Keep the air vents clean and free from debris to prevent overheating and maintain efficient operation.
-
Proper Storage: Store the rotary hammer in a dry, secure location to avoid damage and ensure the tool stays in good condition.
