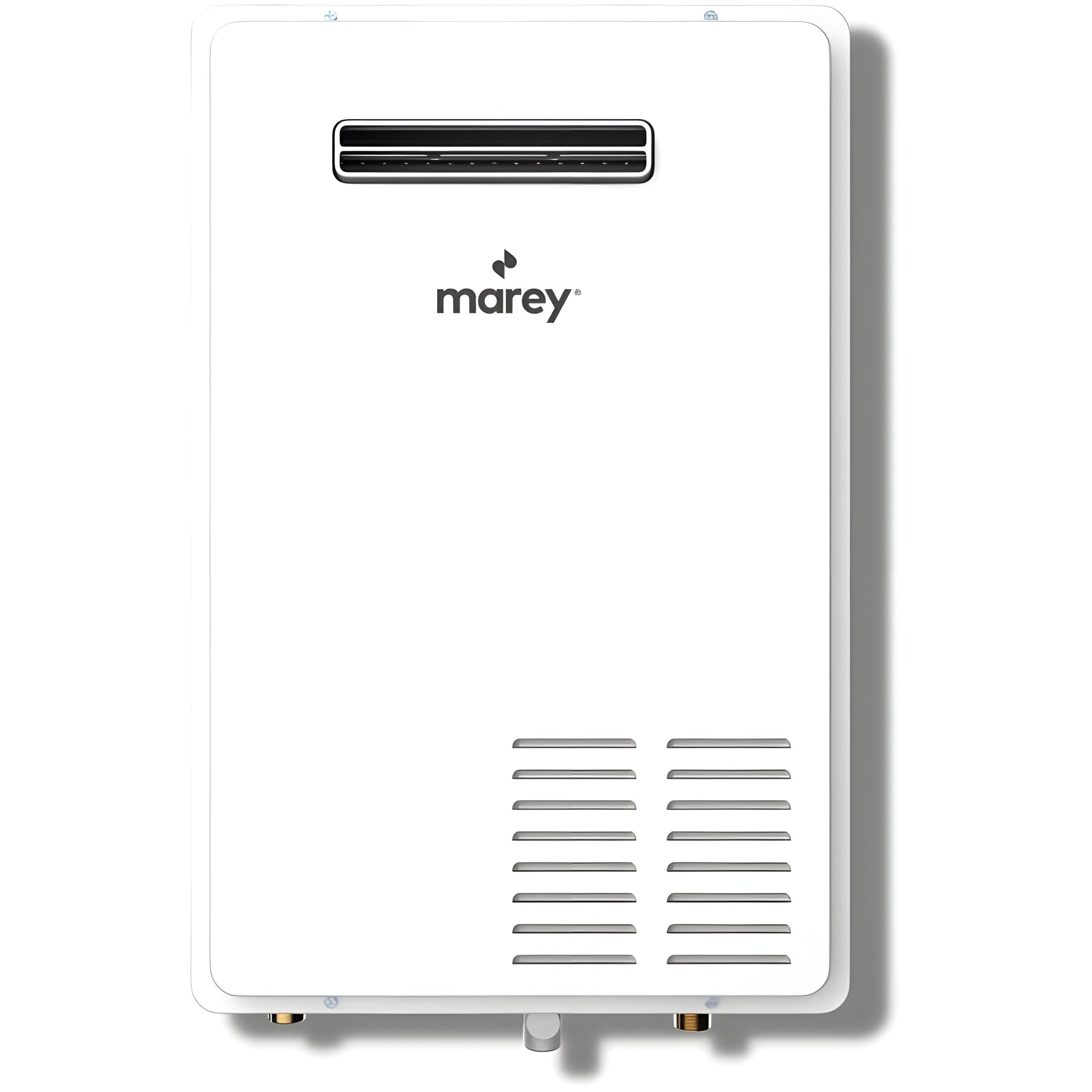

Marey Gas 26L 6.8 GPM Natural Gas Outdoor Tankless Water Heater New - GAS26LNG
Marey 8.8 GPM, 26L outdoor natural gas tankless water heater is a great whole-house outdoor solution for 3 or more multiple points of use. This unit is ideal for apartments, cabins, tiny houses or as a point of use in a wide range of home and light commercial applications. Marey’s unit has a maximum input rating of 180,000 BTU/hour and will provide a flow rate of up to 6.8GPM output at a 45°F temperature rise. The multiple safety features included in the design of this unit afford users peace of mind. The ability to pre-set your desired hot water temperature via the remote control makes this unit both user and environmentally friendly. The tankless technology saves valuable energy and water resources contributing to financial as well as environmental savings.
Features
-
Outdoor installation – does not require ventilation
-
CSA certified for US and Canadian use.
-
Rated at maximum 6.8 GPM (45℉ rise), 180,000 BTU/hr. maximum.
-
Energy factor of 0.81
-
Anti-freezing protection activated when the temperature is lower than 41℉ (5℃).
-
Includes digital remote control with a 25ft remote control cable.
-
Constant temperature design provides comfortable hot water at a pre-set temperature from 95℉ (35℃) to 158℉ (70℃)
-
Multiple safety features include; flame-out protection, Anti-dry burning protection, Over-heat protection, High water pressure protection, Anti-freezing protection
-
Whole house solution for multiple points of use, ideal for apartments, cabins, tiny houses in a wide range of home and light commercial applications
-
Not recommend for elevations above 2000 ft.
Specifications
| Overheating Cut -off C |
80 |
| Electricity supply |
11 0Va.c, 60Hz |
| Ignition |
Direct without pilot |
| Gas inlet connection |
G3/4 |
| Water connection |
G3/4 |
| Model name |
26HW70 A |
| Gas category |
NG |
| Nominal Gas Consumption BTU/HR |
180000 |
| Nominal minimum gas consumption |
BTU/HR 40000 40000 |
| Test Point Pressure |
1.74 kPa |
| Nominal burner pressure |
1.13 kPa |
| Water Pressure Maximum |
750 kPa |
| Water Pressure Minimum |
10 kPa |
| Number of burners |
Pcs 1 |
| Number Of Injectors |
18 Psc |
| Injector Diameter |
1.45 mm |
| Burner Control Segment |
6, 12, 18 Psc |
| Electrical rating |
44 W |
| Heat output |
52.8 kW |
| Water heating capacity L/min at 25ºC Rise |
26 |
| Height |
635 mm |
| Width |
415 mm |
| Depth |
157 mm |
| Net Weight |
18.9 Kg |
Product Manual
Product Manual - GAS26LNG
What Our Experts Think
-
High Flow Rate: The Marey GAS26LNG Outdoor Tankless Water Heater provides 6.8 GPM, ensuring ample hot water for outdoor showers, RVs, or various outdoor activities.
-
Natural Gas Powered: Efficiently powered by natural gas, it offers an eco-friendly, cost-effective solution for on-demand hot water with minimal energy waste.
-
Outdoor-Specific Design: Built for outdoor use, this model is designed to withstand weather conditions, making it ideal for camping, outdoor kitchens, and garden use.
-
Compact & Space-Saving: Tankless technology eliminates the need for bulky storage tanks, offering a sleek, wall-mounted design that saves space.
-
Durable & Reliable: Made with high-quality, weather-resistant materials, this unit delivers long-lasting performance in various outdoor environments.
Q&A
Q: What is the Marey Gas 26L 6.8 GPM Natural Gas Outdoor Tankless Water Heater designed for?
A: It is designed for outdoor use, providing on-demand hot water with Natural Gas (NG), ideal for outdoor showers, RVs, or other remote locations.
Q: What is the flow rate of this water heater?
A: It offers a flow rate of 6.8 gallons per minute (GPM), providing sufficient hot water for outdoor applications.
Q: What type of fuel does this water heater use?
A: This model operates on Natural Gas (NG), making it an efficient solution for areas with access to natural gas.
Q: Is this water heater energy-efficient?
A: Yes, as a tankless water heater, it only heats water when needed, helping to reduce energy consumption compared to traditional tank models.
Q: What is the model number of this water heater?
A: The model number is GAS26LNG.
Q: Is this water heater suitable for outdoor installation?
A: Yes, this model is specifically designed for outdoor installation and can withstand various weather conditions.
Q: Can the Marey Gas 26L Tankless Water Heater be used for multiple outdoor applications?
A: Yes, it is ideal for outdoor showers, RVs, and other off-grid or remote locations that require hot water.
Maintenance Tips
-
Descale the System: Every 6-12 months, flush the heater with vinegar or a descaling solution to prevent mineral buildup and ensure smooth water flow.
-
Inspect Gas Connections: Regularly check the natural gas lines and connections for leaks or damage. Replace any faulty parts for safety.
-
Clean the Air Filter: Periodically clean or replace the air filter to ensure proper airflow and efficient operation.
-
Clear the Exhaust Vent: Ensure the exhaust vent is free from debris or obstructions for safe venting and optimal performance.
-
Protect from Weather: Since this is an outdoor unit, use a cover or protective measures during harsh weather conditions to protect from rain and snow.
