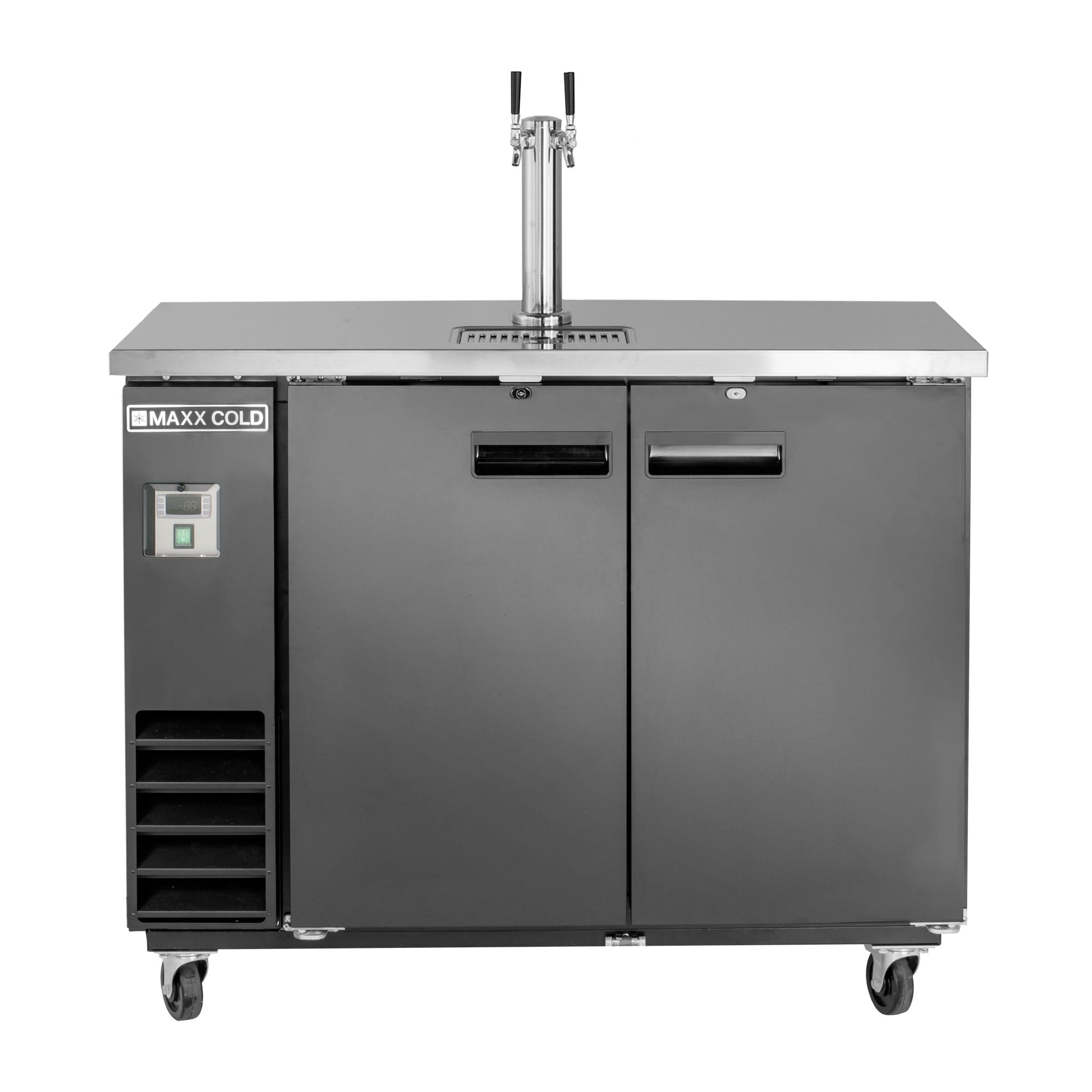

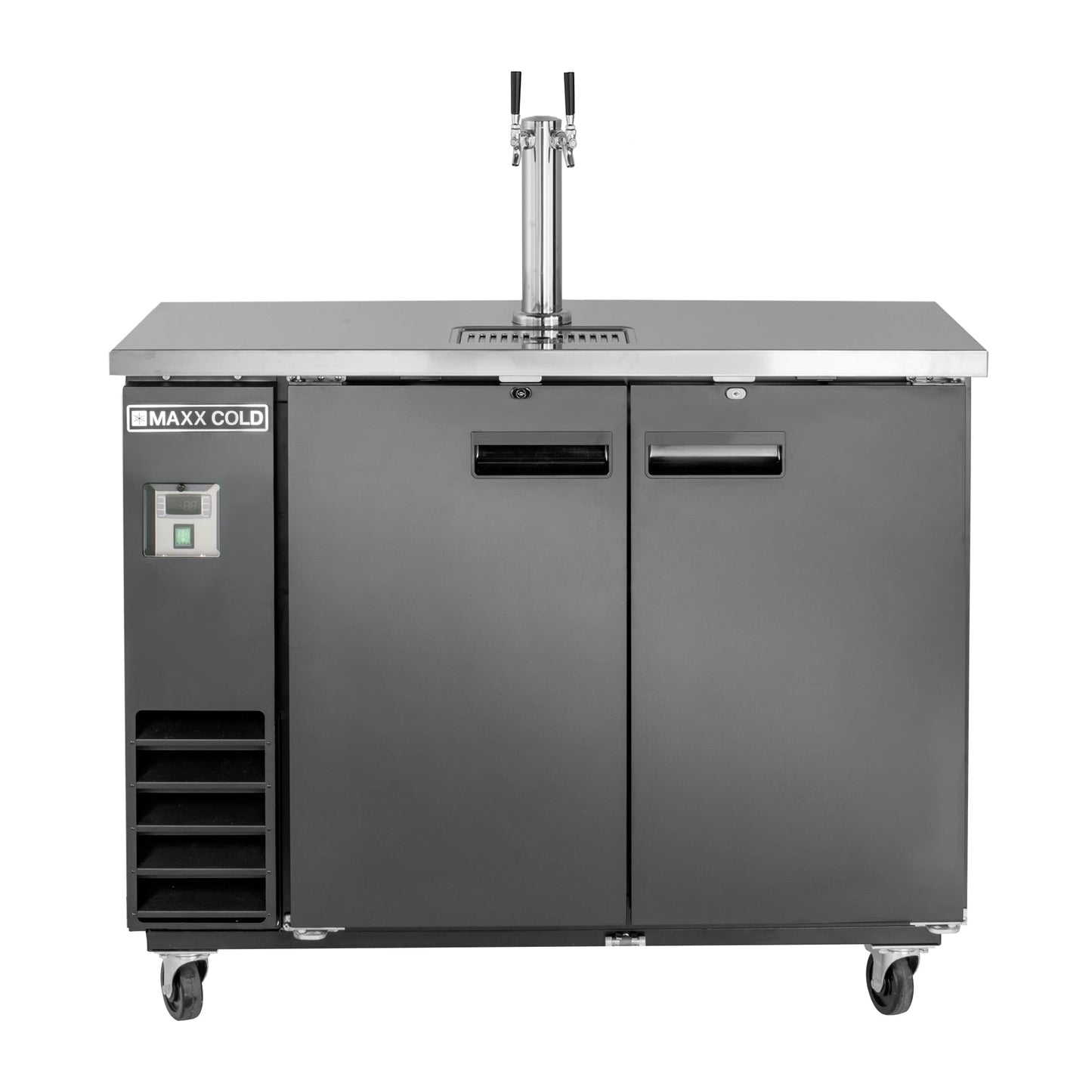

Maxx Cold Single Tower, 2 Tap Beer Dispenser, 47.5"W, 10.5 cu. ft., 2 Barrels/Kegs (297L) Storage Capacity, in Black with Stainless Steel Top - MXBD48-1BHC
This 47.5 inch wide Maxx Cold X-Series Beer Tower Dispenser is engineered for durable usage, efficient performance, and easy cleaning. It accommodates 2 barrel/keg, providing up to 10.5 cubic feet (297L) of storage capacity. The single tower beer dispenser is ideal for pubs, bars, breweries, catering services, banquet halls or special events and parties requiring a draft brew. The exterior of the unit is constructed of black powder-coated steel topped with stainless-steel, while the interior of the cabinet is crafted in sanitary white coated steel paired with a stainless floorplate. This unit is fully insulated with 2” (50 mm) CFC-free polyurethane on both walls and doors. The standard 3-inch (77 mm) polished stainless-steel draft tower dispenser, which is mounted to the top center counter, is cooled by continuous cold air circulation to maintain tap temperature that reduces foam when dispensing and can easily fill pint beer glasses, frosted beer mugs and pitchers. Premium features on this model include a self-contained forced air refrigeration system which cools the base cabinet and tower to optimize temperature throughout your commercial operations. The solid-state digital control system is designed with LED temperature display. This beer tower dispenser is engineered to facilitate maintenance and maneuvering by the operator, with an easy to clean slide-out condensing unit, recessed drawer handles (with locks) and four (4) swivel casters (two of which come with brakes). The dispenser is equipped with integrated condensate evaporator, meaning no drain line connection is needed. Operation requires CO2 tank and regulator (not included).
Features
- Accommodates 2 barrel/keg with storage capacity of 10.5 cubic feet (297L)
- 3” (77mm) diameter stainless steel insulated beer tower dispenser
- Interior is constructed of sanitary white coated steel with a stainless floorplate
- Exterior is black coated steel with a stainless steel top
- 2” (50mm) CFC-free polyurethane insulated walls and door
- Self-contained forced air refrigeration system cools the base cabinet and tower
- Slide out condensing unit for easy maintenance
- Epoxy coated evaporator coils to resist corrosion
- Easy to grip recessed drawer handles with locks
- Adjustable heavy duty wire shelves (2 per section/door)
- Four 4” casters included, two (2) with brakes (Smaller casters available for ADA Compliance)
- Holding temperature of 34°F and 41°F (1⁰C to 5⁰C)
- Available in 120V/60Hz/1pH and International voltage options
- Environmentally friendly R134A refrigerant
Specifications
- Adjustable Shelves: No
- Adjustable Temperature Control: Yes
- Amperage: 3A
- Assembled Dimensions (LxWxH): 24.40" x 47.50" x 55.98"
- Assembled Weight (lb): 264.0
- Assembly Required: Yes
- Batteries Required: No
- Capacity: 2 Kegs
- Caster Size: 4"
- Casters: Yes
- Color: Black
- Control Type: Digital
- Cooling System: Compressor
- Cord Length: 72"
- Cordless: No
- Defrost System Type: Automatic / Frost Free
- Depth - Door Open 90°: 41.34"
- Depth - Excluding Door: 29.90"
- Depth - Excluding Handles: 29.90"
- Dishwasher Safe Components: Yes
- Door Color/Finish: Black
- Door Material: Powder coated steel
- Door Swing Orientation: French-Door
- Electric: Yes
- Features: Maxx Cold X-Series Keg Cooler with Single Tower & Dual Faucets, two-section, self-contained, side mounted compressor, 48"W, 10.5cu. ft., +34°F to +41°F temperature range, (2) solid hinged locking doors, stainless steel top, (1) 3" dia. stainless steel draft tower with (2) faucets, painted black steel exterior, white powder coated steel interior with stainless steel floor plate, R290a Hydrocarbon refrigerant, cETLus, ETL-Sanitation
- First Zone Maximum Temperature: 41°
- First Zone Minimum Temperature: 33°
- Freezer Type: No Freezer
- Ice Maker Included: No
- Included Components: Refrigerator, Instruction Manual, Casters
- Installation Type: Freestanding
- Integrated Lock: Yes
- Material: Powder Coated Steel
- Number of Doors: 2.0
- Number of Items: 1.0
- Outdoor Use: No
- Plug Type: NEMA 5-15P
- Portable: No
- Refrigerant Type: R-290a
- Size: 48"
- Temperature Range: 33° - 41°
- Temperature Zones: 1.0
- Undercounter: No
- Use and Care Instructions: Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.
- Voltage: 120V
- Volume Capacity: 297L
- Warranty: 1 Year Parts & Labor + 5 Year Compressor (Part Only)
- Water Dispenser: No
- Wattage: 360W
- Case Pack Dimensions: 56" x 40" x 31"
- Case Pack Weight: 296.0
- Case Quantity: 1.0
- Country of Origin: China
- Freight Class: 125.0
What Our Experts Think
-
47.5" single tower beer dispenser with 10.5 cu. ft. capacity, accommodates 2 full-size barrels/kegs (297L)
-
Features a single stainless steel tower with 2 taps, allowing you to serve two beverages from one tower
-
Black exterior with stainless steel top delivers a sleek, professional look for bars, restaurants, or entertainment spaces
-
Front-breathing refrigeration system ensures reliable cooling and consistent pours
-
Can function as a refrigerator with adjustable shelving when not storing kegs
Q&A
Q: How many kegs does this dispenser hold?
A: The MXBD48-1BHC fits two full-size barrels/kegs (297L).
Q: How many taps does the tower include?
A: It comes with a single tower featuring 2 taps, great for offering two different beverages.
Q: Is it commercial ready?
A: Yes, the durable design and cooling system make it an excellent choice for bars, restaurants, catering, or home entertainment setups.
Maintenance Tips
-
Clean beer lines weekly to keep flavors fresh.
-
Sanitize taps, couplers, and the tower regularly.
-
Wipe down the black exterior and stainless steel top with proper cleaners.
-
Keep condenser coils dust-free to maintain cooling performance.
-
Check gaskets monthly to ensure proper door sealing.
