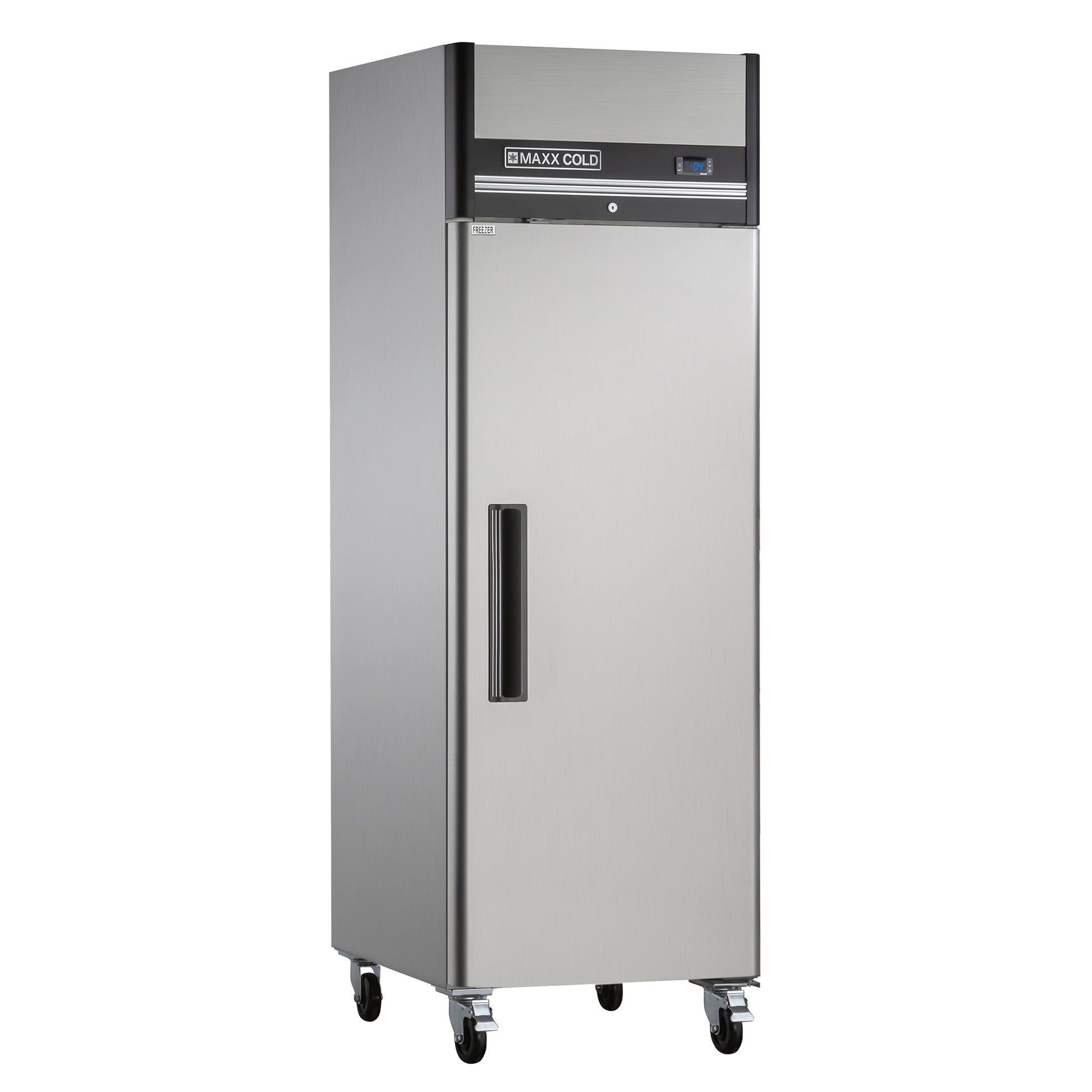

Maxx Cold Single Door Reach-in Freezer, Top Mount, 25.2"W, 19 cu. ft. Storage Capacity, in Stainless Steel - MXCF-19FDHC

Maxx Cold Single Door Reach-in Freezer, Top Mount, 25.2"W, 19 cu. ft. Storage Capacity, in Stainless Steel - MXCF-19FDHC

Maxx Cold 25.2-inch-wide single door reach-in freezer is designed to assist you in meeting all food service industry requirements while making its content easy to access. The cabinet is equipped with 3 heavy duty fully adjustable and easy to clean PE coated wire shelves which can hold full size sheet pans and provides up to 19 Cubic Ft. (538 L) of storage capacity, while it’s slender and solid configuration makes it a great choice for limited spaces. In addition, the single door commercial freezer model is engineered with an open-door alert that beeps if the freezer is left open for three minutes. This top mount commercial grade freezer is constructed of stainless steel (interior) and sanitary painted aluminum (interior) and is mounted on 4” diameter swivel caster wheels that can easily be maneuvered. Standard features on this premium indoor freezer include integrated energy saving interior LED lighting, automatic defrost function, recessed door handles with locks and digital temperature control which maintains optimum temperature. Digital temperature display can be viewed from outside the cabinet, which is engineered with an integrated condensate evaporator; meaning no drain line connection is needed. The urethane foam insulation on this one-door commercial freezer provides outstanding thermal regulation and is energy efficient.

Features

• Durable stainless steel exterior with sanitary painted aluminum interior
• Urethane foam insulation
• (3) heavy-duty, adjustable, PE coated wire shelves per section hold full size sheet pans
• Recessed handles with door locks
• 4" diameter swivel casters with front brakes
• Automatic defrost system and interior lighting
• Equipped with integrated condensate evaporator therefore no drain line connection is needed
• Holding temperature -10°F to 10°F (-23⁰C to -12⁰C)
• Open door alert beeps when door has been open for 3 minutes
• Hinged, self-closing doors
• Available in 120V/60Hz/1pH and International voltage available
• Nominal storage capacity of 19 Cubic Ft. (538 L)

Specifications

• Adjustable Shelves: Yes
• Adjustable Temperature Control: Yes
• Amperage: 8A
• Assembled Dimensions (LxWxH): 31.50" x 25.20" x 77.60"
• Assembled Weight (lb): 296.0
• Assembly Required: No
• Batteries Required: No
• Capacity: 19 cu. ft.
• Caster Size: 4"
• Casters: Yes
• Color: Stainless Steel
• Control Type: Digital
• Cooling System: Compressor
• Cord Length: 72"
• Cordless: No
• Defrost System Type: Automatic / Frost Free
• Depth - Door Open 90°: 53.60"
• Depth - Excluding Door: 31.50"
• Depth - Excluding Handles: 31.50"
• Dishwasher Safe Components: Yes
• Door Color/Finish: Stainless Steel
• Door Material: Stainless Steel
• Door Swing Orientation: Right
• Electric: Yes
• Features: Maxx Cold X-Series Upright Freezer, reach-in, 19 cu. ft storage capacity, one-section with (1) solid self-closing locking door with recessed handle, open door alert, (3) adjustable heavy duty wire shelves, electronic thermostat & digital LED temperature display, -10° to 10°F temperature range, automatic defrost system & interior lightning, condensate evaporator, forced air self contained top mounted refrigeration system, stainless steel exterior, white painted aluminum interior, 4" swivel casters, R290A refrigerant, 115v/60/1-ph, 8.0 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation, DOE 2018 Compliant
• First Zone Maximum Temperature: 10°
• First Zone Minimum Temperature: -10°
• Freezer Capacity: 19 cu. ft.
• Freezer Type: Full Freezer
• Height - Excluding Top Hinge: 77.60"
• Ice Maker Included: No
• Included Components: Freezer, Instruction Manual, Casters, PE Coated Shelves
• Installation Type: Freestanding
• Integrated Lock: Yes
• Material: Stainless Steel
• Number of Doors: 1.0
• Number of Items: 1.0
• Number of Shelves: 3.0
• Outdoor Use: No
• Plug Type: NEMA 5-15P
• Portable: No
• Refrigerant Type: R-290a
• Size: 25.2"
• Temperature Range: -10° - 10°
• Temperature Zones: 1.0
• Undercounter: No
• Use and Care Instructions: Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.
• Voltage: 120V
• Warranty: 1 Year Parts & Labor + 5 Year Compressor (Part Only)
• Water Dispenser: No
• Wattage: 950W
• Case Pack Dimensions: 34" x 30" x 81"
• Case Pack Weight: 351.0
• Case Quantity: 1.0
• Country of Origin: China
• Freight Class: 150.0
• Usually Ships In: 7-10 Days
• Number of Boxes: 1.0

What Our Experts Think

• 25.2" wide single-door reach-in freezer designed for commercial kitchens

• Provides 19 cu. ft. storage capacity, ideal for frozen foods and ingredients

• Top mount refrigeration system keeps components cooler and easier to maintain

• Built with stainless steel inside and out for durability and easy cleaning

• Perfect balance of compact design and ample frozen storage

Q&A

Q: How much storage does the MXCF-19FDHC provide?
A: It offers 19 cu. ft. of freezer storage in a space-efficient, single-door design.

Q: What are the benefits of a top mount refrigeration system?
A: Top mount systems run cooler, collect less floor dust, and are easier to service.

Q: Who is this unit best suited for?
A: Ideal for restaurants, cafés, and catering operations that need reliable frozen storage without taking up excessive floor space.

Maintenance Tips

1. Defrost and clean interior regularly to prevent ice buildup.

2. Wipe stainless steel surfaces with warm water and mild detergent.

3. Inspect and clean door gaskets frequently to ensure a tight seal.

4. Vacuum condenser coils monthly for optimal cooling efficiency.

5. Avoid overstocking to maintain proper airflow and consistent freezing.
