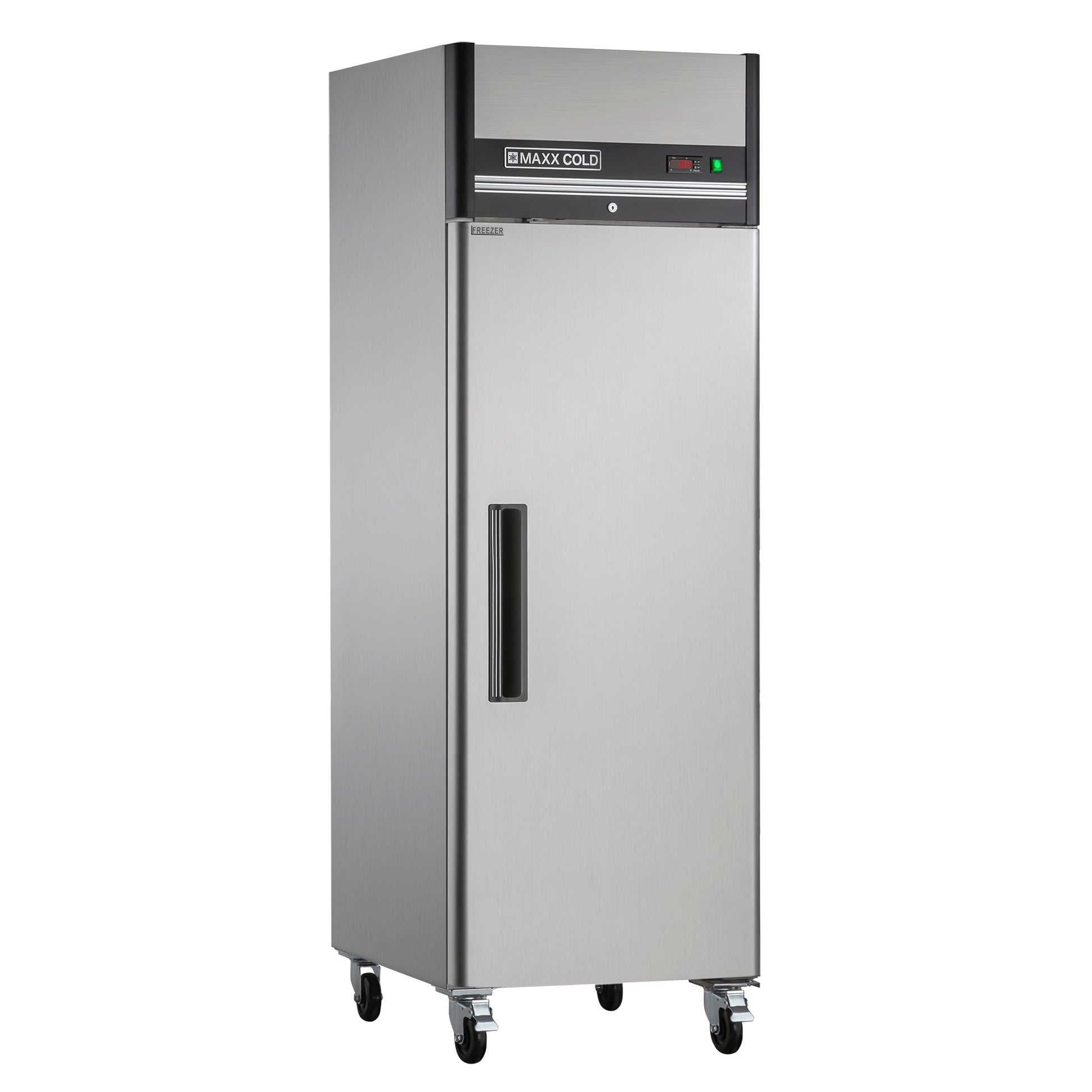

Maxx Cold Single Door Reach-in Freezer, Top Mount, 26.8"W, 23 cu. ft. Storage Capacity, Energy Star Rated, in Stainless Steel - MXCF-23FDHC
Maxx Cold 26.8-inch-wide single door reach-in freezer is designed to assist you in meeting all food service industry requirements while making its content easy to access. The cabinet is equipped with 3 heavy-duty fully adjustable and easy to clean PE coated wire shelves which can hold full size sheet pans and provides up to 23 Cubic Ft. (651 L) of storage capacity, while it’s slender and solid configuration makes it a great choice for smaller compact spaces. In addition, the single door commercial freezer model is engineered with an open-door alert that beeps if the freezer is left open for three minutes. This top mount commercial grade freezer is constructed of stainless steel (interior) and sanitary painted aluminum (interior) and is mounted on 4” diameter swivel caster wheels that can easily be maneuvered for mobility. Standard features on this premium indoor freezer include integrated energy saving interior LED lighting, automatic defrost function, recessed door handles with locks and digital temperature control which maintains optimum temperature. Digital temperature display can be viewed from outside the cabinet, which is engineered with an integrated condensate evaporator; meaning no drain line connection is needed. The environment friendly urethane foam insulation on this one-door commercial freezer provides outstanding thermal regulation and is energy efficient.
Features
- Durable stainless steel exterior with sanitary painted white aluminum interior
- Environment friendly urethane foam insulation
- Three (3) heavy-duty, adjustable, PE coated wire shelves per section hold full size sheet pans
- Recessed handle with door locks
- 4" diameter swivel casters with front brakes
- Automatic defrost system and interior lighting
- Equipped with integrated condensate evaporator therefore no drain line connection is needed
- Holding temperature -10°F to 10°F (-23⁰C to -12⁰C)
- Open door alert beeps when door has been open for 3 minutes
- Hinged, self-closing door
- Available in 120V/60Hz/1pH and International voltage availabl
- Nominal storage capacity of 23 Cubic Ft. (651 L)
Specifications
- Adjustable Shelves: Yes
- Adjustable Temperature Control: Yes
- Amperage: 8A
- Assembled Dimensions (LxWxH): 32.70" x 26.75" x 82.25"
- Assembled Weight (lb): 336.0
- Assembly Required: No
- Batteries Required: No
- Capacity: 23 cu. ft.
- Caster Size: 4"
- Casters: Yes
- Color: Stainless Steel
- Control Type: Digital
- Cooling System: Compressor
- Cord Length: 72"
- Cordless: No
- Defrost System Type: Automatic / Frost Free
- Depth - Door Open 90°: 55.20"
- Depth - Excluding Door: 32.70"
- Depth - Excluding Handles: 32.70"
- Dishwasher Safe Components: Yes
- Door Color/Finish: Stainless Steel
- Door Material: Stainless Steel
- Door Swing Orientation: Right
- Electric: Yes
- Features: Maxx Cold X-Series Upright Freezer, reach-in, 23 cu. ft storage capacity, one-section with solid self-closing door with recessed handle, (3) adjustable coated wire shelves, electronic thermostat & digital LED temperature display, automatic defrost system & interior lightning, self contained system, stainless steel exterior, white painted aluminum interior, 4" casters (2 with locks), R404A refrigerant, 5/8 HP top mounted compressor, cULus, UL EPH Classified, NSF
- First Zone Maximum Temperature: 10°
- First Zone Minimum Temperature: -10°
- Freezer Type: Full Freezer
- Height - Excluding Top Hinge: 82.25"
- Ice Maker Included: No
- Included Components: Freezer, Instruction Manual, Casters, PE Coated Shelves
- Installation Type: Freestanding
- Integrated Lock: Yes
- Material: Stainless Steel
- Number of Doors: 1.0
- Number of Items: 1.0
- Number of Shelves: 3.0
- Outdoor Use: No
- Plug Type: NEMA 5-15P
- Portable: No
- Refrigerant Type: R-290a
- Size: 26.8"
- Temperature Range: -10° - 10°
- Temperature Zones: 1.0
- Undercounter: No
- Use and Care Instructions: Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.
- Voltage: 120V
- Warranty: 1 Year Parts & Labor + 5 Year Compressor (Part Only)
- Water Dispenser: No
- Wattage: 950W
- Case Pack Dimensions: 40" x 40" x 88"
- Case Pack Weight: 329.0
- Case Quantity: 1.0
- Country of Origin: China
- Freight Class: 150.0
- Usually Ships In: 7-10 Days
- Number of Boxes: 1.0
- Packaging Type: BROWN BOX
- Ship Type: LTL
- Shipped Assembled?: Yes
- Tariff Code (HTS): 8418.69.0180
- ADA Compliant: No
What Our Experts Think
-
Single door reach-in freezer with 23 cu. ft. storage capacity
-
Top-mount compressor design improves airflow and reduces dust buildup
-
Energy Star rated for efficiency and reduced operating costs
-
Stainless-steel interior and exterior ensure strength, durability, and easy cleaning
-
Perfect for restaurants, schools, hotels, and catering kitchens needing reliable frozen storage
Q&A
Q: How much storage does the MXCF-23FDHC provide?
A: It offers 23 cubic feet of frozen storage, ideal for compact commercial spaces.
Q: Why is a top-mount compressor a benefit?
A: It helps improve cooling efficiency, extend compressor life, and keeps dust/debris away.
Q: Is this freezer energy efficient?
A: Yes, it’s Energy Star certified, meaning it consumes less energy while delivering reliable performance.
Maintenance Tips
-
Defrost as necessary to prevent excess frost buildup.
-
Vacuum condenser coils (top-mounted) monthly for peak efficiency.
-
Inspect and replace door gaskets regularly to maintain a proper seal.
-
Wipe stainless-steel surfaces frequently for hygiene and longevity.
-
Avoid overloading shelves to maintain consistent airflow and freezing.
