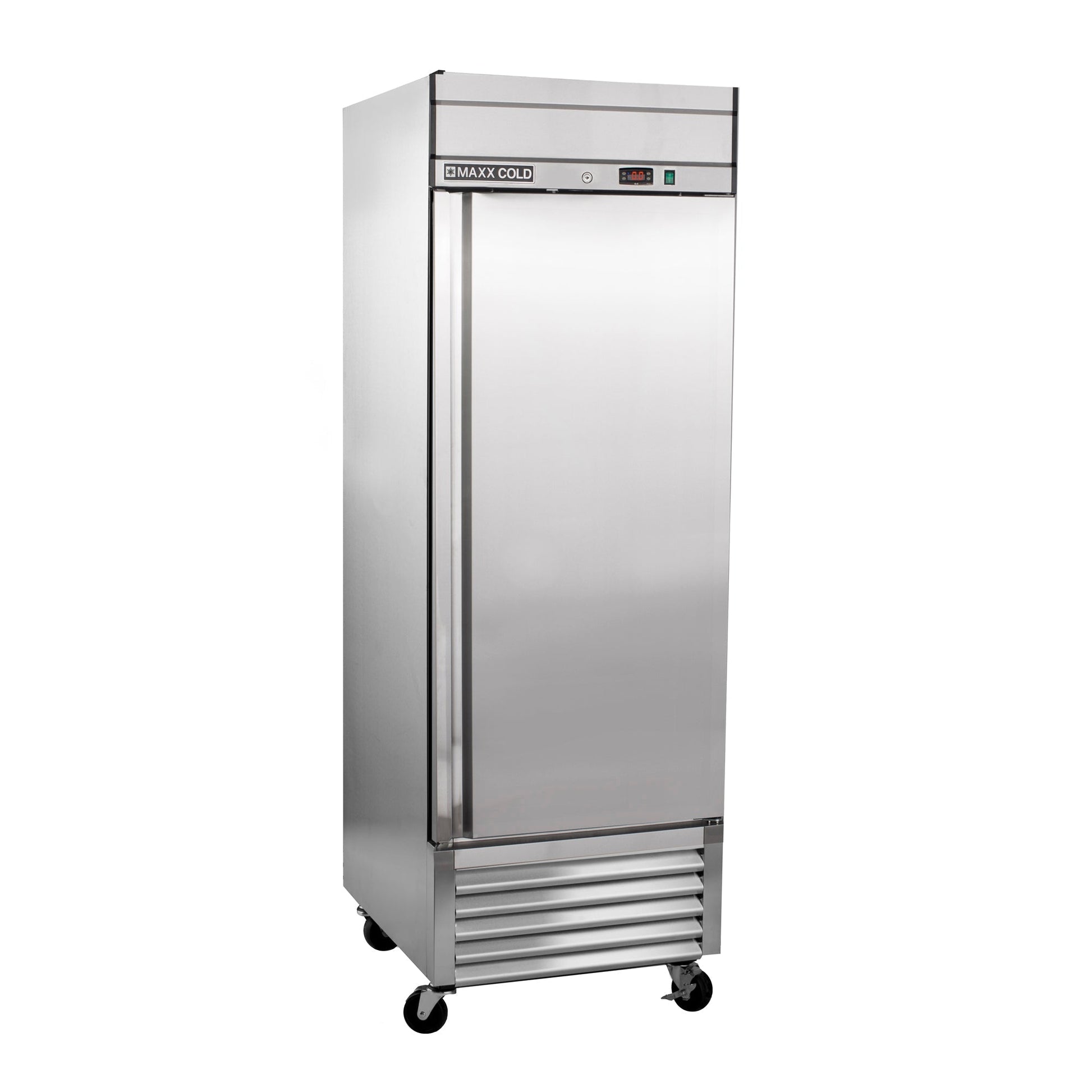

Maxx Cold Bottom Mount 1 Door Reach-In Freezer, 27" W, 19.3 Cu Ft, in Stainless Steel - MXSF-23FDHC
The Maxx Cold Bottom Mount 1 Door Reach-In Freezer is the perfect choice for your frozen storage needs in commercial kitchens. This durable reach-in freezer is constructed from stainless steel and has a heavy-duty self-closing door with a full-length handle. Optimal temperature control is provided by extra thick environmentally safe, CFC-free polyurethane foam insulation. An automatic on-off door switch controls the interior lighting and cooling air fans. This freezer has door locks and password protected solid state digital temperature controls to keep your contents secure. A programmable automatic defrost system prevents the evaporator from icing and keeps the unit at peak operating condition. Keep your food organized with 19.3 cubic feet of storage space plus three heavy-duty corrosion-resistant poly-coated shelves. Four swivel casters ensure easy maneuvering and mobility, while the bottom mount utility compartment delivers easy service access. The stainless steel freezer has a large, easy-to-read digital display that shows the internal temperature, which is maintained at -10°F to 10°F (-24°C to -12°C), in Fahrenheit or Celsius. You won’t have to worry about losing food because the open door alert beeps when the door has been left open or ajar. Choose the Maxx Cold Bottom Mount 1 Door Reach-In Freezer for your foodservice needs.
Features
- Stainless steel exterior and powder coated interior
- Extra thick environmentally safe, CFC-free polyurethane foam insulation for optimal temperature control
- Heavy-duty self-closing door with a full-length handle
- Door locks and password protected solid state digital temperature controls provide security
- Interior lighting and cooling air fans are controlled by an automatic on-off door switch
- Offers 19.3 cubic feet of storage
- Programmable automatic defrost system keeps the unit at peak operating condition and prevents the evaporator from icing
- Forced-air system delivers effective air circulation and rapid temperature recovery
- Includes 3 heavy-duty corrosion-resistant poly-coated shelves with adjustable mounting clips
- Bottom mount utility compartment delivers easy service access
- Maintains a temperature of -10°F to 10°F (-24°C to -12°C)
- Open door alert beeps when door has been left open or ajar
- Large, easy-to-read digital display shows the internal temperature in either Fahrenheit or Celsius
- Includes four 2.75" swivel casters (two with brakes) for easy maneuvering and mobility
Specifications
- Adjustable Shelves: Yes
- Adjustable Temperature Control: Yes
- Amperage: 3.5A
- Assembled Dimensions (LxWxH): 33.30" x 27" x 83.50"
- Assembled Weight (lb): 310.0
- Assembly Required: No
- Batteries Required: No
- Capacity: 23 cu. ft.
- Caster Size: 2.75"
- Casters: Yes
- Color: Stainless Steel
- Control Type: Digital
- Cooling System: Compressor
- Cord Length: 72"
- Cordless: No
- Defrost System Type: Automatic / Frost Free
- Depth - Door Open 90°: 69"
- Depth - Excluding Door: 32.50"
- Depth - Excluding Handles: 33"
- Dishwasher Safe Components: Yes
- Door Color/Finish: Stainless Steel
- Door Material: Metal
- Door Swing Orientation: Right
- Electric: Yes
- Features: Maxx Cold Select Series Upright Freezer, reach-in, one-section, 23 cu. ft. storage capacity, bottom mount self-contained refrigeration, -10° to 10°F temperature range, digital temperature controls with LED display, automatic defrost, (3) wire shelves, (1) solid hinged door with lock, polyurethane foam insulation, aluminum interior, stainless steel exterior, (4) 2-3/4" casters (2 with brakes), R-290a Hydrocarbon refrigerant, 5/8 HP, cETLus, ETL-Sanitation
- First Zone Maximum Temperature: 10°
- First Zone Minimum Temperature: -10°
- Freezer Capacity: 19.3 cu. ft.
- Freezer Type: Full Freezer
- Height - Excluding Top Hinge: 79.70"
- Ice Maker Included: No
- Included Components: Freezer, Instruction Manual, Casters, PE Coated Shelves
- Installation Type: Freestanding
- Integrated Lock: Yes
- Interior Depth: 26.80"
- Interior Width: 22.30"
- Interior Height: 55"
- Material: Stainless Steel
- Number of Doors: 1.0
- Number of Items: 1.0
- Number of Shelves: 3.0
- Outdoor Use: No
- Plug Type: NEMA 5-15P
- Portable: No
- Refrigerant Type: R-290a
- Size: 27"
- Temperature Range: -10° - 10°
- Temperature Zones: 1.0
- Undercounter: No
- Use and Care Instructions: Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.
- Voltage: 120V
- Warranty: 1 Year Parts & Labor + 5 Year Compressor (Part Only)
- Water Dispenser: No
- Wattage: 403W
- Case Pack Dimensions: 40" x 40" x 88"
- Case Pack Weight: 350.0
- Case Quantity: 1.0
- Country of Origin: China
- Freight Class: 250.0
What Our Experts Think
-
27" wide, single-door reach-in freezer with 19.3 cu. ft. storage capacity
-
Bottom mount refrigeration system for energy efficiency and easier maintenance access
-
Built with heavy-duty stainless steel interior and exterior for durability
-
Self-closing door helps preserve consistent temperatures and reduce energy waste
-
Ideal for restaurants, cafés, and commercial kitchens with limited space
Q&A
Q: How much storage does the MXSF-23FDHC provide?
A: It offers 19.3 cu. ft. of freezer storage, perfect for small to medium-sized operations.
Q: Why choose a bottom mount system?
A: It keeps the compressor cooler, improves efficiency, and makes maintenance more convenient.
Q: What type of businesses benefit most from this freezer?
A: Best suited for restaurants, delis, and catering kitchens needing reliable frozen storage in a compact footprint.
Maintenance Tips
-
Defrost interior as needed to prevent frost buildup.
-
Clean stainless steel surfaces with warm water and mild detergent.
-
Inspect and clean door gasket regularly to maintain an airtight seal.
-
Vacuum condenser coils monthly for peak performance.
-
Avoid overloading shelves to ensure proper airflow.
