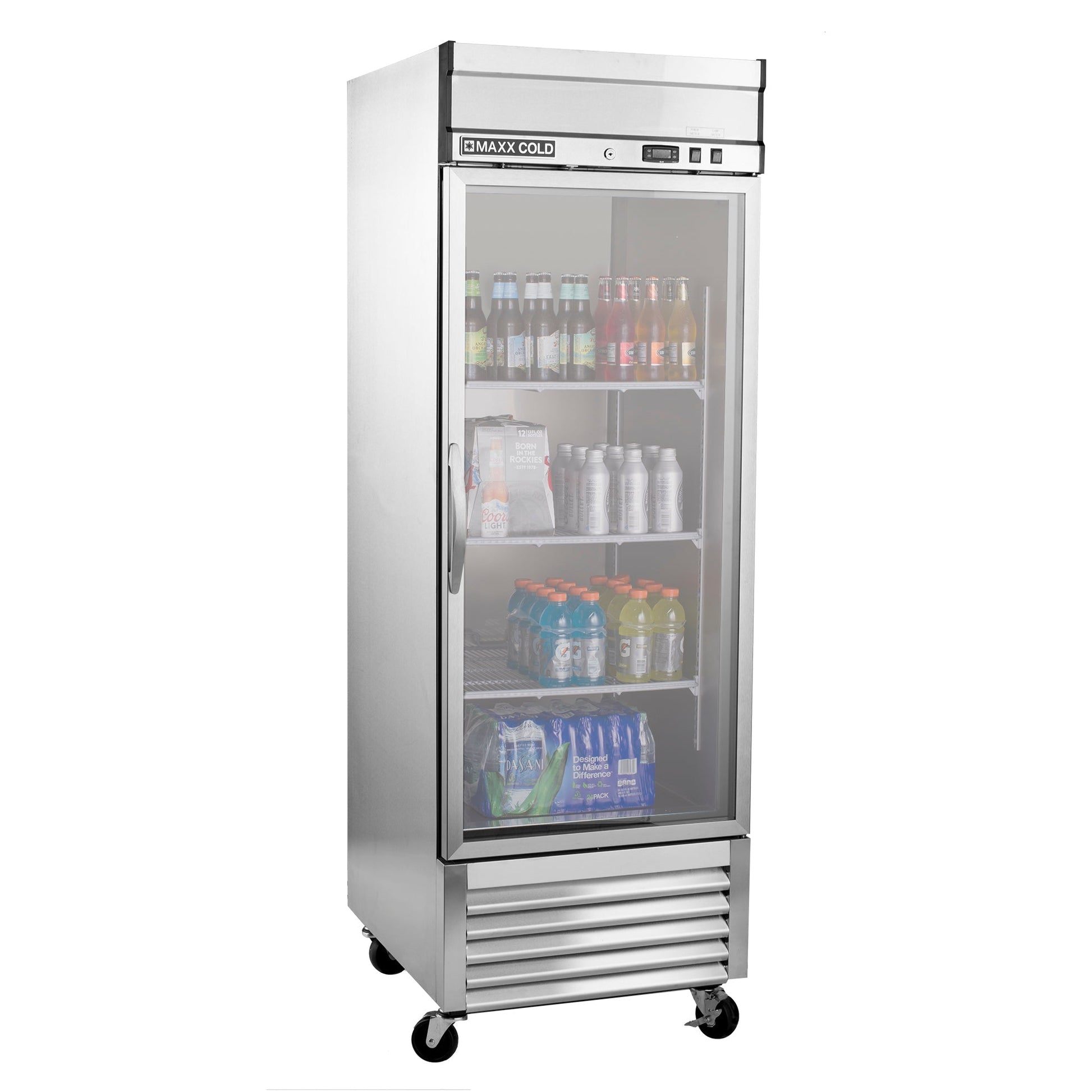

Maxx Cold Single Glass Door Reach-In Refrigerator, Bottom Mount, 27"W, 23 cu. ft. Storage Capacity, in Stainless Steel - MXSR-23GDHC

Maxx Cold Single Glass Door Reach-In Refrigerator, Bottom Mount, 27"W, 23 cu. ft. Storage Capacity, in Stainless Steel - MXSR-23GDHC

Maxx Cold reach-in refrigerators are constructed from stainless steel, engineered with digital controls and polyurethane insulation for optimal temperature control and easy maintenance. Available in 1 and 2 door configurations, each model features curved handles, door locks and PE coated wire shelving with storage space for full size sheet pans.

Features

• Stainless steel exterior and painted aluminum interior
• CFC-free polyurethane foam insulation
• 3 heavy-duty, adjustable, PE coated wire shelves per section
• Self-closing glass doors with locks
• 4” diameter swivel casters with (2) front brakes
• Utilizes environmentally friendly CFC-free R404A & R-134A refrigerant
• Automatic defrost system keeps the unit at peak operating condition
• Bottom mount compressor
• Automatic defrost system
• Digitally controlled temperature system maintains optimum temperature and LED display is easily viewed from exterior
• Net storage capacity of 19.3 Cubic Ft. (547 L)
• Gross storage capacity of 23 Cubic Ft. (651 L)
• Holding temperature 34°F to 40°F (2⁰C to 5⁰C)
• Available in 120/60Hz/1pH and International voltage options

Specifications

• Adjustable Shelves: Yes
• Adjustable Temperature Control: Yes
• Amperage: 2.6A
• Assembled Dimensions (LxWxH): 33.30" x 27" x 83.50"
• Assembled Weight (lb): 291.0
• Assembly Required: No
• Batteries Required: No
• Capacity: 23 cu. ft.
• Caster Size: 2.75"
• Casters: Yes
• Color: Stainless Steel
• Control Type: Digital
• Cooling System: Compressor
• Cord Length: 72"
• Cordless: No
• Defrost System Type: Automatic / Frost Free
• Depth - Door Open 90°: 60.30"
• Depth - Excluding Door: 27"
• Depth - Excluding Handles: 33"
• Dishwasher Safe Components: Yes
• Door Color/Finish: Glass
• Door Material: Glass
• Door Swing Orientation: Right
• Electric: Yes
• Features: Maxx Cold Select Series Upright Refrigerator, reach-in, one-section, 23 cu. ft. storage capacity, (1) hinged glass door with lock, (3) wire shelves, digital temperature controls with LED display, automatic defrost, polyurethane foam insulation, stainless steel interior & exterior, (4) 4" casters (2 with brakes), R290a Hydrocarbon refrigerant, 3/8 HP cETLus, ETL-Sanitation
• First Zone Maximum Temperature: 41°
• First Zone Minimum Temperature: 33°
• Freezer Type: No Freezer
• Fresh Food Capacity: 23 cu. ft.
• Height - Excluding Top Hinge: 79.70"
• Ice Maker Included: No
• Included Components: Refrigerator, Instruction Manual, Casters, PE Coated Shelves
• Installation Type: Freestanding
• Integrated Lock: Yes
• Interior Depth: 26.80"
• Interior Width: 22.30"
• Interior Height: 55"
• Material: Stainless Steel
• Number of Doors: 1.0
• Number of Items: 1.0
• Number of Shelves: 3.0
• Outdoor Use: No
• Plug Type: NEMA 5-15P
• Portable: No
• Refrigerant Type: R-290a
• Size: 27"
• Temperature Range: 33° - 41°
• Temperature Zones: 1.0
• Undercounter: No
• Use and Care Instructions: Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.
• Voltage: 120V
• Warranty: 1 Year Parts & Labor + 5 Year Compressor (Part Only)
• Water Dispenser: No
• Wattage: 299W
• Case Pack Dimensions: 40" x 40" x 88"
• Case Pack Weight: 368.0
• Case Quantity: 1.0
• Country of Origin: China
• Freight Class: 200.0

What Our Experts Think

• 27" wide single glass door reach-in refrigerator designed for reliable cold storage in commercial kitchens

• Provides 23 cu. ft. storage capacity, ideal for beverages, produce, or prepped items

• Features a bottom-mount compressor for improved efficiency and easier maintenance access

• Double-pane glass door allows clear visibility of stored items without opening, helping maintain temperature consistency

• Built with durable stainless steel interior and exterior, offering long-lasting performance and easy cleaning

Q&A

Q: How much storage space does this refrigerator provide?
A: The MXSR-23GDHC offers 23 cu. ft. of refrigerated storage, making it a great fit for small to medium foodservice operations.

Q: What type of door does it have?
A: It features a single glass door with a double-pane design for visibility and insulation.

Q: Who is this best suited for?
A: Perfect for restaurants, cafes, convenience stores, and bars needing a reliable single-door reach-in with clear product visibility.

Maintenance Tips

1. Wipe down stainless steel surfaces daily with mild soap and water.

2. Clean the glass door regularly with a non-abrasive cleaner to maintain visibility.

3. Inspect and clean the door gasket weekly to ensure a proper seal.

4. Keep condenser coils free of dust and debris—check monthly for best efficiency.

5. Avoid overloading shelves to maintain proper airflow and consistent cooling.
