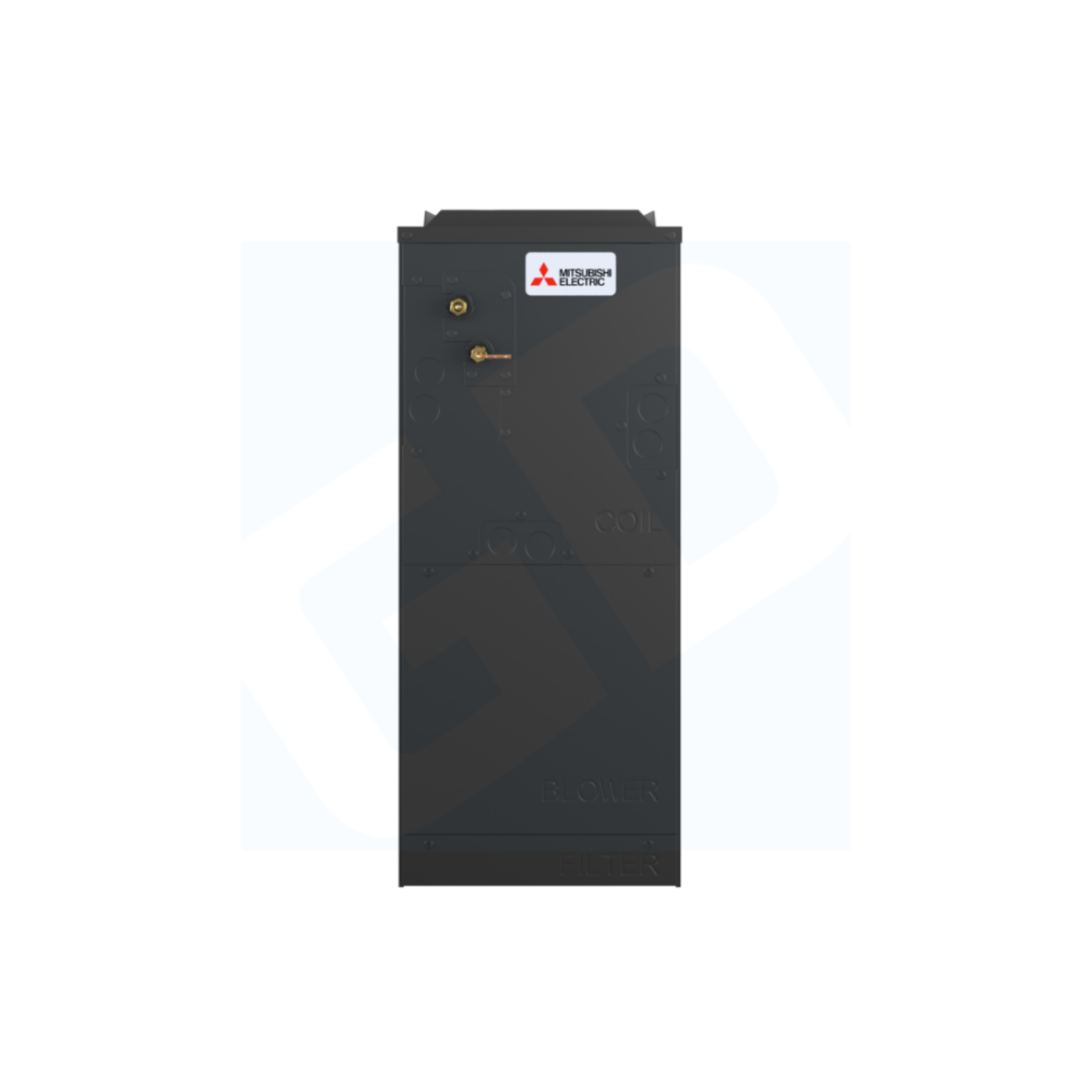

Mitsubishi SVZ-AP36NL 36,000 BTU Ducted Air Handler Indoor Unit - R454B - SVZAP36NL
The SVZ-AP36NL indoor air handler delivers efficient 36,000 BTU cooling and 37,000 BTU heating (nominal). Designed for concealed, ducted installations, it offers powerful airflow, flexible multi-position configurations, and compatibility with inverter-driven Mitsubishi outdoor units using eco-friendly R-454B refrigerant.
System Type: Multi-position ducted indoor air handler (requires compatible outdoor unit)
Model: SVZ-AP36NL
Capacities: 36,000 BTU Cooling | 37,000 BTU Heating (nominal)
Room Size: Ideal for ~1,500 sq ft
Operating Modes: Heating & Cooling
ENERGY STAR®: Yes
Refrigerant / Factory Charge: R-454B (field charged via outdoor unit)
Key Features
-
Flexible Installation: Supports horizontal, vertical, or downflow ducted layouts
-
High Static Pressure Capability: Up to 0.8 in. WC external static pressure for extended duct runs
-
Inverter Technology Compatible: Pairs with Mitsubishi inverter-driven outdoor units for efficient comfort
-
Durable Cabinet Design: Corrosion-resistant ZAM steel with fiberglass-free insulation and sealed, positive-pressure design
-
Wi-Fi & Smart Controls Ready: Compatible with Kumo Cloud®, MHK2, and wired control options
-
Upgrade Options: Supports electric heat kits, ERVs, humidifiers, and enhanced filtration
Specifications
Cooling Capacity: 36,000 BTU/h
Heating Capacity: 37,000 BTU/h nominal
Airflow (Cooling): 767-910 CFM; (Heating): 767-910 CFM
Sound Pressure: 47-49 dB(A)
Power: 208/230 V, 1‑Phase, 60 Hz; MCA: 5 A; MOCP: 20 A
Dimensions (W×D×H): 21″ × 21‑5/8″ × 43-7/8″; Weight: 122 lb
Piping: Liquid 3/8″ | Gas 5/8″ | Drain: 3/4″ O.D.
Included Components
Indoor Unit: SVZ-AP36NL ducted air handler
Standard Installation Accessories (mounting hardware, brackets)
Ideal For
Homeowners or contractors needing a powerful 3-ton ducted indoor unit for large zones. The SVZ-AP36NL provides robust airflow, flexible installation, ENERGY STAR® efficiency, and smart control compatibility for reliable year-round comfort.
What Our Experts Think
-
High-capacity 36,000 BTU ducted air handler ideal for larger residential or commercial spaces.
-
Uses R454B refrigerant, providing eco-friendly performance with reduced global warming potential.
-
Delivers quiet, efficient heating and cooling when paired with compatible Mitsubishi outdoor units.
-
Compact design allows integration into ceilings or walls without compromising interior space.
-
Perfect for homeowners and businesses seeking centralized, ducted climate control with energy efficiency.
Q&A
-
Q: What size area can this unit handle?
A: Suitable for spaces up to ~1,500–1,800 sq. ft., depending on insulation and layout.
-
Q: Does it provide heating as well as cooling?
A: Yes, when paired with a compatible heat-pump outdoor unit.
-
Q: What type of refrigerant does it use?
A: R454B, a next-generation low-GWP refrigerant.
-
Q: Is it suitable for ducted installation?
A: Yes, designed specifically for ducted systems with flexible or rigid duct connections.
Maintenance Tips
-
Clean or replace filters every 1–3 months depending on use and indoor air quality.
-
Ensure air intake and ductwork remain unobstructed.
-
Schedule annual maintenance with a certified HVAC technician.
-
Wipe exterior surfaces with a soft, dry cloth—avoid harsh chemicals.
