Pioneer Multi Zone 9,000 BTU Quantum Series Wall Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V
Quantum Series Inverter++ Variable Speed Multi Split Systems we offer are available in a mix and match fashion and fully user selectable and customizable. Multi Zone Wall Mount Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 9,000 BTU/Hr. (3/4 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 24 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit.
Compatible Outdoor Units
Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the 4 kinds of outdoor units we offer as follows:
Notes
- Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
- Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.
- Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.
- Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

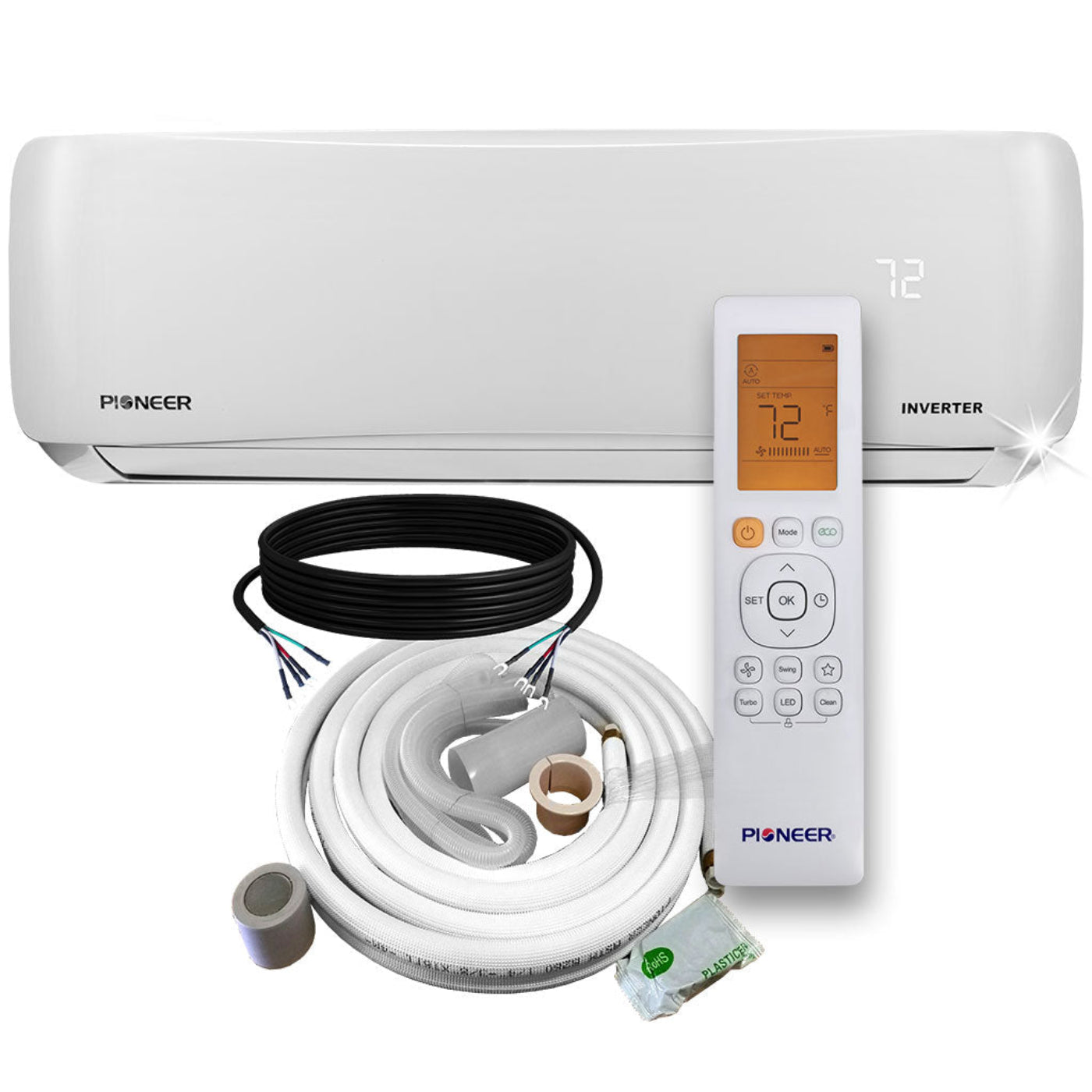

What's Included
- Indoor Unit
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Performance Data
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 9,000 BTU/h
-
Cooling SEER: 24
-
Heating Capacity: 10,000 BTU/h
-
Heating HSPF: 11.3
-
Suitable Area: 200~350 Sq.F
- Air Flow (Hi/Med/Lo): 265 / 205 / 141 CFM
- Sound Level (Hi/Lo): 39 / 24.5 dB(A)
- Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8
- Carton Dimensions (WDH): 34"-1/2 x 11"-1/4 x 15"
- Net / Gross Weight: 18 / 22 Lbs
Manuals
What Our Experts Think
-
9,000 BTU wall-mounted indoor unit for Pioneer multi-zone systems.
-
Inverter++ technology ensures quiet, energy-efficient operation.
-
Slim, modern design saves space and complements any room style.
-
Provides both heating and cooling when paired with a compatible condenser.
-
Reliable choice for bedrooms, offices, and small living areas.
Q&A
Q: Is this a complete system?
A: No, this is the indoor wall-mounted section for Pioneer multi-zone setups.
Q: Can it heat and cool?
A: Yes, when connected to a compatible outdoor unit.
Q: Does it support remote control?
A: Yes, compatible with Wi-Fi app control (when paired with supported systems).
Maintenance Tips
-
Clean air filters every 4–6 weeks for optimal performance.
-
Wipe down the unit regularly to prevent dust buildup.
-
Keep airflow paths clear of obstructions.
-
Schedule professional servicing annually to maintain efficiency.
