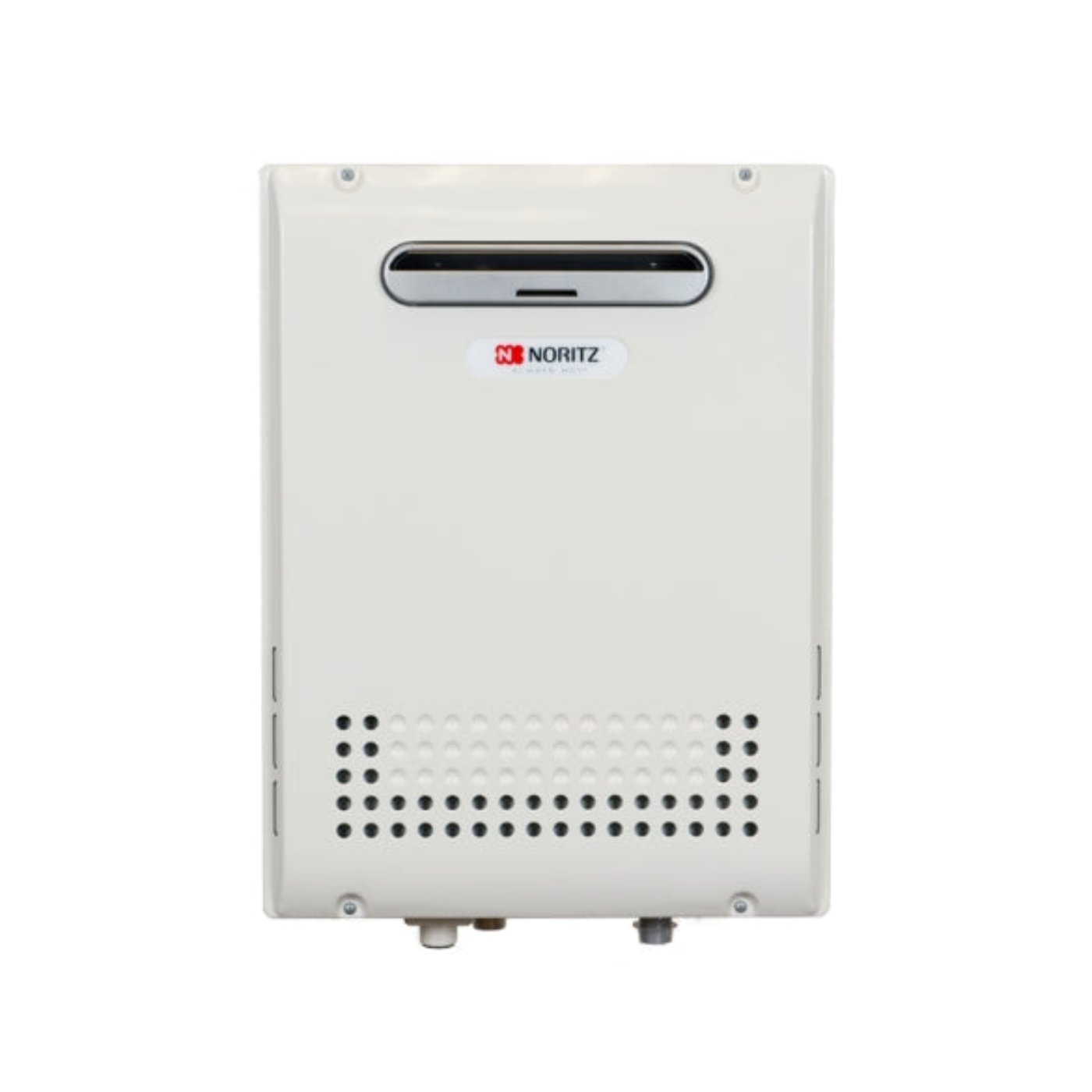

Noritz NRC111OD 199,900 BTU Tankless Water Heater - HCNAC1014-NG
The NNRC111OD Residential Tankless Water Heater utilizes a dual heat exchanger, a fusion of stainless steel and copper heat exchangers. The 100% stainless steel component captures the residual heat from the exhaust temperature to preheat the incoming water before it runs through the main copper heat exchanger. This results in dramatic reduction of carbon dioxide and increases the heater's efficiency level to over 93%!
Another benefit of this technology is lower exhaust temperatures, which means less costly PVC can be used for its venting. A PVC adapter is built into the heater for easy installation.
Features
-
Heat Exchanger: Manufactured with commercial grade copper, 25% thicker piping than standard models
-
Venting Options: Available as an Outdoor (requires no venting) or indoor Direct Vent (‐DV) model which includes special plastic flue adapters that are compatible with both 3" or 4" Schedule 40 and 80 PVC/CPVC pipe. The DV model can also be converted to an SV model with the use of a Conversion Kit (#SV‐CK‐3)
-
Quick‐Connect: Two identical units can be linked together by using the optional Quick Connect Cord (#QC‐2) for twice the hot water capacity
-
Thermal Efficiency: Fully condensing, 95% efficient for use with natural gas or propane
-
Temperature Controls: Includes remote thermostat that can precisely adjust the output temperature from 100°F to 140°F with the capability to display temperatures in both°C and°F
-
Power Cord Installatiohn Kit: 6' power cord is included with ‐DV models only
-
Safety Devices: Flame Sensor, Overheat Prevention Device, Lightning Protection Device, Freeze Protection, Condensate Overfill
-
Additional Fetures: Temperature Lockout, High Elevation Adjustment, Condensate Overflow Monitoring System, Service Reminder Function
Specifications
| Case |
Steel |
| Direct Electronic Ignition |
Yes |
| Energy Star |
Yes |
| Finish Family |
Beige |
| Flow Rate @ 35 ºF Rise |
9.3 gpm |
| Flow Rate @ 45 ºF Rise |
8.4 gpm |
| Flow Rate @ 75 ºF Rise |
4.6 gpm |
| Flow Rate, Maximum |
11.1 gpm |
| Hard-Wired Remote |
Yes |
| Heat Exchanger Warranty |
12 Year year |
| Indoor/Outdoor |
Outdoor |
| Labor Warranty |
1 Year |
| Lightning Protection |
Yes |
| Maximum Temperature |
140 ºF |
| Min. Installation Clearance, Front |
24 Inch |
| Min. Installation Clearance, Sides |
6 Inch in |
| Min. Installation Clearance, Top |
36 Inch in |
| Minimum Activation Rate |
0.5 gpm |
| Must ship freight |
Yes |
| Parts Warranty |
5 Year Limited Parts Warranty |
| Product Depth |
9.4 in |
| Product Height |
24.2 in |
| Product Shipping Weight |
66 lb |
| Product Width |
18.33 in |
| Recirculation compatible |
Yes |
| Shipping Cost |
140 |
| Shipping Time |
7 to 10 days |
| Thermal Efficiency |
0.93 % |
| Unit Type (Selector) |
Standard |
| Warranty |
12 Year Limited Heat Exchange year |
| Water Connection Location |
Top |
| Water Connection Size |
3/4 Inch in |
| Water Pressure Range, Min-Max |
15-150 psig |
| Wattage |
213 W |
What Our Experts Think
-
High-Capacity Heating: Delivers up to 199,900 BTUs for continuous hot water, ideal for large homes or high-demand applications.
-
Outdoor Installation: Designed for exterior mounting, freeing up indoor space and simplifying venting needs.
-
Superior Energy Efficiency: Condensing technology minimizes energy consumption, reducing operating costs.
-
Eco-Friendly: Compliant with ultra-low NOx emissions for reduced environmental impact.
-
Weather-Resistant Durability: Built with high-quality materials to ensure long-lasting performance in harsh outdoor conditions.
Q&A
Q: What is the Noritz NRC111OD Tankless Water Heater?
A: The Noritz NRC111OD is a 199,900 BTU natural gas outdoor tankless water heater designed for residential and light commercial use, delivering continuous hot water with high efficiency.
Q: What is the maximum flow rate?
A: The NRC111OD offers a maximum flow rate of up to 11.1 GPM, suitable for large homes or multiple simultaneous water demands.
Q: Is it energy-efficient?
A: Yes, it has an impressive 0.94 UEF rating, helping reduce energy consumption and utility costs.
Q: Does it require additional venting?
A: No, as an outdoor model, it vents directly into the open air, eliminating the need for venting components.
Q: What safety features are built-in?
A: It includes freeze protection, overheat protection, and flame detection for reliable and safe operation in various climates.
Q: Is professional installation recommended?
A: Yes, professional installation ensures proper setup, safety compliance, and maximum performance.
Maintenance Tips
-
Annual Descaling: Flush the heat exchanger with a descaling solution to remove mineral deposits.
-
Clean Water Inlet Filter: Check and clean the cold-water inlet filter every 6–12 months to maintain water flow.
-
Ventilation Check: Ensure the outdoor vent is clear of debris, dirt, or snow to maintain proper airflow.
-
Inspect Gas Connections: Regularly check gas lines for leaks and ensure fittings are secure.
-
Monitor Error Codes: Address any error codes promptly by consulting the troubleshooting section of the manual.
-
Exterior Cleaning: Wipe down the outer casing to prevent dirt and dust buildup.
-
Professional Service: Schedule an annual inspection with a certified technician to ensure peak performance and safety.
