Pioneer 10,000 BTU 115V Under-Bench RV Inverter Heat Pump Air Conditioner - PYR009AZUDCIPD

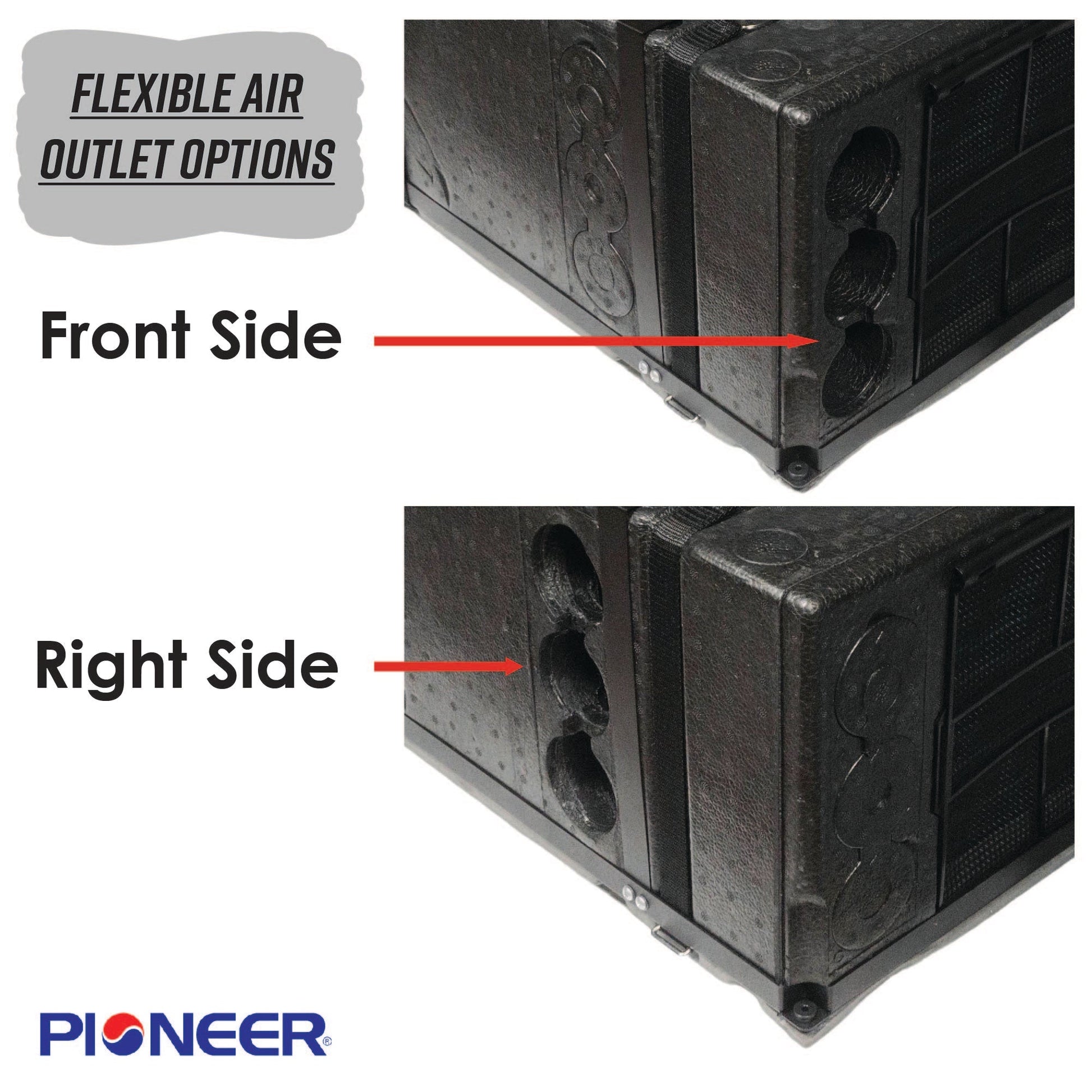

Explore the great open road with Pioneer's newest RV heat pump air conditioner package unit. Intended for under-the-bench installations, this low-profile and highly durable package system will keep your motor vehicle at a cozy temperature all year round, and do so quietly. Easily attach three ducts to serve separate areas of the dwelling, with options to connect to the front or side of the system. Control the system using the wall-fixed thermostat, or from the comfort of your bed using the convenient handheld remote controller. With ultra-quiet performance, sleek design, and very low input power requirements, this rugged plug-in system will be one of your favorite companions on those long-haul journeys, day-in and day-out.
Features
- Cooling capacity: 10,000 BTU/H with 10.1 EER efficiency
- Heating capacity: 9,500 BTU/H with 3.5 C.O.P.
- Voltage: 110~120V, 60Hz, 1Ph
- Operational Temperature Range: 19 - 104°F
- Pre-charged with R32 refrigerant and ready to install
- UL Listed
- Perfect for RVs, Skoolies, Tiny Homes, Camper Vans, or any home on wheels
What's Included

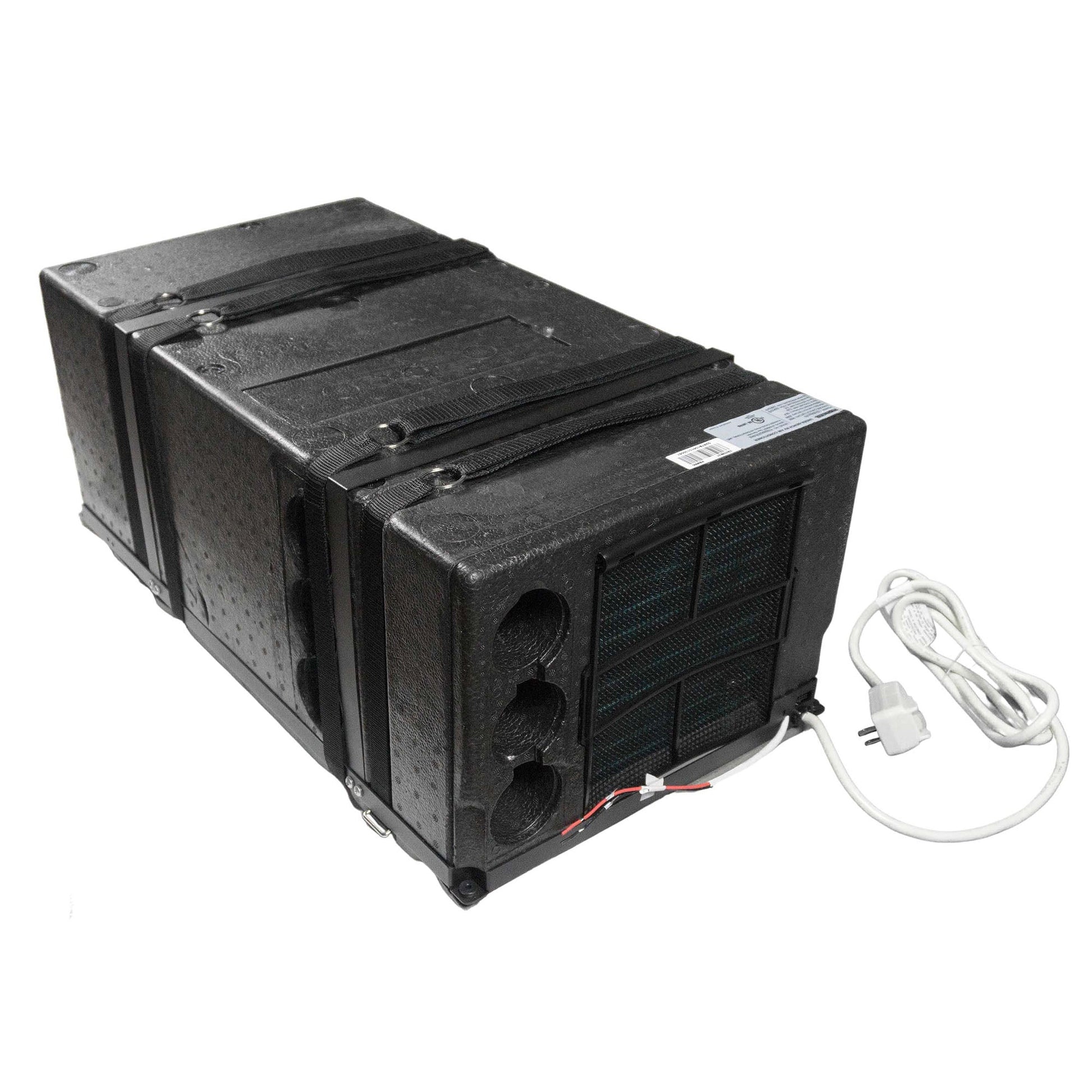

- Pioneer RV Under-Bench Heat Pump AC System

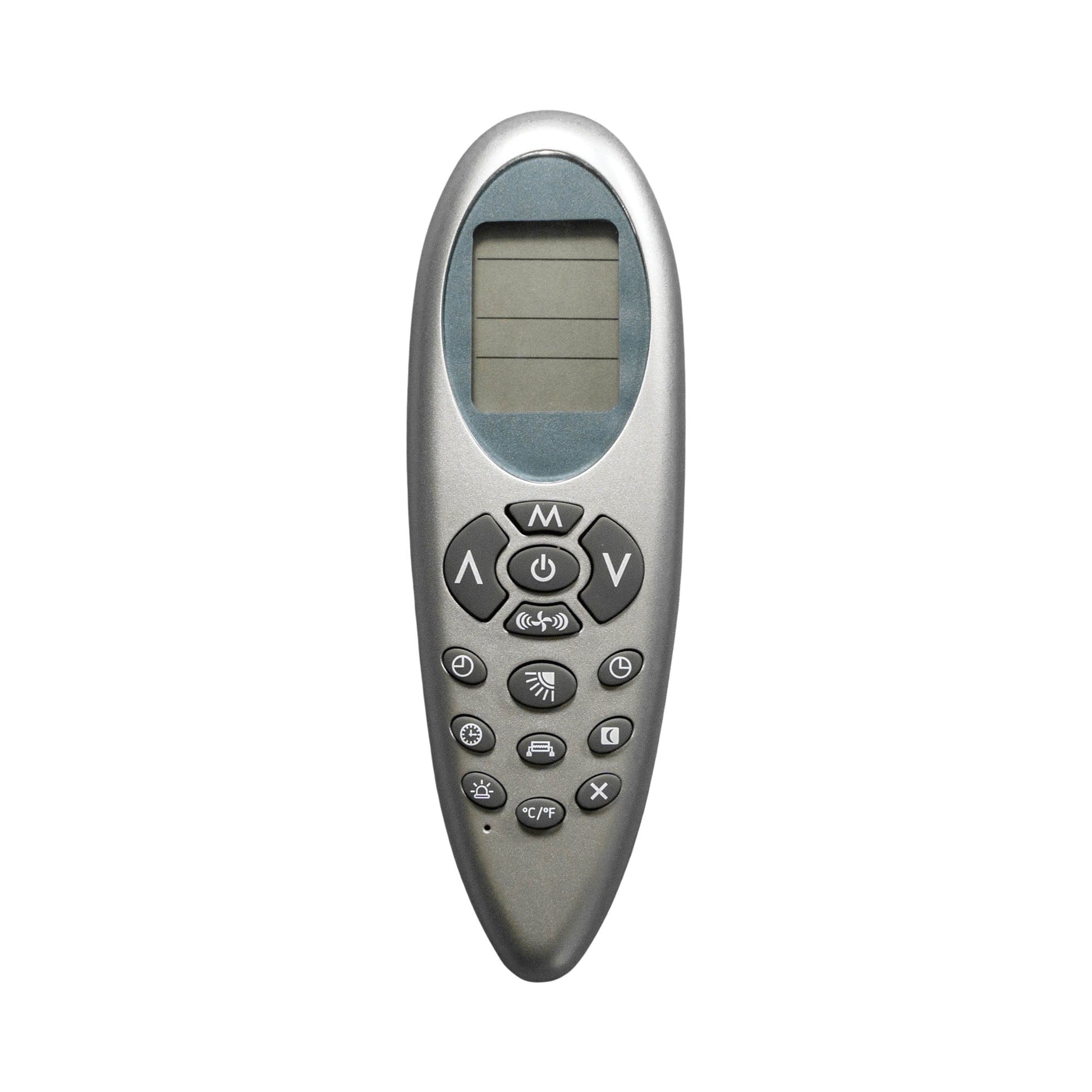

- Handheld Remote Controller w/ batteries and cradle

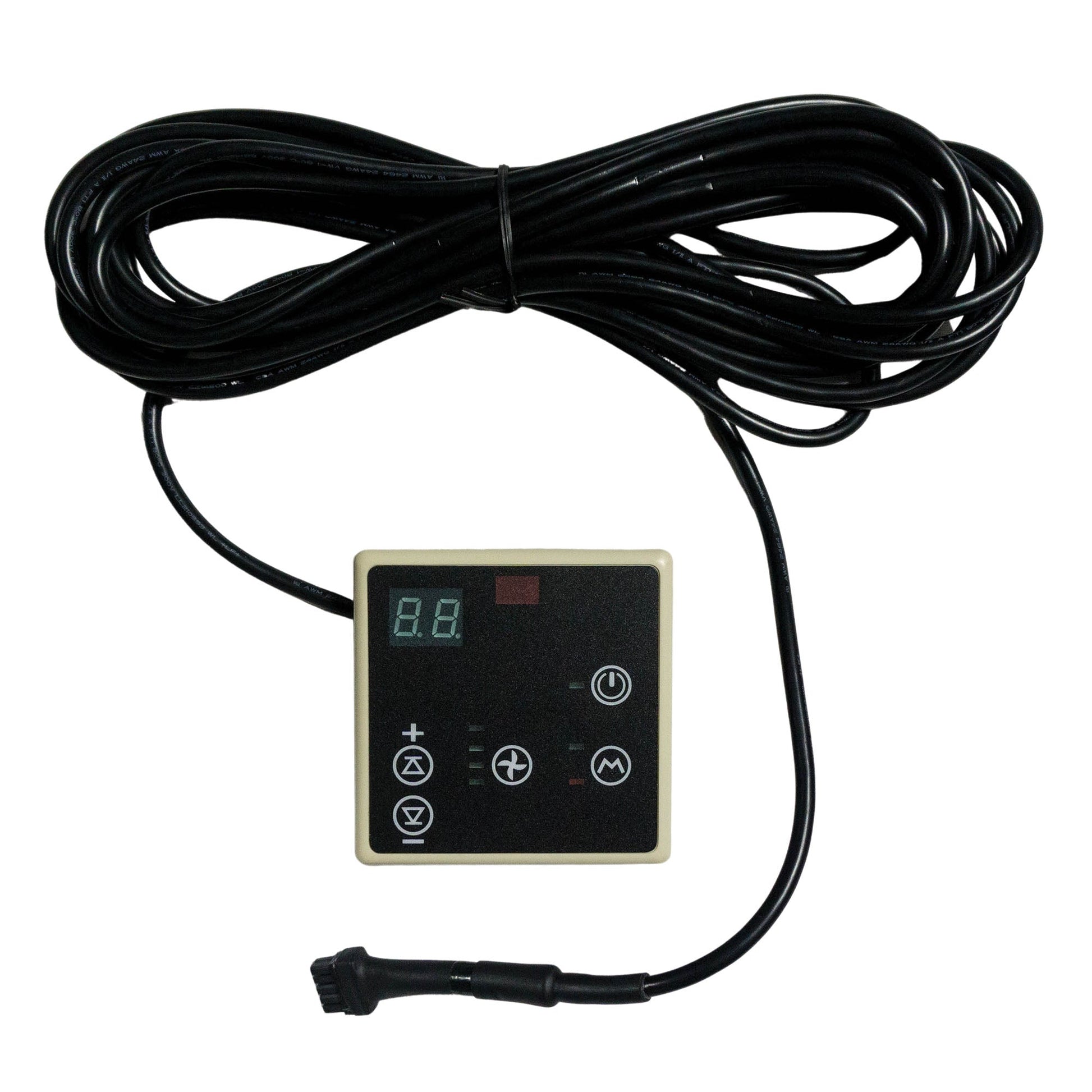

- Wired Thermostat w/ cradle

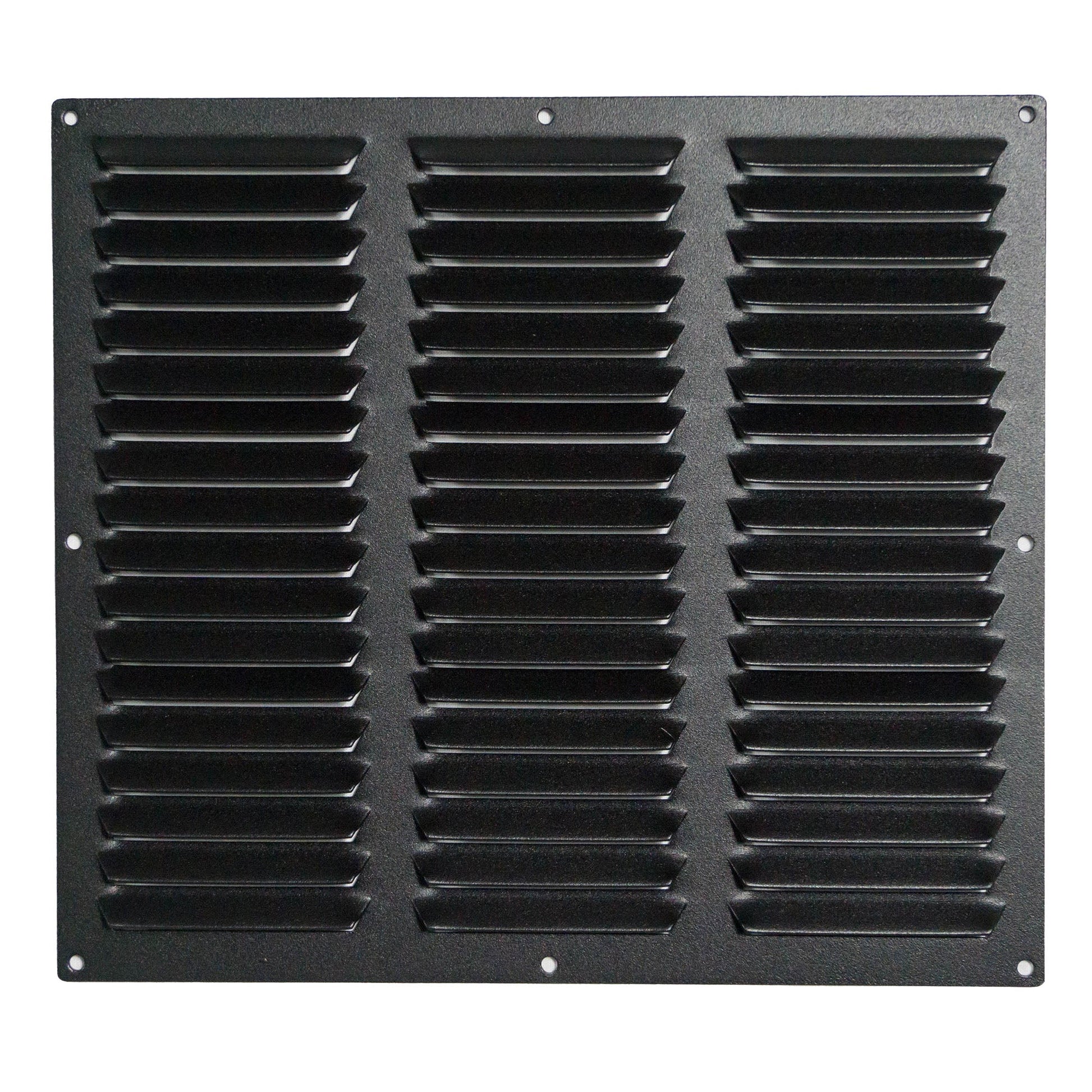

- Highly Durable Metallic Return Air Grille

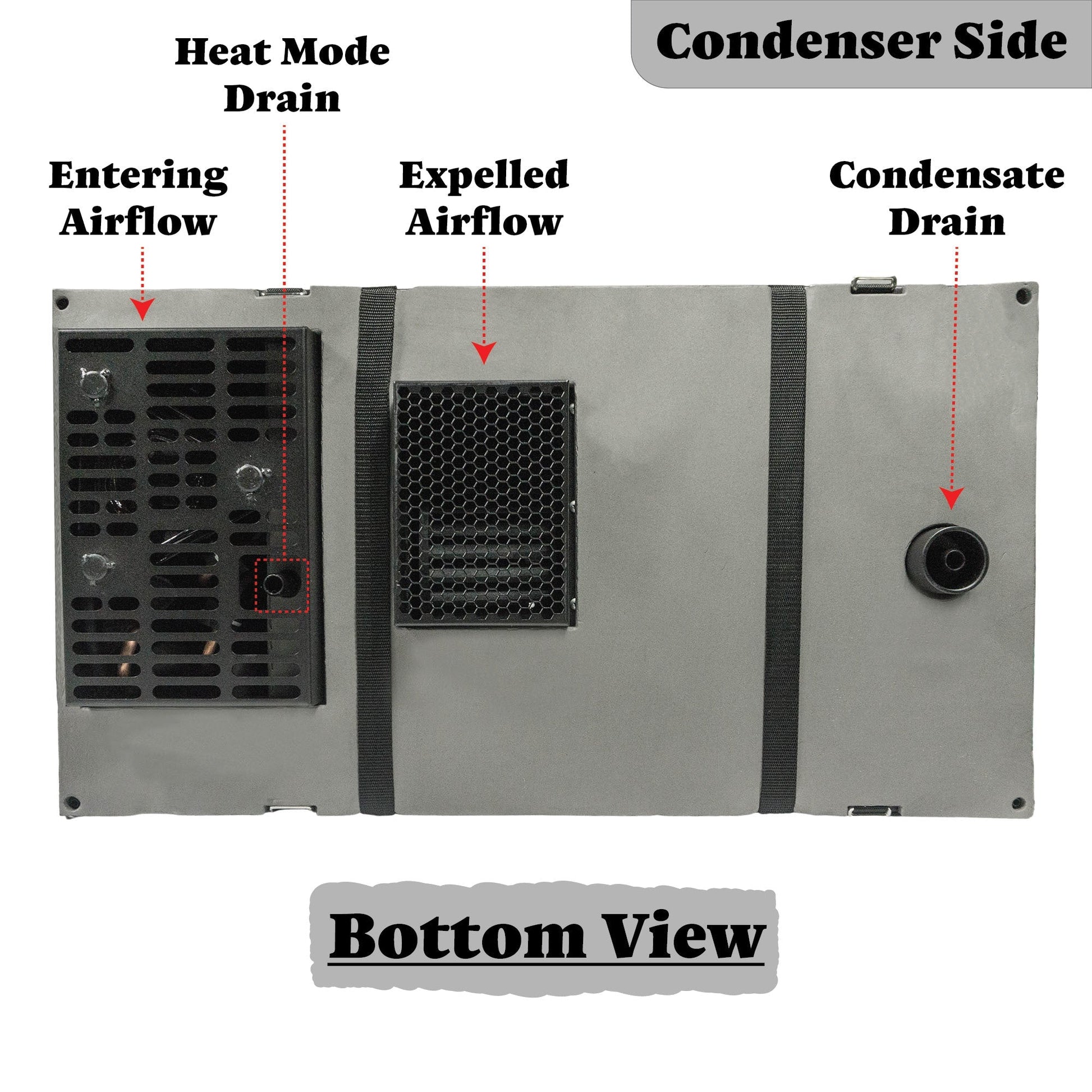

- Drainage Tubing
- Installation Hardware
- Installation and User's Manual
Our Guarantee
- 3 year parts limited warranty
- 5 year compressor limited warranty
Technical Information
Performance Data
-
Power Supply: 110~120V, 60Hz, 1Ph
-
Cooling Rated Capacity: 10,000 BTU/h
-
Cooling EER: 10.1 BTU/w.hr
-
Maximum Cooling Consumption: 8.6A / 989W
-
Heating Rated Capacity: 9,500 BTU/h
-
Heating C.O.P.: 3.51 W/W
- Maximum Heating Consumption: 6.9A / 794W
-
Refrigerant Type: R32
-
Suitable Volume: 1,060 m3
-
Fan Speeds: 3 (Low/Med/High)
Unit Physical Data
-
Treated Volume of Air (Max): 206 CFM
-
Water Protection Class: IPX-5
-
Noise Level: <40 dB(A)
-
Weight: 61 lbs
-

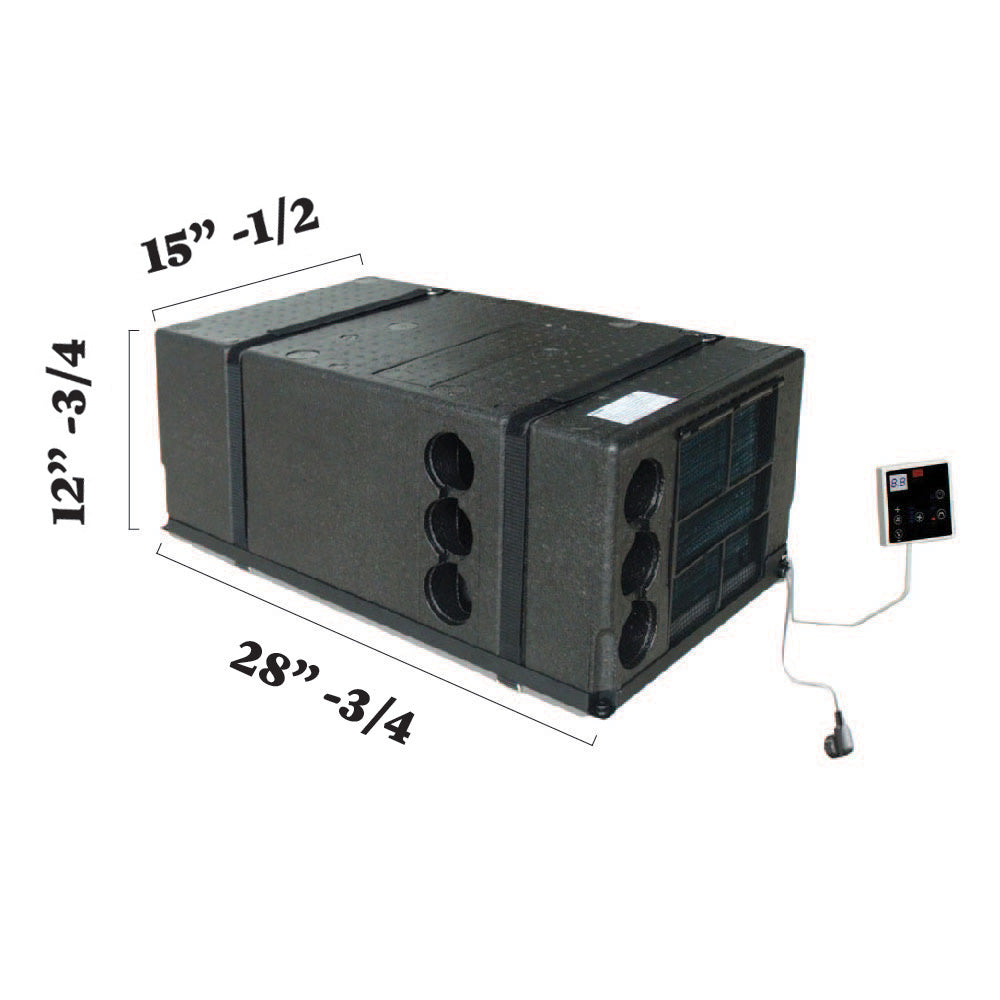

Dimensions (LDH): 28"-7/8 x 16" x 11"-5/8

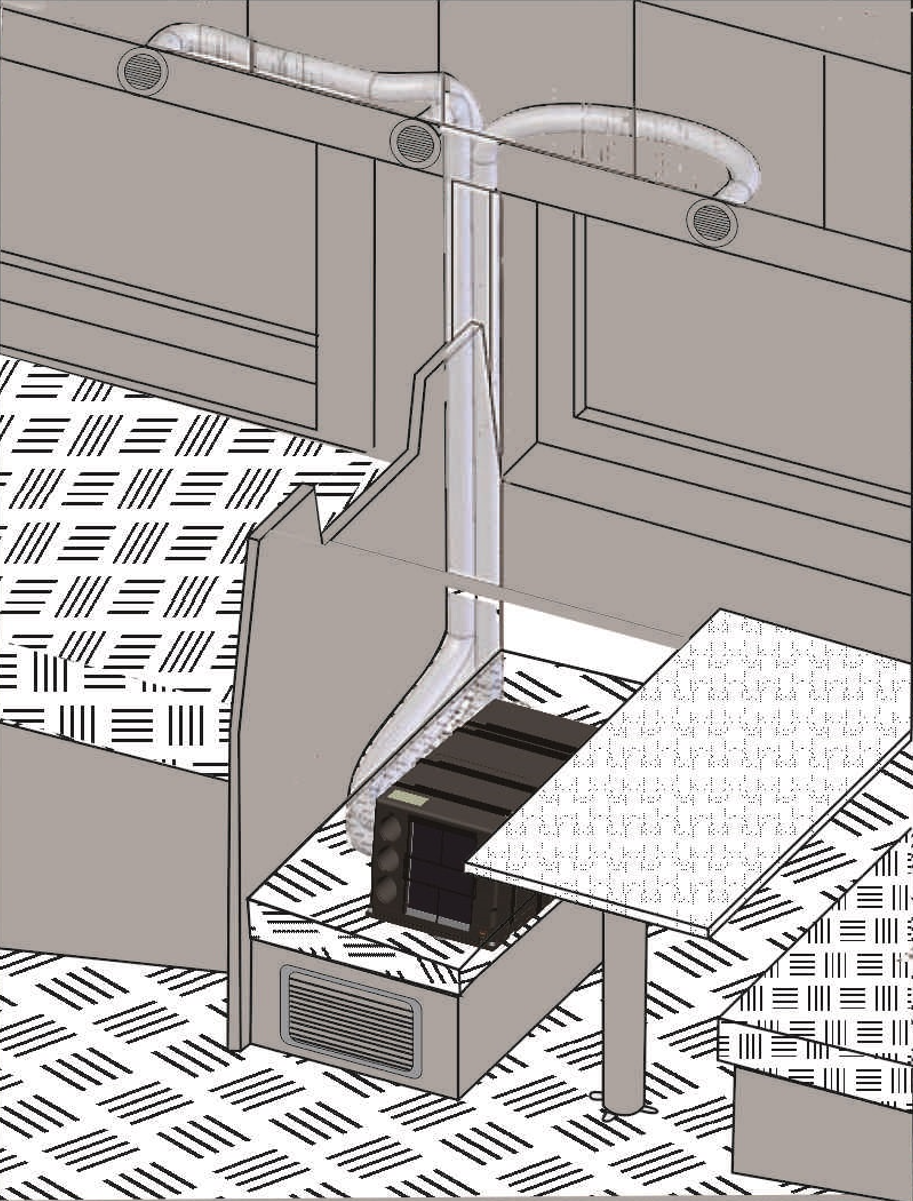

Typical Installation
Documentation
What Our Experts Think
-
Compact under-bench design ideal for RVs and mobile applications.
-
10,000 BTU cooling and heating capacity ensures year-round comfort.
-
Energy-efficient inverter technology reduces power consumption.
-
115V operation compatible with standard RV electrical systems.
-
Reliable Pioneer build quality for long-lasting performance.
Q&A
Q: Is this unit designed specifically for RVs?
A: Yes, the under-bench design makes it perfect for RV installations.
Q: Does it provide both cooling and heating?
A: Yes, it functions as both an air conditioner and a heat pump.
Q: What power supply does it require?
A: Standard 115V connection, common in RV setups.
Maintenance Tips
-
Clean or replace air filters monthly for peak efficiency.
-
Inspect vents and ducts regularly for blockages.
-
Wipe exterior with a soft cloth to prevent dust buildup.
-
Have a technician check refrigerant and system performance annually.
