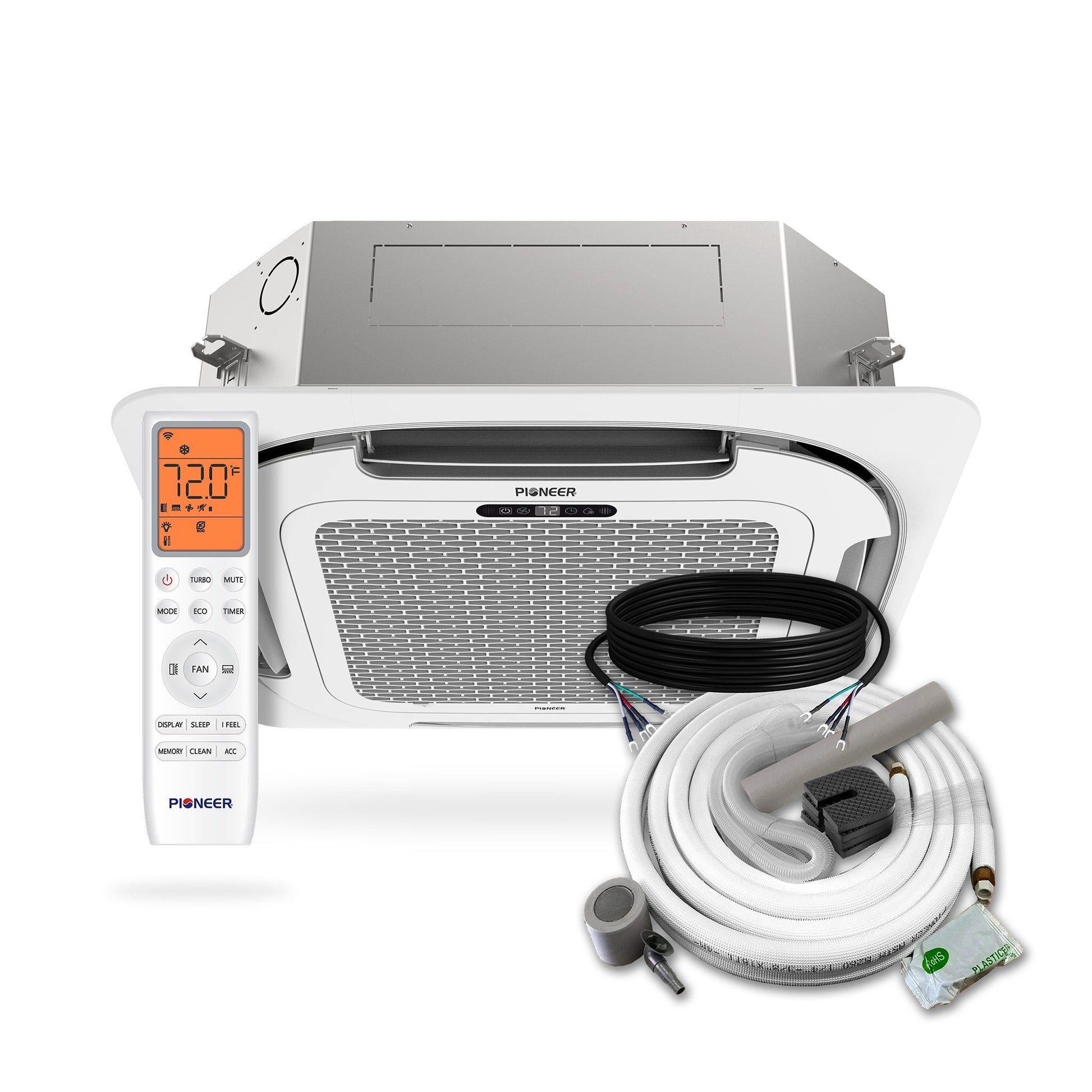

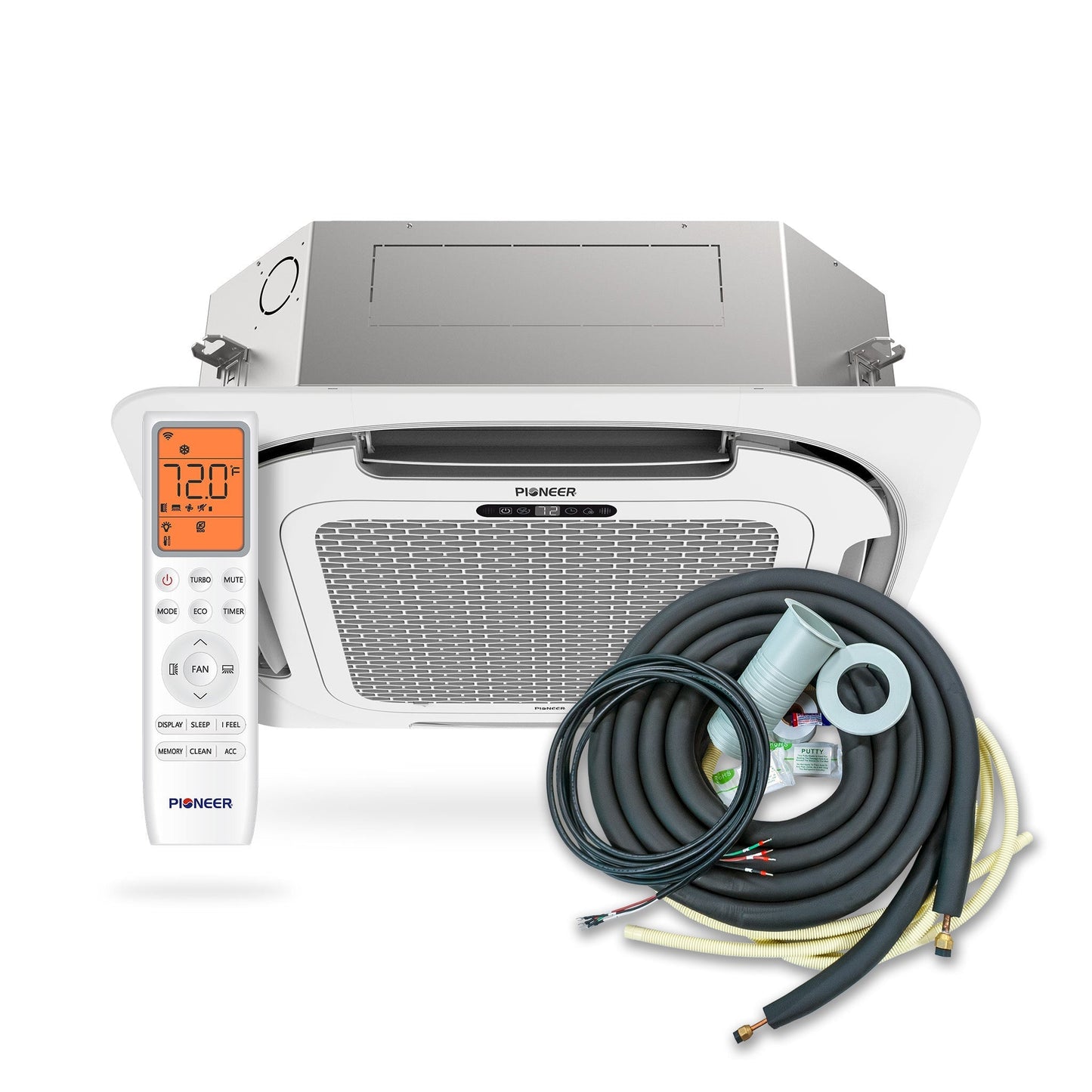

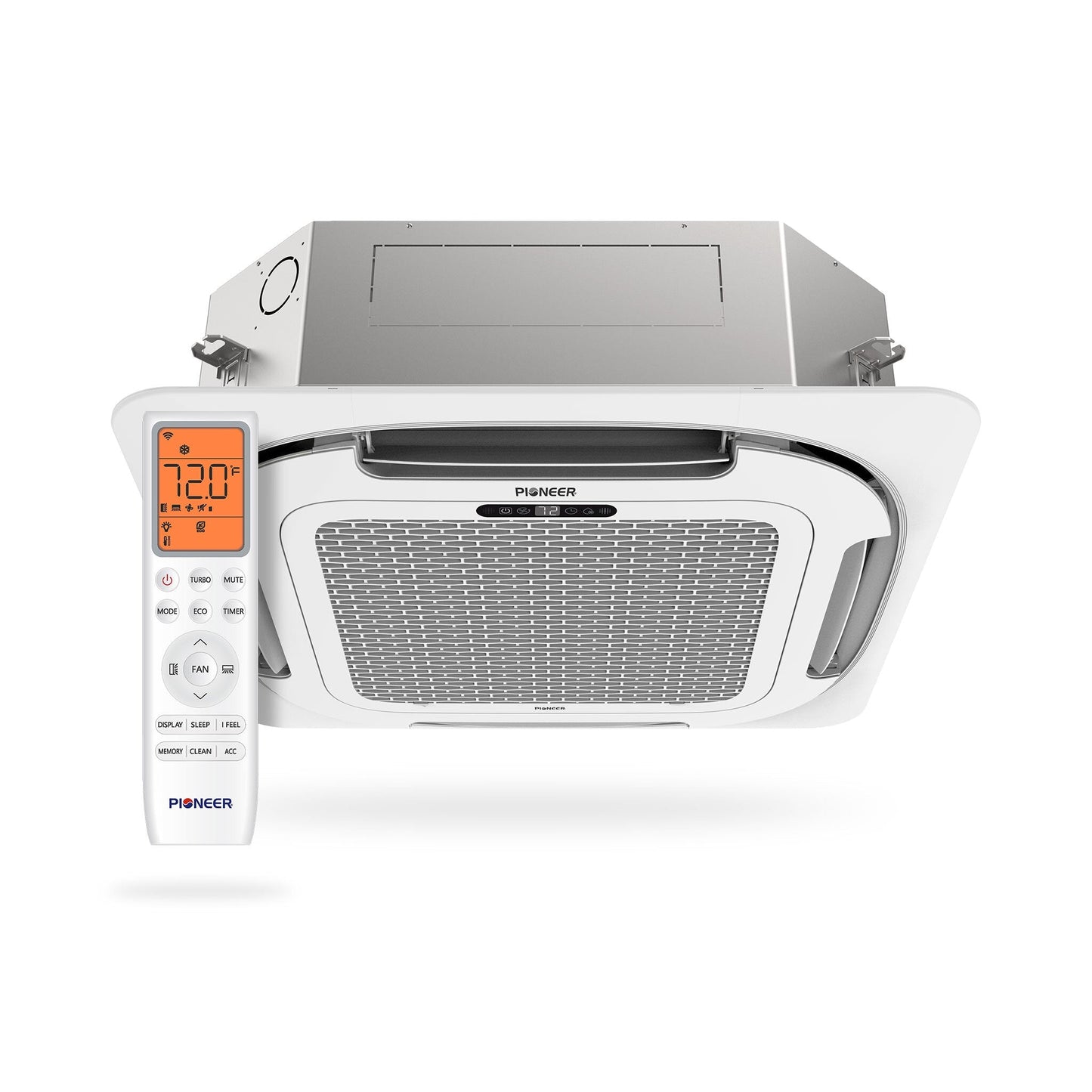

Pioneer Multi Zone 12,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - CT012GLSILCFHG-10S
Performance
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 12,000 BTU/h
-
Heating Capacity: 12,000 BTU/h
-
Suitable Area: 350~500 Sq.F
-
Indoor Unit
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
-
Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
-
Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
-
Net / Gross Weight: 32.0 / 38.6 lbs
-
Decorative Panel
-
Part Number: CT0918DPNL
-
Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
-
Carton Dimensions (WDH):28"-7/8 x 28"-7/8 x 4"-3/8
-
Net / Gross Weight: 6.0 / 9.5 lbs
What's Included
-
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-
12,000 BTU ceiling cassette indoor unit for multi-zone Pioneer systems.
-
Inverter++ technology ensures efficient heating and cooling.
-
4-way air distribution delivers even comfort throughout the room.
-
Slim ceiling-mounted design saves wall space and blends seamlessly.
-
Wi-Fi enabled for remote operation and smart-home integration.
Q&A
Q: Is this a complete system or an indoor unit?
A: This is the indoor cassette section for Pioneer multi-zone systems.
Q: Does it provide both heating and cooling?
A: Yes, when connected to a compatible outdoor condenser.
Q: Can I control it with my phone?
A: Yes, built-in Wi-Fi allows easy control via the Pioneer app.
Maintenance Tips
-
Clean air filters every 4–6 weeks for peak performance.
-
Check ceiling vents monthly to prevent dust buildup.
-
Ensure the condensate drain is clear to avoid water leaks.
-
Have the system professionally serviced once a year.
