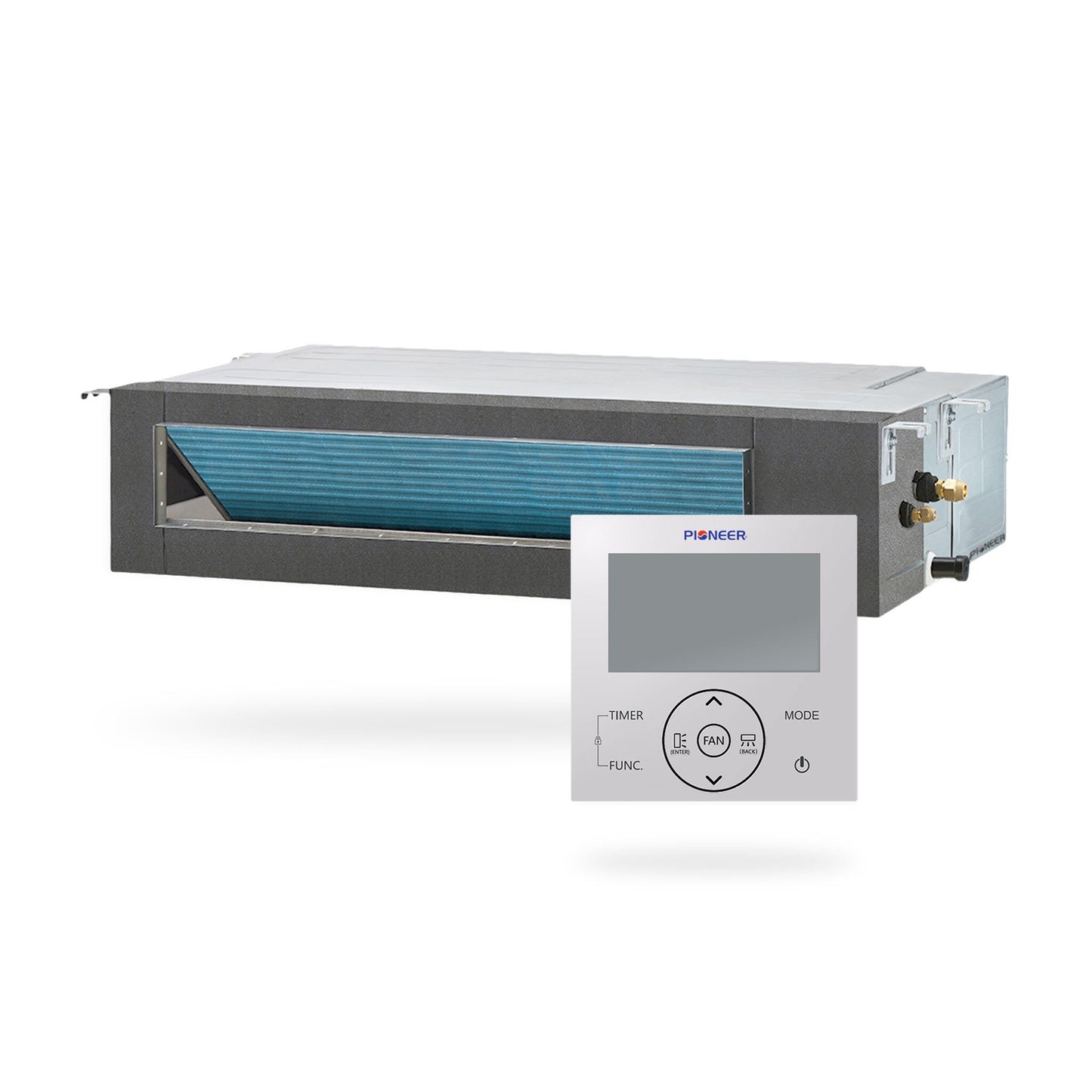

Pioneer Multi Zone 12,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
Performance
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 12,000 BTU/h
-
Heating Capacity: 12,000 BTU/h
-
Suitable Area: 200~450 Sq.F
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 360/330/270/210/180 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 44/41/35/33/32 dB(A)
-
Product Dimensions (WDH): 27"-1/2 x 19-1/4" x 7-7/8" Inches
-
Carton Dimensions (WDH): 35-1/2" x 21-7/8" x 9-7/8" Inches
-
Net / Gross Weight: 33.1 / 40.8 lbs
Compatibility
What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App

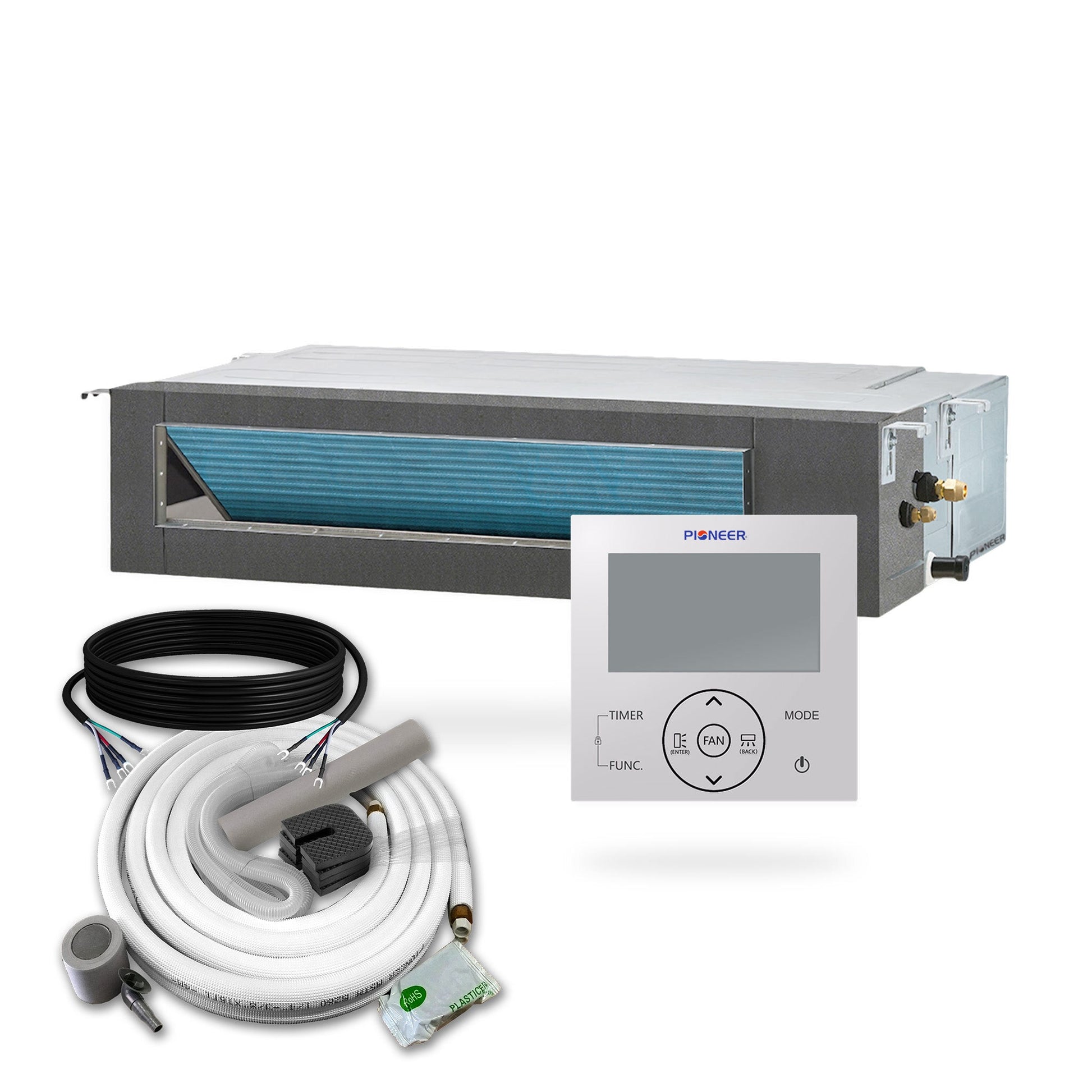

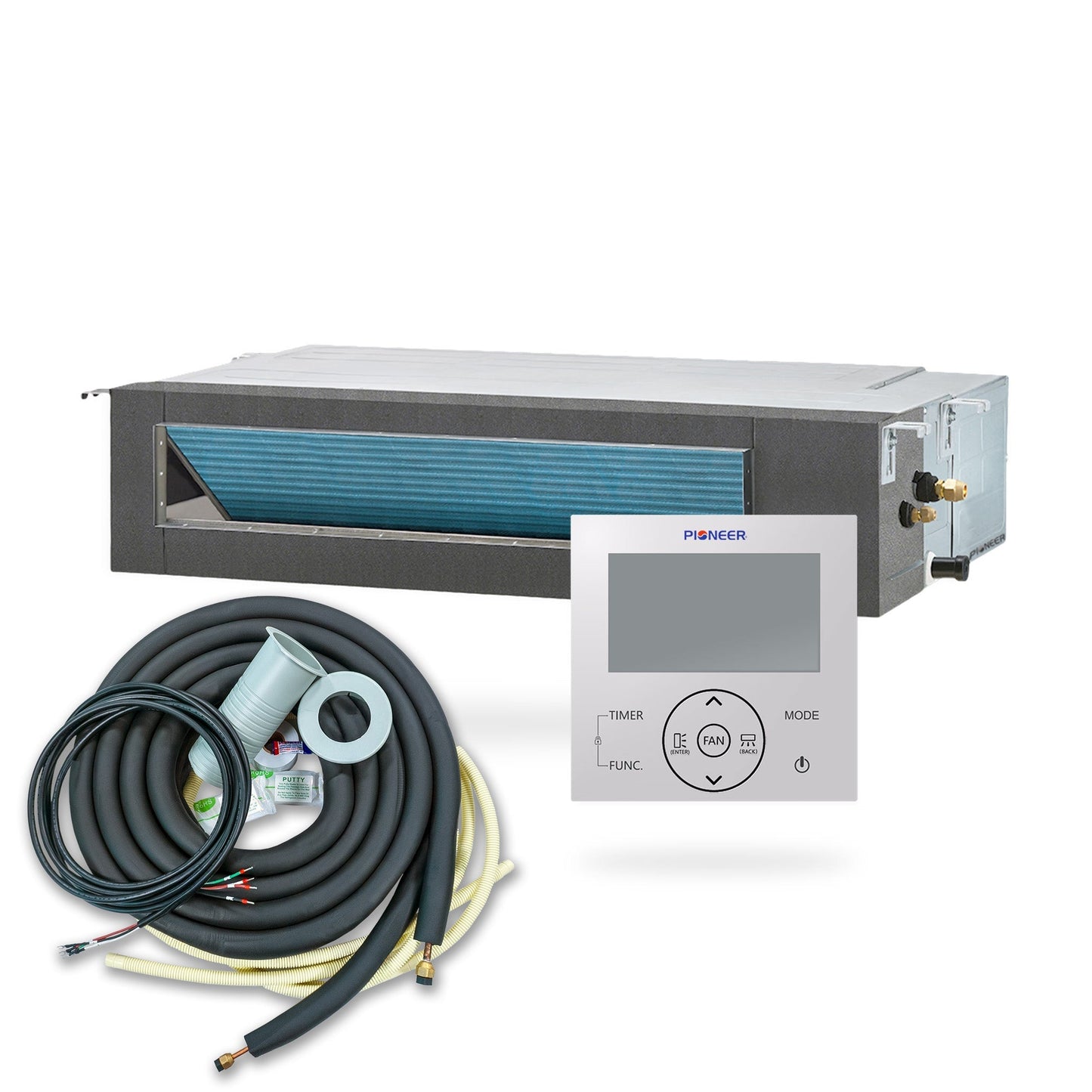

- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-
12,000 BTU capacity ideal for medium rooms with concealed installation.
-
Ceiling-ducted design provides discreet comfort with flexible airflow.
-
Wi-Fi enabled for smart control and scheduling.
-
Works with Pioneer® Quantum Ultra Multi-Zone outdoor units.
-
Inverter++ technology ensures quiet, efficient performance.
Q&A
Q: Is this unit for single or multi-zone systems?
A: It is an indoor section designed for use with compatible Pioneer® Multi-Zone outdoor units.
Q: Does it include Wi-Fi control?
A: Yes, Wi-Fi connectivity allows remote operation via smartphone or smart home integration.
Q: Can it both heat and cool?
A: Yes, when paired with the proper outdoor section, it functions as a ductable air conditioner and heat pump.
Q: Is this a complete system?
A: No, this listing is for the indoor unit only; outdoor unit sold separately.
Maintenance Tips
-
Clean air filters every 1–2 months to maintain airflow.
-
Inspect ducts periodically for dust buildup or leaks.
-
Wipe the unit exterior with a soft cloth to prevent dust accumulation.
-
Schedule annual professional service to ensure system efficiency.
