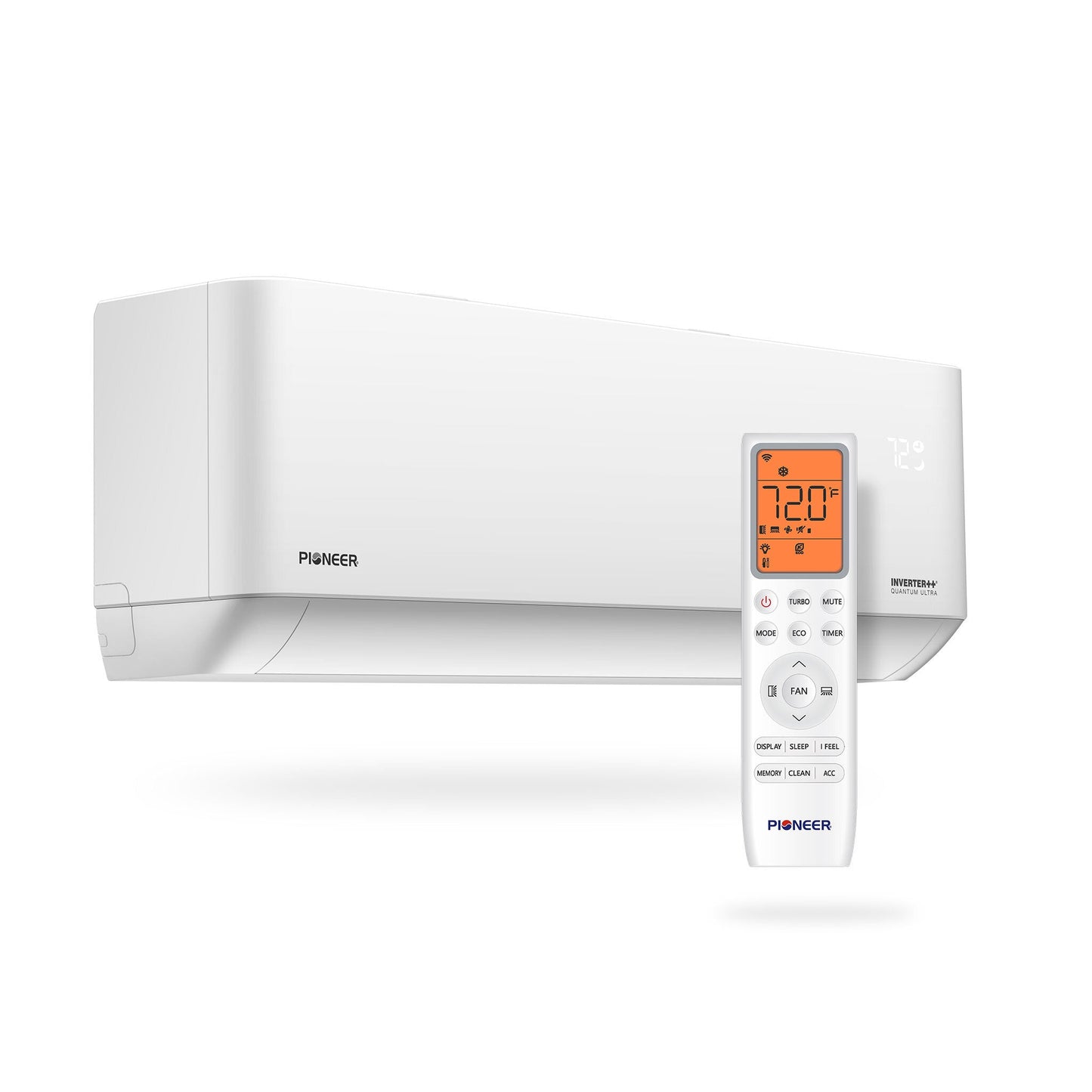

Pioneer Multi Zone 12,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
Performance
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 12,000 BTU/h
-
Heating Capacity: 12,600 BTU/h
-
Suitable Area: 200~450 Sq.F
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
-
Product Dimensions (WDH): 36"-1/4 x 7-5/8" x 12" Inches
-
Carton Dimensions (WDH): 39" x 10-1/2" x 15" Inches
-
Net / Gross Weight: 23.1 / 30.9 lbs
- Piping Diameter: 1/4-3/8"
Compatibility

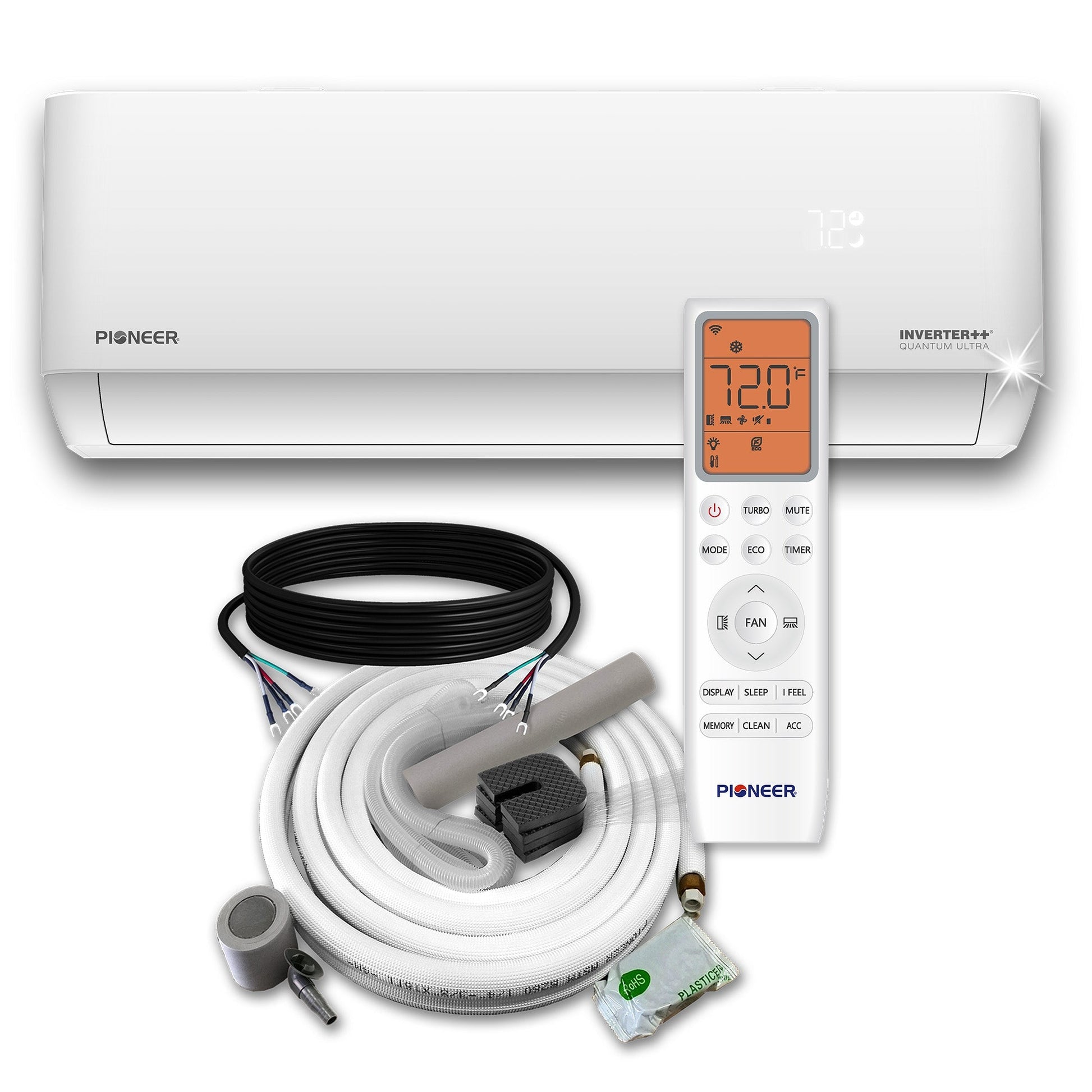

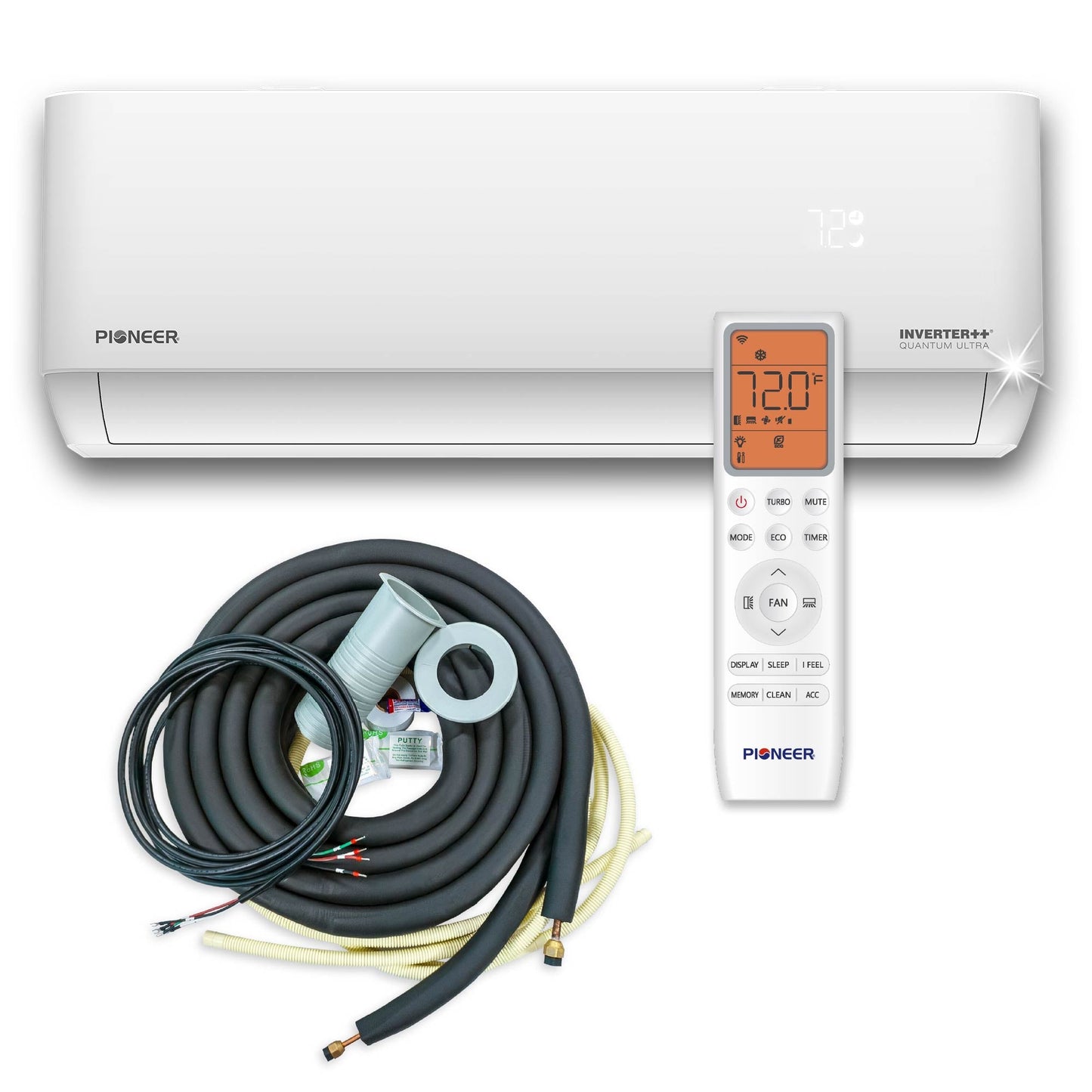

What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-
12,000 BTU indoor unit designed for Pioneer multi-zone systems.
-
Wall-mounted ductless design provides quiet, efficient comfort.
-
Inverter++ technology ensures precise temperature control and reduced energy use.
-
Wi-Fi enabled for smart control via mobile devices.
-
Ideal for bedrooms, living rooms, or office spaces within a multi-zone setup.
Q&A
Q: Can this unit operate on its own?
A: No, it must be paired with a compatible Pioneer multi-zone outdoor system.
Q: Does it provide both heating and cooling?
A: Yes, when connected to the outdoor unit, it functions as both AC and heat pump.
Q: Is it Wi-Fi enabled?
A: Yes, it supports remote operation through mobile apps.
Maintenance Tips
-
Clean the air filters every 4–6 weeks for maximum efficiency.
-
Wipe indoor unit surfaces regularly to prevent dust buildup.
-
Keep airflow pathways clear of obstructions.
-
Schedule annual servicing to check system connections and performance.
