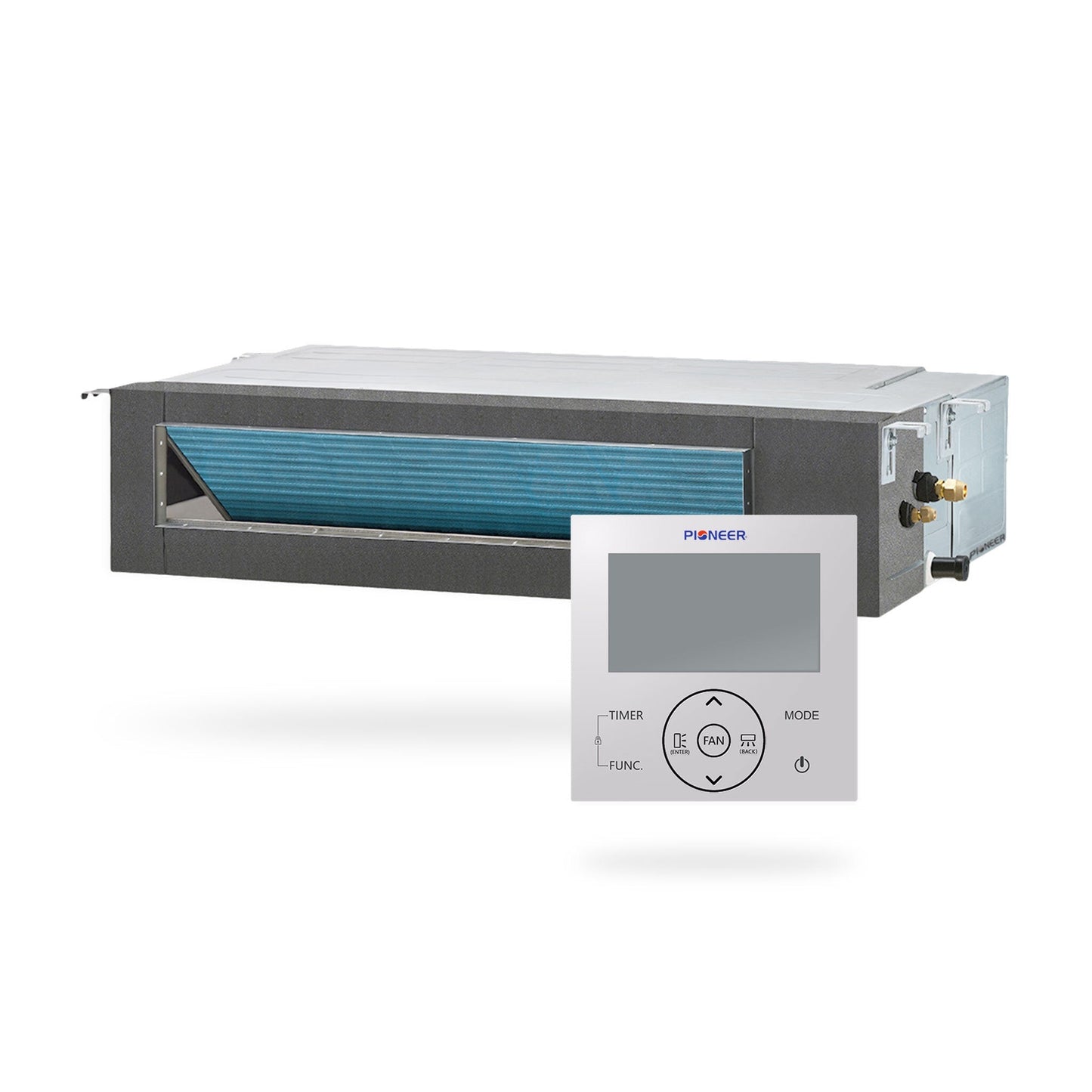

Pioneer Multi Zone 18,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - RT018GLSILCFHG-10S
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 18,000 BTU/h
-
Heating Capacity: 18,000 BTU/h
-
Suitable Area: 400~650 Sq.F
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 500/426/370/300/283 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 48/44/41/36/33 dB(A)
-
Product Dimensions (WDH): 35-1/2" x 19-1/4" x 7-7/8" Inches
-
Carton Dimensions (WDH): 44-1/8" x 21-7/8" x 9-7/8" Inches
-
Net / Gross Weight: 39.7 / 46.3 lbs
Compatibility

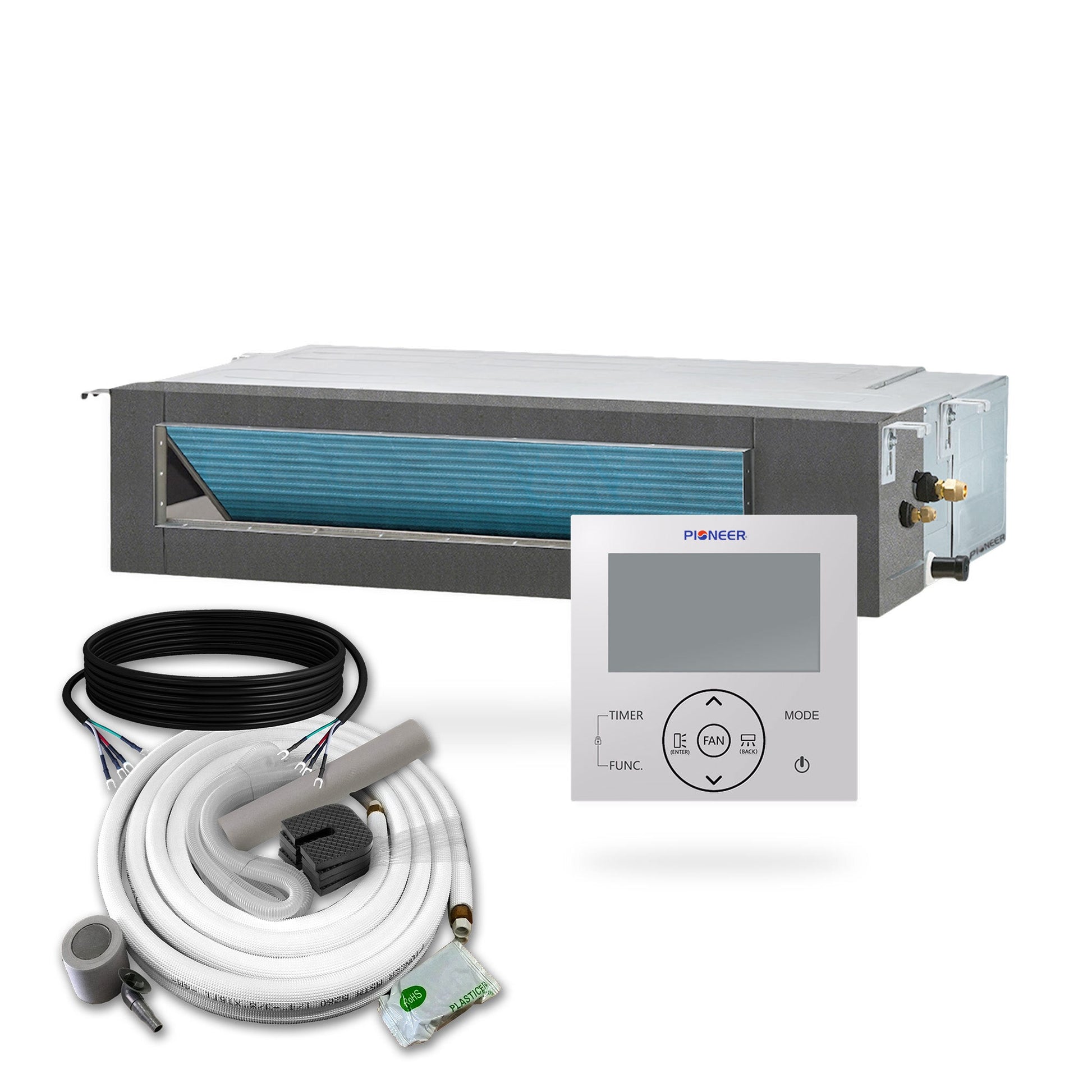

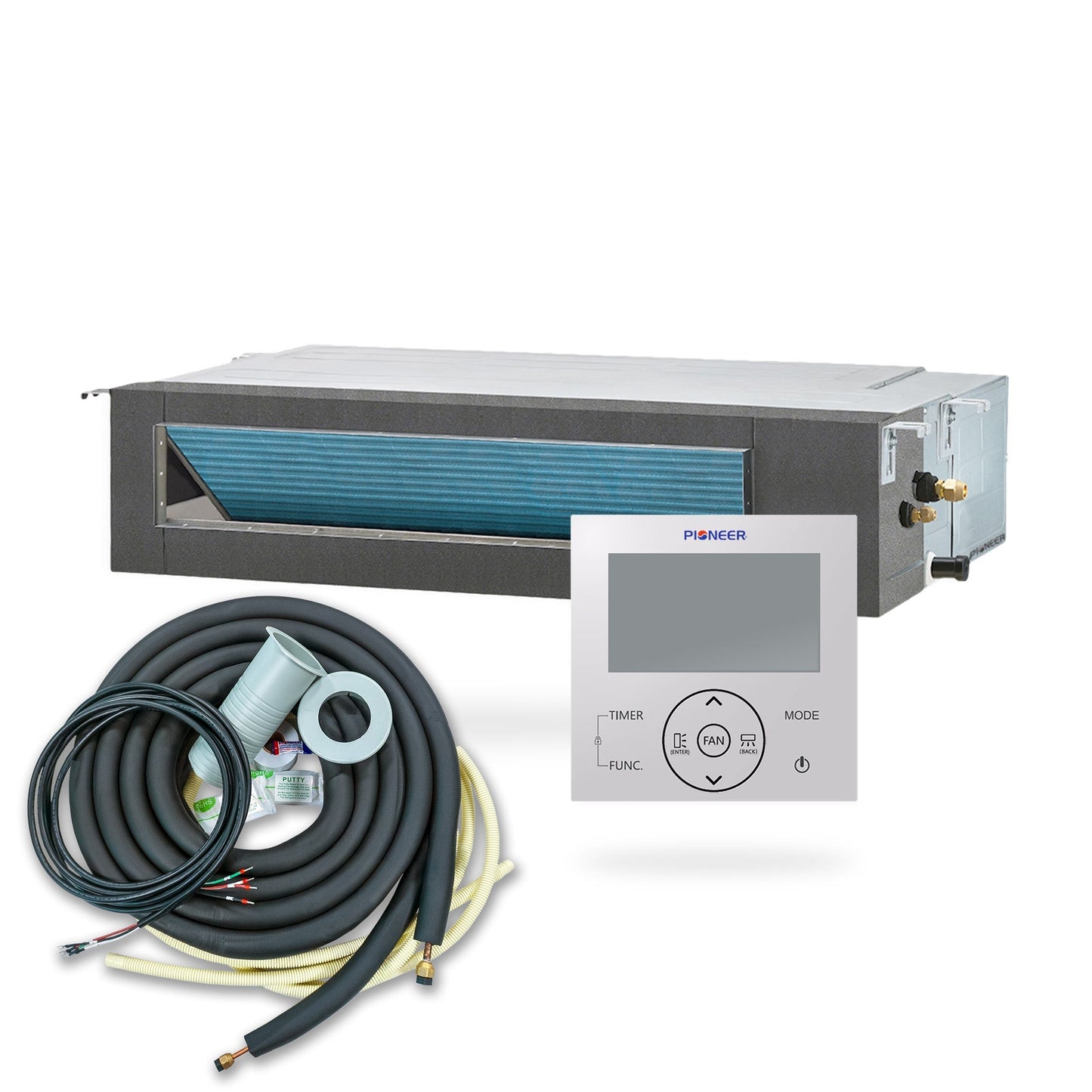

What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-
18,000 BTU ceiling-concealed indoor unit built for Pioneer multi-zone systems.
-
Ductable design allows discreet installation with hidden airflow distribution.
-
Quantum Ultra series with Inverter++ ensures energy-efficient, stable performance.
-
Wi-Fi enabled for remote access and smart home integration.
-
Ideal for medium-to-large rooms requiring concealed climate control.
Q&A
Q: Can this unit operate on its own?
A: No, it must be paired with a compatible Pioneer multi-zone outdoor section.
Q: Does it support both heating and cooling?
A: Yes, it functions as both AC and heat pump when connected to the system.
Q: Is it suitable for ducted installations?
A: Yes, it’s designed for concealed ceiling mounting with duct connections.
Maintenance Tips
-
Clean air filters regularly to maintain airflow and system efficiency.
-
Inspect ducts and vents to prevent dust or blockages.
-
Keep Wi-Fi controls updated for smooth connectivity.
-
Schedule yearly professional servicing for refrigerant and system checks.
